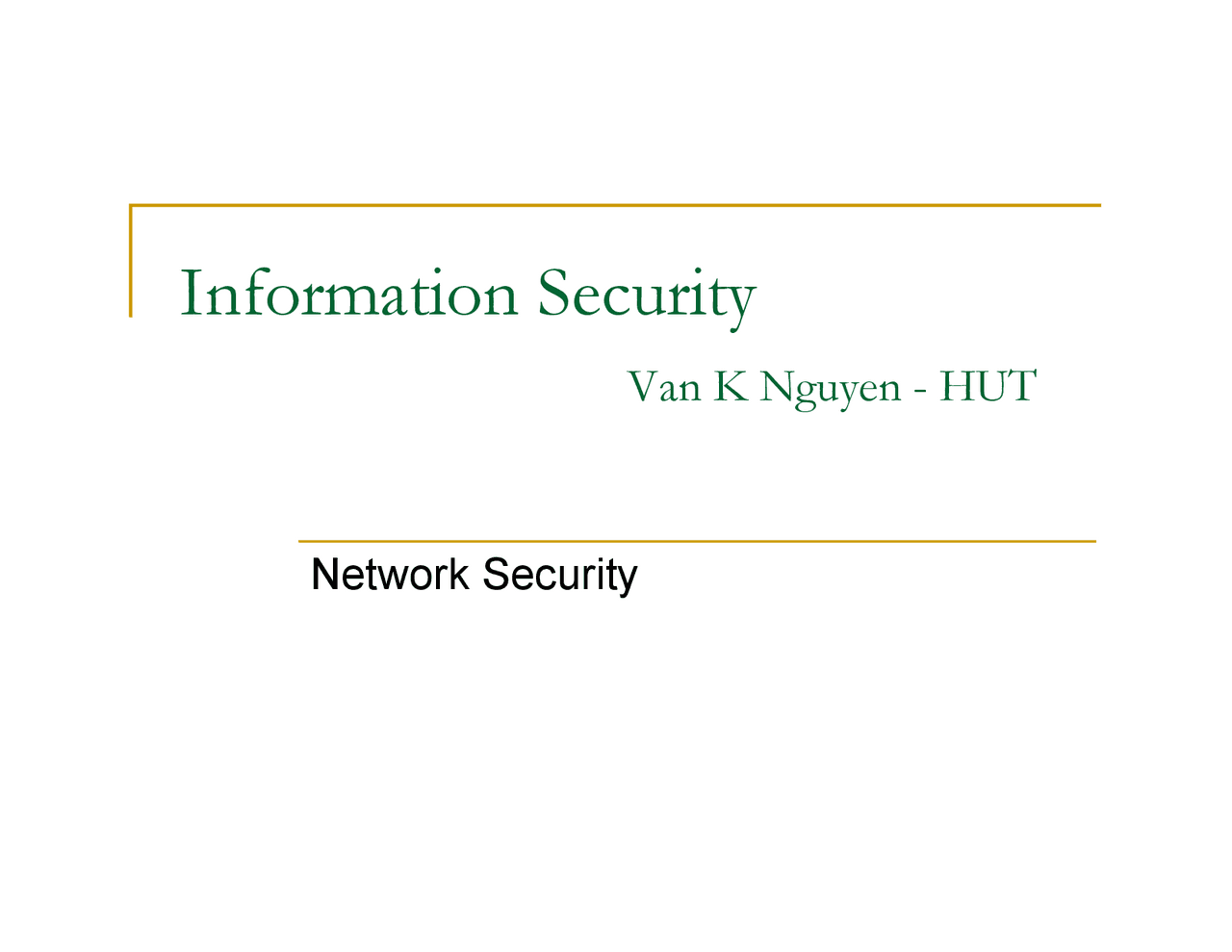

Information Security

Van K Nguyen - HUT

Network Security

Sep 2009 Information Security by Van K Nguyen Hanoi University of Technology

Transmission Control Protocol - TCP

Connection oriented protocol for a userprocess

Reliable

, full-duplex channel: acknowledgements,

retransmissions, timeouts

Sep 2009 Information Security by Van K Nguyen Hanoi University of Technology

The packets are delivered in the same order

Congestion control mechanisms

TCP 3-way handshake

The sequence numberx and y are random values that the other

Sep 2009 Information Security by Van K Nguyen Hanoi University of Technology

values that the other side need to

ack

by

increment (x+1 or y+1)

The connection onlyfully opened whenserver-side receivedclient’s ack

Why it works?

There is no authentication of the source ofthe packets

Addresses can be easily spoofed

Server needs to allocate a lot or resources

Sep 2009 Information Security by Van K Nguyen Hanoi University of Technology

Server needs to allocate a lot or resources while client doesn’t

Some measurements to the SYN attack

Configuration Optimization

At the server

Reduce the timeout to 10 seconds
Increase the size of the queue Sep 2009 Information Security by Van K Nguyen Hanoi University of Technology
Disable non-essential services, reducing the number ofports to be attacked

At all routers in the Internet

Block packets to the outside that have source addressesfrom outside the internal network

TCP Congestion Control

Source determines how much bandwidth is availablefor it to send, it starts slow and increases thewindow of send packet based on ACKS.

ACKS are also used to control the transmission of packets.

Sep 2009 Information Security by Van K Nguyen Hanoi University of Technology

packets.

Uses Additive Increase Multiplicative Decrease(AIMD)

Uses Retransmission Timeout (RTO) to avoidcongestion

TCP Congestion Control

All the attacker needs todo is generate a TCPflow to force the targetedTCP connection torepeatedly enter a retransmission timeout Sep 2009 Information Security by Van K Nguyen Hanoi University of Technology retransmission timeout state

Intro

Internet Protocol Security

IPsec

) is a

protocol

suite

for securing Internet Protocol (IP)

communications by authenticating and encryptingeach IP packet of a data stream.

Authentication/integrity Sep 2009 Information Security by Van K Nguyen Hanoi University of Technology Authentication/integrity

Confidentiality

Protection against replayed packets

Transparent to applications

below transport layer (TCP, UDP)

IETF IPSEC Working Group

Documented in RFCs and Internet drafts

Basics on IPSec

Protocols  Internet key exchange (IKE) : set up a security association (SA) with encryption and authentication keys to be used.  Authentication Header (AH): provides integrity and authenticationwithout confidentiality  Encapsulating Security Payload (ESP): provides confidentiality Sep 2009 Information Security by Van K Nguyen Hanoi University of Technology and can also provide integrity and authentication

Both AH/ESP can operate on two different modes  Transport-mode: encapsulates an upper-layer protocol (e.g. TCPor UDP) and prepends an IP header in clear  Tunnel-mode: encapsulates an entire IP datagram into newpacket adding a new IP header

Tunnel Mode

ESP in Tunnel Mode

encrypts and optionally authenticates the entireinner IP packet, including the inner IP header.

AH in Tunnel Mode

AH in Tunnel Mode

authenticates the entire inner IP packet andselected portions of the outer IP header.

Sep 2009 Information Security by Van K Nguyen Hanoi University of Technology

Security Associations

SA- the basis for building security functions into IP.

A security association is simply the bundle of algorithmselection and parameters (such as keys) that is beingused to encrypt and authenticate a particular flow in onedirection. SPI (Security Parameter Index) + IP destination address uniquely  SPI (Security Parameter Index) + IP destination address uniquely identifies a particular Security Association.

Therefore, in normal bi-directional traffic, the flows aresecured by a pair of security associations.  SAs are unidirectional, sender supplies SPI to receiver. Sep 2009 Information Security by Van K Nguyen Hanoi University of Technology

AH: Preventing Replay

When a SA is established, sender initializes sequence counter to 0.

Every time a packet is sent the counter is incremented and is set inthe sequence number in the AH header.

When sequence number 2

• 1 is reached, a new SA should be negotiated. Sep 2009 Information Security by Van K Nguyen Hanoi University of Technology

AH Authentication: Transport Mode Sep 2009

Information Security by Van K Nguyen Hanoi University of Technology
