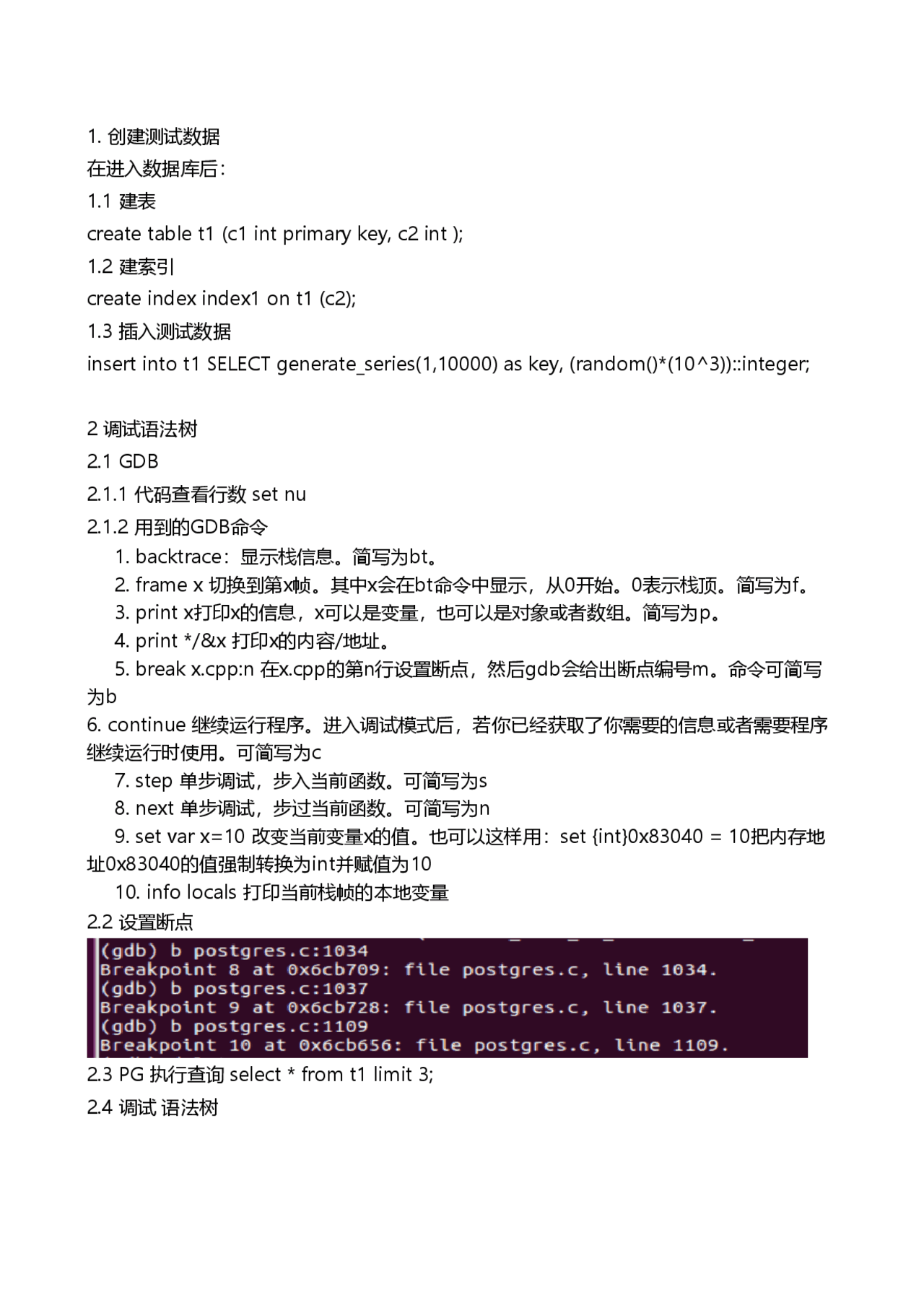

1.创建测试数据
在进入数据库后:
1.1建表
createtablet1(c1intprimarykey,c2int);
1.2建索引
createindexindex1ont1(c2);
1.3插入测试数据
insertintot1SELECTgenerate_series(1,10000)askey,(random()*(10^3))::integer;
2调试语法树
2.1GDB
2.1.1代码查看行数setnu
2.1.2用到的GDB命令
1.backtrace:显示栈信息。简写为bt。
2.framex切换到第x帧。其中x会在bt命令中显示,从0开始。0表示栈顶。简写为f。
3.printx打印x的信息,x可以是变量,也可以是对象或者数组。简写为p。
4.print*/&x打印x的内容/地址。
5.breakx.cpp:n在x.cpp的第n行设置断点,然后gdb会给出断点编号m。命令可简写
为b
6.continue继续运行程序。进入调试模式后,若你已经获取了你需要的信息或者需要程序
继续运行时使用。可简写为c
7.step单步调试,步入当前函数。可简写为s
8.next单步调试,步过当前函数。可简写为n
9.setvarx=10改变当前变量x的值。也可以这样用:set{int}0x83040=10把内存地
址0x83040的值强制转换为int并赋值为10
10.infolocals打印当前栈帧的本地变量
2.2设置断点
2.3PG执行查询select*fromt1limit3;
2.4调试语法树
pf3
pf4
pf5

Partial preview of the text

Download PostgreSQL Debugging with GDB: A Step-by-Step Guide and more Study notes Relational Database Management Systems (RDBMS) in PDF only on Docsity!

create table t1 (c1 int primary key, c2 int ); 1.2 建索引 create index index1 on t1 (c2); 1.3 插入测试数据 insert into t1 SELECT generate_series(1,10000) as key, (random()*(10^3))::integer;

2 调试语法树 2.1 GDB 2.1.1 代码查看行数 set nu 2.1.2 用到的GDB命令

  1. backtrace:显示栈信息。简写为bt。
  2. frame x 切换到第x帧。其中x会在bt命令中显示,从0开始。0表示栈顶。简写为f。
  3. print x打印x的信息,x可以是变量,也可以是对象或者数组。简写为p。
  4. print */&x 打印x的内容/地址。
  5. break x.cpp:n 在x.cpp的第n行设置断点,然后gdb会给出断点编号m。命令可简写 为b
  6. continue 继续运行程序。进入调试模式后,若你已经获取了你需要的信息或者需要程序 继续运行时使用。可简写为c
  7. step 单步调试,步入当前函数。可简写为s
  8. next 单步调试,步过当前函数。可简写为n
  9. set var x=10 改变当前变量x的值。也可以这样用:set {int}0x83040 = 10把内存地 址0x83040的值强制转换为int并赋值为
  10. info locals 打印当前栈帧的本地变量 2.2 设置断点

2.3 PG 执行查询 select * from t1 limit 3; 2.4 调试 语法树

其中 SelectStmt

FromClause

2.5 Query Tree 查询树调试

  1. GDB 调试 Sequence Scan 2.1 查看执行计划

打断点 :b SeqNext 执行SQL :select * from t1 limit 3;
