Del Operator: Gradient, Divergence, and Curl, Summaries of Mathematics

Aimst University Mathematics

The del operator is a vector calculus symbol used for compact notation. It is defined as the gradient operator (∇) which is the sum of partial derivatives with respect to x, y, and z axes. The gradient of a function results in a vector, while the divergence of a vector yields a scalar. The curl of a vector is expressed as the cross product of the gradient operator and the vector, resulting in a vector.

Typology: Summaries

2019/2020

Uploaded on 10/28/2021

penguin0718 🇲🇾

1 document

1 / 1

This page cannot be seen from the preview

Don't miss anything!

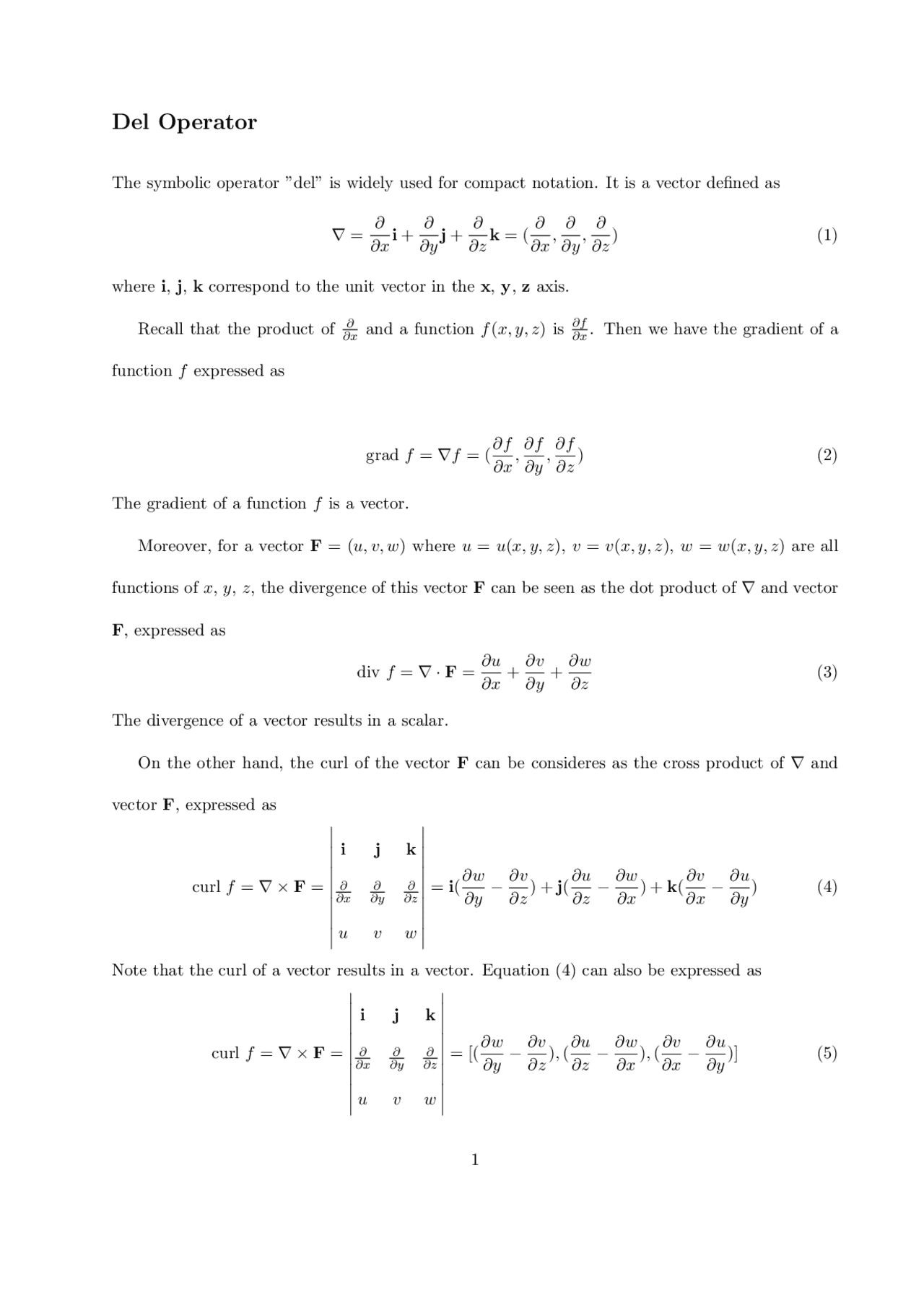

Del Operator

The symbolic operator ”del” is widely used for compact notation. It is a vector defined as

∇=∂

∂x i+∂

∂y j+∂

∂z k= ( ∂

∂x ,∂

∂y ,∂

∂z ) (1)

where i,j,kcorrespond to the unit vector in the x,y,zaxis.

Recall that the product of ∂

∂x and a function f(x, y, z ) is ∂ f

∂x . Then we have the gradient of a

function fexpressed as

grad f=∇f= (∂f

∂x ,∂f

∂y ,∂f

∂z ) (2)

The gradient of a function fis a vector.

Moreover, for a vector F= (u, v, w) where u=u(x, y, z), v=v(x, y , z), w=w(x, y, z) are all

functions of x,y,z, the divergence of this vector Fcan be seen as the dot product of ∇and vector

F, expressed as

div f=∇ · F=∂u

∂x +∂v

∂y +∂w

∂z (3)

The divergence of a vector results in a scalar.

On the other hand, the curl of the vector Fcan be consideres as the cross product of ∇and

vector F, expressed as

curl f=∇ × F=



i j k

∂

∂x

∂

∂y

∂

∂z

u v w



=i(∂w

∂y −∂v

∂z ) + j(∂u

∂z −∂w

∂x ) + k(∂v

∂x −∂u

∂y ) (4)

Note that the curl of a vector results in a vector. Equation (4) can also be expressed as

curl f=∇ × F=



i j k

∂

∂x

∂

∂y

∂

∂z

u v w



= [(∂w

∂y −∂v

∂z ),(∂u

∂z −∂w

∂x ),(∂v

∂x −∂u

∂y )] (5)

1
