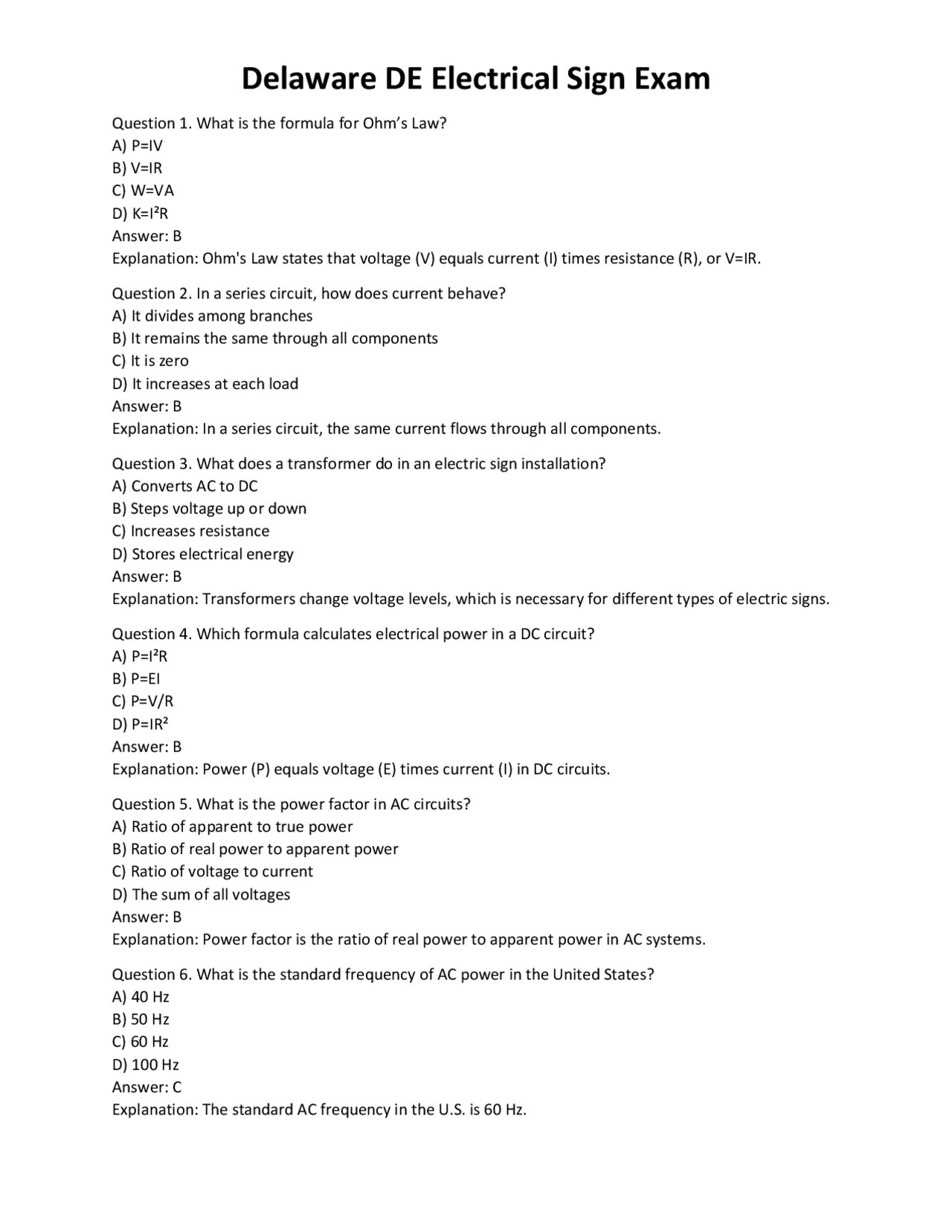

Question 1. What is the formula for Ohm’s Law? A) P=IV B) V=IR C) W=VA D) K=I²R Answer: B Explanation: Ohm's Law states that voltage (V) equals current (I) times resistance (R), or V=IR. Question 2. In a series circuit, how does current behave? A) It divides among branches B) It remains the same through all components C) It is zero D) It increases at each load Answer: B Explanation: In a series circuit, the same current flows through all components. Question 3. What does a transformer do in an electric sign installation? A) Converts AC to DC B) Steps voltage up or down C) Increases resistance D) Stores electrical energy Answer: B Explanation: Transformers change voltage levels, which is necessary for different types of electric signs. Question 4. Which formula calculates electrical power in a DC circuit? A) P=I²R B) P=EI C) P=V/R D) P=IR² Answer: B Explanation: Power (P) equals voltage (E) times current (I) in DC circuits. Question 5. What is the power factor in AC circuits? A) Ratio of apparent to true power B) Ratio of real power to apparent power C) Ratio of voltage to current D) The sum of all voltages Answer: B Explanation: Power factor is the ratio of real power to apparent power in AC systems. Question 6. What is the standard frequency of AC power in the United States? A) 40 Hz B) 50 Hz C) 60 Hz D) 100 Hz Answer: C Explanation: The standard AC frequency in the U.S. is 60 Hz.
Question 7. What is the main safety reason for grounding electrical equipment? A) To increase voltage B) To reduce current C) To prevent electric shock D) To store energy Answer: C Explanation: Grounding provides a safe path for fault current, reducing shock hazard. Question 8. Which NEC article primarily governs electric signs? A) Article 210 B) Article 600 C) Article 310 D) Article 250 Answer: B Explanation: NEC Article 600 covers the installation of electric signs and outline lighting. Question 9. What is the purpose of a disconnect switch for a sign? A) To increase brightness B) To allow safe maintenance C) To reduce power usage D) To change colors Answer: B Explanation: A disconnect switch isolates the sign for safe servicing. Question 10. How is conductor ampacity affected by ambient temperature? A) It increases B) It decreases C) It remains unchanged D) It fluctuates randomly Answer: B Explanation: Higher ambient temperatures reduce conductor ampacity due to increased resistance. Question 11. For exterior sign receptacles, what protection is required? A) AFCI B) GFCI C) Surge protector D) Overvoltage relay Answer: B Explanation: GFCI protection is required for exterior sign receptacles to prevent shock hazards. Question 12. How are raceways typically supported? A) Only at the ends B) As specified by the NEC C) Never required D) Only on horizontal runs Answer: B Explanation: The NEC specifies the maximum spacing for supports based on raceway type.
Question 19. What is required for sign transformers installed outdoors? A) No enclosure B) NEMA 3R enclosure C) NEMA 1 enclosure D) No protection Answer: B Explanation: Outdoor transformers must be in weather-resistant (NEMA 3R) enclosures. Question 20. What is the purpose of bonding metal parts in a sign? A) For appearance B) To increase current C) Prevent shock hazards D) Increase illumination Answer: C Explanation: Bonding ensures all metal parts are at the same potential, reducing shock risk. Question 21. Which conductor color is typically used for equipment grounding? A) Red B) Black C) White D) Green Answer: D Explanation: Green is the standard color for grounding conductors. Question 22. What is the minimum working space in front of a sign disconnect? A) 18 inches B) 24 inches C) 30 inches D) 36 inches Answer: C Explanation: The NEC requires at least 30 inches of working space in front of electrical equipment. Question 23. What type of raceway is suitable for direct burial? A) EMT B) PVC Schedule 40 C) FMC D) AC cable Answer: B Explanation: PVC Schedule 40 is rated for direct burial applications. Question 24. When must a sign circuit be derated? A) Always B) When in free air C) When more than three conductors are in a raceway D) Never Answer: C Explanation: NEC requires derating when more than three current-carrying conductors share a raceway.
Question 25. What is the maximum voltage drop allowed for a branch circuit to a sign? A) 1% B) 3% C) 5% D) 10% Answer: B Explanation: The recommended maximum voltage drop is 3% for branch circuits. Question 26. What does "outline lighting" refer to? A) Lighting inside a sign B) Lighting around the perimeter of a structure C) Flashing lights D) Emergency lighting Answer: B Explanation: Outline lighting is installed to trace the outline of a structure. Question 27. What is a skeleton neon sign? A) Neon tubing inside a box B) Exposed neon tubing forming letters or shapes C) LED strip lighting D) Incandescent lamps Answer: B Explanation: Skeleton neon signs use exposed tubing shaped to form letters or designs. Question 28. Which device is used to limit the current in a neon sign circuit? A) Circuit breaker B) Transformer C) Ballast D) Fuse Answer: C Explanation: Ballasts regulate current in neon and fluorescent circuits. Question 29. What is the minimum rating for a sign branch circuit? A) 10A B) 15A C) 20A D) 30A Answer: B Explanation: NEC requires a minimum 15A circuit for signs. Question 30. What is required for signs installed in wet locations? A) No protection B) Enclosures listed for wet locations C) Any box can be used D) Open wiring Answer: B Explanation: All enclosures and wiring methods must be rated for wet locations.
Question 37. What is the major risk when working on a live sign circuit? A) Overheating B) Electrical shock C) High brightness D) False advertising Answer: B Explanation: Working on live circuits exposes workers to potentially lethal electrical shock. Question 38. What type of switch is required as a sign disconnect? A) Snap switch B) Knife switch C) Lockable in the open position D) Dimmer switch Answer: C Explanation: The disconnect must be lockable in the open (off) position for safety. Question 39. What does NEC Article 250 address? A) Conductor ampacity B) Grounding and bonding C) Circuit breakers D) Sign brightness Answer: B Explanation: Article 250 covers the requirements for grounding and bonding electrical systems. Question 40. Which is an appropriate PPE item for electrical sign installation? A) Cotton gloves B) Insulated gloves C) Leather sandals D) Plastic apron Answer: B Explanation: Insulated gloves protect against electrical shock during installation. Question 41. What is the importance of a sign's nameplate data? A) For advertising B) For circuit sizing C) For color selection D) For font choice Answer: B Explanation: Nameplate data provides electrical requirements necessary for proper circuit sizing. Question 42. What type of ladder is safest for electrical work on signs? A) Wooden B) Aluminum C) Fiberglass D) Steel Answer: C Explanation: Fiberglass ladders are non-conductive and safest for electrical work.
Question 43. What must be done if a sign disconnect is not visible from the sign? A) Nothing B) Provide a lockable disconnect C) Use a larger circuit breaker D) Install two disconnects Answer: B Explanation: If not visible, the disconnect must be lockable in the open position. Question 44. What is the purpose of a time switch on a sign? A) To increase voltage B) To automatically control sign operation C) To change sign color D) To dim the sign Answer: B Explanation: Time switches automate sign operation based on a set schedule. Question 45. What type of enclosure is required for sign equipment in damp locations? A) NEMA 1 B) NEMA 3 C) NEMA 4 D) NEMA 7 Answer: B Explanation: NEMA 3 enclosures are weather-resistant and suitable for damp locations. Question 46. How is voltage drop minimized in a sign circuit? A) Use longer wires B) Use larger conductors C) Increase circuit length D) Use smaller conductors Answer: B Explanation: Larger conductors have less resistance and reduce voltage drop. Question 47. What is the importance of labeling the sign disconnect? A) For advertising B) To ensure disconnect is identified C) To increase sign brightness D) To change sign colors Answer: B Explanation: Proper labeling ensures the disconnect can be quickly and easily identified during maintenance. Question 48. What is a demand factor in load calculations? A) The maximum possible load B) The ratio of actual to maximum load C) The minimum load D) The sum of all loads
D) Use uninsulated wire Answer: B Explanation: If fill exceeds limits, a larger conduit is required to prevent overheating. Question 55. What is the main purpose of a sign transformer enclosure? A) To increase heat B) To protect from weather and damage C) To increase voltage D) To store excess wire Answer: B Explanation: The enclosure protects the transformer from physical and weather-related damage. Question 56. What is required when mounting a sign on a metal pole? A) No insulation B) Bonding and grounding C) Only paint is needed D) Wooden spacers Answer: B Explanation: Metal poles must be bonded and grounded to prevent shock hazards. Question 57. What is the function of a flasher in a sign circuit? A) To increase voltage B) To create flashing effects C) To reduce power consumption D) To measure voltage Answer: B Explanation: Flashers control the on/off operation of sign lamps for visual effect. Question 58. What is the minimum insulation rating for conductors in a 120V sign circuit? A) 300V B) 600V C) 1000V D) 200V Answer: B Explanation: Conductors must have insulation rated for at least 600V. Question 59. What must be done after installing a new sign circuit? A) Nothing B) Test and inspect for compliance C) Increase voltage D) Install larger lamps Answer: B Explanation: Testing and inspection ensure the circuit is safe and meets code requirements. Question 60. What is required for portable signs connected by cord and plug? A) No ground needed B) Must be grounded and listed
C) Use any available cord D) No OCPD required Answer: B Explanation: Portable signs must be grounded and listed for safety. Question 61. What is a sign cabinet? A) The transformer B) The enclosure housing sign components C) The mounting pole D) The sign face Answer: B Explanation: The cabinet is the enclosure that houses transformers, wiring, and sometimes the sign face. Question 62. What is the main function of a sign's outline lighting system? A) To display messages B) To illuminate the sign face C) To highlight architectural features D) To flash rapidly Answer: C Explanation: Outline lighting is typically used to accentuate the edges of a building or structure. Question 63. What is the minimum required clearance from high-voltage neon wiring to combustible materials? A) 1/4 inch B) 1/2 inch C) 1 inch D) 2 inches Answer: C Explanation: A minimum of 1 inch clearance is required to prevent ignition of combustibles. Question 64. What is the purpose of a service disconnect? A) To increase current B) To isolate the building electrical service C) To change sign colors D) To dim the sign Answer: B Explanation: The service disconnect isolates the building’s electrical system for maintenance or emergencies. Question 65. What must be provided for servicing high-mounted signs? A) Nothing B) Permanent means of access C) Only a ladder D) Only a flashlight Answer: B Explanation: Permanent access, such as a catwalk, is required for servicing high-mounted signs.
Question 72. What is required for neon transformer secondary wiring? A) No insulation B) Use only white wire C) High-voltage rated, properly insulated wire D) Use extension cords Answer: C Explanation: Secondary wiring must be rated for the high voltage of neon circuits. Question 73. What is the minimum working clearance in front of sign electrical equipment? A) 12 inches B) 24 inches C) 30 inches D) 48 inches Answer: C Explanation: At least 30 inches of clearance is required for safety and accessibility. Question 74. What is a combination circuit? A) Only series B) Only parallel C) Both series and parallel D) Only one load Answer: C Explanation: Combination circuits include both series and parallel components. Question 75. What must be done when installing signs in classified hazardous locations? A) Use regular wiring B) Use wiring methods and equipment rated for hazardous locations C) Use any available material D) Only use wood Answer: B Explanation: Only equipment and wiring approved for hazardous areas may be used. Question 76. What is the function of a sign's photoelectric control? A) Color changing B) Automatically turns sign on/off based on ambient light C) Voltage boosting D) Dimming Answer: B Explanation: Photoelectric controls sense light and switch signs on or off accordingly. Question 77. What is the NEC requirement for disconnect location for signs? A) Anywhere B) Within sight of the sign C) In a locked room D) On the roof Answer: B Explanation: The disconnect must be within sight of the sign or lockable if not visible.
Question 78. What is the maximum rating for a branch circuit supplying a sign? A) 10A B) 15A C) 20A D) 30A Answer: C Explanation: 20A is the maximum branch circuit rating to supply signs, per NEC. Question 79. What is the function of a lockout/tagout (LOTO) device? A) Increase voltage B) Prevent accidental energization during maintenance C) Change sign brightness D) Store energy Answer: B Explanation: LOTO devices ensure circuits remain de-energized during servicing. Question 80. What is a "listed" sign component? A) One approved for use by a recognized testing lab B) Any homemade device C) Any component D) Only foreign-made Answer: A Explanation: “Listed” means the component is approved for safety by a recognized agency (e.g., UL). Question 81. What is required for sign supports embedded in concrete? A) No protection B) Grounding and bonding C) Only paint D) Wooden blocks Answer: B Explanation: Metal supports in concrete must be grounded and bonded. Question 82. What is the first step when troubleshooting a sign that won't light? A) Replace the sign face B) Check the power supply and disconnect C) Increase voltage D) Change the mounting Answer: B Explanation: Always verify power is present and disconnect is on before further troubleshooting. Question 83. What is the requirement for conductor insulation in cold climates? A) Use any insulation B) Use insulation rated for low temperatures C) Only bare wire D) No requirement Answer: B Explanation: Insulation must be suitable for the lowest expected temperature.
Question 90. Where must the sign disconnect be located for roof-mounted signs? A) At ground level only B) Within sight of the sign C) In the basement D) In the parking lot Answer: B Explanation: The disconnect must be within sight of the sign it controls. Question 91. What is a "weatherproof" enclosure? A) Any box B) One listed for protection from rain and moisture C) Painted only D) Only indoors Answer: B Explanation: Weatherproof enclosures protect electrical components from rain and moisture. Question 92. What is the purpose of conduit bushings in sign installations? A) To increase voltage B) Protect wire insulation from sharp edges C) Add color D) Store wire Answer: B Explanation: Bushings prevent insulation damage where wires pass through conduit ends. Question 93. What is the requirement for grounding electrodes at a sign location? A) Never required B) Only at utility pole C) As required by NEC Article 250 D) Only for neon signs Answer: C Explanation: Grounding electrodes must be installed in accordance with Article 250 requirements. Question 94. What is required for flexible metal conduit (FMC) in outdoor sign installations? A) No protection B) Must be listed for outdoor use C) Only painted D) Never used Answer: B Explanation: FMC outdoors must be specifically listed for such use. Question 95. What is the maximum distance a sign transformer can be from the sign? A) 1 foot B) 10 feet C) As specified by the manufacturer D) No limit Answer: C Explanation: Manufacturer specifications determine maximum distance due to voltage drop and safety.
Question 96. What is the function of a sign’s mounting bracket? A) To increase brightness B) Secure sign to structure C) Store wire D) Add color Answer: B Explanation: Mounting brackets provide secure attachment to buildings or poles. Question 97. What is required for wiring methods in wet locations? A) No protection B) Methods listed for wet locations C) Only tape D) Use bare wire Answer: B Explanation: Only wiring methods listed for wet locations are allowed. Question 98. What is a "neutral conductor" in a sign circuit? A) Hot conductor B) Equipment grounding C) Return path for current D) Control wire Answer: C Explanation: The neutral returns current to the source in a single-phase circuit. Question 99. What is the purpose of conduit straps? A) Increase voltage B) Secure conduit to surfaces C) Store wire D) Change sign color Answer: B Explanation: Straps secure conduit to building surfaces for support. Question 100. What is required for servicing sign circuit breakers? A) No PPE B) De-energize and use appropriate PPE C) Increase load D) Use any available tool Answer: B Explanation: Always de-energize and use PPE to prevent shock or arc flash. Question 101. What is the requirement for underground feeder cable to signs? A) No burial depth B) Listed for direct burial and proper depth C) Any cable can be used D) Only bare wire Answer: B Explanation: Underground cables must be listed for burial and installed at proper depth.
Question 108. What must be done before working on a sign circuit? A) Increase voltage B) De-energize and lockout/tagout C) Change sign face D) Use smaller wire Answer: B Explanation: Always de-energize and lockout before servicing for safety. Question 109. What is the minimum size for a pull box used in sign wiring? A) Determined by wire size and number of bends B) Always 4x4 inches C) Any size D) Only round boxes Answer: A Explanation: Pull box size is determined by conductor size and box fill requirements. Question 110. What is required for sign wiring exposed to physical damage? A) Tape only B) Rigid metal conduit or other approved protection C) No protection D) Only use THHN Answer: B Explanation: Wiring must be protected by approved raceways in exposed locations. Question 111. What is the purpose of a sign’s "outline lighting"? A) Increase sign brightness B) Illuminate the perimeter of a structure C) Change color D) Reduce power Answer: B Explanation: Outline lighting is used to highlight the architectural outline of a building. Question 112. What is the correct action if a sign transformer is overheating? A) Ignore it B) Turn off and investigate cause C) Increase voltage D) Change sign face Answer: B Explanation: Overheating transformers should be shut down and inspected for faults. Question 113. What is the main reason for inspection of new sign installations? A) Improve appearance B) Ensure compliance and safety C) Change color D) Increase brightness Answer: B Explanation: Inspections verify that installations meet safety and code requirements.
Question 114. What is required for LED sign installations? A) Any driver B) UL-listed LED drivers and components C) Only incandescent lamps D) No driver needed Answer: B Explanation: Only UL-listed drivers and components are allowed in LED signs. Question 115. What is the difference between a branch circuit and a feeder? A) No difference B) Branch circuit supplies end-use equipment, feeder supplies branch circuits C) Feeder is smaller D) Branch is always underground Answer: B Explanation: Feeders supply branch circuits; branch circuits supply final devices. Question 116. What is the requirement for overcurrent protection of sign circuits? A) None required B) Must not exceed conductor ampacity C) Must always be 30A D) Only for neon signs Answer: B Explanation: OCPDs must be sized not to exceed conductor ampacity. Question 117. What is the main hazard of moisture in sign enclosures? A) Improved brightness B) Corrosion and short circuits C) Increased voltage D) Only aesthetic Answer: B Explanation: Moisture can cause corrosion and create dangerous short circuits. Question 118. What is the requirement for time switches in sign circuits? A) Any timer B) Must be listed and rated for the load C) Only mechanical timers D) No code requirement Answer: B Explanation: Time switches must be listed and appropriate for the sign load. Question 119. What is the minimum clearance above grade for outdoor sign conductors? A) 6 inches B) 10 feet C) 18 inches D) 30 inches Answer: B Explanation: Outdoor conductors must be at least 10 feet above grade.
