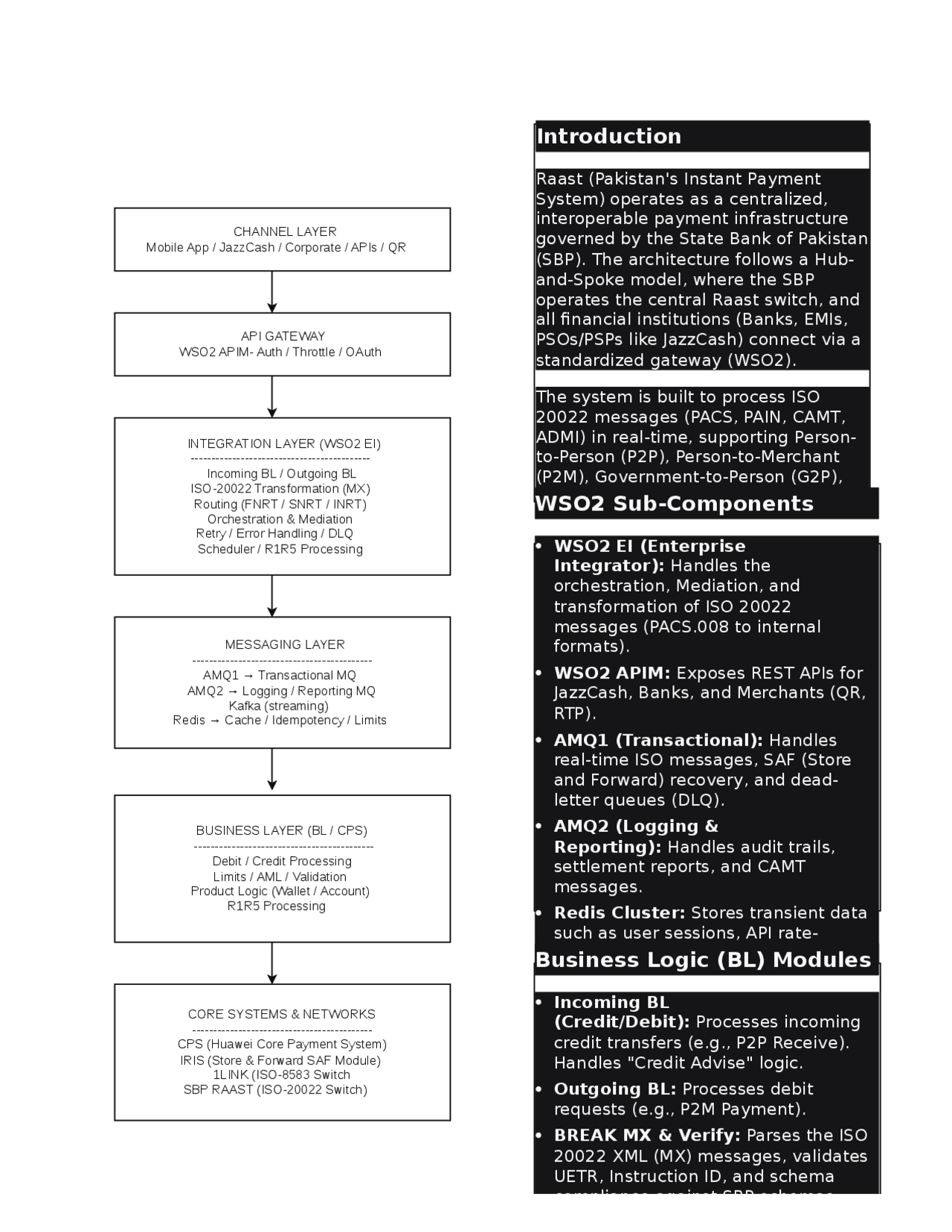

CHANNEL LAYER

Mobile App / JazzCash / Corporate / APIs / QR

API GATEWAY

WSO2 APIM- Auth / Throttle / OAuth

INTEGRATION LAYER (WSO2 EI)

-------------------------------------------

Incoming BL / Outgoing BL

ISO-20022 Transformation (MX)

Routing (FNRT / SNRT / INRT)

Orchestration & Mediation

Retry / Error Handling / DLQ

Scheduler / R1R5 Processing

MESSAGING LAYER

-------------------------------------------

AMQ1 → Transactional MQ

AMQ2 → Logging / Reporting MQ

Kafka (streaming)

Redis → Cache / Idempotency / Limits

BUSINESS LAYER (BL / CPS)

-------------------------------------------

Debit / Credit Processing

Limits / AML / Validation

Product Logic (Wallet / Account)

R1R5 Processing

CORE SYSTEMS & NETWORKS

-------------------------------------------

CPS (Huawei Core Payment System)

IRIS (Store & Forward SAF Module)

1LINK (ISO-8583 Switch

SBP RAAST (ISO-20022 Switch)

Introduction

Raast (Pakistan's Instant Payment

System) operates as a centralized,

interoperable payment infrastructure

governed by the State Bank of Pakistan

(SBP). The architecture follows aHub-

and-Spoke model, where the SBP

operates the central Raast switch, and

all ﬁnancial institutions (Banks, EMIs,

PSOs/PSPs like JazzCash) connect via a

standardized gateway (WSO2).

The system is built to processISO

20022messages (PACS, PAIN, CAMT,

ADMI) in real-time, supporting Person-

to-Person (P2P), Person-to-Merchant

(P2M), Government-to-Person (G2P),

and Request-to-Pay (RTP) use cases.

WSO2 Sub-Components

WSO2 EI (Enterprise

Integrator):Handles the

orchestration, Mediation, and

transformation of ISO 20022

messages (PACS.008 to internal

formats).

WSO2 APIM:Exposes REST APIs for

JazzCash, Banks, and Merchants (QR,

RTP).

AMQ1 (Transactional):Handles

real-time ISO messages, SAF (Store

and Forward) recovery, and dead-

letter queues (DLQ).

AMQ2 (Logging &

Reporting):Handles audit trails,

settlement reports, and CAMT

messages.

Redis Cluster:Stores transient data

such as user sessions, API rate-

limiting counters, and distributed

locks.

Business Logic (BL) Modules

Incoming BL

(Credit/Debit):Processes incoming

credit transfers (e.g., P2P Receive).

Handles "Credit Advise" logic.

Outgoing BL:Processes debit

requests (e.g., P2M Payment).

BREAK MX & Verify:Parses the ISO

20022 XML (MX) messages, validates

UETR, Instruction ID, and schema

compliance against SBP schemas

Discover Study Guides, Projects, Research of Banking and Finance Punjab University (PU)

Partial preview of the text

Download DETAIL ENVIRONMENT ARCHITETCURE OF WSO2 and more Study Guides, Projects, Research Banking and Finance in PDF only on Docsity!

CHANNEL LAYER

Mobile App / JazzCash / Corporate / APIs / QR API GATEWAY WSO2 APIM- Auth / Throttle / OAuth INTEGRATION LAYER (WSO2 EI)

Incoming BL / Outgoing BL ISO-20022 Transformation (MX) Routing (FNRT / SNRT / INRT) Orchestration & Mediation Retry / Error Handling / DLQ Scheduler / R1R5 Processing MESSAGING LAYER

AMQ1 → Transactional MQ AMQ2 → Logging / Reporting MQ Kafka (streaming) Redis → Cache / Idempotency / Limits BUSINESS LAYER (BL / CPS)

Debit / Credit Processing Limits / AML / Validation Product Logic (Wallet / Account) R1R5 Processing CORE SYSTEMS & NETWORKS

CPS (Huawei Core Payment System) IRIS (Store & Forward SAF Module) 1LINK (ISO-8583 Switch SBP RAAST (ISO-20022 Switch)

Introduction

Raast (Pakistan's Instant Payment

System) operates as a centralized,

interoperable payment infrastructure

governed by the State Bank of Pakistan

(SBP). The architecture follows a Hub-

and-Spoke model, where the SBP

operates the central Raast switch, and

all financial institutions (Banks, EMIs,

PSOs/PSPs like JazzCash) connect via a

standardized gateway (WSO2).

The system is built to process ISO

20022 messages (PACS, PAIN, CAMT,

ADMI) in real-time, supporting Person-

to-Person (P2P), Person-to-Merchant

(P2M), Government-to-Person (G2P),

WSO2 Sub-Components^ and Request-to-Pay (RTP) use cases.

WSO2 EI (Enterprise

Integrator): Handles the

orchestration, Mediation, and

transformation of ISO 20022

messages (PACS.008 to internal

formats).

WSO2 APIM: Exposes REST APIs for

JazzCash, Banks, and Merchants (QR,

RTP).

AMQ1 (Transactional): Handles

real-time ISO messages, SAF (Store

and Forward) recovery, and dead-

letter queues (DLQ).

AMQ2 (Logging &

Reporting): Handles audit trails,

settlement reports, and CAMT

messages.

Redis Cluster: Stores transient data

such as user sessions, API rate-

limiting counters, and distributed

locks.

Business Logic (BL) Modules

Incoming BL

(Credit/Debit): Processes incoming

credit transfers (e.g., P2P Receive).

Handles "Credit Advise" logic.

Outgoing BL: Processes debit

requests (e.g., P2M Payment).

BREAK MX & Verify: Parses the ISO

20022 XML (MX) messages, validates

UETR, Instruction ID, and schema

compliance against SBP schemas

compliance against SBP schemas.

R1/R5 CPS: Routing logic to

determine if the transaction is On-Us

(R1), Off-Us Raast (R5), or Off-Us 1-

Link.

APP/CHANNEL

CPS

DEBIT

SBP

ENDPOINT

WSO2 APIM

TRANSFORM

PACS 008

RIR

WSO2 EI

OUTGOING BL

RESPONSE

PACS 002 ASYNC

JAZZCASH

P2P

- INCOMING BTC

- OUTGOING CTB

P2M

- STATIC QR

- DYNAMIC QR

- TILL PAYMENTS

- REQUEST TO PAY (RTP)

RTP FLOWS

- REQUEST (PAIN.013) → RESPONSE → PAYMENT EXECUTION

ONUS

- INTERNAL CPS PROCESSING (NO SBP HIT)

CATEGORY USE CASE DIRECTION FLOW PATH

P2P Peer-to-Peer Transfer (BTC) INCOMING JazzCash -> SBP -> BL (Credit) -> R5 -> CPS P2P Peer-to-Per Transfer (CTB) OUTGOING App -> EI -> CPS -> SBP -> JazzCash P2M Static / Dynamic QR / Till Payment INCOMING Merchant App -> WSO2 -> BL -> R1/R5 -> SBP P2M Static / Dynamic QR / Till Payment OUTGOING Consumer App -> EI -> CPS -> SBP -> Merchant Bank RTP Request to Pay (Bill/Invoice) OUTGOING Biller -> SBP -> WSO2 -> Consumer App B2B Bulk Disbursement (G2P/ITPS) INCOMING Corporate -> IBFT -> CPS -> IRIS -> 1Link

WSO2 EI

→ SEND PACS.

→ STORE IN MQ (CORRELATION ID)

SBP

→ PROCESS

→ SEND PACS.002 (ASYNC CALLBACK)

WSO2 EI

→ CORRELATE RESPONSE

→ UPDATE CPS

IRIS SAF

PIN

INITIATE

CPS

RETRY ENGINE

SBP 1LINK

FEATURES GUARANTEED DELIVERY RETRY WITH EXPONENTIAL BACKOFF OFFLINE HANDLING

PIN (Persist): Transaction logged to IRIS Store Module.
Initiate: WSO2 sends to CPS.
CPS: Processes.
IRIS (Store Module): If downstream (1Link/Member Bank) is down, message is queued (AMQ1) and retried.

WSO2 EI

├── RETRY QUEUE (AMQ1)

├── DEAD LETTER QUEUE (DLQ)

├── IDEMPOTENCY CHECK (REDIS)

└── ALERTING (ELK / GRAFANA)

RETRY STRATEGY

├──IMMEDIATE RETRY (X3)

├──DELAYED RETRY

└──MANUAL REPLAY FROM DLQ

Retry Policy: Exponential backoff (3-5 retries).
DLQ (Dead Letter Queue): Failed transactions after max retries (requires manual intervention or CAMT.028 rejection).
Async Handling: PACS.002 sent immediately for acceptance; PACS.008 processed async.

EACH ENVIRONMENT

WSO2 APIM CLUSTER

WSO2 EI CLUSTER

AMQ CLUSTER (2 LAYERS)

REDIS CLUSTER

DB CLUSTER (ORACLE / MYSQL)

ELK STACK

LOAD BALANCER (F5 / NGINX)

ACTIVE - ACTIVE CLUSTERS

MULTI - AZ DEPLOYMENT

HA DESIGN

DR STRATEGY

ACTIVE-PASSIVE OR ACTIVE-ACTIVE

DATA REPLICATION (DB + REDIS)

RPO ≈ 0 / RTO < FEW MINUTES

Middleware Topology (WSO2 Infrastructure) A highly redundant, enterprise-grade middleware setup operating across 34 machines per environment. Environments: Production (34 Nodes) | Disaster Recovery (34 Nodes) | High Availability (34 Nodes) Component Breakdown: WSO2 EI (Enterprise Integrator): Manages Non-functional APIs/CAS/TF, Logging & Reporting, Incoming/Outgoing Business Logic, Break MX & Verify Logic, Schedulers, and R1R5 integration. WSO2 APIM: Dedicated API Gateway for Raast API Management. WSO2 AMQ1: Message Queue dedicated to Transactional data. WSO2 AMQ2: Message Queue dedicated to Logging & Reporting. Redis Cluster: In-memory data store for caching, rate limiting, and session management. SBP Endpoint Server: A dedicated WSO2 server block handling Non-functional APIs, In/Out Business Logic, and Schedulers directly interacting with the State Bank. WSO2 CLUSTER PR / DR / HA

WSO2 EI 6.5.

NON-FUNCTIONAL APIs - CAS / TF ICOMING BL - CREDIT / DEBIT LOGIC OUTGOING BL - CONNECT / TRANSFORM / ROUTE BREAK MX & VERIFY - PARSER LOGGING AND REPORTING - AMQ2 CONNECTED SCHEDULARS NON-FUNCTIONAL - APIs/CAS/TF

SBP GATEWAY

→ WSO2 (DEDICATED NODE)

- NON-FUNCTIONAL APIS

- INCOMING BL

- OUTGOING BL

- SCHEDULER

LEGACY/ADJACENGT

SYSTEMS PURPOSE^ FLOWS^ TRANSACTION TYPES

1-Link (IBFT - ISO

Credit Advice for Bank Transfers (Fallback when member not on Raast or for specific use cases). Inquiry: Title Fetch + Beneficiary Limit Check. Payment: App -> CPS -> IRIS -> (SAF) -> 1-Link -> Member Bank. RAAST Bank Transfer / Other Wallet 1LINK Bank Transfer / Other Transfer RAAST G2P (Disbursement / ITPS) Bulk payments (Salaries, Dividends, Social Welfare). Corporate Client -> IBFT -> CPS -> IRIS -> 1Link (Beneficiary Bank). RAAST LMS (Lending & Scoring) Credit scoring based on transactional history.^ Whitelisting customers for overdrafts or loans against Raast cashflows.

INHOUSE MMBL

REQUEST

CPS

RESPONSE

IRIS

CORPORATE

CPS

1LINK

BENEFICIARY BANK

METRIC EXAMPLE

TPS 2000 - 5000

FTPS 500 - 1500

TPS PLANNING

COMPONENT NODES

WSO2 EI 8 - 12

APIM 4 - 6

AMQ 4 - 6

REDIS 6 (CLUSTER)

INFRASTRUCTURE

MEMORY

EI NODE: 8–16 GB

APIM NODE: 8 GB

REDIS: HIGH RAM (IN-MEMORY)

PREREQUISITES Truststore /repository/resources/security/client-truststore.jks Default password wso2carbon Certificates provided by SBP / 1LINK snrt_root.cer snrt_intermediate.cer snrt_server.cer (sometimes optional) Import Certificates Import Root CA keytool -importcert -alias snrt-root-ca -file snrt_root.cer -keystore client-truststore.jks -storepass wso2carbon -noprompt Import Intermediate CA keytool -importcert -alias snrt-intermediate-ca -file snrt_intermediate.cer -keystore client-truststore.jks -storepass wso2carbon -noprompt Import Server Certificate keytool -importcert -alias snrt-server-cert -file snrt_server.cer -keystore client-truststore.jks -storepass wso2carbon -noprompt Verify Certificates keytool -list -v -keystore client-truststore.jks -storepass wso2carbon Alias names (snrt-root-ca, etc.) Validity dates Issuer chain Verify Specific Alias keytool -list -v -keystore client-truststore.jks -storepass wso2carbon -alias snrt-root-ca Certificate Already Exists Delete old entry first keytool -delete -alias snrt-root-ca -keystore client-truststore.jks -storepass wso2carbon Then import again. If You Are Using Your Backup File client-truststore.jks.bak-SNRT OPTION A cp client-truststore.jks.bak-SNRT client-truststore.jks OPTION B Use import commands above on active truststore HA Deployment Run on ALL nodes : scp client-truststore.jks node2://repository/resources/security/ scp client-truststore.jks node3://repository/resources/security/ Restart WSO sh wso2server.sh restart or systemctl if service-based TROUBLESHOOTING COMMANDS Check SSL handshake (^) openssl s_client -connect :443 -showcerts If alias conflict: (^) keytool -list -keystore client-truststore.jks | grep snrt FINAL BEST PRACTICE Use clear alias naming: snrt-root-ca snrt int ca
