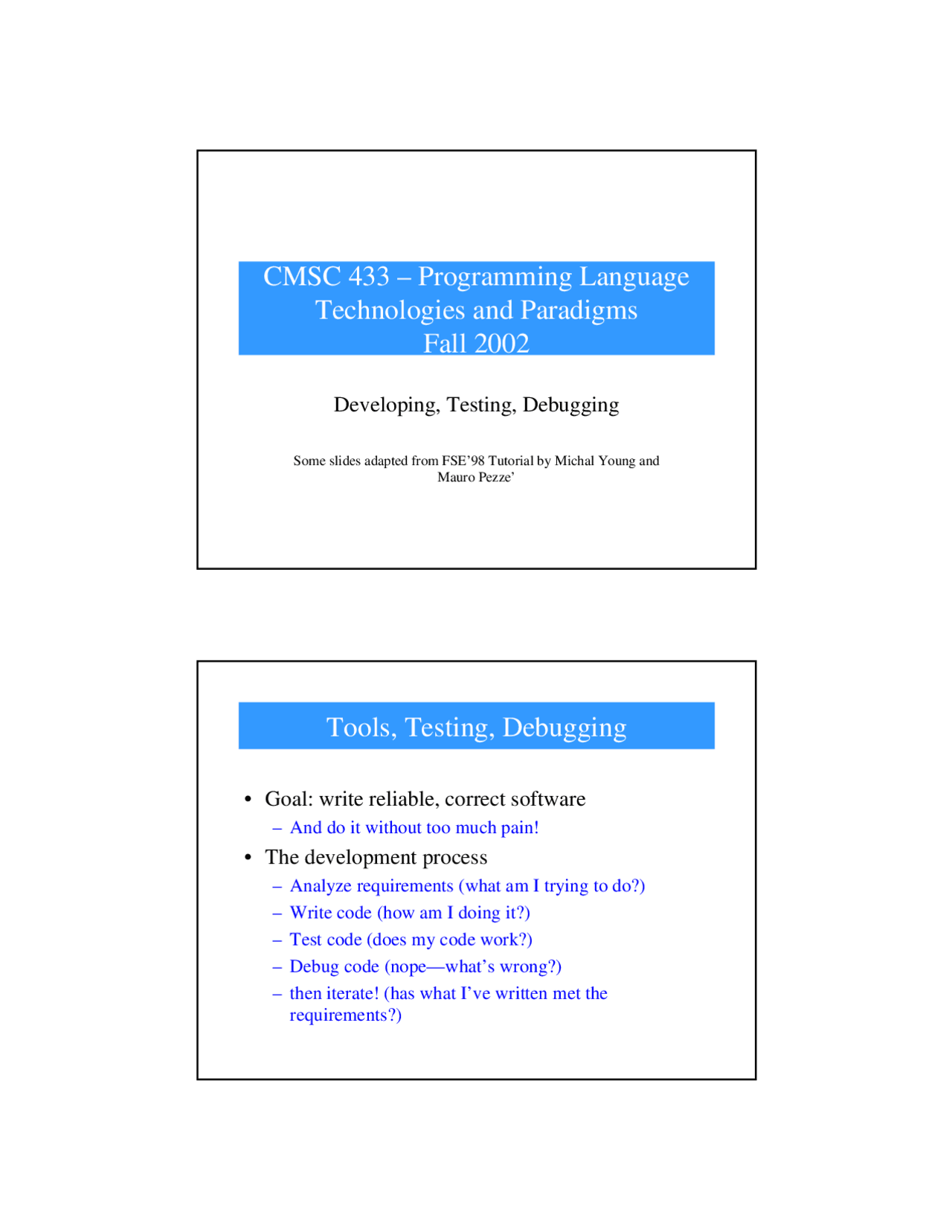

CMSC 433 – Programming Language
Technologies and Paradigms
Fall 2002
Developing, Testing, Debugging
Some slides adapted from FSE’98 Tutorial by Michal Young and Mauro Pezze’
Tools, Testing, Debugging
- Goal: write reliable, correct software
- And do it without too much pain!
- The development process
- Analyze requirements (what am I trying to do?)
- Write code (how am I doing it?)
- Test code (does my code work?)
- Debug code (nope—what’s wrong?)
- then iterate! (has what I’ve written met the requirements?)
Holistic Development: IDE’s
- Interactive Development Environments
- Typically simplify writing of code (editor + compiler hook)
- May help with debugging (syntax checking, debugger interface)
- May help with testing (interface to test tool)
- May help with search, transformation, etc.
- Many available
- Eclipse JDT
- Dr. Java
- Visual Studio
- …
Dr. Java
- Editing
- Syntax coloring
- Auto-indent
- Brace matching
- Testing
- Integrates with Junit testing framework
- Interaction panel allows interactive method invocations
- Debugging
- Integrates with Java debugger
- Interactions panel also useful
You can’t always get what you want
- Correctness properties are undecidable
- the halting problem can be embedded in almost every property of interest
Decision Procedure
Property
Program
Pass/Fail
ever
Getting what you need ...
- We must make the problem of verification “easier” by permitting some kind of inaccuracy
Perfect verification
Optimistic inaccuracy (testing)
Pessimistic inaccuracy (analysis, proofs)
“Easier” properties
Easier Properties - Example:
Unmatched Semaphore Operations
synchronized(S) { ... ... }
Static checking for match is necessarily inaccurate ... ... so Java prescribes a more restrictive, but statically checkable construct.
if ( .... ) { ... lock(S); } ... if ( ... ) { ... unlock(S); }
Testing
- Executing the program on a sample of input data
- Dynamic technique : programs must be executed
- Optimistic inaccuracy
- the program runs on a (very small) subset of input data
- the behavior of the program on every input is assumed to be consistent with the examined behaviors
The Test Case Generation Problem
- What tests will show that my program works?
- Must consider “operational scenarios”
- What is legitimate input?
- What is the correct action or output?
- How can I make sure that all of the important behaviors of my program have been tested?
Granularity of Tests
- Whole program
- Test case inputs to whole program, and outputs examined
- Piece-meal
- Individual components of a program are tested
- Methods
- Classes/packages
- Processes of a distributed system
Styles of Tests
- Functional (black box)
- based on specifications (“external behavior”)
- Structural (white box)
- Fault based
- based on classes of faults
Black Box Testing
- Pick a subcomponent of the program
- Internals of component not considered
- Give it inputs
- Compare against correct outputs
inputs outputs subcomponent being tested
Is it correct?
oracle
The Testing Environment
- Want to create a scaffold for executing tests
- Code infrastructure that allows tests to be run easily and the results checked for correctness
- Many benefits
- Can automate testing process
- Useful for regression testing
- But, can take some time to implement
Testing Environment Components
- A user to generate input for tested component
- An oracle for verifying the results are correct
- These two may be combined into a single system
Unit Testing with Junit
- Testing environment for writing black-box tests
- Write special TestCase classes to test other classes
- Several ways to use/set up test cases
- Can be downloaded from
- Simple version included in Dr. Java
- Implements only a subset of Junit functionality
Junit Philosophy
- Iterative, incremental process
- Write small black-box test cases (as needed)
- Test-as-you-go
- i.e., after changes, when new method added, when bug identified
- Junit test cases must be completely automated
- No human judgment
- Easy to run many of them at the same time
- Goal: lots of bang for the buck
- Even simple tests can find many bugs quickly
TestCase Example with LogRecord
public class LogRecordTest extends TestCase { protected String event1 = “test”; public void testEquals1() { LogRecord tmp1 = new LogRecord(event1+”1”);LogRecord tmp2 = new LogRecord(event1+”2”); assertTrue(tmp1.equals(tmp1)); // should pass }assertTrue(tmp1.equals(tmp2)); // should fail public void runTest () { testEquals1(); } public static void main (String [] args) {TestResult result = (new LogRecordTest("testLogRecord")).run(); if (!result.wasSuccessful()) { System.out.println(“Doh!”); } } }
Create objects Perform test/ check result
Setup/Teardown
- Creating objects for each test too simple
- Setup overhead grows as number of tests grows
- Instead, group setup (and teardown) code in one place and reuse
- junit.framework.TestCase.run() executes test case:
- public void run () { setUp(); runTest(); tearDown(); }
- Put setup code in setUp() method
- Put cleanup code in tearDown() method
TestCase Example, again
public class LogRecordTest extends TestCase { protected String event1;LogRecord tmp1, tmp2; public void setUp() {event1 = “test”; tmp1 = new LogRecord(event1+”1”); }tmp2 = new LogRecord(event1+”2”); public void testEquals1() { assertTrue(tmp1.equals(tmp1)); // should pass }assertTrue(tmp1.equals(tmp2)); // should fail // other cases here will reuse tmp1, tmp2, event1, etc. … }
Create objects at outset
Perform test/ check result
