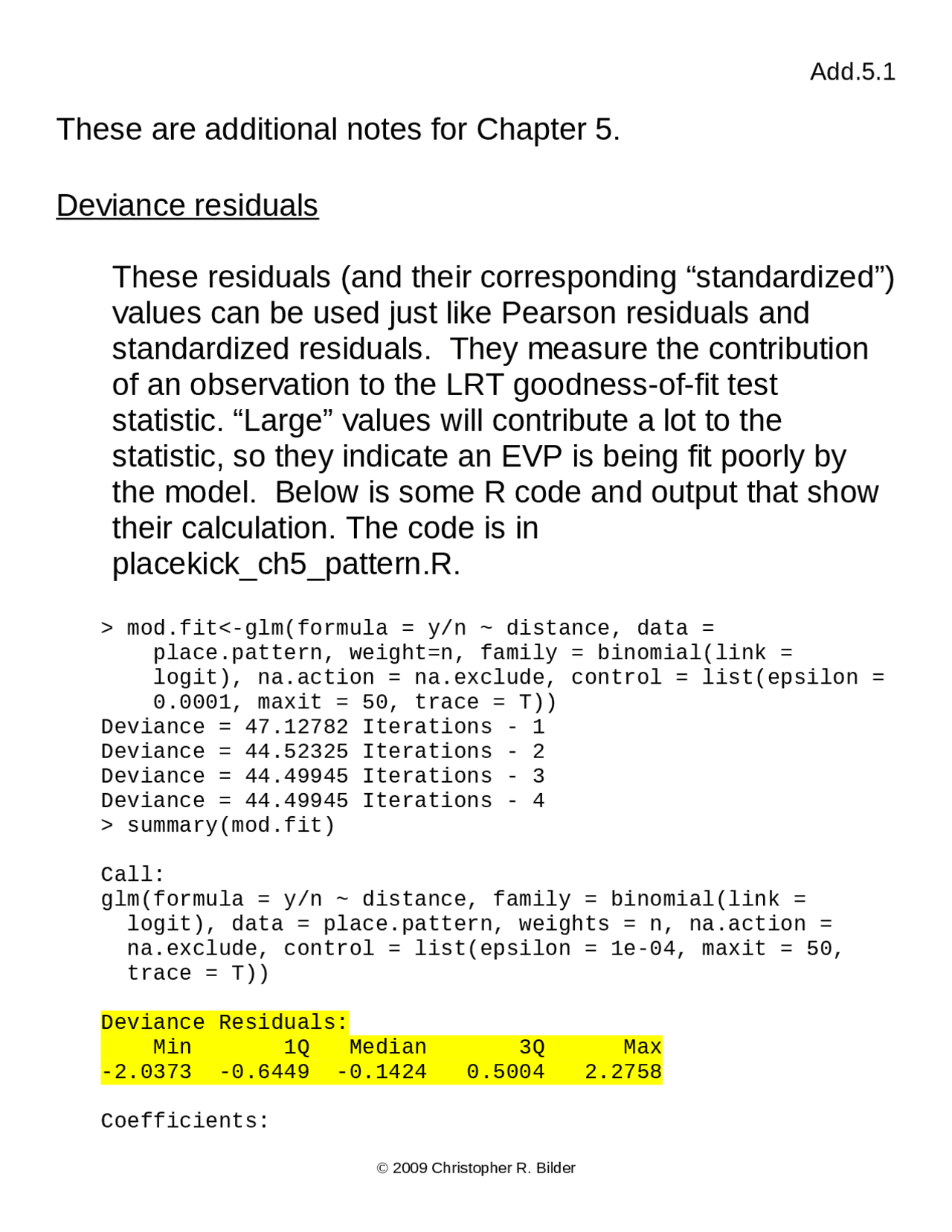

These are additional notes for Chapter 5.
Deviance residuals
These residuals (and their corresponding “standardized”)
values can be used just like Pearson residuals and
standardized residuals. They measure the contribution
of an observation to the LRT goodness-of-fit test
statistic. “Large” values will contribute a lot to the
statistic, so they indicate an EVP is being fit poorly by
the model. Below is some R code and output that show
their calculation. The code is in
placekick_ch5_pattern.R.
mod.fit<-glm(formula = y/n ~ distance, data = place.pattern, weight=n, family = binomial(link = logit), na.action = na.exclude, control = list(epsilon = 0.0001, maxit = 50, trace = T)) Deviance = 47.12782 Iterations - 1 Deviance = 44.52325 Iterations - 2 Deviance = 44.49945 Iterations - 3 Deviance = 44.49945 Iterations - 4 summary(mod.fit) Call: glm(formula = y/n ~ distance, family = binomial(link = logit), data = place.pattern, weights = n, na.action = na.exclude, control = list(epsilon = 1e-04, maxit = 50, trace = T)) Deviance Residuals: Min 1Q Median 3Q Max -2.0373 -0.6449 -0.1424 0.5004 2. Coefficients:
Estimate Std. Error z value Pr(>|z|) (Intercept) 5.812080 0.326245 17.82 <2e-16 *** distance -0.115027 0.008338 -13.79 <2e-16 ***
Signif. codes: 0 ‘’ 0.001 ‘’ 0.01 ‘’ 0.05 ‘.’ 0.1 ‘ ’ 1 (Dispersion parameter for binomial family taken to be 1) Null deviance: 282.181 on 42 degrees of freedom Residual deviance: 44.499 on 41 degrees of freedom AIC: 148. Number of Fisher Scoring iterations: 4
dev.resid<-resid(mod.fit, type="deviance") h<-lm.influence(mod.fit)$h dev.stand.resid<-dev.resid/sqrt(1-h) y<-place.pattern$y pi.hat<-mod.fit$fitted.values n<-place.pattern$n pi.tilde<-y/n #observed proportion #LRT for GOF -2(sum(ylog(pi.hat) + (n-y)log(1-pi.hat)) – sum(log(pi.tilde^y) + log((1-pi.tilde)^(n-y)))) #Need to do second part with pi^y due to 0 pi values [1] 44. mod.fit$deviance [1] 44. dev.resid.mine<-sign(y - npi.hat) * sqrt(-2((ylog(pi.hat) + (n-y)*log(1-pi.hat)) – (log(pi.tilde^y) + log((1-pi.tilde)^(n-y))))) #Need to do second part with pi^y due to 0 pi values summary(dev.resid.mine)
Min. 1st Qu. Median Mean 3rd Qu. Max. -2.0370 -0.6449 -0.1424 -0.0906 0.5004 2.
summary(dev.resid) Min. 1st Qu. Median Mean 3rd Qu. Max. -2.0370 -0.6449 -0.1424 -0.0906 0.5004 2.
Section 5.1.5 and model building
R has an automated variable selection function called
step() which uses the “AIC” to perform it. The smaller
the AIC, the better the model. Notice the model that I
start with here. The model includes all of the variables
identified from step 1 of the model building process.
Also, notice that I turned off the trace option. This was
done so that the step() function did not trace every single
model being fit in the backward elimination.
#Notice that I did not trace the iterative proceds. If
mod.fit<-glm(formula = good1~change+dist+type1+pat1+elap30+week+wind, data = placekick.mb, family = binomial(link = logit), na.action = na.exclude, control = list(epsilon = 0.0001, maxit = 50, trace = F)) res<-step(mod.fit, direction="backward", scope=list(upper=mod.fit$formula)) Start: AIC= 784. good1 ~ change + dist + type1 + pat1 + elap30 + week + wind Df Deviance AIC
- elap30 1 768.71 782.
- type1 1 768.91 782.
- week 1 770.23 784. 768.57 784.
- wind 1 770.90 784.
- change 1 771.76 785.
- pat1 1 777.22 791.
- dist 1 840.96 854. Step: AIC= 782. good1 ~ change + dist + type1 + pat1 + week + wind Df Deviance AIC
- type1 1 769.08 781.
- week 1 770.36 782. 768.71 782.
- wind 1 771.03 783.
- change 1 771.81 783.
- pat1 1 777.35 789.
- dist 1 842.83 854. Step: AIC= 781. good1 ~ change + dist + pat1 + week + wind Df Deviance AIC
- week 1 770.76 780. 769.08 781.
- wind 1 771.12 781.
- change 1 772.11 782.
- pat1 1 777.63 787.
- dist 1 844.63 854. Step: AIC= 780. good1 ~ change + dist + pat1 + wind Df Deviance AIC 770.76 780.
- wind 1 773.26 781.
- change 1 773.59 781.
- pat1 1 779.40 787.
- dist 1 846.88 854.
res$anova Stepwise Model Path Analysis of Deviance Table Initial Model: good1 ~ change + dist + type1 + pat1 + elap30 + week + wind Final Model: good1 ~ change + dist + pat1 + wind Step Df Deviance Resid. Df Resid. Dev AIC 1 NA NA 1430 768.5680 784. 2 - elap30 1 0.1451136 1431 768.7131 782. 3 - type1 1 0.3668809 1432 769.0800 781.
Sections 5.1.6-5.1.
Logistic regression models are often used to classify
observations into one of two response categories. For
example, if ˆi^ >0.5, then observation i gets classified into
category 1. A related topic is the use of receiver
operating characteristic (ROC) curves for deciding where
the optimal cutoff probability (0.5 or some other value)
should be for the classification process. My STAT 873
(applied multivariate statistics) course discusses these
topics in the Chapter 8 lecture notes. You can obtain
these lecture notes from the course website at
www.chrisbilder.com/stat873/schedule.htm.
Additional measures of model fit: R
2
and the Hosmer and
Lemeshow test
R
2
There is a measure called “R
2
” that is sometimes used to
measure how well the model fits the data. The motivation
for this measure comes from the R
2
used in regular
regression. Instead of examining sums of squares, the R
2
in logistic regression uses values of the likelihood function
evaluated at the parameter estimates.
Without going into too much detail here, I recommend
against using it. See Cox and Wermuth (1992) or Agresti
(2002, p.226-8) for more information.
Hosmer and Lemeshow test
This a common test used to measure the goodness of fit
for a model. See p.147 of Agresti (2007) for a brief
description. Hosmer and Lemeshow (2000) give a more
thorough description on p. 140-1. The basic idea is to
group observations with a similar ˆj^. Find the estimated
number of success for the group and compare it to the
observed number of successes in a format similar to a
Pearson statistic.
SAS PROC LOGISTIC implements it automatically when
the LACKFIT option is specified on the MODEL statement.
Section 5.2 – other R tools
R has a function called glm.diag() that can calculate a
few of the diagnostic measures we have discussed. The
function glm.diag.plots() creates 4 plots of these
measures. These two functions are contained in the
boot package. Below is an example of their
implementation. Notice the interactive feature of
glm.diag.plots().
mod.fit<-glm(formula = good1/total ~ change+dist+pat1+wind+dist*wind, data = place.pattern.non20, weight=total, family = binomial(link = logit), na.action = na.exclude, control = list(epsilon = 0.0001, maxit = 50,
trace = T)) Deviance = 116.2259 Iterations - 1 Deviance = 113.8865 Iterations - 2 Deviance = 113.8581 Iterations - 3 Deviance = 113.8580 Iterations - 4
save.diag<-glm.diag(mod.fit) names(save.diag) [1] "res" "rd" "rp" "cook" "h" "sd" glm.diag.plots(mod.fit, iden=TRUE)
Please Input a screen number (1,2,3 or 4) 0 will terminate the function 3 Interactive Identification for screen 3 left button = Identify, center button = Exit
Please Input a screen number (1,2,3 or 4) 0 will terminate the function 4 Interactive Identification for screen 4 left button = Identify, center button = Exit
Please Input a screen number (1,2,3 or 4) 0 will terminate the function 0 -2 0 2 4
0 1 2 Linear predictor Residuals -2 -1 0 1 2
0 1 2 Ordered deviance residuals Quantiles of standard normal 0 1 2 3 4
- h/(1-h) Cook statistic 0 20 40 60 80 100 120
Case Cook statistic 20/1/0/0 20/1/0/ 25/0/1/1 (^) 32/0/0/ 50/0/0/
The function, influence.measures() , can also calculate
some influence measures. See the example in the
placekick_model_build.R program.
Exact inference about conditional associations
The probability distribution for the Cochran-Mantel-
Haenszel (CMH) statistic is NOT a
2
distribution! We
use a
2
distribution when n++k is large because the
statistic “approximately” will have this distribution. What
happens if the sample is not large???
Often, the test statistic’s probability distribution can
still be approximated rather well using a
2
distribution. Suppose many of the n++k are small
when K is large. There will be many partial tables
allowing n to be large despite the small sample size
within a partial table.
There are still times when
2
distribution approximation
will still not perform adequately. Some alternative
methods are:
One could perform a test similar to Fisher’s exact test.
With Fisher’s exact test in Chapter 2, there was only
one 22 table and thus one hypergeometric
distribution. Now since there are K 22 tables, there
are K different hypergeometric distributions.
Probabilities can be found for observing a kn11k using
these K hypergeometric distributions. See p. 254 of
Agresti (2002) for more details. The mantelhaen.test ()
function implements this with the exact = TRUE option.
Permutation tests can be used to estimate the
distribution of the test statistic. How?
Example: Table 3.4 on p. 65 of Agresti (1996) and Table 5.
on p. 159 of Agresti (2007) (tab3.4.R)
The question of interest: Given month, is race
independent of promotion?
The reason for considering these alternative approaches
is the 0’s in the 2 2 3 table. Note that the sample size
itself is not small.
Below is the R code and output.
n.table<-array(data = c(0, 4, 7, 16, 0, 4, 7, 13, 0, 2, 8, 13), dim = c(2,2,3), dimnames = list(Race = c("Black", "White"), Promotion = c("Yes", "No"), Month = c("July", "August", "September"))) n.table , , Month = July Promotion Race Yes No Black 0 7 White 4 16 , , Month = August Promotion Race Yes No Black 0 7 White 4 13 , , Month = September Promotion Race Yes No Black 0 8 White 2 13
The permutation approach can be done in a similar
manner as done in Chapter 2 when testing for
independence. The only differences are that the CMH
test will be performed for each permutation sample and
the sampling needs to be done within strata (why?). The
strata option in boot() allows one to specify the strata.
Below is the R code and output.
n.table<-array(data = c(0, 4, 7, 16, 0, 4, 7, 13, 0, 2, 8, 13), dim = c(2,2,3), dimnames = list(Race = c("Black", "White"), Promotion = c("Yes", "No"), Month = c("July", "August", "September"))) n.table , , Month = July Promotion Race Yes No Black 0 7
White 4 16 , , Month = August Promotion Race Yes No Black 0 7 White 4 13 , , Month = September Promotion Race Yes No Black 0 8 White 2 13
#Raw data all.data <- matrix(NA, 0, 3) #Put data in "raw" form for(i in 1:2) {
for(j in 1:2) { for(k in 1:3) { all.data <- rbind(all.data, matrix(c(i, j, k), n.table[i, j, k], 3, byrow = T)) } } }
#Need in a data.frame format for the ftable() function call coming up all.data2<-data.frame(all.data) #One way to assign column names (other ways can be done) names(all.data2)<-c("Race", "Promotion", "Month") all.data2[1:2,] Race Promotion Month 1 1 2 1 2 1 2 1 #Check data ftable(Month+Promotion~Race, data = all.data2) Month 1 2 3 Promotion 1 2 1 2 1 2 Race 1 0 7 0 7 0 8 2 4 16 4 13 2 13 library(boot) m.sq<-function(data,i) { perm.data<-data[i] mantelhaen.test(all.data[,1], perm.data, all.data[,3], correct=F)$statistic } summarize.boot<-function(results, df, B) { par(mfrow = c(1,2)) #Histogram hist(results$t, main = "Histogram of perm. dist.", col = "blue", xlab="statistic^*")
Histogram of perm. dist. statistic^* Frequency 0 5 10 15 0 200 400 600 0 2 4 6 8 10 12 14 0 2 4 6 8 10 QQ-Plot of perm. dist. statistic^* chi.quant
Notes:
Using a
approximation to the distribution of CMH
results in a p-value of 0.0321. The permutation
approach with B=1,000 results in a p-value of 0.04.
Thus, there is not much difference between the two.
Notice the discreteness of the test statistic values for
each permutation (see QQ-plot). This is happening
because of the small n+1k values within each strata.
There are a very limited number of possible values the
test statistic can take on.
