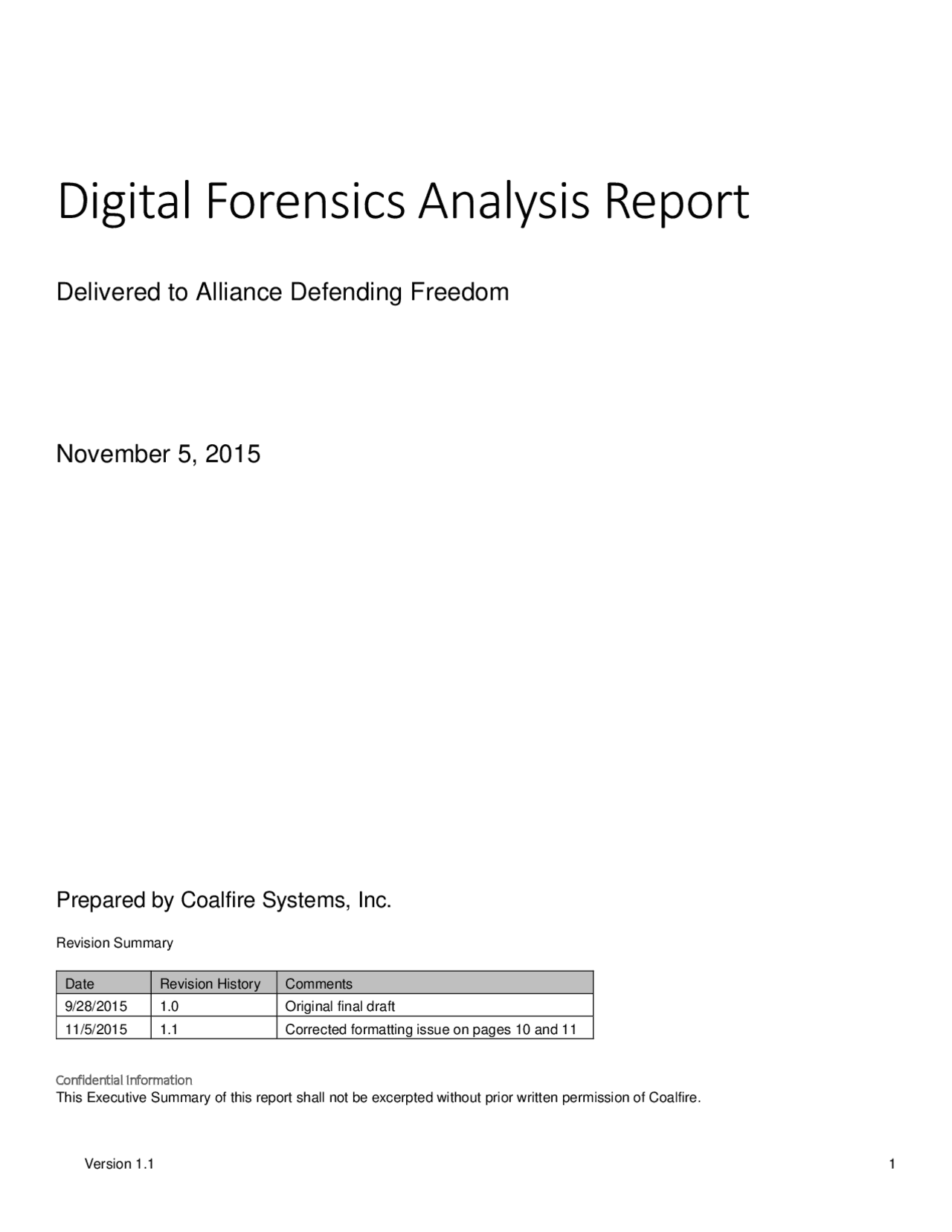

Revision Summary
Date Revision History Comments 9/28/2015 1.0 Original final draft 11/5/2015 1.1 Corrected formatting issue on pages 10 and 11
Confidential Information This Executive Summary of this report shall not be excerpted without prior written permission of Coalfire.
In September, 2015, CGS, the prime contractor on behalf of Alliance Defending Freedom, engaged Coalfire Systems, Inc.,
the sub-contractor (hereinafter “Coalfire”) to conduct a computer forensics analysis of certain raw video and audio data
files. Coalfire’s objectives for this project are to:
The scope of Coalfire’s analysis did not cover or include:
A flash drive containing recorded media was received via FedEx by Coalfire on September 17th, 2015, where it was examined using industry-standard forensic tools and techniques. The flash drive contained (i) a total of ten (10) videos with audio recorded on two (2) separate devices, and (ii) a total of eight (8) audio recordings made with two (2) audio- only devices.
Coalfire’s analysis of the recorded media files contained on the flash drive indicates that the video recordings are authentic and show no evidence of manipulation or editing. This conclusion is supported by the consistency of the video file date and time stamps, the video timecode, as well as the folder and file naming scheme. The uniformity between the footage from the cameras from the two Investigators also support the evidence that the video recordings are authentic.
With regard to the “Full Footage” YouTube videos released by the Organization, edits made to these videos were applied to eliminate non-pertinent footage, including “commuting,” “waiting,” “adjusting recording equipment,” “meals,” or “restroom breaks,” lacking pertinent conversation. Any discrepancies in the chronology of the timecodes are consistent with the intentional removal of this non-pertinent footage as described in this report.
Furthermore, four of the five raw video recordings, which also contained audio captured from the video recording device, are accompanied by a raw audio recording captured from a separate audio-only recording device. The raw audio- only recordings last for the duration of their associated raw videos. These raw audio recordings support the completeness and authenticity of the raw video recordings since they depict the same events within the same duration as captured from the two separate video recorders.
Coalfire employed industry standard tools and techniques throughout handling, processing, and analysis of the evidence. A sealed FedEx Express envelope was received into Coalfire Labs via FedEx Overnight delivery on September 17, 2015 at 8:35 AM (MST). A Chain of Custody was established upon opening the package. The package contained one USB flash drive sealed in a FedEx label pouch. Details about the enclosed media are included below.
directories. The numeric dates within the video file names are consistent throughout all other folder names in the path to any given video file. Examples of the folder and file naming schemes are shown below.
[root]\072514DebNucatola[Investigator 1]\MyRecord\20140725\FNND0569_20140725114841.AVI
The example above shows a folder naming structure containing the “MyRecord” subdirectory. In the example above, the root directory name contains a numeric date of 7/25/2014, a subdirectory with a name containing the numeric date 7/25/2014, and containing a video file with a file name including the numeric date 7/25/2014. Another example of the folder and file naming structure is shown below.
[root]\PPGC040915[Investigator 2]\20150409\FNNI0773_20150409071900.AVI
In the example above, the root directory name contains the numeric date 4/9/2015, a subdirectory with a name containing the numeric date 4/9/2015, and containing a video file with a file name including the numeric date 4/9/2015.
Contrary to folders, the last modified and created date and time stamps of a file is preserved when the parent folder it resides in is copied from a source drive to a destination drive. Therefore, the last modified date and time stamps of the video files contained on the flash drive were preserved from the original source files. The video files residing on the flash drive show last modified and created time stamps between 2015-02-06 20:47:28 UTC to 2014-07-25 22:18:26 UTC. Review of the video file modified date stamps shows that they are consistent with the numeric dates reflected in the video file names as well as the folders in the path of those video files. Furthermore, the date stamps embedded within the videos themselves are consistent with the date stamps of the folders in the video file path.
An example of the relationship between the video file name and file created date stamp is shown below.
Video File Name Created
FNNI0773_ 20150206130219 .AVI 2015 - 02 - 06 22:02:18 UTC
Video file name and created date stamp relationship
The AVI file names also contain a number representing the timecode that is embedded in the first frame of that video file. An example of this is shown below.
[root]\PPGC040915[Investigator 1]\FNND0569_20150409081515.AVI
In this example (on the following page), the video file named FNND0569_20150409081515.AVI shows a date of 4/9/2015 and a first frame timecode of 08:15:15. Below is a screenshot of the first frame (frame 000000) of the 20150409081515.AVI video.
First frame from video file [root]\PPGC040915[Investigator 1]\FNND0569_20150409081515.AVI
There were some videos, however, where the first frame does show a timecode that is one second behind the time shown in the video file name.
All of the AVI video files are 1011 MB in size or smaller. When the modified time stamps are in chronological order, it is evident that a new video file is created once the preceding video file size reaches 1011 MB during continuous recording. This is demonstrated by noting the final timecode embedded in the last frame of the video and comparing it to the timecode in the first frame of the next video in sequence (the first frame timecode number is also contained in the video file name). It is a common feature of video recording devices to capture continuous recording in numerous smaller separate files to avoid issues with file systems that cannot accommodate large file sizes and to minimize data loss in the case of file corruption as result of hardware failure (dead battery, malfunction, etc.). Review of the AVI files that were smaller than 1011 MB appears to be the result of a manual stop performed on the recording device by the camera operator.
Video File Recording Path Continuous Video Recording Segments
052215Dyer dinner072514DebNucatola[Investigator 1]\MyRecord\ 20140725
Continuous recording from 2014.07.25 11:48:41 to 2014.07.25 15:18:26 (frame 019233)
072514DebNucatola[Investigator 2]\MyRecord\ 20130725 Continuous recording from 2013.07.25 11:41:24 to 2013.07.25 15:15:21 (frame 058664)
PPGC040915[Investigator 1]\ 20150409 Continuous recording from 2015.04.09 07:18:22 to 2015.04.09 13:09:37 (frame 017915) Continuous recording from 2015.04.09 13:16:58 to 2015.04.09 14:56:40 (frame 025881)
Timeframe count embedded in video
Date and time stamps embedded in video
FULL FOOTAGE: Planned Parenthood Uses Partial-Birth Abortions to Sell Baby Parts
https://www.youtube.com/watch?v=H4UjIM9B9KQ
FULL FOOTAGE: Intact Fetuses "Just a Matter of Line Items" for Planned Parenthood TX Mega-Center
https://www.youtube.com/watch?v=MCiD9_ICt
FULL FOOTAGE: Second Planned Parenthood Senior Executive Haggles Over Baby Parts Prices
https://www.youtube.com/watch?v=vwAGsjoorvk
Full Footage CMP YouTube videos
After these “FULL FOOTAGE” videos were posted, an additional video was posted by the Organization on August 30, 2015 (the “Supplemental Full Footage Video”) that is of the same time duration as missing footage from the “FULL FOOTAGE: Intact Fetuses ‘Just a Matter of Line Items’ for Planned Parenthood TX Mega-Center”.
Supplemental YouTube Video Name YouTube Video URL
Part 2 Supplement TX FULL FOOTAGE: Intact Fetuses "Just a Matter of Line Items" for PP
https://www.youtube.com/watch?v=wV2U9unI1NM
Supplemental Full Footage CMP YouTube video
Coalfire reviewed any and all inconsistencies in timecode apparent in the Full Footage videos for comparison to the raw video footage corresponding to those videos. Notes were made upon review of the raw video content which described the events that took place during the missing footage that was edited from the Full Footage videos. Events that were left out of the Full Footage videos lacked pertinent conversation. The events depicted in the missing footage fell into five common categories: commuting, waiting, adjusting recording equipment, meals, and restroom breaks. “Commuting” footage consists of Investigator 1 and 2 driving in car to locations, or walking outside to locations outside or inside a building. “Waiting” footage consists of Investigator 1 and 2 waiting to engage with primary Planned Parenthood subject, or other personnel, usually in a lobby, office, or a restaurant table. “Adjusting recording equipment” footage consists of times when Investigator 1 and 2 are manually setting camera or audio recording device equipment, adjusting the equipment, or changing the batteries. “Meal” footage consists of Investigator 1 and 2 eating. “Restroom break” footage consists of Investigator 1 or 2 going to the restroom primarily to relieve themselves.
FULL FOOTAGE: Intact Fetuses "Just a Matter of Line Items" for Planned Parenthood TX Mega-Center
Begins 2015.04.09 07:37:48 (034977)
Ends 2015.04.09 14:50:13 (014278)
Corresponding raw video recordings: PPGC
Investigator 1 begins video recording at 07:18:23 and ends video recording at 14:56:
Investigator 2 beings video recordings at 07:19:00 and ends video recording at 13:20:
Gap from beginning of raw footage to beginning of Full Footage at 07:37:
Adjusting recording equipment – Commuting – Waiting
Gap from 07:46:47 to 08:15:
The 07:46:47 stop coincides with the end of the raw video file named FNND0569_20150409071822.AVI. The next file in the sequence (FNND0569_20150409074648.AVI) starts at 07:46:48 (frame 000000) and ends at 08:15:09 (frame 051046). The next video file in sequence (FNND0569_20150409081515.AVI) starts at 08:15:15 (frame 000000). The missing footage between in the Full Footage YouTube video between 7:46:47 and 8:15:15 matches the time duration of the raw video file FNND0569_20150409074648.AVI.
Coalfire reviewed the content of the Supplemental Full Footage video against the raw video and audio and determined that the supplemental video matches the timeframe, timecodes, and events depicted in the raw video file FNND0569_20150409074648.AVI.
Gap from 08:44:26 to 08:48:
Restroom break – Waiting
Gap from 12:58:43 to 13:50:
Commuting – Restroom break - Waiting
Raw video footage after end of Full Footage video at 14:50:
Commuting (example follows)
Investigator 1 PPGC040915 “commuting” footage video frame
Waiting
Gap from 11:41:43 to 11:43:
Waiting
Gap from 12:35:50 to 13:43:
Restroom break – Adjusting recording equipment – Waiting
Gap from 11:45:46 to 12:21:
Waiting
Raw video footage after end of Full Footage video at 14:17:
Commuting – Waiting – Restroom break
FULL FOOTAGE: Planned Parenthood Uses Partial-Birth Abortions to Sell Baby Parts
Begin: 2014.07.25 12:17:
End: 2014.07.25 15:02:
Corresponding raw video recordings: 072514DebNucatola
Investigator 1 begins video recording at 11:48:41 and ends video recording at 15:18:
Investigator 2 begins video recordings at 11:41:24 and ends video recording at 15:15:
Timecode and year change from 2014.07.25 14:32:07 to 2013.07.25 14:28:
Restroom break
In the Full Footage video, the video recording starts from Investigator 1. When Investigator 1 excuses himself for the restroom, Investigator 2’s camera is used to follow the conversation at the table. The -00:04:03 offset from Investigator 2’s camera to Investigator 1’s camera explains the jump in time.
The raw video shows that Investigator 1’s camera shows the date stamp 2014.07.25 while Investigator 2’s camera shows the date stamp 2013.07.25.
The first frame from the footage on 7/25 shows that the date stamps show a one year difference
Since the raw video recordings both depict the same events in real time, the discrepancy in the date stamp year is attributed to the two camera’s date and time settings not being synced to each other.
Gap from 14:38:06 to 14:41:
Restroom break (example follows)
Investigator 1 072514DebNucatola “restroom break” footage video frame
Investigator 1 camera Investigator 2 camera
The Full Footage video starts on Investigator 1’s camera who is shown standing up from the table at 12:04:53. The video then switches to Investigator 2’s camera at 12:04:24 which shows Investigator 1 walking from the table towards the restroom. The Full Footage video uses Investigator 2’s camera for the remainder of the video. The time difference is attributed to the -00:00:29 offset of Investigator 2’s camera to Investigator 1’s camera.
Raw video footage after end of Full Footage video (13:16:13)
Waiting – Commuting
With the exception of the “052215Dyer dinner” directory, each day of video recording was accompanied by MP3 audio recordings within the Investigator 1 and Investigator 2 folders. This resulted in audio recordings from the point of view of both Investigator 1 and Investigator 2 that are separate from the audio captured by the video recording device. Like the video recordings, the audio files contained a numeric date in the file name. An example of one of the audio recording file paths is shown below.
Audio File with Path Created
[root]\PPPSGV020615[Investigator 1]\ 150206 _001.MP3 2015 - 02 - 06 21:52:37 UTC
This MP3 audio recording exhibits a file name containing the date 2/6/2015 which is consistent with the numeric dates in the names of the other folders and files contained in the top level parent directory. The creation date of this file is also consistent with the date contained in the names of the files and folders contained within the top parent directory.
The metadata embedded in the header of the hexadecimal data reveals that this audio recording was captured with a Sony IC Recorder model ICD-UX-533. The metadata also reflects the date the recording was created which is consistent with the file date stamp.
Metadata from [root]\PPPSGV020615[Investigator 1]\150206_001.MP3 Audio File
The audio recordings were started shortly before or after their corresponding video recordings and span the duration of the video recordings or more. Below is a chart with details about the audio recording.
Sony flash voice recorder model ICD- UX
MP3 metadata audio recording file date stamp
Sony IC Recorder MP
Audio File with Path Created Duration
[root]\072514DebNucatola[Investigator 1]\140725_002.MP3 2014 - 07 - 25 18:47:00 UTC 03:28:
[root]\072514DebNucatola[Investigator 2]\140725_001.MP3 2014 - 07 - 25 18:40:41 UTC 03:31:
[root]\PPPSGV020615[Investigator 1]\150206_001.MP3 2015 - 02 - 06 21:52:37 UTC 01:47:
[root]\PPPSGV020615[Investigator 2]\150206_001.MP3 2015 - 02 - 06 20:47:28 UTC 01:46:
[root]\PPRM040715[Investigator 1]\150407_001.MP3 2015 - 04 - 07 15:16:50 UTC 06:16:
[root]\PPRM040715[Investigator 2]\150407_001.MP3 2015 - 04 - 07 15:20:16 UTC 06:16:
[root]\PPGC040915[Investigator 1]\150409_001.MP3 2015 - 04 - 09 14:20:20 UTC 0:7:39:
[root]\PPGC040915[Investigator 2]\150409_001.MP3 2015 - 04 - 09 14:21:53 UTC 07:41:
MP3 Audio Recording Files
Much like the footage from the two separate cameras, Coalfire was able to time align the audio recordings to the video footage to allow for review of any inconsistencies or anomalies in their content with both the video and audio recordings from the two video cameras.
