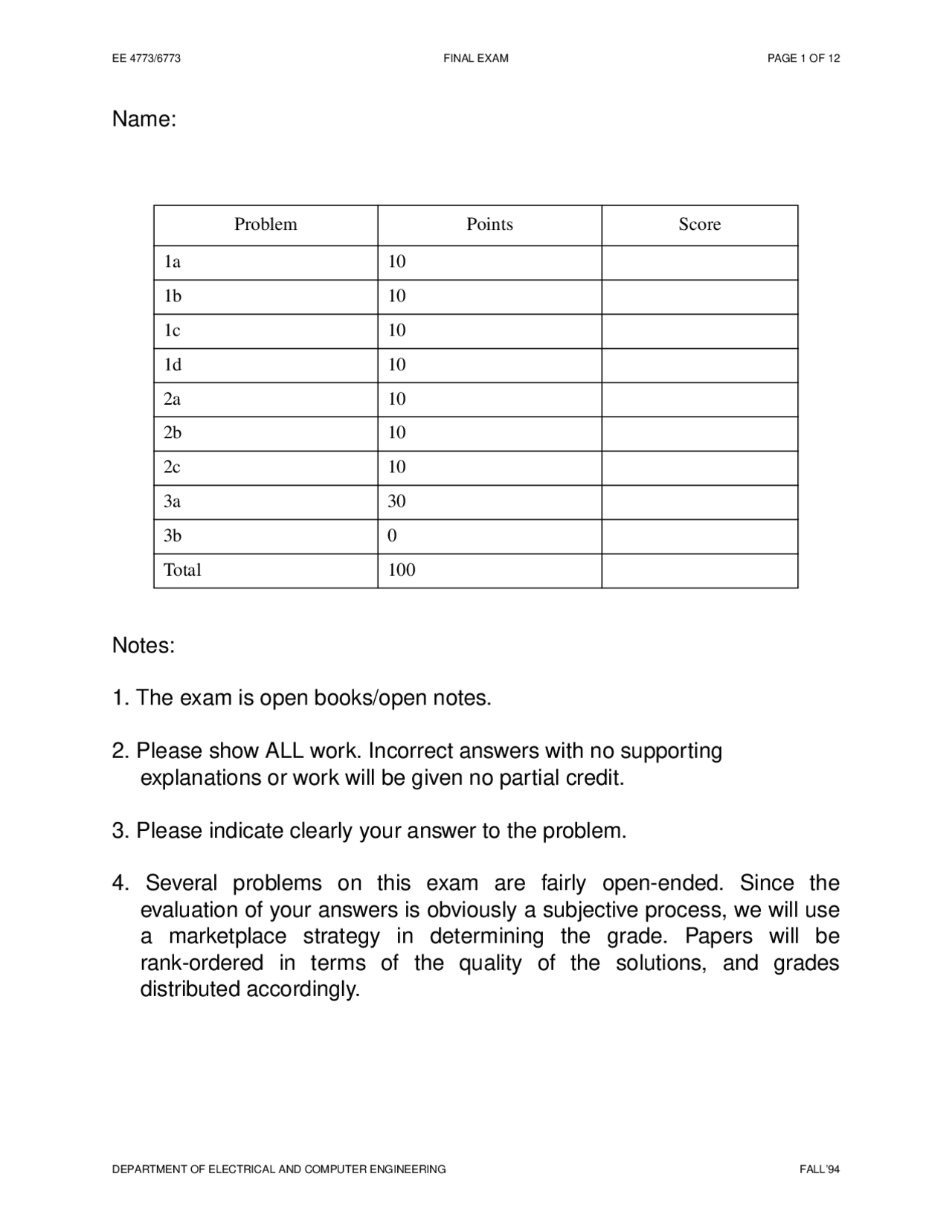

Name:
Notes:
1. The exam is open books/open notes.
2. Please show ALL work. Incorrect answers with no supporting
explanations or work will be given no partial credit.
3. Please indicate clearly your answer to the problem.
4. Several problems on this exam are fairly open-ended. Since the
evaluation of your answers is obviously a subjective process, we will use
a marketplace strategy in determining the grade. Papers will be
rank-ordered in terms of the quality of the solutions, and grades
distributed accordingly.
Problem Points Score
1a 10
1b 10
1c 10
1d 10
2a 10
2b 10
2c 10
3a 30
3b 0
Total 100
Problem No. 1 : Filter Design
(a) Design a first order digital lowpass filter with a cutoff frequency of 2 kHz and a sample frequency of 8 kHz using the bilinear transform design technique and a Butterworth prototype. The final digital filter should have no more than two poles and two zeroes.
First, normalize the sample period to 1: and.
Second, pre-warp:
Third, construct :
Fourth, use the bilinear transformation, , to map to the z-plane:
This is a pretty bad filter — we really need a minimum of N=2:
T = 1 f (^) c 2 kHz 8 kHz
T
--- ω 2
tan ---- 2 2 π 4
tan ^ 2 π 4
= = = tan ^ = 2
H s ( ) H ( ) s 1 s Ω c e j π ⁄ 2 e j π ⁄ 2
s + 2
s
T
---^1 z^
1 z
H z ( ) 1
2 1 z^
1 z
1 + z –^1
1 z
= = = --- 1( + z –^1 )
H ( ) s
s Ω c e
j π ⁄ 2
e
j π ⁄ 2
s Ω c e
j π ⁄ 2
e
j 3 π ⁄ 2
s + 2
s – 2
= ^ ^1
s
H z ( )
1 z
1 z
1 2 z^
z
1 4 z
z
(d) Use any design technique you want to design a digital bandpass filter with the following specifications:
Center frequency = 2 kHz Bandwidth = 500 Hz Passband gain at the center frequency = 2 Sample frequency = 8 kHz IIR with no more than two poles
Let’s use a second order resonator (from the book: page 354):
implies that.
H z ( )
b 0
1 2 r θ z
cos θ 2 π
= cos (^) ------------ = 0
∆ω ≈ 2 1( – r ) r ≈0.
b 0 ( 1 – r ) 1 r 2 = ( + – 2 r cos 2 θ) × 2 = 0.
Problem No. 2 : DSP System Design
(a) An analog Amplitude Modulated (AM) radio is shown below:
Assume is a music signal with a bandwidth of 20 kHz, and that.
Implement this system as an end-to-end digital system using A/D and D/A converters, DSPs, and lots of software. Be as specific as possible. Estimate the total cost of the system based on the following models (add any others you feel are relevant):
1 MIP costs $1 and requires 0.01 Watts of power; 1 Mbyte of memory costs $1; 1 bit of accuracy on an A/D or D/A costs $1; 0.1 Watts of power costs 1 line of code costs $1;
Your goal should be to achieve at least a 60 dB SNR with a cost that is competitive with today’s high quality analog radios.
m t ( ) f^ c =^10 MHz
m(t)
A sin 2 π f c t
Channel
LPF
Filter
BPF
Filter
A sin 2 π f c t
m(t)
(b) Explain any difficulties and/or weaknesses of your approach. What are the aspects of the system that dominate cost and performance?
(c) Touchtone frequencies from a telephone keypad generate the following frequencies:
For example, the key marked “1” on a telephone generates sinewaves at 697 Hz and 1209 Hz when pressed.
Describe how you would build a digital touchtone detection system (often called a DTMF detector) that operated on digital data sampled at 8 kHz. Give a specific example for the case of the key marked “1.” Discuss issues such as the ability to detect touchtones during intervals where people are talking, the problem with the touchtone detector falsely detecting touchtones when speech or music is sent over the telephone line your system is monitoring. The system should be capable of recognizing touchtone bursts as short as 40 msec.
Column
1 2 3 4
Row: 1209 1336 1477 1633
1 697 1 2 3 A
2 770 4 5 6 B
3 852 7 8 9 C
4 941 *** 0 # D**
