Assignment 4 (Spring 2012)
(Solution)
Circuit Theory (PHY301)
Marks: 15
Q.1:

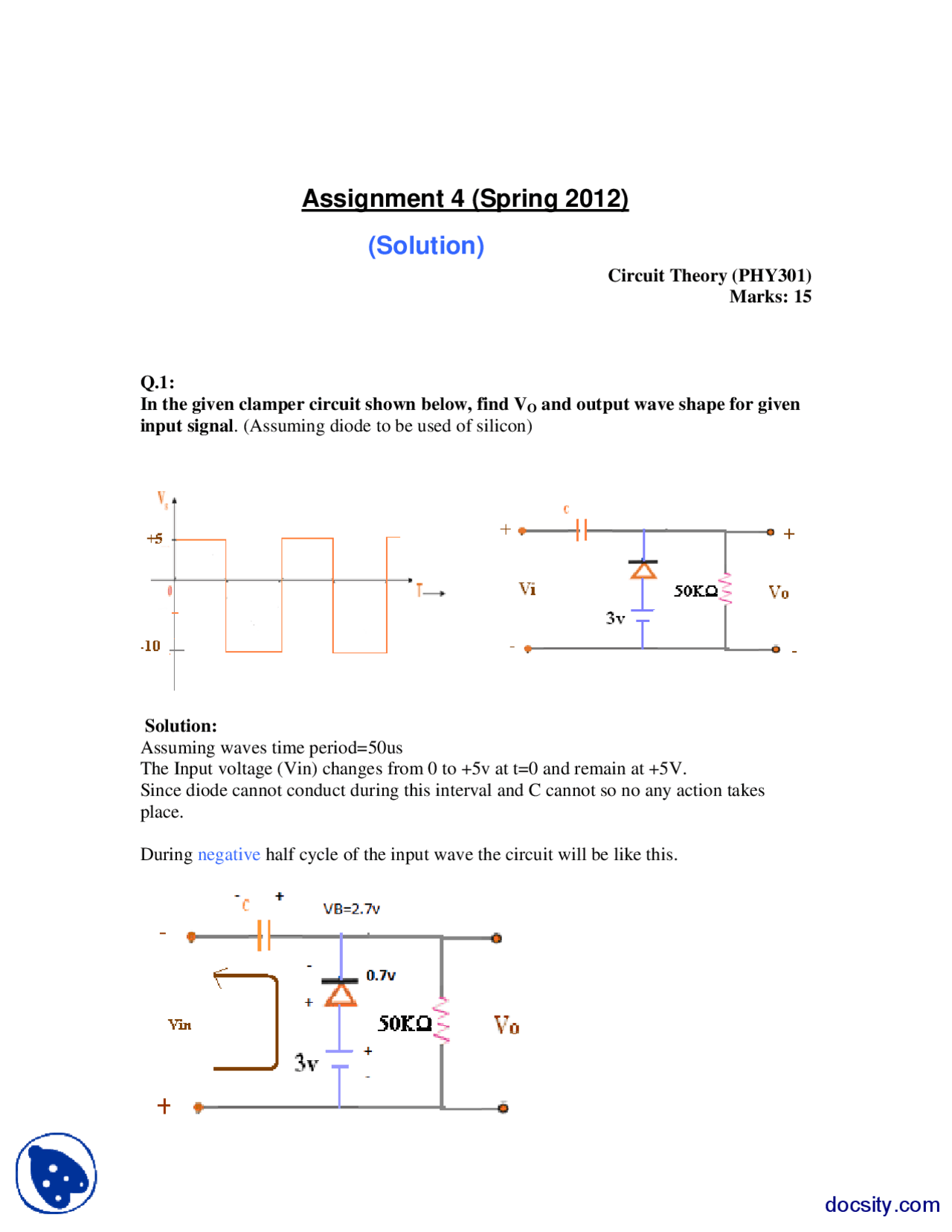

In the given clamper circuit shown below, find VO and output wave shape for given
input signal. (Assuming diode to be used of silicon)
Solution:
Assuming waves time period=50us
The Input voltage (Vin) changes from 0 to +5v at t=0 and remain at +5V.
Since diode cannot conduct during this interval and C cannot so no any action takes
place.
During negative half cycle of the input wave the circuit will be like this.
