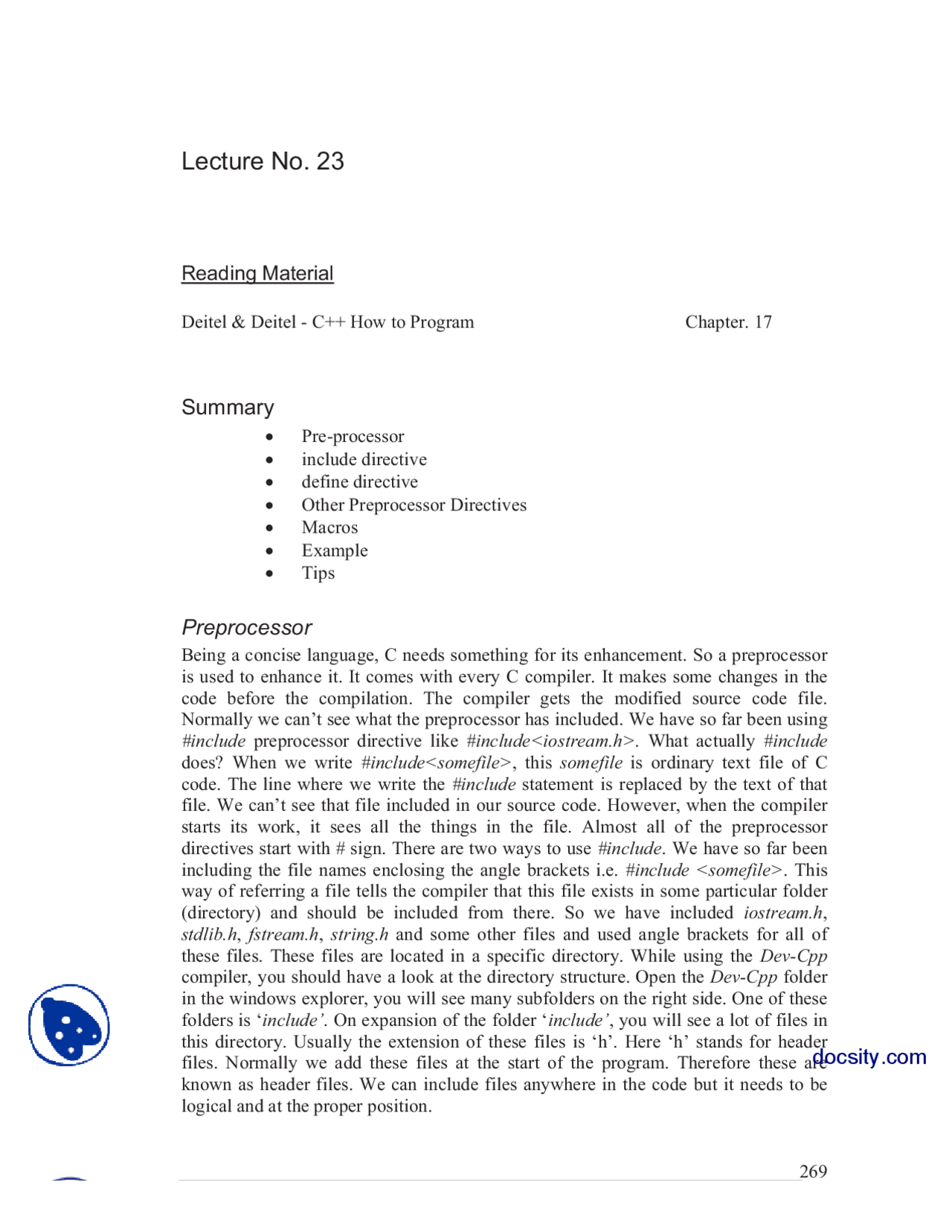

Lecture No. 23
Reading Material
Deitel & Deitel - C++ How to Program Chapter. 17
Summary
Pre-processor include directive define directive Other Preprocessor Directives Macros Example Tips
Preprocessor
Being a concise language, C needs something for its enhancement. So a preprocessor is used to enhance it. It comes with every C compiler. It makes some changes in the code before the compilation. The compiler gets the modified source code file. Normally we can’t see what the preprocessor has included. We have so far been using #include preprocessor directive like #include<iostream.h>. What actually #include does? When we write #include , this somefile is ordinary text file of C code. The line where we write the #include statement is replaced by the text of that file. We can’t see that file included in our source code. However, when the compiler starts its work, it sees all the things in the file. Almost all of the preprocessor directives start with # sign. There are two ways to use #include. We have so far been including the file names enclosing the angle brackets i.e. #include . This way of referring a file tells the compiler that this file exists in some particular folder (directory) and should be included from there. So we have included iostream.h , stdlib.h , fstream.h , string.h and some other files and used angle brackets for all of these files. These files are located in a specific directory. While using the Dev-Cpp compiler, you should have a look at the directory structure. Open the Dev-Cpp folder in the windows explorer, you will see many subfolders on the right side. One of these folders is ‘ include’. On expansion of the folder ‘ include’ , you will see a lot of files in this directory. Usually the extension of these files is ‘h’. Here ‘h’ stands for header files. Normally we add these files at the start of the program. Therefore these are known as header files. We can include files anywhere in the code but it needs to be logical and at the proper position.
docsity.com
include directive As you know, we have been using functions in the programs. If we have to refer a function (call a function) in our program, the prototype of function must be declared before its usage. The compiler should know the name of the function, the arguments it is expecting and the return type. The first parse of compilation will be successful. If we are using some library function, it will be included in our program at the time of linking. Library functions are available in the compiled form, which the linker links with our program. After the first parse of the compiler, it converts the source code into object code. Object code is machine code but is not re-locateable executable. The object code of our program is combined with the object code of the library functions, which the program is using. Later, some memory location information is included and we get the executable file. The linker performs this task while the compiler includes the name and arguments of the function in the object code. For checking the validity of the functions, the compiler needs to know the definition of the function or at least the prototype of the function. We have both the options for our functions. Define the function in the start of the program and use it in the main program. In this case, the definition of the function serves as both prototype and definition for the function. The compiler compiles the function and the main program. Then we can link and execute it. As the program gets big, it becomes difficult to write the definitions of all the functions at the beginning of the program. Sometimes, we write the functions in a different file and make the object file. We can include the prototypes of these functions in our program in different manners. One way is to write the prototype of all these functions in the start before writing the program. The better way is to make a header file (say myheaderfile.h) and write the prototypes of all the functions and save it as ordinary text file. Now we need to include it in our program using the #include directive. As this file is located at the place where our source code is located, it is not included in the angle brackets in #include directive. It is written in quotation marks as under:
#include “myHeaderFile.h”
The preprocessor will search for the file “myHeaderFile.h” in the current working directory. Let’s see the difference between the process of the including the file in brackets and quotation marks. When we include the file in angle brackets, the compiler looks in a specific directory. But it will look into the current working directory when the file is included in quotation marks. In the Dev-Cpp IDE, under the tools menu option, select compiler options. In this dialogue box, we can specify the directories for libraries and include files. When we use angle brackets with #include , the compiler will look in the directories specified in include directories option. If we want to write our own header file and save it in ‘My Document’ folder, the header file should be included with the quotation marks.
When we compile our source code, the compiler at first looks for the include directives and processes them one by one. If the first directive is #include<iostream.h> , the compiler will search this file in the include directory. Then it will include the complete header file in our source code at the same position where the ‘include directive’ is written. If the 2nd^ include directive contains another file, this file will also be included in the source code after the iostream.h and so on. The
docsity.com
can miss some place or replace something else. Suppose at some place, 3.14 is representing something else like tax rate. We may change this value too accidentally, considering it the value for PI. So we can’t conduct a blind search and replace and expect that it will work fine. It will be nicer to define PI at the start of the program. We will be using PI instead of its value i.e. 3.1415926. Now if we want to change the value of PI, it will be changed only at one place. The complete program will get the new value. When we define something with the #define directive, it is substituted with the value before the compiler compiles the file. This gives us a very nice control needed to change the value only at one place. Thus the complete program is updated.
We can also put this definition of PI in the header file. The benefit of doing this is, every program which is using the value of PI from this header file, will get the updated value when the value in header file is changed. For example, we have five functions, using the PI and these functions are defined in five different files. So we need to define PI (i.e. #define PI 3.1415926 ) in all the five source files. We can define it in one header file and include this header file in all the source code files. Each function is getting the value of PI from the header file by changing the value of PI in the header file, all the functions will be updated with this new value. As these preprocessor directives are not C statements, so we do not put semicolon in the end of the line. If we put the semicolon with the #include or #define , it will result in a syntax error.
Other Preprocessor Directives
There are some other preprocessor directives. Here is the list of preprocessor directives.
- #include
- #include “filename”
- #define
- #undef
- #ifdef
- #ifndef
- #if
- #else
- #elif
- #endif
- #error
- #line
- #pragma
- #assert
All the preprocessor directives start with the sharp sign (#). We can also do conditional compilation with it. We have #if, #else, #endif and for else if #elif is used. It can also be checked whether the symbol which we have defined with #define, is available or not. For this purpose, #ifdef is used. If we have defined PI, we can always say:
#ifdef PI … Then do something
docsity.com
#endif
This is an example of conditional compilation. If a symbolic constant is defined, it will be error to define it again. It is better to check whether it is already defined or not. If it is already defined and we want to give it some other value, it should be undefined first. The directive for undefine is #undef. At first, we will undefine it and define it again with new value. Another advantage of conditional compilation is ‘while debugging’. The common technique is to put output statements at various points in the program. These statements are used in the code to check the value of different variables and to verify that the program is working fine. It is extremely tedious to remove all these output statements which we have written for the debugging. To overcome this problem, we can go for conditional compilation. We can define a symbol at the start of the program as:
#define DEBUG
Here we have defined a symbol DEBUG with no value in front of it. The value is optional with the define directive. The output statements for debugging will be written as:
#ifdef DEBUG cout << ”Control is in the while loop of calculating average”; #endif
Now this statement will execute if the DEBUG symbol is defined. Otherwise, it will not be executed.
Here is an example using the debug output statements: // Program that shows the use of Define for debugging // Comment the #define DEBUG and see the change in the output
#include <iostream.h> #include <stdlib.h>
#define DEBUG
main() { int z ; int arraySize = 100; int a[100] ; int i;
// Initializing the array. for ( i = 0; i < arraySize; i++ ) { a[i] = i; }
// If the symbol DEBUG is defined then this code will execute
docsity.com
extern "C" { #endif
If the symbol __cplusplus is defined, the statement ‘ extern “C” { ‘ will be included in the code. We have an opening brace here. Look where the closing brace is. Go to the end of the same file. You will find the following:
#ifdef __cplusplus } #endif
This is an example of conditional compilation i.e. if the symbol is defined, it includes these lines in the code before compiling. Go through all the header files, we have been using in our programs so that you can see how professional programmers write code. If you have the linux operating system, it is free with a source code. The source code of linux is written in C language. You can see the functions written by the C programming Gurus. There may be the code of string manipulation function like string copy, string compare etc.
Macros
Macros are classified into two categories. The first type of macros can be written using #define. The value of PI can be defined as:
#define PI 3.
Here the symbol PI will be replaced with the actual value (i.e. 3.1415926) in the program. These are simple macros like symbolic names mapped to constants.
In contrast, the second type of macros takes arguments. It is also called a parameterized macros. Consider the following:
#define square(x) x * x
Being a non-C code, it does not require any semicolon at the end. Before the compiler gets the file, the macro replaces all the occurrences of square (x) (that may be square (i), square (3) etc) with ( x * x ) (that is for square (i) is replaced by i * i, square(3) is replaced by 3 * 3 ). The compiler will not see square(x). Rather, it will see x * x, and make an executable file. There is a problem with this macro definition as seen in the following statement.
square (i + j);
Here we have i+j as x in the definition of macro. When this is replaced with the macro definition, we will get the statement as:
i + j * i + j
This is certainly not the square of i + j. It is evaluated as (i + ( j * i ) + j due to the precedence of the operators. How can we overcome this problem? Whenever you
docsity.com
write a parameterized macro, it is necessary to put the parenthesis in the definition of macro. At first, write the complete definition in the parenthesis, and then put the x also in parenthesis. The correct definition of the macro will be as:
#define square(x) ((x) * (x))
This macro will work fine. When this macro definition is replaced in the code, parenthesis will also be copied making the computation correct.
Here is a sample program showing the use of a simple square macro: /* Program to show the use of macro */
#include <iostream.h>
// Definition of macro square #define square(x) ((x) * (x))
main() { int x;
cout << endl; cout << " Please enter the value of x to calculate its square "; cin >> x; cout << " Square of x = " << square(x) << endl; cout << " Square of x+2 = " << square(x+2) << endl; cout << " Square of 7 = " << square(7); }
We can also write a function to square(x) to calculate the square of a number. What is the difference between using this square(x) macro and the square(x) function? Whenever we call a function, a lot of work has to be done during the execution of the program. The memory in machine is used as stack for the program. The state of a program (i.e. the value of all the variables of the program), the line no which is currently executing etc is on the stack. Before calling the function, we write the arguments on the stack. In a way, we stop at the function calling point and the code jumps to the function definition code. The function picks up the values of arguments from the stack. Do some computation and return the control to the main program which starts executing next line. So there is lot of overhead in function calling. Whenever we call a function, there is some work that needed to be done. Whenever we do a function call, like if we are calling a function in a loop, this overhead is involved with every iteration. The overhead is equal number of times the loop executed. So computer time and resources are wasted. Obviously there are a number of times when we need to call functions but in this simple example of calculating square, if we use square function and the program is calling this function 1000 times, a considerable time is wasted. On the other hand, if we define square macro and use it. The code written in front of macro name is substituted at all the places in the code where we are using square macro. Therefore the code is expanded before compilation and compiler see ordinary multiplication statements. There is no function call
docsity.com
The CIRCLEAREA will be replaced by the actual macro definition including the entire parenthesis in the code before compilation. As we have used the parenthesis in the definition of the CIRCLEAREA macro. The statement for ascertaining the area of circle with double radius will be as under:
CIRCLEAREA(2 * radius);
The above statement will work fine in calculating the correct area. As we are using multiplication, so it may work without the use of parenthesis. But if there is some addition or subtraction like CIRCLEAREA(radius + 2) and the macro definition does not contain the parenthesis, the correct area will not be calculated. Therefore always use the parenthesis while writing the macros that takes arguments.
There are some other things about header files. As a proficient programmer writing your own operating systems, you will be using these things. There are many operating systems, which are currently in use. Windows is a popular operating system, DOS is another operating system for PC’s, Linux, and different variety of Unix, Sun Solaris and main frame operating systems. The majority of these operating systems have a C compiler available. C is a very elegant operating systems language. It is very popular and available on every platform. By and large the source code which we write in our programs does not change from machine to machine. The things, which are changed, are system header files. These files belong to the machine. The header files, which we have written for our program, will be with the source code. But the iostream, stdlib, stdio, string header files have certain variations from machine to machine. Over the years as the C language has evolved, the names of these header files have become standard. Some of you may have been using some other compiler. But you have noted that in those compilers, the header files are same, as iostream.h, conio.h etc are available. It applies to operating systems. While changing operating systems, we come up with the local version of C/C++ compiler. The name of the header files remains same. Therefore, if we port our code from one operating system to another, there is no need to change anything in it. It will automatically include the header files of that compiler. Compile it and run it. It will run up to 99 % without any error. There may be some behavioral change like function getche() sometimes read a character without the enter and sometimes you have to type the character and press enter. So there may be such behavioral change from one operating system to other. Nonetheless these header files lead to a lot of portability. You can write program at one operating system and need not to take the system header file with the code to the operating system.
On the other hand, the header files of our program also assist in the portability in the sense that we have all the function prototypes, symbolic definitions, conditional compilations and macros at one place. While writing a lot of codes, we start writing header files for ourselves because of the style in which we work. We have defined some common functions in our header files. Now when we are changing the operating system, this header file is ported with the source code. Similarly, on staring some program, we include this header file because it contains utility function which we have written.
Here is an interesting example with the #define. If you think you are sharp here is a challenge for you. Define you own vocabulary with the #define and write C code in
