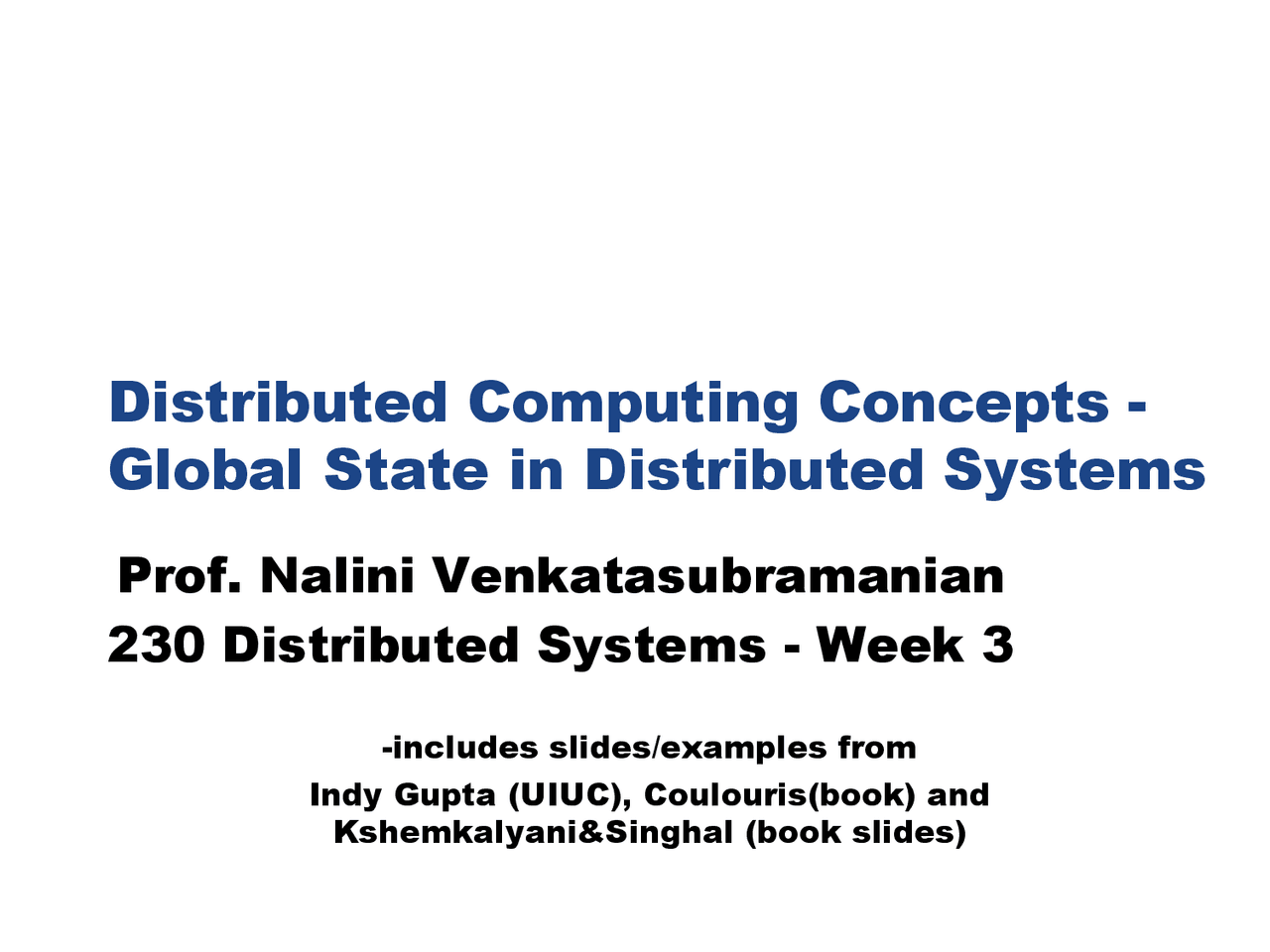

Distributed Computing Concepts -
Global State in Distributed Systems
Prof. Nalini Venkatasubramanian
230 Distributed Systems - Week 3
-includes slides/examples from Indy Gupta (UIUC), Coulouris(book) and Kshemkalyani&Singhal (book slides)
Why Global State?
- Distributed applications/services execute concurrently on multiple machines.
- A Snapshot of the distributed application, i.e. a global picture is useful
○ Checkpointing: can restart distributed application on failure ○ Garbage collection of objects: objects at servers that don’t have any other objects (at any servers) with pointers to them ○ Deadlock detection: Useful in database transaction systems ○ Termination of computation: Useful in batch computing systems like Folding@Home, SETI@Home
Simulate A Global State
● The notions of global time and global state are closely related. ● But, merely synchronizing clocks and taking local snapshots is not enough ● Need to account for messages in transit
● A process can (withoutfreezing the whole computation) compute the best possible approximation of a global state [Chandy & Lamport 85]
● A global state that could have occurred
● No process in the system can decide whether the state did really occur ● Guarantee stable properties (i.e. once they become true, they remain true)
Time
- P
- P
- P - e
- e
- e
- e
- e23 e24 e Event Diagram - e12 e
- e32 e33 e
- e23 e24 e Event Diagram - e12 e
- e
- e
- e
- P
- P
- P - e Time - e
- e - e22 e23 e24 e - e12 e - e32 e33 e
- e11 e21 e Poset Diagram
- e
- e
- e
- e
- e
- e
- e - e - e - e
- P Rubber Band Transformation
- P
- P - e Time
- e - e - e
- P - e41 e - e
P
P
P
P
P
Instant of local observation Time
ideal (vertical) cut
consistent cut
inconsistent cut
5
5
5 3
2
8
Cuts (Summary)
1
4
3 4
0
7
initial value
not attainable equivalent to a vertical cut (rubber band transformation)
can’t be made vertical (message from the future)
Consistent Cuts
● Some Theorems
● For a consistent cut consisting of cut events c (^) i ,…,c (^) n , no pair of cut events is causally related. i.e ∀c (^) i ,c (^) j ~(c (^) i < c (^) j ) ∧ ~(c (^) j < c (^) i )
● For any time diagram with a consistent cut consisting of cut events c (^) i ,…,c (^) n, there is an equivalent time diagram where c (^) i ,…,c (^) n occur simultaneously. i.e. where the cut line forms a straight vertical line
● All cut events of a consistent cut can occur
simultaneously
Distributed Global Snapshot:
Requirements
- Snapshot should not interfere with normal application actions, and it
should not require application to stop sending messages
- Each process is able to record its own state
○ Process state: Application-defined state or, in the worst case: ○ its heap, registers, program counter, code, etc. (essentially the coredump)
- Global state is collected in a distributed manner
- Any process may initiate the snapshot
○ Assume just one snapshot run for now
System Model for Global
Snapshots
● The system consists of a collection of n processes p1,
p2, ..., pn that are connected by channels.
● There are no globally shared memory and physical global
clock and processes communicate by passing messages
through communication channels.
● C ij denotes the channel from process pi to process pj and
its state is denoted by SC ij.
● The actions performed by a process are modeled as
three types of events:
● Internal events,the message send event and the message
receive event.
● For a message mij that is sent by process pi to process pj , let
send(m ij ) and rec(m ij ) denote its send and receive events.
Chandy-Lamport Distributed
Snapshot Algorithm
● Assumes FIFO communication in channels
● Uses a control message, called a marker to separate messages in
the channels.
● After a site has recorded its snapshot, it sends a marker, along all of its outgoing channels before sending out any more messages. ● The marker separates the messages in the channel into those to be included in the snapshot from those not to be recorded in the snapshot.
● A process must record its snapshot no later than when it receives a
marker on any of its incoming channels.
● The algorithm terminates after each process has received a marker
on all of its incoming channels.
● All the local snapshots get disseminated to all other processes and
all the processes can determine the global state.
Chandy-Lamport Distributed
Snapshot Algorithm
Marker receiving rule for Process Pi
If ( Pi has not yet recorded its state ) it
records its process state now
records the state of c as the empty set
turns on recording of messages arriving over other channels
else
Pi records the state of c as the set of messages received over c
since it saved its state
Marker sending rule for Process Pi
After Pi has recorded its state , for each outgoing channel c:
Pi sends one marker message over c
(before it sends any other message over c)
P
Time
P
P
A B C D E
E F G
H I J
Message
Instruction or Step
Snapshot Example
19
From: Indranil Gupta (CS425 - Distributed Systems course, UIUC)
P1 is Initiator:
- Record local state S1,
- Send out markers
- Turn on recording on channels C 21 , C 31
