SPICE Model Parameter Calculation for CS Design Example, Assignments of English

English

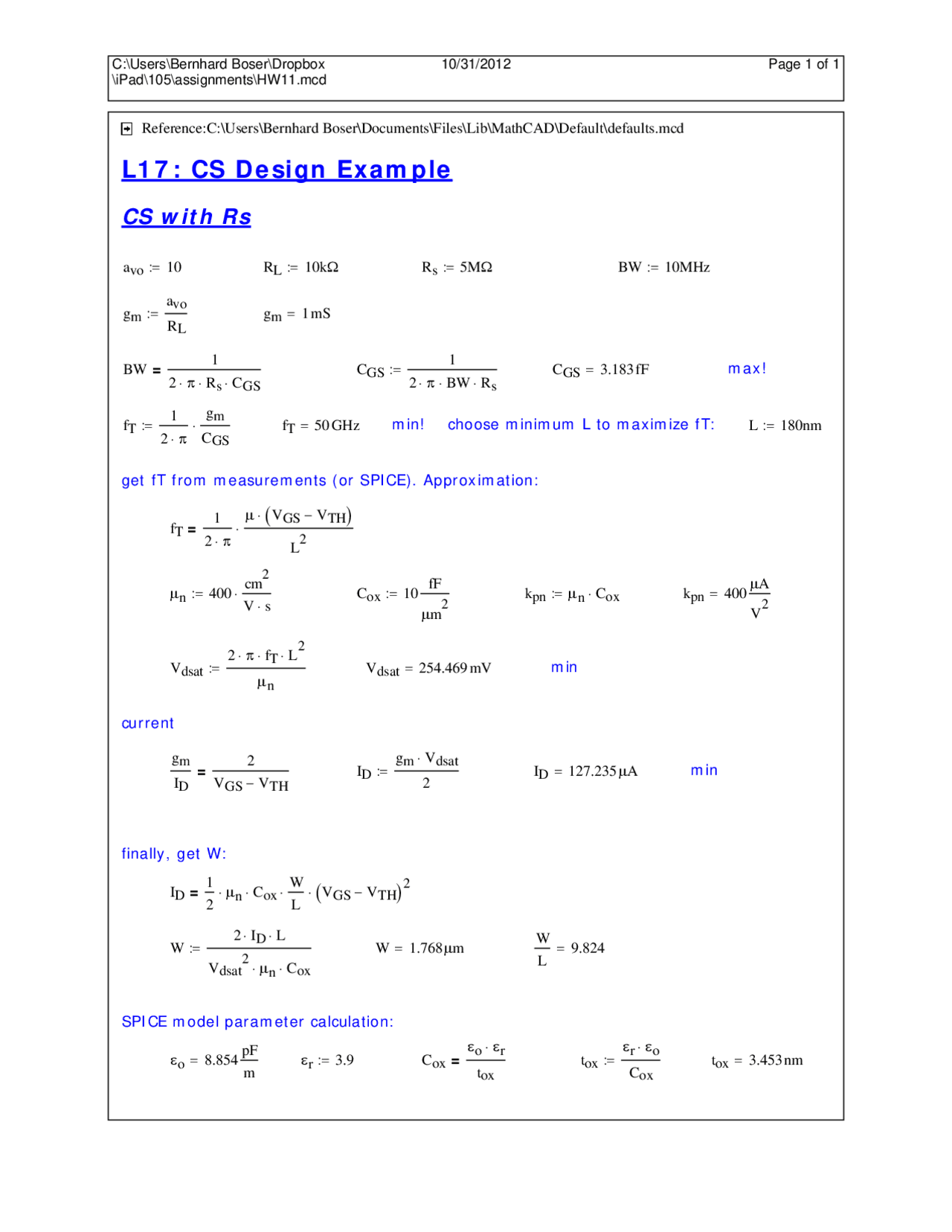

The steps to calculate spice model parameters for a given cs design example using mathcad. It includes the calculation of various parameters such as tox, cox, and w, as well as the determination of the optimal capacitance value for maximum frequency (ft) by minimizing the inductor value.
