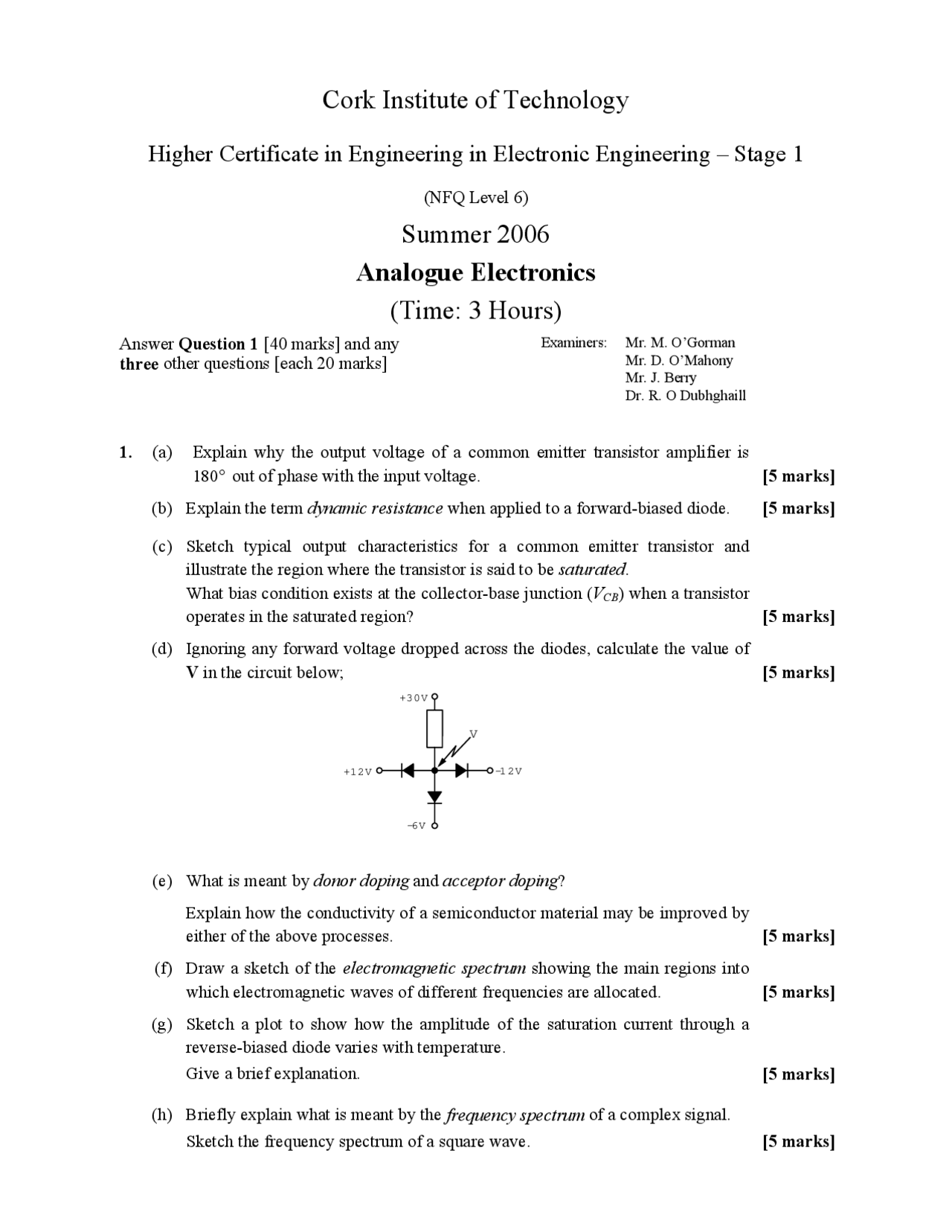

(NFQ Level 6)
Answer (^) Question 1 [40 marks] and any three other questions [each 20 marks]
Examiners: Mr. M. O’Gorman Mr. D. O’Mahony Mr. J. Berry Dr. R. O Dubhghaill
1. (a) Explain why the output voltage of a common emitter transistor amplifier is 180 ° out of phase with the input voltage.^ [5 marks] (b) Explain the term dynamic resistance when applied to a forward-biased diode. [5 marks] (c) Sketch typical output characteristics for a common emitter transistor and illustrate the region where the transistor is said to be saturated. What bias condition exists at the collector-base junction ( V (^) CB ) when a transistor operates in the saturated region? [5 marks] (d) Ignoring any forward voltage dropped across the diodes, calculate the value of V in the circuit below; [5 marks]
+12V - 12V
+30V V
(e) What is meant by donor doping and acceptor doping? Explain how the conductivity of a semiconductor material may be improved by either of the above processes. [5 marks] (f) Draw a sketch of the electromagnetic spectrum showing the main regions into which electromagnetic waves of different frequencies are allocated. [5 marks] (g) Sketch a plot to show how the amplitude of the saturation current through a reverse-biased diode varies with temperature. Give a brief explanation. [5 marks]
(h) Briefly explain what is meant by the frequency spectrum of a complex signal. Sketch the frequency spectrum of a square wave. [5 marks]
2. The output characteristics of an NPN transistor are tabulated below (assumed to be linear over the given range).
supply voltage of 10 V. (a) Plot the output characteristics and draw the load-line on graph paper. [6 marks] (b) Calculate the power dissipated in the transistor under quiescent conditions
(d) Calculate the ac input resistance if the voltage gain is 80. [6 marks]
3. (a) Draw the circuit diagram and describe the operation of; (i) a half-wave rectifier, (ii) a full-wave bridge rectifier. [10 marks] (b) Show how capacitor smoothing may be introduced to the half-wave rectifier, and illustrate its effect with the help of waveform diagrams. [5 marks] (c) Show how the bridge rectifier may be converted into a voltage doubler , and briefly describe the operation of the circuit. [5 marks]
