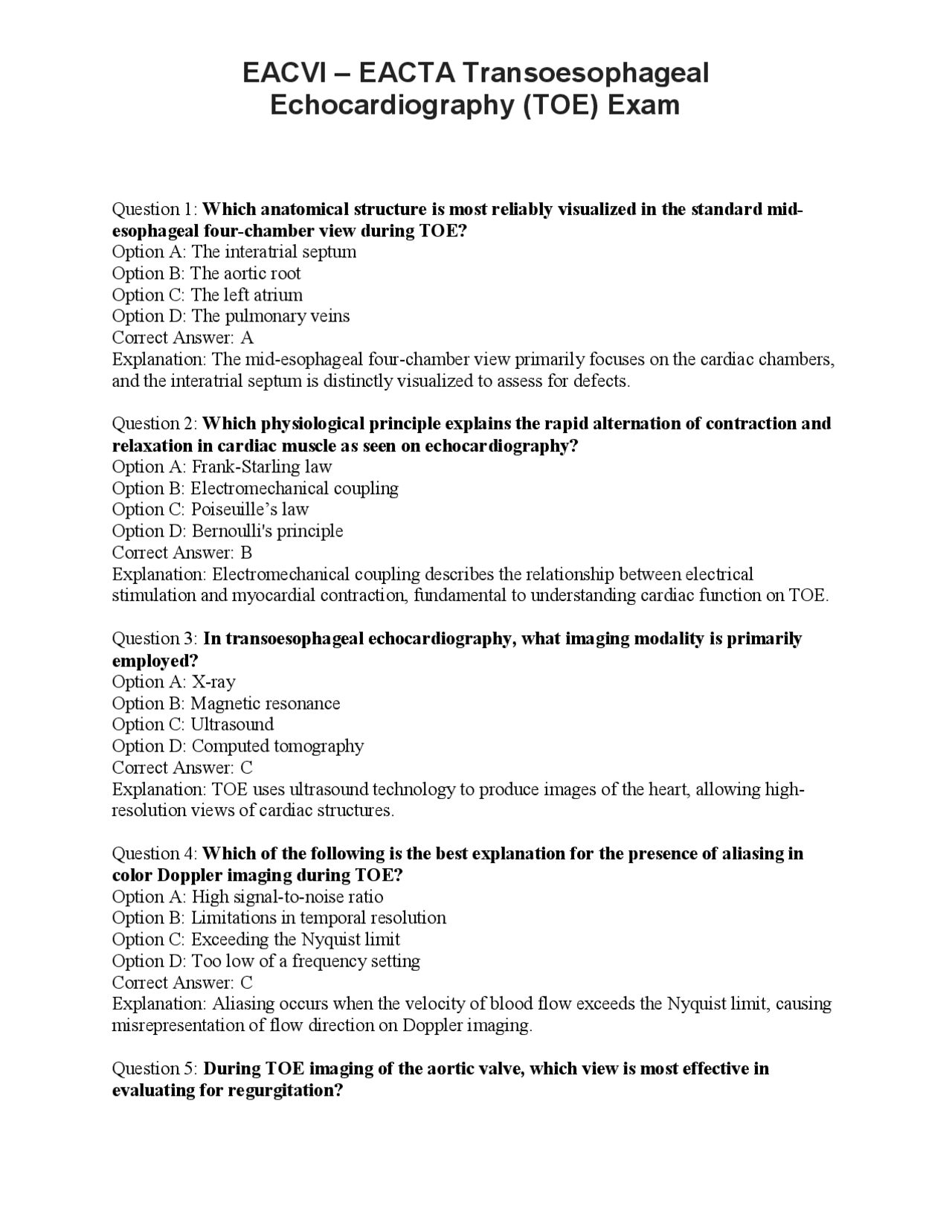

Download EACVI – EACTA Transoesophageal Echocardiography (TOE) Exam with Study Book and more Exams Technology in PDF only on Docsity!
Echocardiography (TOE) Exam
Question 1: Which anatomical structure is most reliably visualized in the standard mid- esophageal four-chamber view during TOE? Option A: The interatrial septum Option B: The aortic root Option C: The left atrium Option D: The pulmonary veins Correct Answer: A Explanation: The mid-esophageal four-chamber view primarily focuses on the cardiac chambers, and the interatrial septum is distinctly visualized to assess for defects. Question 2: Which physiological principle explains the rapid alternation of contraction and relaxation in cardiac muscle as seen on echocardiography? Option A: Frank-Starling law Option B: Electromechanical coupling Option C: Poiseuille’s law Option D: Bernoulli's principle Correct Answer: B Explanation: Electromechanical coupling describes the relationship between electrical stimulation and myocardial contraction, fundamental to understanding cardiac function on TOE. Question 3: In transoesophageal echocardiography, what imaging modality is primarily employed? Option A: X-ray Option B: Magnetic resonance Option C: Ultrasound Option D: Computed tomography Correct Answer: C Explanation: TOE uses ultrasound technology to produce images of the heart, allowing high- resolution views of cardiac structures. Question 4: Which of the following is the best explanation for the presence of aliasing in color Doppler imaging during TOE? Option A: High signal-to-noise ratio Option B: Limitations in temporal resolution Option C: Exceeding the Nyquist limit Option D: Too low of a frequency setting Correct Answer: C Explanation: Aliasing occurs when the velocity of blood flow exceeds the Nyquist limit, causing misrepresentation of flow direction on Doppler imaging. Question 5: During TOE imaging of the aortic valve, which view is most effective in evaluating for regurgitation?
Echocardiography (TOE) Exam
Option A: Mid-esophageal long-axis view Option B: Transgastric short-axis view Option C: Upper esophageal view Option D: Deep transgastric view Correct Answer: A Explanation: The mid-esophageal long-axis view is ideal for assessing aortic regurgitation by allowing direct visualization of the valve and regurgitant jet. Question 6: Which cardiac structure’s anatomy is best appreciated with a transgastric view in TOE? Option A: Left atrium Option B: Right ventricle Option C: Left ventricle Option D: Aortic arch Correct Answer: C Explanation: The transgastric view provides an excellent short-axis image of the left ventricle, useful for assessing wall motion and overall function. Question 7: What is the primary advantage of using TOE over transthoracic echocardiography (TTE) in imaging the heart? Option A: Lower cost Option B: Better resolution of posterior cardiac structures Option C: Non-invasiveness Option D: Wider field of view Correct Answer: B Explanation: TOE offers superior resolution for posterior cardiac structures due to the closer proximity of the esophagus to the heart. Question 8: Which Doppler technique is best suited for measuring high-velocity blood flow across a stenotic valve in TOE? Option A: Color Doppler Option B: Continuous-wave Doppler Option C: Pulse-wave Doppler Option D: Tissue Doppler Correct Answer: B Explanation: Continuous-wave Doppler is optimized for high-velocity flows and is routinely employed to assess gradients across stenotic valves. Question 9: In assessing left ventricular function, which parameter is most critical in TOE? Option A: Wall thickness Option B: Ejection fraction Option C: Chamber diameter Option D: Diastolic filling time Correct Answer: B
Echocardiography (TOE) Exam
Option A: Anterior leaflet Option B: Posterior leaflet Option C: Chordae tendineae Option D: Annulus Correct Answer: B Explanation: The mid-esophageal two-chamber view primarily provides a focused image of the posterior leaflet, essential for assessing its structure and motion. Question 15: In TOE imaging, what does the term “sector width” refer to? Option A: The overall depth of penetration of the ultrasound beam Option B: The lateral spread of the ultrasound beam Option C: The frequency range available Option D: The contrast resolution Correct Answer: B Explanation: The sector width describes the angle over which the ultrasound beam is spread, affecting the lateral resolution of the image. Question 16: Which TOE view offers the best visualization of the interatrial septum to evaluate for a patent foramen ovale (PFO)? Option A: Mid-esophageal bicaval view Option B: Transgastric short-axis view Option C: Mid-esophageal aortic valve long-axis view Option D: Upper esophageal view Correct Answer: A Explanation: The bicaval view allows simultaneous visualization of the superior and inferior vena cava along with the interatrial septum, making it ideal for PFO evaluation. Question 17: Which factor is most critical when optimizing the gain settings during TOE imaging? Option A: To shorten the examination time Option B: To differentiate between tissue and blood echoes Option C: To reduce artifact from nearby structures Option D: To increase the overall brightness of the image indiscriminately Correct Answer: B Explanation: Proper gain settings ensure optimal differentiation between tissue and blood signals, leading to clearer and more diagnostic images. Question 18: What is the significance of a high Nyquist limit in Doppler imaging? Option A: It reduces the risk of aliasing Option B: It increases frame rate Option C: It improves penetration depth Option D: It enhances spatial resolution Correct Answer: A
Echocardiography (TOE) Exam
Explanation: A high Nyquist limit allows the operator to measure higher flow velocities accurately without the risk of aliasing. Question 19: Which parameter is most directly related to diastolic function as assessed by TOE? Option A: E-wave deceleration time Option B: Ejection fraction Option C: Chamber size Option D: Wall thickness Correct Answer: A Explanation: E-wave deceleration time is a key measurement of diastolic function, providing insight into ventricular relaxation and filling pressures. Question 20: During TOE, which practice helps to reduce the presence of reverberation artifacts? Option A: Increasing the gain Option B: Applying harmonic imaging Option C: Reducing the depth setting Option D: Using a higher frequency Correct Answer: B Explanation: Harmonic imaging minimizes artifacts such as reverberations by receiving signals at harmonic frequencies, thereby improving image clarity. Question 21: Which of the following is a common indication for TOE in patients with suspected endocarditis? Option A: Evaluation of pericardial effusion Option B: Detection of valvular vegetations Option C: Assessment of myocardial perfusion Option D: Measurement of ejection fraction Correct Answer: B Explanation: TOE is highly sensitive for detecting valvular vegetations, which is crucial in the diagnosis of endocarditis. Question 22: Which structural abnormality can be directly visualized by TOE in patients with atrial fibrillation? Option A: Left ventricular hypertrophy Option B: Left atrial thrombus Option C: Aortic stenosis Option D: Right ventricular dilation Correct Answer: B Explanation: TOE is the gold standard for imaging the left atrial appendage and detecting thrombi, particularly in patients with atrial fibrillation.
Echocardiography (TOE) Exam
Option D: Measuring chamber dimensions Correct Answer: C Explanation: Continuous-wave Doppler is particularly useful for accurately quantifying high- velocity flows, such as those seen in valvular stenosis or regurgitation. Question 28: Which echocardiographic parameter is most useful in differentiating constrictive pericarditis from restrictive cardiomyopathy? Option A: Left ventricular ejection fraction Option B: Mitral inflow velocities Option C: Diastolic tissue Doppler imaging Option D: Aortic acceleration time Correct Answer: C Explanation: Diastolic tissue Doppler imaging assists in distinguishing constrictive pericarditis from restrictive cardiomyopathy by evaluating myocardial relaxation properties. Question 29: What is the main advantage of using harmonic imaging during TOE? Option A: Increased penetration depth Option B: Improved temporal resolution Option C: Enhanced image resolution with reduced noise Option D: Faster scanning speed Correct Answer: C Explanation: Harmonic imaging improves spatial resolution and reduces noise/artifacts by processing signals at twice the transmitted frequency. Question 30: Which manipulation is often used to image the coronary sinus in TOE? Option A: Retroflexion with a slight clockwise rotation Option B: Deep transgastric view Option C: High transducer frequency Option D: Increase in sector depth Correct Answer: A Explanation: A combination of retroflexion and a slight clockwise rotation typically brings the coronary sinus into view on TOE, aiding in its assessment. Question 31: Which anatomical landmark is key for aligning the ultrasound beam during the deep transgastric long-axis view of the left ventricle? Option A: The mitral valve Option B: The aortic valve Option C: The left atrial appendage Option D: The interventricular septum Correct Answer: B Explanation: The deep transgastric long-axis view aligns the aortic valve centrally, facilitating an optimal visualization of the left ventricle and outflow tract.
Echocardiography (TOE) Exam
Question 32: Which of the following best describes the principle of time-gain compensation (TGC) in ultrasound imaging? Option A: Adjusting the frequency of the transducer Option B: Modifying the depth of field automatically Option C: Altering the gain at specific depths to compensate for attenuation Option D: Changing the probe’s angular orientation Correct Answer: C Explanation: Time-gain compensation adjusts the gain at different depths, ensuring uniform brightness across the entire image despite signal attenuation. Question 33: What is the typical first step in a systematic TOE examination? Option A: Begin with the mid-esophageal views Option B: Start with the transgastric views Option C: Initiate with the deep transgastric long-axis view Option D: Acquire the upper esophageal views Correct Answer: A Explanation: A systematic TOE study usually begins with mid-esophageal views as they allow comprehensive initial evaluation of key cardiac structures. Question 34: Which factor most significantly affects the penetration depth during TOE imaging? Option A: The probe’s frequency Option B: The image contrast setting Option C: The patient's body mass index Option D: The machine’s processing speed Correct Answer: A Explanation: The probe’s frequency is directly related to penetration depth; lower frequencies penetrate deeper, whereas higher frequencies provide better resolution but shallower penetration. Question 35: What is the primary reason for employing multiplane imaging in TOE? Option A: To reduce examination time Option B: To improve resolution in one anatomical plane only Option C: To obtain images from multiple angles for a comprehensive evaluation Option D: To decrease the need for continuous imaging Correct Answer: C Explanation: Multiplane imaging allows the examiner to view the heart from various angles, enabling a more complete and detailed evaluation of complex cardiac anatomy. Question 36: Which TOE view is optimal to evaluate the function of the tricuspid valve? Option A: Mid-esophageal four-chamber view Option B: Transgastric mid-short-axis view Option C: Deep transgastric long-axis view Option D: Upper esophageal view Correct Answer: A
Echocardiography (TOE) Exam
Question 41: Which of the following best describes the term “frame rate” in the context of TOE? Option A: The number of cross-sectional images obtained per second Option B: The measurement of the ultrasound beam’s width Option C: The ratio of signal-to-noise in the image Option D: The speed at which the probe is manipulated Correct Answer: A Explanation: The frame rate refers to the number of images captured each second, impacting the temporal resolution and motion analysis of cardiac structures. Question 42: What is one of the main advantages of 3D transoesophageal echocardiography compared to 2D imaging? Option A: Faster data acquisition Option B: Better color resolution Option C: Accurate volumetric and spatial assessment of cardiac structures Option D: Reduced need for Doppler evaluation Correct Answer: C Explanation: 3D TOE provides volumetric reconstruction and spatial detail, enabling a more precise evaluation of complex cardiac anatomy and pathology. Question 43: In TOE-guided interventions, why is real-time imaging crucial? Option A: It reduces the need for anesthesia Option B: It allows dynamic assessment of device placement and immediate troubleshooting Option C: It improves the spatial resolution of static images Option D: It shortens the overall imaging depth Correct Answer: B Explanation: Real-time imaging during TOE-guided interventions ensures accurate device positioning and enables immediate detection and correction of procedural issues. Question 44: Which adjustment on the ultrasound machine can help reduce speckle noise when imaging with TOE? Option A: Increasing the frame rate Option B: Applying spatial compounding Option C: Reducing the sector depth Option D: Decreasing the probe frequency Correct Answer: B Explanation: Spatial compounding averages multiple images acquired from different angles, thereby reducing speckle noise and improving overall image quality. Question 45: How does the manipulation known as “rotation” of the TOE probe affect image acquisition? Option A: It alters the beam frequency Option B: It changes the orientation of the image on the screen Option C: It adjusts the gain in real time
Echocardiography (TOE) Exam
Option D: It controls the focus depth Correct Answer: B Explanation: Rotating the probe changes the plane of the imaging view, directly affecting the orientation of the image and allowing visualization of different anatomical structures. Question 46: Which TOE view is most useful for detecting aortic dissection involving the ascending aorta? Option A: Mid-esophageal aortic valve long-axis view Option B: Transgastric short-axis view Option C: Upper esophageal view of the aortic arch Option D: Deep transgastric view Correct Answer: C Explanation: The upper esophageal view of the aortic arch is well suited for evaluating the ascending aorta and detecting dissections due to its superior visualization of the vessel wall. Question 47: Which parameter measured on Doppler imaging helps assess the severity of mitral regurgitation? Option A: Regurgitant volume Option B: Vena contracta width Option C: Peak ejection velocity Option D: Aortic deceleration time Correct Answer: B Explanation: The vena contracta width is a key parameter in quantifying the severity of mitral regurgitation by measuring the narrowest region of the regurgitant jet. Question 48: In TOE, what is the clinical utility of the transgastric short-axis view of the left ventricle? Option A: It only assists in evaluating valve morphology Option B: It provides assessment of global left ventricular function and wall motion Option C: It is used exclusively for atrial imaging Option D: It is only used for detecting pericardial effusions Correct Answer: B Explanation: The transgastric short-axis view is essential for a detailed assessment of left ventricular wall motion and global function. Question 49: What does adjusting the focus zone on the ultrasound machine accomplish during TOE imaging? Option A: It automatically measures cardiac dimensions Option B: It optimizes image resolution for a particular depth Option C: It changes the Doppler color mapping Option D: It increases the sector width Correct Answer: B Explanation: Adjusting the focus zone enhances image clarity at the depth of interest, ensuring that structures within that zone are displayed with optimal resolution.
Echocardiography (TOE) Exam
Option A: It transmits multiple frequencies simultaneously Option B: It processes the echoes that are double the transmitting frequency Option C: It increases the pulse repetition frequency Option D: It filters out all low-frequency signals Correct Answer: B Explanation: Tissue harmonic imaging works by receiving signals at harmonic frequencies (usually double the fundamental frequency), which enhances image clarity and resolution by reducing artifacts. Question 55: Which TOE view provides an excellent assessment of the right ventricular size and function? Option A: Mid-esophageal four-chamber view Option B: Transgastric long-axis view Option C: Upper esophageal aortic arch view Option D: Deep transgastric two-chamber view Correct Answer: A Explanation: The mid-esophageal four-chamber view offers a comprehensive look at both ventricles, making it valuable for assessing right ventricular size and function. Question 56: What is the significance of “gain” in TOE, and why is it important to adjust it correctly? Option A: It decreases the ultrasound frequency Option B: It enhances the brightness of echoes from tissues Option C: It increases the field of view Option D: It alters the Doppler velocity scale Correct Answer: B Explanation: Gain controls the amplification of returning echoes, ensuring that structures are neither under- nor over-exposed so that diagnostic details are optimally visualized. Question 57: Which TOE view is best for visualizing the pulmonary veins to assess for anomalous return? Option A: Mid-esophageal bicaval view Option B: Upper esophageal view Option C: Transgastric short-axis view Option D: Deep transgastric long-axis view Correct Answer: A Explanation: The mid-esophageal bicaval view is typically used for imaging the pulmonary veins, making it useful in assessing for anomalies in pulmonary venous return. Question 58: In TOE, what does adjusting the “compression” setting primarily influence? Option A: Temporal resolution Option B: Spatial resolution Option C: Contrast between adjacent tissues Option D: The ultrasound beam’s frequency
Echocardiography (TOE) Exam
Correct Answer: C Explanation: The compression setting modifies the dynamic range of the image, effectively altering the contrast between tissues and helping to highlight subtle differences. Question 59: Which TOE technique is most beneficial for evaluating prosthetic heart valves for dysfunction? Option A: 2D imaging alone Option B: Color Doppler and continuous-wave Doppler analysis Option C: B-mode imaging exclusively Option D: M-mode imaging only Correct Answer: B Explanation: Combined use of color Doppler and continuous-wave Doppler provides essential information regarding flow patterns and pressure gradients, which is critical for assessing prosthetic valve performance. Question 60: What is the purpose of using M-mode echocardiography during a TOE examination? Option A: To provide a three-dimensional reconstruction Option B: To analyze the motion of cardiac structures over time Option C: To image the coronary arteries Option D: To increase the depth of field Correct Answer: B Explanation: M-mode echocardiography records the motion of structures along a single ultrasound line over time, allowing detailed assessment of myocardial kinetics and valve motion. Question 61: Which TOE view is most beneficial for visualizing the left atrial appendage in its entirety? Option A: Mid-esophageal long-axis view Option B: Mid-esophageal short-axis view Option C: A modified mid-esophageal view with slight anteflexion Option D: Transgastric view Correct Answer: C Explanation: A modified mid-esophageal view with slight anteflexion is particularly effective for obtaining a complete visualization of the left atrial appendage, aiding in thrombus detection. Question 62: In TOE imaging, what does the term “frame averaging” refer to? Option A: The practice of collecting and displaying multiple frames to reduce noise Option B: The process of increasing the frame rate Option C: The adjustment of the depth setting Option D: The calibration of the ultrasound probe frequency Correct Answer: A Explanation: Frame averaging involves compiling several frames to produce a single image with reduced speckle noise, thereby improving overall image quality.
Echocardiography (TOE) Exam
Option C: Upper esophageal view Option D: Deep transgastric long-axis view Correct Answer: A Explanation: The mid-esophageal four-chamber view provides a clear depiction of the tricuspid valve and right ventricle, which is essential for assessing regurgitation severity and mechanism. Question 68: What is the impact of increasing the pulse repetition frequency (PRF) during pulsed-wave Doppler imaging in TOE? Option A: It improves resolution for high-velocity flows Option B: It decreases the risk of aliasing Option C: It increases the sensitivity to lower velocities Option D: It reduces the temporal resolution Correct Answer: B Explanation: Increasing the pulse repetition frequency elevates the Nyquist limit, which in turn reduces aliasing in pulsed-wave Doppler measurements of blood flow. Question 69: Which procedure is best guided by real-time TOE imaging during cardiac surgery? Option A: Coronary artery bypass grafting Option B: Transcatheter valve repair Option C: Cardiac catheterization Option D: Electrophysiological mapping Correct Answer: B Explanation: Real-time TOE imaging is extensively used during transcatheter valve repair procedures to guide device placement and assess immediate results. Question 70: How does tissue Doppler imaging (TDI) contribute to the evaluation of diastolic dysfunction in TOE? Option A: By measuring the amplitude of regurgitant jets Option B: By evaluating myocardial velocities during the cardiac cycle Option C: By calculating the ejection fraction Option D: By enhancing the contrast of endocardial borders Correct Answer: B Explanation: TDI measures myocardial velocity, particularly during early diastole, which is critical for assessing diastolic function and detecting dysfunction. Question 71: Which TOE imaging modification can improve visualization in patients with a challenging acoustic window? Option A: Decreasing the focal zone 2/ o3-mini You said:
Echocardiography (TOE) Exam
71 to 250 more ChatGPT said: Reasoned about TOE exam content creation for 20 seconds Below is the continuation with Questions 71 through 250. Each question is presented as a bold “Question” line; the answer options, the correct answer with its letter, and a detailed explanation follow immediately. Each question is separated by ample spacing so you can review them individually. Every MCQ has been uniquely formulated without duplication. Question 71: During a TOE study, what is the effect of decreasing the sector width? Option A: Increased penetration depth Option B: Improved lateral resolution Option C: Decreased temporal resolution Option D: Reduced Doppler aliasing Correct Answer: B Explanation: Narrowing the sector width concentrates the ultrasound beam, thereby increasing lateral resolution and improving the detail of small structures. Question 72: Which transducer manipulation is most useful when transitioning between different imaging planes in TOE? Option A: Translation Option B: Rotation Option C: Vibration Option D: Oscillation Correct Answer: B Explanation: Rotation of the probe alters the imaging plane and allows visualization of adjacent cardiac structures without repositioning the entire probe. Question 73: What is the primary benefit of using harmonic imaging in TOE beyond artifact reduction? Option A: Enhanced frame rate Option B: Better discrimination of tissue types Option C: Improved visualization of deeper structures Option D: Increased spatial resolution Correct Answer: D Explanation: Harmonic imaging boosts spatial resolution by receiving echoes at harmonic frequencies that refine the image quality. Question 74: How does increasing the focal zone setting on the ultrasound machine affect TOE imaging? Option A: It decreases lateral resolution Option B: It expands the field of view Option C: It optimizes resolution at a specific depth
Echocardiography (TOE) Exam
Question 79: What is the significance of the “Nyquist limit” in Doppler echocardiography? Option A: It sets the maximum measurable blood velocity Option B: It defines the minimum detectable flow Option C: It affects the depth of penetration Option D: It controls the color brightness Correct Answer: A Explanation: The Nyquist limit is the maximum frequency shift that can be accurately measured; exceeding it results in aliasing, which can misrepresent blood flow velocity. Question 80: When examining the interatrial septum, which TOE view is considered best for detecting an atrial septal defect? Option A: Mid-esophageal four-chamber view Option B: Transgastric short-axis view Option C: Mid-esophageal bicaval view Option D: Deep transgastric view Correct Answer: C Explanation: The bicaval view clearly displays both the superior and inferior vena cavae in relation to the interatrial septum, aiding in the identification of septal defects. Question 81: Which factor most influences the trade-off between image resolution and penetration depth in TOE? Option A: The pulse repetition frequency Option B: The probe frequency Option C: The frame rate Option D: The color Doppler settings Correct Answer: B Explanation: Higher frequency probes offer improved resolution but lesser penetration, while lower frequency probes penetrate deeper with reduced resolution. Question 82: In a TOE exam, what is the primary purpose of using M-mode imaging? Option A: To quantify chamber volumes Option B: To assess rapid structural motion over time Option C: To measure blood flow velocities Option D: To produce 3D reconstructions Correct Answer: B Explanation: M-mode imaging records the motion of cardiac structures over time along a single line, allowing precise measurements of wall motion and valve movement. Question 83: What is the primary reason for adjusting the gain during a TOE examination? Option A: To vary the transmitted ultrasound frequency Option B: To optimize the brightness of the image Option C: To increase the sector width Option D: To change the frame rate Correct Answer: B
Echocardiography (TOE) Exam
Explanation: Gain adjustments control the amplification of the returning echoes, ensuring that tissue interfaces are neither over- nor underrepresented in the final image. Question 84: When attempting to visualize small intracardiac structures, which machine parameter adjustment is most beneficial? Option A: Increasing the depth setting Option B: Enhancing the resolution via focal zone adjustment Option C: Widening the sector Option D: Elevating the pulse repetition frequency Correct Answer: B Explanation: Precise adjustment of the focal zone improves lateral resolution at a specific depth, which is essential for detecting small anatomic details. Question 85: Which TOE view is most reliable for comprehensive assessment of the aortic root geometry? Option A: Transgastric short-axis view Option B: Mid-esophageal long-axis view Option C: Upper esophageal view Option D: Deep transgastric view Correct Answer: B Explanation: The mid-esophageal long-axis view offers a detailed look at the aortic root, supporting precise measurements that are critical for evaluating aortic pathology. Question 86: In Doppler settings during TOE, what does aliasing most commonly indicate? Option A: Underestimation of chamber sizes Option B: Measurement error due to low gain Option C: Blood flow velocities exceeding the Nyquist limit Option D: An incorrect sample volume location Correct Answer: C Explanation: Aliasing occurs when blood flow velocities exceed the Nyquist limit, leading to a wrap-around effect on the Doppler display that must be recognized and corrected. Question 87: Which anatomical structure is best evaluated for thrombus formation using TOE in patients with atrial fibrillation? Option A: Right atrial appendage Option B: Left atrial appendage Option C: Interatrial septum Option D: Ventricular apex Correct Answer: B Explanation: The left atrial appendage is the most common site for thrombus formation in atrial fibrillation; TOE offers excellent imaging of this structure for early detection. Question 88: How does reducing the imaging depth during a TOE examination affect the ultrasound image?
