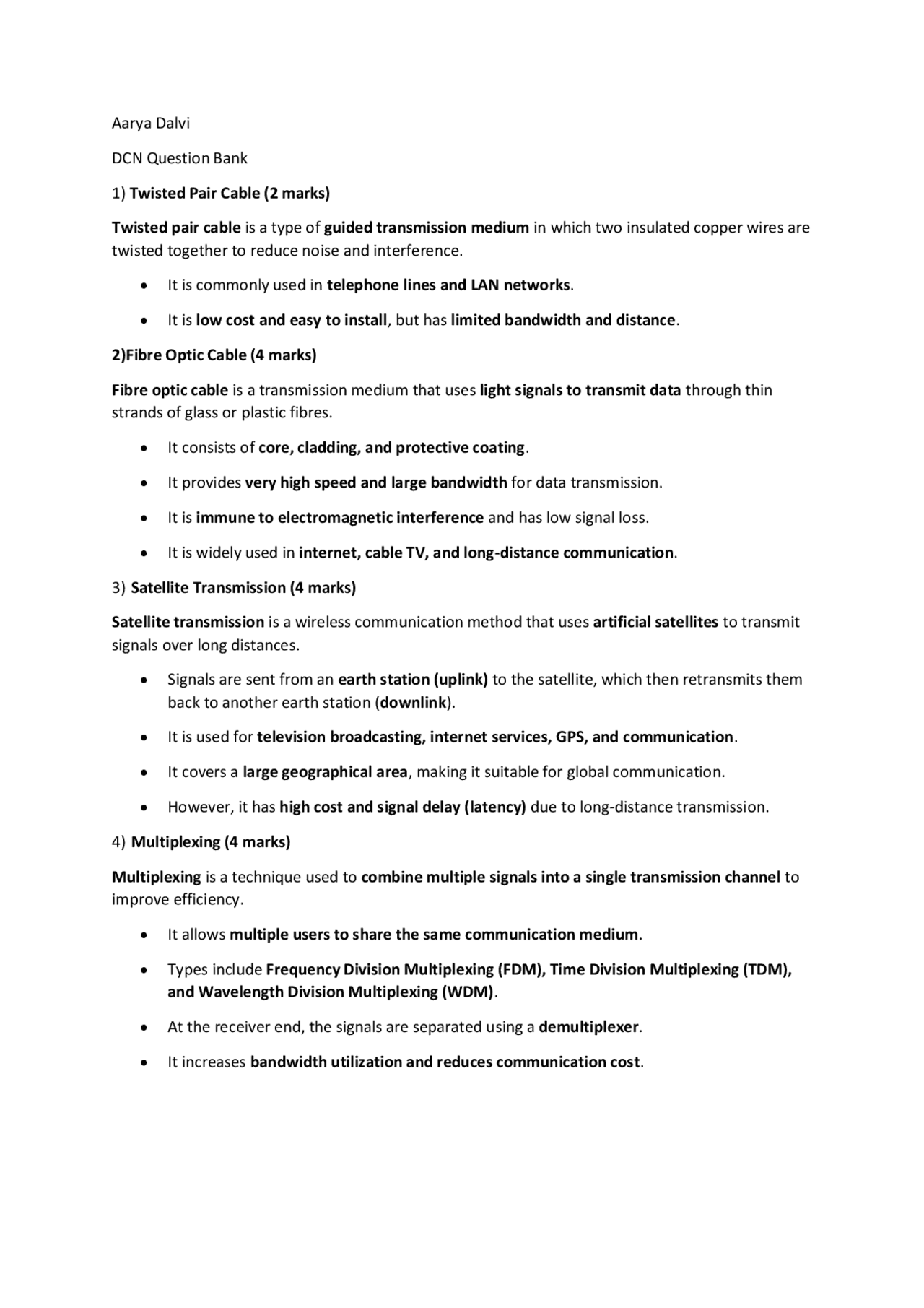

Aarya Dalvi
DCN Question Bank
1) Twisted Pair Cable (2 marks)
Twisted pair cable is a type of guided transmission medium in which two insulated copper wires are
twisted together to reduce noise and interference.
โ€ข It is commonly used in telephone lines and LAN networks.
โ€ข It is low cost and easy to install, but has limited bandwidth and distance.
2)Fibre Optic Cable (4 marks)
Fibre optic cable is a transmission medium that uses light signals to transmit data through thin
strands of glass or plastic fibres.
โ€ข It consists of core, cladding, and protective coating.
โ€ข It provides very high speed and large bandwidth for data transmission.
โ€ข It is immune to electromagnetic interference and has low signal loss.
โ€ข It is widely used in internet, cable TV, and long-distance communication.
3) Satellite Transmission (4 marks)
Satellite transmission is a wireless communication method that uses artificial satellites to transmit
signals over long distances.
โ€ข Signals are sent from an earth station (uplink) to the satellite, which then retransmits them
back to another earth station (downlink).
โ€ข It is used for television broadcasting, internet services, GPS, and communication.
โ€ข It covers a large geographical area, making it suitable for global communication.
โ€ข However, it has high cost and signal delay (latency) due to long-distance transmission.
4) Multiplexing (4 marks)
Multiplexing is a technique used to combine multiple signals into a single transmission channel to
improve efficiency.
โ€ข It allows multiple users to share the same communication medium.
โ€ข Types include Frequency Division Multiplexing (FDM), Time Division Multiplexing (TDM),
and Wavelength Division Multiplexing (WDM).
โ€ข At the receiver end, the signals are separated using a demultiplexer.
โ€ข It increases bandwidth utilization and reduces communication cost.
pf3
pf4
pf5

Partial preview of the text

Download easiest way to remember and more Cheat Sheet Computer science in PDF only on Docsity!

Aarya Dalvi DCN Question Bank

  1. Twisted Pair Cable (2 marks) Twisted pair cable is a type of guided transmission medium in which two insulated copper wires are twisted together to reduce noise and interference.
  • It is commonly used in telephone lines and LAN networks.
  • It is low cost and easy to install , but has limited bandwidth and distance. 2)Fibre Optic Cable (4 marks) Fibre optic cable is a transmission medium that uses light signals to transmit data through thin strands of glass or plastic fibres.
  • It consists of core, cladding, and protective coating.
  • It provides very high speed and large bandwidth for data transmission.
  • It is immune to electromagnetic interference and has low signal loss.
  • It is widely used in internet, cable TV, and long-distance communication.
  1. Satellite Transmission (4 marks) Satellite transmission is a wireless communication method that uses artificial satellites to transmit signals over long distances.
  • Signals are sent from an earth station (uplink) to the satellite, which then retransmits them back to another earth station ( downlink ).
  • It is used for television broadcasting, internet services, GPS, and communication.
  • It covers a large geographical area , making it suitable for global communication.
  • However, it has high cost and signal delay (latency) due to long-distance transmission.
  1. Multiplexing (4 marks) Multiplexing is a technique used to combine multiple signals into a single transmission channel to improve efficiency.
  • It allows multiple users to share the same communication medium.
  • Types include Frequency Division Multiplexing (FDM), Time Division Multiplexing (TDM), and Wavelength Division Multiplexing (WDM).
  • At the receiver end, the signals are separated using a demultiplexer.
  • It increases bandwidth utilization and reduces communication cost.

UNIT 4

  1. Encapsulation (2 marks) Encapsulation is the process of adding headers (and sometimes trailers) to data as it moves through different layers of a network.
  • Each layer adds its own control information to ensure proper transmission.
  1. Functions of OSI Layers (2 marks)
  • Presentation Layer: Performs data formatting, encryption, and compression.
  • Physical Layer: Handles transmission of raw bits over the medium.
  • Network Layer: Responsible for routing and IP addressing. 3) Layered Architecture of OSI Model (4 marks) The OSI (Open Systems Interconnection) model is divided into 7 layers , each with specific functions. It follows a layered architecture , where each layer communicates with its adjacent layers. Layers of OSI Model (Top to Bottom)
  1. Application Layer โ€“ Provides network services to end users
  2. Presentation Layer โ€“ Handles data formatting, encryption, compression
  3. Session Layer โ€“ Manages sessions and connections
  4. Transport Layer โ€“ Ensures reliable data transfer
  5. Network Layer โ€“ Handles routing and logical addressing
  6. Data Link Layer โ€“ Responsible for framing and error detection
  7. Physical Layer โ€“ Transmits raw bits over the medium
  1. Difference between OSI and TCP/IP Model (2 marks) OSI Model TCP/IP Model 7 layers 4 layers Reference model Practical model Developed by ISO Developed by DARPA Strict layer separation Flexible layer structure

2. First address (Network Address) For /24 โ†’ last 8 bits are host bits โ†’ set them to 0 IP: 129.65.33. 0 โœ” **First address: 129.65.33.

  1. Last address (Broadcast Address)** Set last 8 bits to 1 IP: 129.65.33. 255 โœ” Last address: 129.65.33. Final Answer (4 marks format):
    • Number of addresses: 256
    • First address: 129.65.33.
    • Last address: 129.65.33.
  1. Explain classes of IPv 4 with range Classes of IPv4 with Range (2 marks) - Class A: 1.0.0.0 โ€“ 127.255.255. - Class B: 128.0.0.0 โ€“ 191.255.255. - Class C: 192.0.0.0 โ€“ 223.255.255. - Class D: 224.0.0.0 โ€“ 239.255.255.255 (Multicast) - Class E: 240.0.0.0 โ€“ 255.255.255.255 (Experimental) UNIT 5
  2. **Network Topologies (2 marks each โ€“ definition + simple diagram)
  1. Bus Topology Definition:** All devices are connected to a single main cable (backbone). PC1 โ”€โ”€ PC2 โ”€โ”€ PC3 โ”€โ”€ PC 2. Ring Topology Definition: Devices are connected in a circular form , where each node is connected to two others.

PC1 โ”€โ”€ PC2 โ”€โ”€ PC3 โ”€โ”€ PC

__________________/

3. Star Topology Definition: All devices are connected to a central hub/switch. PC | PC1 โ€” HUB โ€” PC | PC 4. Mesh Topology (you wrote โ€œnestโ€) Definition: Each device is connected to every other device. PC1 โ€”โ€” PC | \ / | | / | | /\ | | / \ | PC3 โ€”โ€” PC 5. Tree Topology Definition: A hierarchical structure combining multiple star networks. Root / Hub1 Hub / \ / PC PC PC PC

  1. Router (4 marks) A router is a networking device that connects multiple networks and forwards data packets between them.
    • It operates at the Network Layer (Layer 3) of the OSI model.
    • It uses IP addresses to determine the best path for data transmission.
    • Routers use routing tables and protocols to direct traffic efficiently.
    • It connects LANs to WANs , such as connecting a home network to the internet.
