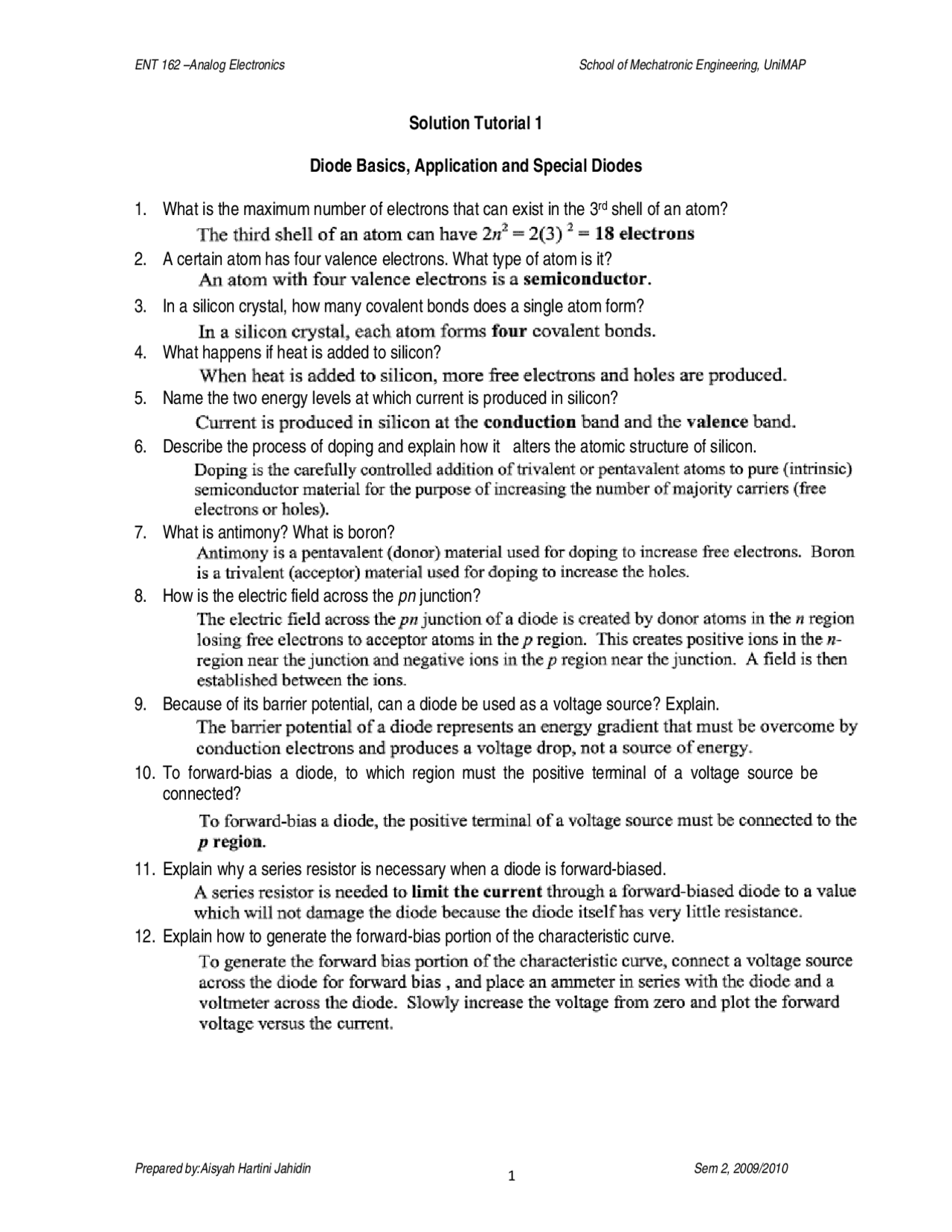

ENT 162 –Analog Electronics School of Mechatronic Engineering, UniMAP
Prepared by:Aisyah Hartini Jahidin Sem 2, 2009/2010
1
Solution Tutorial 1
Diode Basics, Application and Special Diodes
1. What is the maximum number of electrons that can exist in the 3rd shell of an atom?
2. A certain atom has four valence electrons. What type of atom is it?
3. In a silicon crystal, how many covalent bonds does a single atom form?
4. What happens if heat is added to silicon?
5. Name the two energy levels at which current is produced in silicon?
6. Describe the process of doping and explain how it alters the atomic structure of silicon.
7. What is antimony? What is boron?
8. How is the electric field across the pn junction?
9. Because of its barrier potential, can a diode be used as a voltage source? Explain.
10. To forward-bias a diode, to which region must the positive terminal of a voltage source be
connected?
11. Explain why a series resistor is necessary when a diode is forward-biased.
12. Explain how to generate the forward-bias portion of the characteristic curve.
