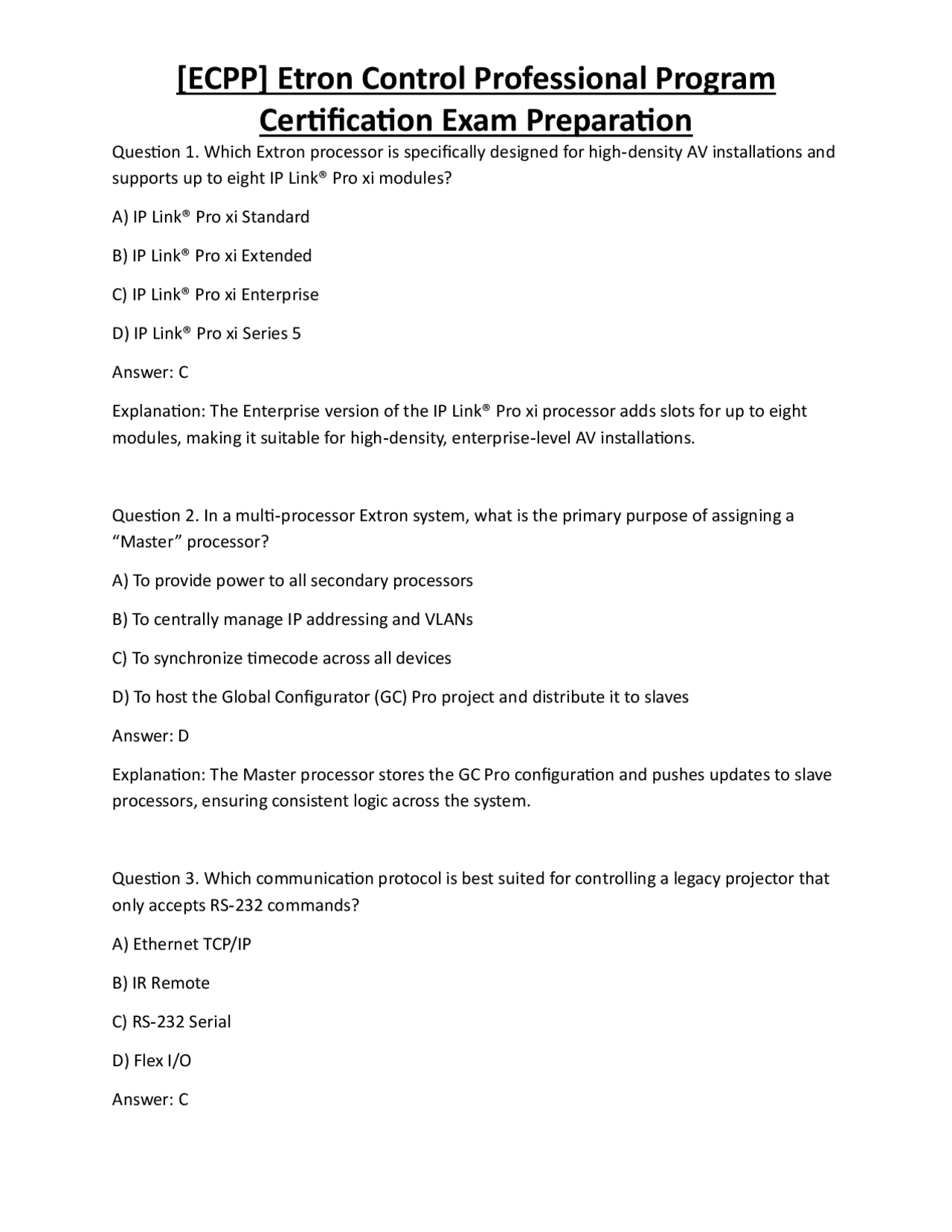

Question 1. Which Extron processor is specifically designed for high‑density AV installations and supports up to eight IP Link® Pro xi modules? A) IP Link® Pro xi Standard B) IP Link® Pro xi Extended C) IP Link® Pro xi Enterprise D) IP Link® Pro xi Series 5 Answer: C Explanation: The Enterprise version of the IP Link® Pro xi processor adds slots for up to eight modules, making it suitable for high‑density, enterprise‑level AV installations. Question 2. In a multi‑processor Extron system, what is the primary purpose of assigning a “Master” processor? A) To provide power to all secondary processors B) To centrally manage IP addressing and VLANs C) To synchronize timecode across all devices D) To host the Global Configurator (GC) Pro project and distribute it to slaves Answer: D Explanation: The Master processor stores the GC Pro configuration and pushes updates to slave processors, ensuring consistent logic across the system. Question 3. Which communication protocol is best suited for controlling a legacy projector that only accepts RS‑232 commands? A) Ethernet TCP/IP B) IR Remote C) RS‑232 Serial D) Flex I/O Answer: C
Certification Exam Preparation
Explanation: RS‑232 serial communication directly matches the projector’s native control interface, allowing reliable command transmission. Question 4. When calculating PoE power budgets, what is the maximum power that a standard PoE+ (IEEE 802.3at) switch port can deliver to a device? A) 15 W B) 30 W C) 45 W D) 60 W Answer: B Explanation: PoE+ (802.3at) provides up to 30 watts per port, which is the limit for most Extron PoE‑enabled devices. Question 5. Which VLAN configuration is recommended to isolate control traffic from general corporate data traffic? A) Place all devices in the default VLAN B) Use a dedicated “Control” VLAN with a unique subnet C) Assign each device its own VLAN D) Disable VLANs and rely on firewall rules only Answer: B Explanation: A dedicated Control VLAN keeps AV traffic separate, reduces broadcast domain size, and simplifies security policies. Question 6. In GC Pro, which statement correctly describes a “global variable”? A) It can only be used within the page where it is defined B) It is automatically reset after each power cycle C) It can be accessed by any logic block across the entire project
Certification Exam Preparation
B) Conditional Logic – Variable Change C) Macro – Power Cycle D) Helper Function – SleepTimer Answer: A Explanation: The “Event Trigger – Time of Day” lets you specify a time at which a set of actions, such as enabling Night Mode, will run automatically. Question 10. When updating device drivers in GC Pro, which action ensures the driver version matches the hardware’s firmware? A) Delete the driver and reinstall the default B) Use the “Check for Updates” button in the Driver Manager C) Manually edit the driver’s XML file D) Restart the processor after driver selection Answer: B Explanation: The “Check for Updates” function queries Extron’s library and downloads the driver version that corresponds to the installed firmware. Question 11. What is an “Executive Mode” in GC Pro primarily used for? A) To grant administrative rights to a user B) To lock the processor’s firmware from updates C) To group devices so they respond together to a single command D. To enable remote debugging over the internet Answer: C Explanation: Executive Modes let you control multiple devices as a single logical unit, simplifying commands like “All Lights On”.
Certification Exam Preparation
Question 12. In GUI Designer, which object type is best for displaying a real‑time audio level from a microphone? A) Button B) Text Label C) Level Gauge (Slider) D) Image Answer: C Explanation: A Level Gauge provides a visual representation of a numeric value that can be updated continuously, ideal for audio level monitoring. Question 13. When importing a GC Pro project into GUI Designer, which step must be performed first? A) Create a new theme file B) Export the project as a “.gcp” file C) Generate a “Project Data” XML from GC Pro D) Assign IP addresses to all touch panels Answer: C Explanation: GUI Designer reads the “Project Data” XML generated by GC Pro to map objects to logic functions. Question 14. Which GUI Designer feature allows a button to change its icon based on the state of a variable called “PowerState”? A) Multi‑State Button with Variable Mapping B) Static Image Button C) Conditional Text Label D) Macro‑Linked Button Answer: A
Certification Exam Preparation
D) HDMI EDID version Answer: C Explanation: MJPEG preview windows require the source device’s RTSP URL and port to stream the video correctly. Question 18. During the upload process, what is the advantage of using “Simultaneous Sync” to multiple processors? A) It reduces the total upload time by sending the same file to all devices at once B) It allows each processor to select a different firmware version C) It automatically resolves IP address conflicts D) It disables all network traffic during upload for security Answer: A Explanation: Simultaneous Sync streams the configuration file to all selected processors in parallel, significantly decreasing deployment time. Question 19. Which verification step should be performed first after uploading a new GC Pro project to the hardware? A) Check the system’s IP address table B) Run the “Logic Test” tool to validate all conditional branches C) Power cycle every device manually D) Open the Extron Toolbelt and view the CPU load Answer: B Explanation: The Logic Test feature verifies that all programmed conditions and actions behave as expected before physical testing. Question 20. In the Extron Toolbelt, which module provides real‑time bandwidth usage for Ethernet‑connected devices?
Certification Exam Preparation
A) Network Analyzer B) Power Monitor C) Firmware Manager D) Serial Port Viewer Answer: A Explanation: The Network Analyzer displays live traffic statistics, helping identify congestion or mis‑configured devices. Question 21. Which firmware management practice helps prevent compatibility issues after a hardware upgrade? A) Updating all devices to the latest firmware regardless of model B) Maintaining a version matrix that maps hardware revisions to supported firmware levels C) Disabling automatic firmware checks on the processors D) Using only the factory‑installed firmware version Answer: B Explanation: A version matrix ensures that each hardware component runs a firmware version verified to be compatible, avoiding mismatches. Question 22. In GC Pro “Monitor” mode, what does a red “X” next to a logic block indicate? A) The block is disabled by the user B) A runtime error occurred while executing that block C) The block is waiting for a variable change D) The block has completed successfully Answer: B Explanation: A red “X” signals that an error (such as an invalid command or missing driver) prevented the block from executing.
Certification Exam Preparation
Answer: C Explanation: The Variable Watchlist lets technicians monitor specific variables remotely, aiding in troubleshooting. Question 26. When scaling an Extron system to include three control processors, what is the recommended method for IP addressing? A) Use the same static IP on all processors B) Assign each processor an IP from the same subnet but a unique host address C) Place each processor on a different VLAN with overlapping IP ranges D) Enable DHCP on only one processor and let the others share its address Answer: B Explanation: Unique host addresses within the same subnet allow processors to communicate while simplifying network management. Question 27. Which protocol would you select to control a lighting fixture that supports DMX over Ethernet? A) RS‑ 232 B) Flex I/O C) UDP‑based Art‑Net D) IR Answer: C Explanation: Art‑Net transports DMX data over UDP/IP, enabling Ethernet‑based lighting control. Question 28. In GC Pro, what is the effect of setting a variable’s “Persistence” property to “True”? A) The variable will reset to zero on every power‑up
Certification Exam Preparation
B) The variable retains its last value after a processor reboot C) The variable can only be changed by macros D) The variable is hidden from the GUI Designer Answer: B Explanation: Persistence stores the variable’s value in non‑volatile memory, preserving it across reboots. Question 29. Which GUI Designer object is most appropriate for selecting one of several video sources? A) Multi‑State Button B) Dropdown List C) Slider D) Text Label Answer: B Explanation: A Dropdown List provides a compact way to choose among multiple options, such as video inputs. Question 30. When configuring VLANs for an Extron network, which tag value is commonly reserved for voice traffic in corporate environments? A) 10 B) 20 C) 30 D) 40 Answer: B Explanation: VLAN 20 is often designated for voice traffic, separating it from data and control VLANs.
Certification Exam Preparation
Explanation: Macros bundle multiple commands into one callable entity, simplifying complex actions. Question 34. During system commissioning, you notice that an IR‑controlled display does not respond to commands sent from GC Pro. Which diagnostic step is most appropriate? A) Verify the IR emitter’s orientation and distance to the display B) Increase the PoE power budget for the processor C) Change the VLAN ID of the processor D) Re‑install the firmware on the display Answer: A Explanation: IR communication is line‑of‑sight; checking emitter alignment often resolves command reception issues. Question 35. Which Extron hardware component provides isolated relay outputs for controlling HVAC equipment? A) Flex I/O Digital Output Module B) IP Link® Pro xi Relay Module C) NBP Network Button Panel D) TouchLink® Pro Touchpanel Answer: B Explanation: The Relay Module offers isolated contacts suitable for HVAC and other high‑voltage devices. Question 36. In GUI Designer, what is the purpose of the “Object ID” field for each control element? A) To assign a unique network address to the object B) To map the object to a specific variable or command in GC Pro
Certification Exam Preparation
C) To set the object’s power consumption D) To define the object’s firmware version Answer: B Explanation: The Object ID links a GUI element to the corresponding logic variable or macro in the GC Pro project. Question 37. Which of the following is a primary benefit of using “Executive Modes” over individual device commands? A) Faster processor boot time B) Reduced network traffic by sending a single command to multiple devices C) Automatic firmware updates for all devices in the mode D) Built‑in security encryption for each command Answer: B Explanation: Executive Modes allow a single command to control a group of devices, streamlining traffic and simplifying logic. Question 38. When configuring a Flex I/O analog input to read a 0‑ 10 V sensor, which scaling option should be selected to map the voltage to a 0‑ 100 % variable range? A) Linear 0‑ 5 V → 0 ‑ 50 % B) Linear 0‑ 10 V → 0 ‑ 100 % C) Logarithmic 0‑ 10 V → 0 ‑ 100 % D) No scaling – raw voltage only Answer: B Explanation: Selecting a linear 0‑ 10 V to 0‑ 100 % scaling directly converts the sensor voltage into a percentage variable.
Certification Exam Preparation
Explanation: Device Finder scans the network and lists discovered Extron devices with their IP addresses and model information. Question 42. When using a TouchLink® Pro panel, which communication method does the panel use to talk to an IP Link® Pro xi processor by default? A) RS‑232 Serial B) Ethernet TCP/IP C) IR Remote D) Flex I/O Answer: B Explanation: TouchLink® Pro panels communicate over Ethernet using TCP/IP to the processor, providing fast, bidirectional data exchange. Question 43. In GC Pro, how can you ensure that a macro runs only when the system is in “Presentation Mode” and not in “Standby Mode”? A) Add a conditional check for the “Mode” variable at the start of the macro B) Place the macro inside a “Night Mode” executive group C) Set the macro’s priority to “High” D) Use a “Timer” trigger that only fires during presentations Answer: A Explanation: By checking the “Mode” variable, the macro executes its actions only if the system state matches the desired mode. Question 44. Which of the following hardware components is required to provide isolated 24 VDC power to a remote sensor using Flex I/O? A) PoE Injector B) Flex I/O Power Supply Module
Certification Exam Preparation
C) NBP Network Button Panel D) TouchLink® Pro Power Module Answer: B Explanation: The Flex I/O Power Supply Module delivers isolated DC power to connected sensors, protecting the processor from voltage spikes. Question 45. When configuring a “Level Gauge” in GUI Designer to show room temperature, which data type must the linked variable be? A) Boolean B) String C) Integer or Float (numeric) D) Hexadecimal Answer: C Explanation: Level Gauges require numeric values to represent the measured temperature. Question 46. Which GC Pro debugging tool provides a step‑by‑step execution view of logic, similar to a software debugger? A) Trace Log Viewer B) Logic Test – Step Mode C) Event Trigger Log D) Variable Watchlist Answer: B Explanation: Logic Test – Step Mode allows the engineer to walk through each logic block, observing variable changes in real time. Question 47. In a multi‑processor environment, what is the purpose of the “Processor Sync” feature?
Certification Exam Preparation
Question 50. Which GC Pro event trigger is most suitable for turning on a projector automatically when a room’s occupancy sensor detects presence? I/O Threshold Trigger Answer: C Explanation: An I/O Threshold trigger can monitor the analog/digital occupancy sensor and fire the “Projector On” command when the sensor state changes. Question 51. What is the recommended maximum cable length for a Cat5e Ethernet link between an IP Link® Pro xi processor and a Flex I/O module? A) 30 m B) 55 m C) 100 m D) 150 m Answer: C Explanation: Standard Ethernet specifications allow up to 100 m of Cat5e cable without repeaters, ensuring reliable communication. Question 52. In GUI Designer, which option allows you to change the font size of all text labels on a page with a single action? A) Individual Text Edit B) Apply Theme Font Scaling C) Object‑Level Font Override D) Global Font Property in the Theme Manager Answer: D Explanation: The Global Font Property within the Theme Manager applies the selected size to all text objects that use the theme’s default font.
Certification Exam Preparation
Question 53. Which of the following is a primary reason to enable “DHCP Reservation” for Extron processors on a corporate network? A) To allow the processor to change its IP address daily B) To ensure the processor always receives the same IP without using a static address C) To reduce network security by hiding the device’s MAC address D) To enable automatic firmware updates via DHCP server Answer: B Explanation: DHCP reservation binds a specific MAC address to a fixed IP, giving the convenience of DHCP while guaranteeing address consistency. Question 54. When using a “Helper Function” that returns a Boolean value, how must the function be called within a conditional statement? A) As a separate macro B) Directly inside the IF condition, e.g., IF (IsRoomReady()) THEN … C) By assigning its result to a global variable first D) Helper functions cannot return values Answer: B Explanation: Helper Functions can be invoked inline within an IF statement, allowing their return value to dictate logic flow. Question 55. Which GC Pro feature allows you to group several variables together so they can be saved or restored as a single unit? A) Variable Set B) Macro Bundle C) Executive Mode D) Configuration Profile
