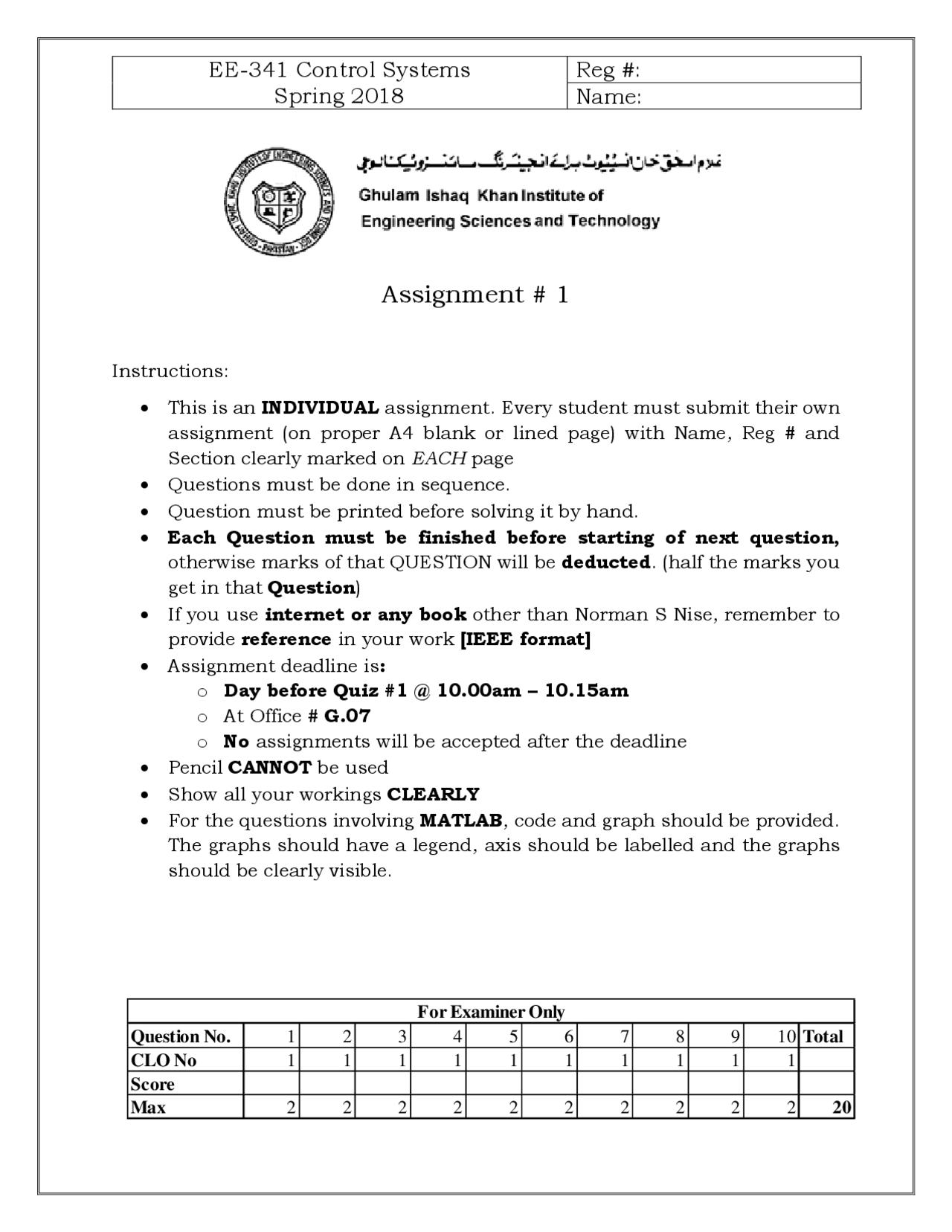

EE-341 Control Systems
Spring 2018
Reg #:
Name:
Assignment # 1
Instructions:
๏‚ท This is an INDIVIDUAL assignment. Every student must submit their own
assignment (on proper A4 blank or lined page) with Name, Reg # and
Section clearly marked on EACH page
๏‚ท Questions must be done in sequence.
๏‚ท Question must be printed before solving it by hand.
๏‚ท Each Question must be finished before starting of next question,
otherwise marks of that QUESTION will be deducted. (half the marks you
get in that Question)
๏‚ท If you use internet or any book other than Norman S Nise, remember to
provide reference in your work [IEEE format]
๏‚ท Assignment deadline is:
o Day before Quiz #1 @ 10.00am โ€“ 10.15am
o At Office # G.07
o No assignments will be accepted after the deadline
๏‚ท Pencil CANNOT be used
๏‚ท Show all your workings CLEARLY
๏‚ท For the questions involving MATLAB, code and graph should be provided.
The graphs should have a legend, axis should be labelled and the graphs
should be clearly visible.
Question No. 1 2 3 4 5 6 7 8 9 10 Total
CLO No 1 1 1 1 1 1 1 1 1 1
Score
Max 2 2 2 2 2 2 2 2 2 2 20
For Examiner Only
