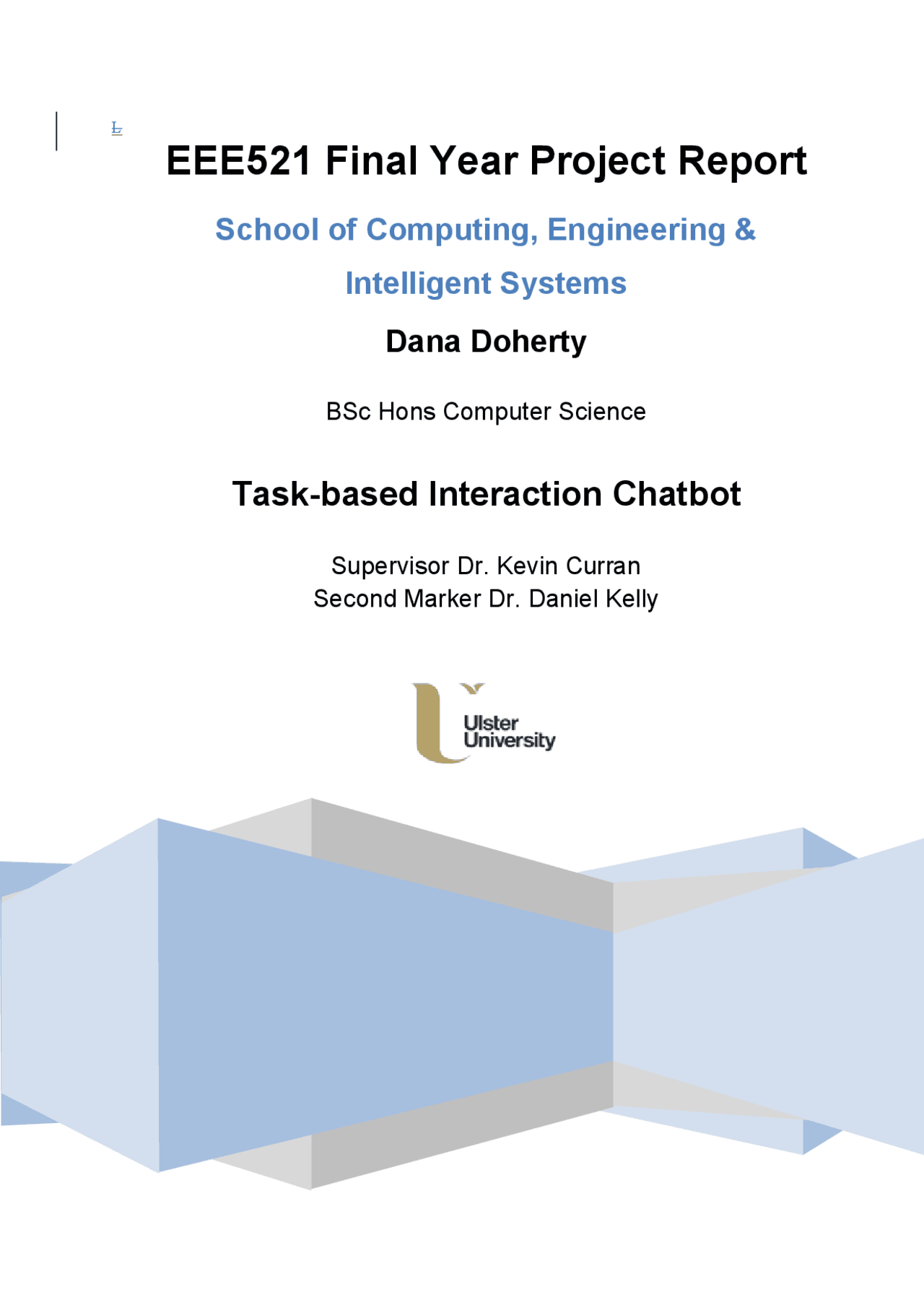

EEE521 Final Year Project Report
School of Computing, Engineering &
Intelligent Systems
Dana Doherty
BSc Hons Computer Science
Task-based Interaction Chatbot
Supervisor Dr. Kevin Curran
Second Marker Dr. Daniel Kelly
