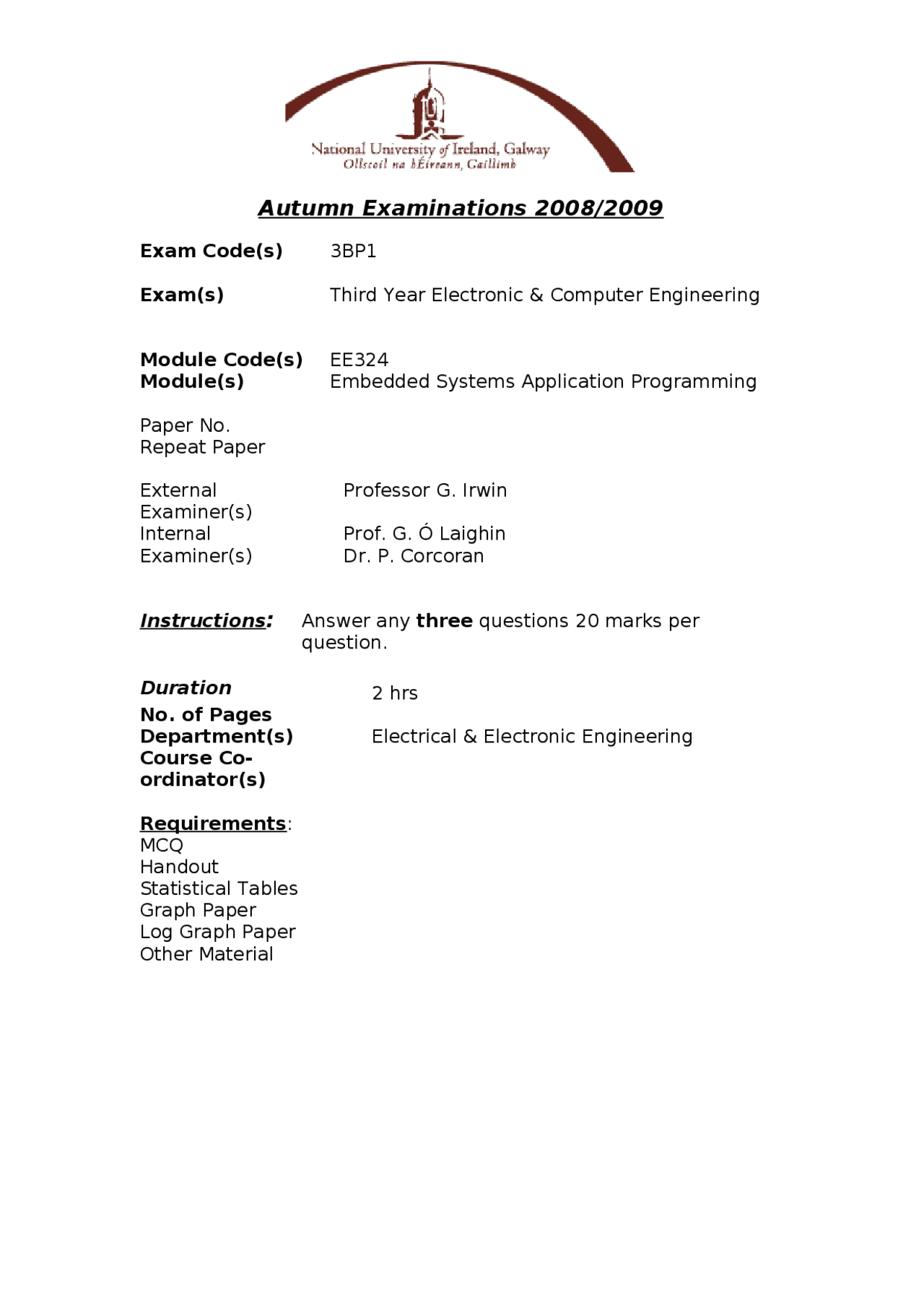

Autumn Examinations 2008/
Exam Code(s) 3BP
Exam(s) Third Year Electronic & Computer Engineering
Module Code(s) EE
Module(s) Embedded Systems Application Programming
Paper No.
Repeat Paper
External
Examiner(s)
Professor G. Irwin
Internal
Examiner(s)
Prof. G. Ó Laighin
Dr. P. Corcoran
Instructions: Answer any three questions 20 marks per
question.
Duration 2 hrs
No. of Pages
Department(s) Electrical & Electronic Engineering
Course Co-
ordinator(s)
Requirements :
MCQ
Handout
Statistical Tables
Graph Paper
Log Graph Paper
Other Material
Attempt THREE of four questions – 20 marks per question. ( NB: Candidates should note that marks may be lost if answers are not presented in a neat and orderly manner) ____________________________________________________ Q 1. (a) In the task graph for a set of jobs shown in Fig 1 , each job is given as Ji(ri , Di) where ri is the release time and Di is the relative deadline. The jobs are pre-emptable and have identical execution times and priorities. List the effective release times and effective deadlines of each job assuming a maximum execution time of 1. [3 marks] Fig 1: Job dependency tree with release times and deadlines. (b) Produce a feasible EDF schedule assuming each job has an execution time of 1. [4 marks] (c) What is the maximum execution time that the jobs can have and still be feasibly scheduled on a single processor? Explain your answer. [4 marks] (d) Consider the following set of jobs: Name Release Time Execution Time Priority J1 0 8 1 J2 2 5 1 J3 4 1 0 J4 6 3 2 J5 8 2 1 The times are all in ms and 0 is the highest priority. Create a schedule for the jobs using each of the following methods:
- First-come, first-served (FCFS)
- weighted round-robin with a quantum of 1ms (select appropriate weights)
- non-preemptive priority-driven based on the priorities given
- preemptive priority-driven based on the priorities given Ignore the priority for the non-priority driven methods. If two jobs have the same priority choose the one that arrived first. [9 marks]
