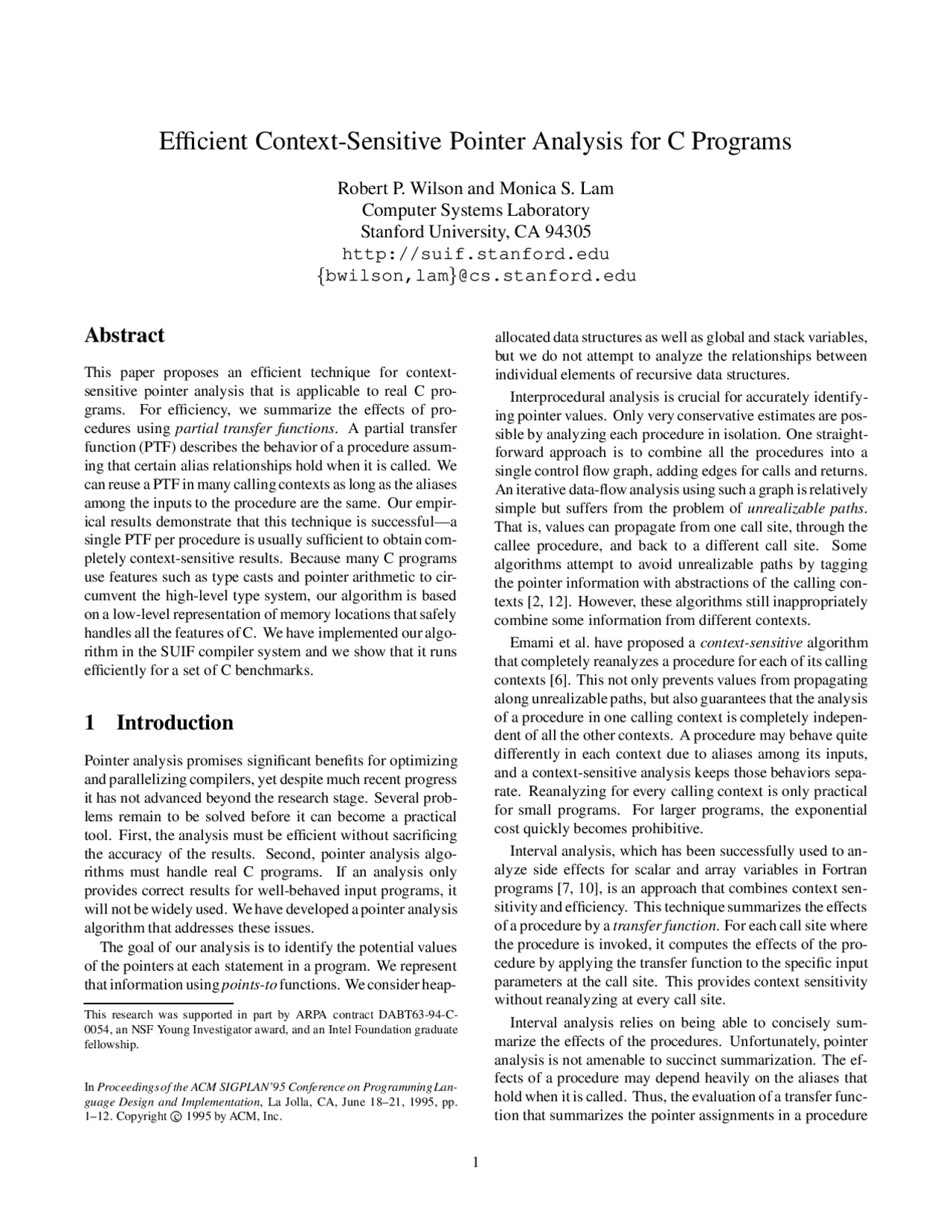

Efficient Context-Sensitive Pointer Analysis for C Programs
Robert P. Wilson and Monica S. Lam
Computer Systems Laboratory
Stanford University, CA 94305
^ http://suif.stanford.edu
bwilson,lam @cs.stanford.edu
Abstract
This paper proposes an efficient technique for context- sensitive pointer analysis that is applicable to real C pro- grams. For efficiency, we summarize the effects of pro- cedures using partial transfer functions. A partial transfer function (PTF) describes the behavior of a procedure assum- ing that certain alias relationships hold when it is called. We can reuse a PTF in many calling contexts as long as the aliases among the inputs to the procedure are the same. Our empir- ical results demonstrate that this technique is successful—a single PTF per procedure is usually sufficient to obtain com- pletely context-sensitive results. Because many C programs use features such as type casts and pointer arithmetic to cir- cumvent the high-level type system, our algorithm is based on a low-level representation of memory locations that safely handles all the features of C. We have implemented our algo- rithm in the SUIF compiler system and we show that it runs efficiently for a set of C benchmarks.
1 Introduction
Pointer analysis promises significant benefits for optimizing and parallelizing compilers, yet despite much recent progress it has not advanced beyond the research stage. Several prob- lems remain to be solved before it can become a practical tool. First, the analysis must be efficient without sacrificing the accuracy of the results. Second, pointer analysis algo- rithms must handle real C programs. If an analysis only provides correct results for well-behaved input programs, it will not be widely used. We have developed a pointer analysis algorithm that addresses these issues. The goal of our analysis is to identify the potential values of the pointers at each statement in a program. We represent that information using points-to functions. We consider heap-
This research was supported in part by ARPA contract DABT63-94-C- 0054, an NSF Young Investigator award, and an Intel Foundation graduate fellowship.
In Proceedings of the ACM SIGPLAN’95 Conference on Programming Lan- guage Design and Implementation , La Jolla, CA, June 18–21, 1995, pp. 1–12. Copyright c
1995 by ACM, Inc.
allocated data structures as well as global and stack variables, but we do not attempt to analyze the relationships between individual elements of recursive data structures. Interprocedural analysis is crucial for accurately identify- ing pointer values. Only very conservative estimates are pos- sible by analyzing each procedure in isolation. One straight- forward approach is to combine all the procedures into a single control flow graph, adding edges for calls and returns. An iterative data-flow analysis using such a graph is relatively simple but suffers from the problem of unrealizable paths. That is, values can propagate from one call site, through the callee procedure, and back to a different call site. Some algorithms attempt to avoid unrealizable paths by tagging the pointer information with abstractions of the calling con- texts [2, 12]. However, these algorithms still inappropriately combine some information from different contexts. Emami et al. have proposed a context-sensitive algorithm that completely reanalyzes a procedure for each of its calling contexts [6]. This not only prevents values from propagating along unrealizable paths, but also guarantees that the analysis of a procedure in one calling context is completely indepen- dent of all the other contexts. A procedure may behave quite differently in each context due to aliases among its inputs, and a context-sensitive analysis keeps those behaviors sepa- rate. Reanalyzing for every calling context is only practical for small programs. For larger programs, the exponential cost quickly becomes prohibitive. Interval analysis, which has been successfully used to an- alyze side effects for scalar and array variables in Fortran programs [7, 10], is an approach that combines context sen- sitivity and efficiency. This technique summarizes the effects of a procedure by a transfer function. For each call site where the procedure is invoked, it computes the effects of the pro- cedure by applying the transfer function to the specific input parameters at the call site. This provides context sensitivity without reanalyzing at every call site. Interval analysis relies on being able to concisely sum- marize the effects of the procedures. Unfortunately, pointer analysis is not amenable to succinct summarization. The ef- fects of a procedure may depend heavily on the aliases that hold when it is called. Thus, the evaluation of a transfer func- tion that summarizes the pointer assignments in a procedure
may be no simpler than running an iterative algorithm over the original procedure. We propose a new technique that is completely context- sensitive yet does not sacrifice efficiency. Our approach is based on the insight that procedures are typically called with the same aliases among their inputs. Thus it is not necessary to completely summarize a procedure for all the potential aliases but only for those that occur in the program. Our idea is to generate incomplete transfer functions that only cover the input conditions that exist in the program. These incom- plete transfer functions are made up of simple partial transfer functions (PTFs) that are only applicable to calling contexts that exhibit certain alias relationships. We have developed an efficient technique that isolates the set of relevant aliases upon which a PTF definition is based. Our analysis embraces all the inelegant features of the C language that are hard to analyze but are commonly used. It safely handles arbitrary type casts, unions, and pointer arithmetic. It also assumes that pointers may be stored in any memory locations, regardless of the types declared for those locations. Since some of the standard library functions may change the values of pointers, we provide the analysis with a summary of the potential pointer assignments in each library function. We have implemented our algorithm in the SUIF compiler system and have measured the analysis times for a set of benchmark programs. Our empirical results show that our technique is successful in that it often needs to generate only one PTF for each procedure in the program. This paper is organized as follows. We first introduce the major concepts behind our approach and give an outline of our algorithm in Section 2.1. We then describe our representation of memory locations and pointer values in Section 3. Next in Section 4, we explain the intraprocedural portion of our algorithm. Section 5 then describes how we compute the effects of procedure calls. Finally, we discuss related work in Section 6 and present our experimental results in Section 7.
2 Major Concepts
This section describes the major concepts in the design of our pointer analysis algorithm. We first introduce the general approach of using partial transfer functions as an efficient means to provide context sensitivity. We next describe the specific design of partial transfer functions that we use in our algorithm. Finally, we provide a complete outline of our algorithm.
2.1 Partial Transfer Functions
To provide some insight on how one might define transfer functions for pointer analysis, consider an informal summary for the very simple procedure f in Figure 1:
The target of p points to whatever the target of q initially pointed to.
f (p, q, r) { *p = *q; *q = *r; }
int x, y, z; int *x0, *y0, *z0;
main () { x0 = &x; y0 = &y; z0 = &z; if (test1) S1: f(&x0, &y0, &z0); else if (test2) S2: f(&z0, &x0, &y0); else S3: f(&x0, &y0, &x0); }
Figure 1: Example Program
Case I If r and p do not point to any of the same locations, the target of q points to whatever the target of r initially pointed to. Case II If r and p definitely point to exactly the same location, then the target of q retains its original value. Case III If r and p may point to the same lo- cations but their targets are not definitely the same, then the target of q may either retain its original value or point to whatever the target of r pointed to initially.
This example illustrates two important points. First, the aliases among the inputs to a procedure determine its behav- ior. Given a particular set of aliases, summarizing a procedure is relatively easy. Second, even for this simple two-statement procedure the complete summary is fairly complex. Comput- ing a full summary for a procedure with cycles and recursive data structures is prohibitively expensive. The main idea behind our algorithm is that we need not summarize a procedure for all possible aliases among its inputs. Instead, we only need to find summaries that apply to the specific alias patterns that occur in the program. For our simple example, Case I applies to the calls at S1 and S because they have the same alias pattern, even though they have totally different parameters. Case II applies to the call at S3. Thus it is not necessary to consider Case III for this particular program. Our basic approach and its comparison with traditional interval analysis are illustrated in Figure 2. The traditional approach is to define a complete transfer function that maps the entire input domain for a procedure to the corresponding outputs (Figure 2(a)). Instead, we develop a set of partial transfer functions (PTFs), each of which is applicable to only a subset of the input domain. As shown in Figure 2(b), the domains of these partial functions are disjoint and the union of their domains does not necessarily cover all the possible
- The final points-to function at the procedure exit summarizes the pointer assignments. Given the ini- tial points-to function, it is relatively easy to derive the points-to function at the procedure exit. Figures 3(b) and 4(b) show the final points-to functions produced for the corresponding inputs. Since the analysis operates on the parameterized name space, the final points-to function summarizes the procedure parametrically. The parameter mapping for a particular call site allows us to translate the summary back to the caller’s name space.
Besides the aliases, the input domain of a PTF is also defined by the values of function pointers passed in and used in calls within the procedure. The function pointer values affect the PTF summary because they determine what code could be executed. The PTF design presented here is but one choice in the trade-off between the complexity of the PTFs and the sizes of their input domains. We have also explored another scheme that uses a separate extended parameter for each access path. That design increases reuse with considerable cost in com- plexity, since multiple extended parameters may then refer to the same location. Furthermore, it requires additional analy- sis to abstract the potentially infinite access paths to a finite set. Our experience with that scheme suggests that such complexity is unnecessary for this analysis.
2.3 Algorithm Outline
Just as we create extended parameters lazily, we only create PTFs as they are needed. In this way, we do not compute unnecessary summaries. We begin by using an iterative data- flow approach to find the potential pointer values in the main procedure. When this iterative analysis encounters a call to a procedure with new input aliases, it recursively analyzes that procedure for the current context to produce a new PTF. We use a stack to keep track of the current calling contexts. We update the initial points-to functions and parameter mappings lazily during the iterative analysis. When we begin analyzing a procedure, the initial points-to function is empty and the parameter mapping only records the actual values for the formal parameters. When we need to know the initial value of an input pointer and it is not already recorded, we add an entry to the initial points-to function. To check for aliases, we need to look up the initial values in the calling context. If the pointer has not yet been referenced in the calling context either, we will add an entry to the caller’s initial points-to function. The process continues recursively up the call graph until the pointer values are known. If the initial values are not aliased with any existing parameters, we create a new extended parameter to represent those values and record that in the parameter mapping. Section 3.2 describes the situations where the initial values are aliased with one or more existing parameters. When the iterative analysis encounters a procedure call, it needs to find the effects of the call on the points-to function.
If the call is through a pointer passed as an input to one or more of the PTFs on the call stack, we add the potential values of that pointer to the specifications of the input domains for those PTFs. For each potential callee procedure, we first check if any of its PTFs apply. This involves building up a parameter mapping and comparing the input aliases to those recorded for the PTF. If the input aliases and function pointer values match, we use the parameter mapping to translate the final pointer values recorded in the PTF back to the current context. Otherwise, if the inputs do not match any of the existing PTFs, we reanalyze the procedure to produce a new PTF.
3 Pointer Representations
Since C programs commonly access memory using type casts and other features to override the high-level types, our algo- rithm is based on a low-level representation of memory. This allows us to handle the problematic features of C in a straight- forward manner. Instead of using types to identify locations that may contain pointers, we assume that any memory lo- cation could potentially hold a pointer. We also refer to locations within a block of memory by their positions, not by their field names. We define a new abstraction, the lo- cation set , to specify both a block of memory and a set of positions within that block. For the most part, this low-level representation provides results comparable to those based on high-level types. However, our conservative approach may occasionally lead to less accurate results. This is a price we are willing to pay in order to guarantee safe results for all input programs^1. We divide memory into blocks of contiguous storage, whose positions relative to one another are undefined. A block of memory may be one of three kinds: a local variable, a locally allocated heap block, or an extended parameter. Global variables are treated as extended parameters. A spe- cial local variable represents the return value of a procedure. Note that the heap blocks are only those allocated within a procedure or its callees; heap blocks passed in from a calling context are considered to be extended parameters. We distinguish heap blocks based on their allocation con- texts, grouping together all the blocks allocated in each con- text. The minimal context information is simply the state- ment that creates the block. Including the call graph edges along which the new blocks are returned, eliminating dupli- cate edges in recursive cycles, can provide better precision for some programs [2]. While this scheme is a good starting point, we have found that for some programs it produces far more heap blocks than we would like. We are currently in- vestigating techniques to merge heap blocks that are elements of the same recursive data structure in accordance with our goal to only distinguish complete data structures from one (^1) We do still place a few restrictions on the inputs. For example, we currently assume that pointers are not written out to files and then read in and later dereferenced.
offset
stride
Figure 5: Members of a Location Set
another. For now, we limit the allocation contexts to only in- clude the static allocation sites. That is sufficient to provide good precision for the programs we have analyzed so far.
3.1 Location Sets
Our goal with regard to aggregates is to distinguish between different fields within a structure but not the different ele- ments of an array. That is, given an array of structures with fields x and y, the locations are partitioned into two sets, one containing all field x data and one containing all field y data. Our pointer analysis can be combined with data dependence tests to distinguish between different array elements. We represent positions within a block of storage using location sets. A location set is a triple where the base is the name for a block of memory, is an offset within that block, and is the stride. That is, it represents the set of locations within block , as shown graphically in Figure 5. The offsets and strides are measured in bytes.
Expression Location Set scalar (scalar, 0, 0) struct.F (struct, f, 0) array (array, 0, 0) array[i] (array, 0, s) array[i].F (array, f, s) struct.F[i] (struct, f % s, s) *(&p + X) (p, 0, 1)
Table 1: Location Set Examples f = offset of F and s = array element size
Table 1 shows the location sets that represent various ex- pressions. A field in a structure is identified by its offset from the beginning of the structure. Except for array references, the stride is unused and is set to zero. A reference to an array element has a stride equal to the element size. If the elements of an array are structures, then the field information is cap- tured by the offset. Since C does not provide array bounds checking, a reference to an array nested within a structure can access any field of the structure by using out-of-bounds array indices. Although such out-of-bounds references are rare and non-standard, we believe it is still important to han- dle them conservatively. Thus we treat an array nested in a structure as if it completely overlaps the entire structure.
x y
actual values
a b
1_a 1_b
parameters
a b
Figure 6: Subsuming Existing Parameters
This implies that the offset will always be less than the stride. We enforce that by always computing the offset modulo the stride whenever the stride is non-zero. When the position of a location within a block is entirely unknown, we set the location set stride to one. This means that the location set includes all the locations within the block. This may occur due to pointer arithmetic. Although we recognize simple pointer increments, which are commonly used to address array elements, to determine the location set strides, we do not attempt to evaluate more complex pointer arithmetic. Instead, for each memory address input to an arithmetic expression, we add to the result a location set with the same base object but with the stride set to one. This conservatively approximates the results of any arithmetic ex- pression. Because the positions of the blocks relative to one another are undefined, we need not worry about pointer arithmetic moving a pointer to a different block. In summary, our location set representation has several ad- vantages. Problems related to type casts and unions become irrelevant because we do not use the high-level types. It is also very easy to work with, especially when dealing with pointer arithmetic.
3.2 Extended Parameters
As discussed in Section 2.2, every object is represented by at most one extended parameter. When adding an entry to the initialpoints-to function, we first find the values of the pointer in the calling context. If the parameter mapping shows that an existing parameter already includes the same values, we reuse the old parameter instead of creating a new one. For simplicity and efficiency, each initial points-to entry points to a single extended parameter. In cases where the initial values are aliased with more than one parameter, we create a new extended parameter that subsumes all the aliased parameters, and we replace all references to the subsumed parameters. Likewise, when the initial values are aliased with an existing parameter but also include new values, we subsume the aliased parameter with a new one. Figure 6 illustrates this. Parameter 1 a is created first to represent the targets of a. When b is dereferenced later, we discover that its targets include the value represented by 1 a but also another value. Thus, we create a new parameter 1 b that replaces the old parameter 1 a. This scheme reduces the number of extended parameters with some loss of precision. That is an acceptable trade-off for our purposes, but subsuming parameters is not essential to our algorithm and could easily
the calling context. Since the pointer can only contain one of those possibilities at any one time, the extended parameter is a unique block within the scope of the procedure. Only when more than one location points to an extended parameter and the actual values for that parameter are not a single unique location must we mark the parameter as not unique. This greatly improves our ability to perform strong updates. Since a heap block represents all the storage allocated in a particular context, we assume that locally allocated heap blocks are never unique. On the other hand, local variables correspond directly to real memory locations so they are always unique blocks.
4.2 Sparse Representation
Because our analysis is interprocedural and needs to keep the entire input program in memory at once, we have gone to considerable effort to use storage space efficiently. Since we analyze heap data as well as global and stack variables, many possible memory locations could be included in the points-to functions. Fortunately, the information stored in the points-to functions is very sparse. Pointers typically have only a few possible values, so we record the possibilities using linked lists rather than bit vectors. Since the points-to functions usually do not change very much between two adjacent pro- gram points, we also incorporate the sparse representation described by Chase et al. [1]. This scheme only records the points-to values that change at each node. Because of the sparse points-to function representation, looking up the values of a pointer requires searching back for the most recent assignment to that location. Beginning at the current node, we search back through the dominating flow graph nodes^2. If we reach the procedure entry when searching for an assignment to a formal or extended parameter, we compute the value of the initial points-to function for that parameter, if it has not already been recorded, as described in Section 3.2. This may add new extended parameters in the PTFs on the call stack. Since we only search for assignments in the dominating nodes, each meet node must contain SSA -functions [3] to identify the values to be assigned in it. We insert these - functions dynamically as new locations are assigned [1]. The pseudo-code for handling a meet node is shown in Figure 9. For each -function, we look up the points-to values at each predecessor node and combine the results to get the new points-to values.
4.3 Evaluating Dereferences
Because location sets may overlap, more than one location set may refer to the same memory location. Values assigned to one location set must be observed by references to over- lapping locations. Thus, when a pointer is dereferenced, we
(^2) Instead of building “skeleton trees” [1], we just keep lists of assignments sorted according to a bottom-up traversal of the dominator tree.
EvalMeet(cfgNode *nd, PTF ptf) { / iterate through the phi-functions / foreach locSet dst in nd.phiFuncs { locSetList srcs; / combine values from each predecessor / foreach cfgNode pred in nd.preds { / look up points-to values / srcs += lookup(ptf, dst, pred, NULL); } / add points-to entry */ assign(ptf, dst, srcs, nd); } }
Figure 9: Evaluating Meet Nodes
iterate through all of the overlapping locations and look up in the current points-to function the values that have been assigned to each one. However, if the location being deref- erenced is a unique location, values assigned to overlapping locations may have been overwritten by a strong update. In that case, we first find the position of the most recent strong update so that the lookup function will not look for assign- ments to overlapping locations prior to that point. Figure 10 summarizes this part of our algorithm.
EvalDeref(locSet *v, cfgNode *nd, PTF *ptf) { locSetList result; cfgNode strUpd = NULL; if (v is unique) { / find the most recent strong update / strUpd = findStrongUpdate(ptf, v, nd); } / find the locations containing pointers / locSetList locs = v.base.ptrLocations; foreach locSet loc in locs { if (loc overlaps v) { / find values assigned to loc before node nd but not before strUpd */ result += lookup(ptf, loc, nd, strUpd); } } return result; }
Figure 10: Evaluating Dereferences
4.4 Evaluating Assignments
An assignment node in a flow graph specifies both the source and destination expressions, as well as the size of the value to be assigned. When building the flow graph from the interme- diate representation of a program, we automatically convert the assignments to a “points-to” form. That is, since a vari- able reference on the right-hand side of an assignment refers
to the contents of that variable, we add an extra dereference to each expression on the right-hand side. Source and destina- tion expressions may also involve pointer arithmetic. Simple increments are included in the strides of the location sets. We simply keep a list of all the constant location sets and deref- erence subexpressions found in other arithmetic expressions. The process of evaluating an assignment begins by finding the locations identified by the source and destination expres- sions. To evaluate an expression, we iterate through its con- stant location sets and dereference subexpressions. Constant locations require no computation. Dereference expressions may include any number of nested dereferences, which we evaluate one level at a time. For each destination location, we then update the points-to function to include the values from all the potential source locations. Figure 11 shows this process for the case where the size of the assignment is one word or less.
EvalAssign(cfgNode *nd, PTF ptf) { locSetList dsts = EvalExpr(nd.dsts, nd, ptf); locSetList srcs = EvalExpr(nd.srcs, nd, ptf); foreach locSet dst in dsts { locSetList newSrcs = srcs; / include the old values if this is not a strong update */ if (dst is not unique) newSrcs += lookup(ptf, dst, nd, NULL); assign(ptf, dst, newSrcs, nd); } }
Figure 11: Evaluating Assignments
In an aggregate assignment, where multiple words are as- signed at once, all the pointer fields from the sources are copied to the destinations. If a source location contains a pointer value at an offset within the range being copied, we add that pointer value at the corresponding offset to the des- tination location.
5 Interprocedural Algorithm
We now describe how our algorithm handles procedure calls. To evaluate the effects of a call on the points-to function, we need to find a PTF that applies in the calling context. We can either reuse an existing PTF or create a new one. Figure 12 outlines this part of our algorithm.
5.1 Calls Through Pointers
The first step in evaluating procedure calls is to determine the target procedures. For most calls the target is a constant and this is a trivial step, but the target may also be specified by a function pointer. Fortunately, calls through pointers
EvalCall(cfgNode *nd, PTF ptf) { / find & record function pointers values */ procList targets = findCallTargets(nd, ptf); foreach proc pr in targets { paramMap map; recordActuals(nd, pr, map); PTF tgtPTF; if (pr is not on the callStack) { tgtPTF = GetPTF(map, pr, nd, ptf); if (needVisit) { push (pr, tgtPTF, map) onto callStack; EvalProc(pr, tgtPTF); pop callStack; } } else { / handle recursive call / tgtPTF = get PTF from callStack; / add new aliases and func ptf values / updatePTFDomain(tgtPTF, map, nd, ptf); if (exit node of tgtPTF not reached) return; / defer evaluation of nd */ } ApplySummary(tgtPTF, map, nd, ptf); } }
Figure 12: Evaluating Procedure Calls
are relatively easy to handle in pointer analysis, since the points-to functions record the possible pointer values. Function pointer values may be expressed in terms of ex- tended parameters. This is the one situation where we need to know the specific values represented by extended parame- ters. When an extended parameter is included as a potential target of a call, we check the parameter mappings up the call graph until we find the values that it represents. Since the function pointer values are part of the input domain specifi- cations for the PTFs, we flag these extended parameters as function pointers and record their values in the PTFs.
5.2 Testing if a PTF Applies
The input domain of a PTF is specified by its initial points- to function and by the values of the parameters used as call targets. To test if a PTF applies, we check if these things are the same in the current context as they were when the PTF was created. We check the initial points-to function entries one at a time, in the order in which they were created. We then compare the values of the parameters that were used as call targets. If at any point they do not match, we give up and go on to the next PTF. The basic steps of this process are shown in Figure 13. In the process of comparing the initial points-to function, we also build up a parameter mapping. If the PTF matches, we can then use this mapping to apply the PTF in the current context. For each entry in the initial points-to function, we find the actual values of the corresponding pointer in the current context and add the results to the parameter mapping.
the points-to function is a compact representation that works well for analyzing C programs. Our scheme for naming heap objects is taken directly from Choi et al. Most other work has used k-limiting , where some arbitrary limit is imposed on the length of pointer chains in recursive data structures [11]. Although k-limiting can sometimes provide more information, our algorithm is not intended to distinguish the elements of recursive data struc- tures. That problem has been addressed by a number of others [1, 4, 8, 9, 13]. Using symbolic names to represent the values of pointers passed into a procedure was first suggested by Landi and Ryder [12]. They use “non-visible variables” to represent storage outside the scope of a procedure. Emami et al. use “invisible variables” for the same purpose. Our extended parameters are essentially the same as invisible variables, except that we choose to subsume parameters so that each initial points-to entry contains a single extended parameter. Our work is most similar to the analysis developed by Emami et al. Their algorithm is based on an “invocation graph” which has a separate node for each procedure in each calling context. The size of an invocation graph is exponential in the depth of the call graph, implying that their algorithm is also exponential. Although our algorithm is still exponential in the worst case where every calling context has different aliases, it performs well for real input programs where the aliases are usually the same. We expect the precision of our results to be comparable to theirs, but there may be some dif- ferences. Our conservative handling of C occasionally causes us to propagate pointer values to more locations. This is the price we pay to get safe results for all inputs. Subsuming aliased parameters also gives up some precision to improve efficiency. On the other hand, our results may be better be- cause we use the extended parameters to increase the number of strong updates. Emami et al. mentioned the idea of using a memoization scheme similar to our algorithm. Our algorithm extends their design in several important ways. First, we parameterize references to global variables to increase the opportunities for reusing PTFs in different contexts. Second, we keep track of which pointers are actually referenced by a procedure. Thus, we avoid the overhead of creating and updating irrelevant parameters, and we prevent differing aliases among those irrelevant parameters from limiting the reuse.
7 Experimental Results
We have implemented our algorithm as part of the SUIF (Stanford University Intermediate Format) compiler sys- tem [16]. SUIF is a flexible infrastructure for compiler research. It includes a full ANSI C front end, so we are able to evaluate our analysis with large, realistic application programs. The SUIF system also includes many components that can benefit from points-to information. We have only just begun to take advantage of this. To illustrate the poten-
tial, we report some preliminary results of using the points-to information to parallelize numeric C programs. We present preliminary results for a number of bench- marks, including several from the SPEC benchmark suites. Two of the floating-point programs from SPECfp92, alvinn and ear, are written in C and we include them both here. Of the SPECint92 integer programs, we present results for compress and eqntott. Most of the other SPECint92 benchmarks contain setjmp/longjmp calls or asynchronous signal handlers. We eventually plan to support setjmp/longjmp calls in a conservative fashion, but we do not know of any practical way to analyze programs that use asynchronous signal handlers, except for simple cases where the signal handlers exit from the programs. We have also analyzed some Unix utilities, grep and diff, and a number of the benchmarks used by Landi and Ryder [12].
Proce- Analysis Avg. Benchmark Lines dures (seconds) PTFs allroots 188 6 0.18 1. alvinn 272 8 0.22 1. grep 430 9 0.65 1. diff 668 23 2.13 1. lex315 776 16 0.93 1. compress 1503 14 1.45 1. loader 1539 29 1.70 1. football 2354 57 6.70 1. compiler 2360 37 7.57 1. assembler 3361 51 5.82 1. eqntott 3454 60 9.88 1. ear 4284 68 2.99 1. simulator 4663 98 15.54 1.
Table 2: Benchmark and Analysis Measurements
Since the focus of our work has been making pointer anal- ysis efficient, we are primarily concerned with the times re- quired to analyze the various benchmarks. Table 2 shows the benchmark programs sorted by size. The first two columns list the number of source lines and the number of procedures encountered during the analysis. The third column shows the analysis times in seconds for our algorithm running on a DECstation 5000/260. These times do not include the over- head for reading the procedures from the input files, building flow graphs, and computing dominance frontiers. Neither do they include the time required to write the results to the SUIF output files. Our pointer analysis is clearly fast enough to be practi- cal for these programs. In all cases, only a few seconds are required for the analysis. The amount of time can vary significantly, though, depending not only on the overall size of the input program but also on other characteristics of the program. For example, even though it is quite a bit larger than eqntott, ear is much easier to analyze. In general,
floating-point applications seem to be easy targets for pointer analysis. More complex programs will require somewhat more analysis time. Besides the overall analysis times, we also measured some statistics to evaluate our use of PTFs. The results are very encouraging. The last column of Table 2 shows the average number of PTFs per procedure. These averages are all close to one. Moreover, most of the situations where a procedure has more than one PTF are only due to differences in the off- sets and strides in the initial points-to functions. Combining PTFs in those situations could improve the efficiency with only a small loss in context-sensitivity. The compiler program is an interesting case to examine in more detail. This program is a small compiler that uses a recursive descent parser. It has many procedure calls and a lot of them are recursive. Together these factors cause the invocation graph described by Emami et al. to blow up to more than 700,000 nodes [15]. This is for a program with only 37 procedures! For some larger applications, the exponential size of the invocation graph will be completely unreasonable to handle. Fortunately, our results show that it is unnecessary to reanalyze each invocation graph node. Points-to information is useful for many different compiler passes, but it is crucial for parallelization. Our first use of pointer analysis is to show that static analysis can be used to parallelize loops in numerical C programs. The current SUIF parallelizer uses our points-to information to determine if for- mal parameters can be aliased. It then detects parallel loops and generates SPMD (Single Program Multiple Data) code for multiprocessors. It has many of the standard analyses for recognizing loop-level parallelism: constant propagation, in- duction variable recognition, and data dependence analysis. It also includes a few passes that are specific to parallelizing C programs: rewriting while loops as for loops where possible and rewriting pointer increments as array index cal- culations. After parallelization, the compiler generates a C output file which contains calls to our run-time library.
Percent Avg. Time Speedups Program Parallel Per Loop 2 Proc. 4 Proc. alvinn 97.7 7.4 ms 1.95 3. ear 85.8 0.2 ms 1.42 1.
Table 3: Measurements of Parallelized Programs
We ran our parallelizer over alvinn and ear. We in- strumented our run-time system to measure the sequential execution time spent in the parallelized portions of the code. This measurement is shown as a percentage in the first col- umn of Table 3. We also measured the sequential time spent in each invocation of each parallelized loop to determine the granularity of the parallelism. The averages of these times are shown in the second column of Table 3. For both programs, the compiler managed to parallelize
all the major loops. We ran the generated code on two and four processors of an SGI 4D/380. The speedups are shown in Table 3. The parallelized alvinn achieves very good speedups. The ear program performs reasonably well for two processors but it does not speed up much more with four processors. This is not surprising since there is so little com- putation in each parallelized loop and since the parallelized program suffers from a lot of false sharing. Here we have only shown the use of pointer analysis in a loop parallelizer for multiprocessors. The same pointer information could be used to generate parallel code for superscalar and VLIW processors, on which both alvinn and ear would perform very well.
8 Conclusion
We have presented a fully context-sensitive pointer analysis algorithm and have shown that it is very efficient for a set of C programs. This algorithm is based on the simple intuition that the aliases among the inputs to a procedure are the same in most calling contexts. Even though it is difficult to sum- marize the behavior of a procedure for all inputs, we can find partial transfer functions for the input aliases encountered in the program. This allows us to analyze a procedure once and reuse the results in many other contexts. Even though our algorithm is still exponential in the worst case, we have so far found that it performs well. As long as most procedures are always called with the same alias patterns, our algorithm will continue to avoid exponential behavior. To be safe, after reaching some limit on the number of PTFs per procedure, we could easily generalize the PTFs instead of creating new ones. Our analysis can handle all the features of the C language. We make conservative assumptions where necessary to en- sure that our results are safe. Even though we may occasion- ally lose some precision due to these conservative assump- tions, we believe it is important to handle the kinds of code found in real programs, even if they do not strictly conform to the ANSI standard. Our success so far has been encouraging, and our next step is to experiment with large, real-world applications. Our preliminary evaluation suggests that our approach may scale well for larger inputs, since most procedures only require one PTF. We also need to use our pointer analysis in more compiler optimizations to determine if the results obtained are sufficiently precise. Although there is more work to be done, we believe this is a major step towards making pointer analysis practical.
Acknowledgements
We wish to thank Bill Landi for generously giving us his benchmark programs and Erik Ruf for providing some mea- surements of those programs. Both they and the reviewers
