3D AutoCAD Laboratory: Learning English through Technical Drawing

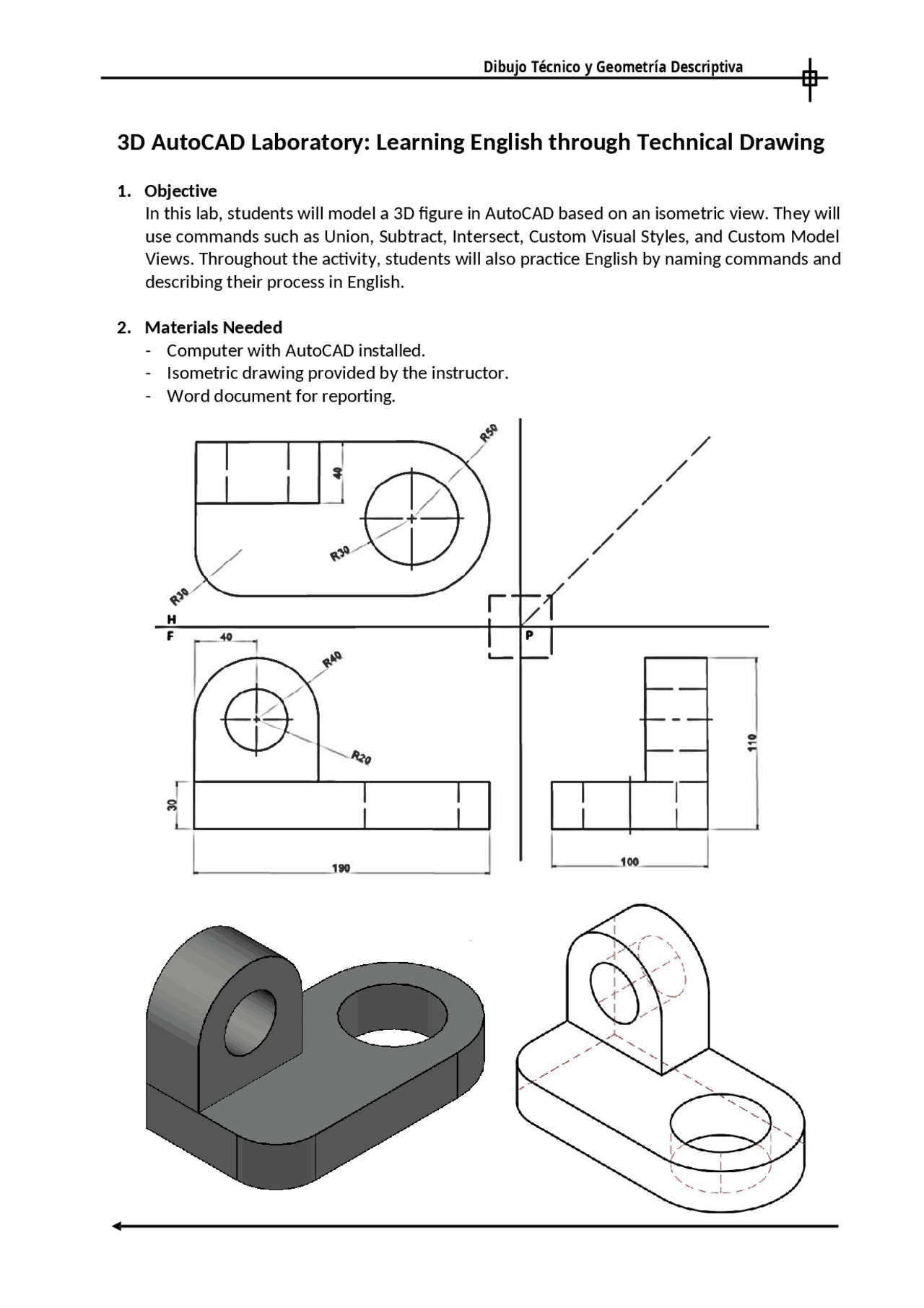

1. Objective
In this lab, students will model a 3D figure in AutoCAD based on an isometric view. They will
use commands such as Union, Subtract, Intersect, Custom Visual Styles, and Custom Model
Views. Throughout the activity, students will also practice English by naming commands and
describing their process in English.
2. Materials Needed
- Computer with AutoCAD installed.
- Isometric drawing provided by the instructor.
- Word document for reporting.
pf3

Partial preview of the text

Download Ejercicio cad instructivo and more Exercises Visual Arts in PDF only on Docsity!

3D AutoCAD Laboratory: Learning English through Technical Drawing

1. Objective In this lab, students will model a 3D figure in AutoCAD based on an isometric view. They will use commands such as Union, Subtract, Intersect, Custom Visual Styles, and Custom Model Views. Throughout the activity, students will also practice English by naming commands and describing their process in English. 2. Materials Needed - Computer with AutoCAD installed. - Isometric drawing provided by the instructor. - Word document for reporting.

3. Instructions 3.1. Open AutoCAD and start a new 3D modeling drawing. 3.2. Set the workspace to 3D Modeling. 3.3. Draw the basic 2D shapes based on the provided isometric. (ISO - A) 3.4. Use the EXTRUDE command to convert the 2D shapes into 3D solids. 3.5. Apply ROTATE 3D command to rotate parts/objects/sketches. 3.6. Apply the UNION command to combine parts. 3.7. Use the SUBTRACT command to remove volumes. 3.8. Use the INTERSECT command to find common volumes. 3.9. Customize the visual style with Custom Visual Styles. 3.10. Save different views using Custom Model Views. 3.11. Take screenshots of each step and include them in your report. 3.12. List all commands used and describe the process in English. 3.13. Submit the Word document with descriptions and images. 4. Evaluation Criteria - Correct use of 3D modeling commands. - Paste here the screenshots you took while working on the model in AutoCAD. Make sure to include different views and styles. - Submission of the final report in Word format and AutoCAD 3D File. 5. Command Summary Command (English) Comando (Español) BOX Caja UNION Unión SUBTRACT Restar INTERSECT Intersección CUSTOM VISUAL STYLE Estilo visual personalizado CUSTOM MODEL VIEW Estilo Visual personalizado 3D ROTATE Rotación 3D

  1. Conclusions from the laboratory and how important the use of English is in our careers. English is fundamental in the Industrial Engineering career because it allows access to manuals, technical standards and documentation of machinery or software that are often only in that language. In addition, it is key to communicate in multinational companies or with international suppliers and customers, which is very common in the industrial environment. It is also necessary to use tools and programs such as advanced Excel, SAP, AutoCAD or Power BI, which are usually in English, as well as most of the tutorials, forums and guides available online. On the other hand, most scientific advances, technical articles and professional update courses are published in English, which makes it an essential language to keep up to date and grow in the profession. Finally, if you want to do a specialization, certification or postgraduate course, English opens up many more opportunities, both academically and in the workplace. In short, English is not a luxury in Industrial Engineering, but a basic and strategic tool to stand out in the field.
