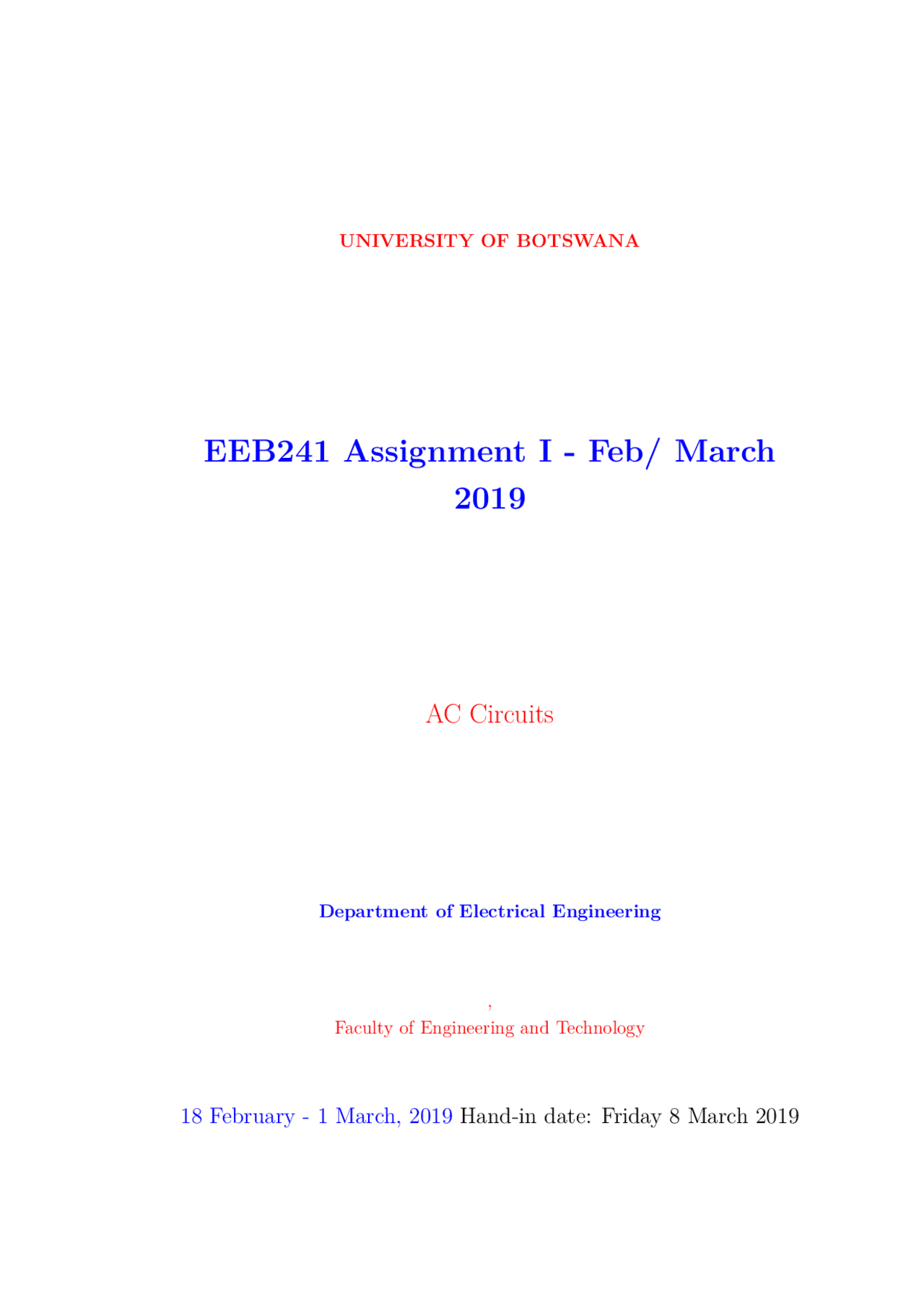

UNIVERSITY OF BOTSWANA
EEB241 Assignment I - Feb/ March
2019
AC Circuits
Department of Electrical Engineering
,
Faculty of Engineering and Technology
18 February - 1 March, 2019 Hand-in date: Friday 8 March 2019
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
ELECTRICAL FUNDAMENTALS NOTES, Lecture notes of Electrical Engineering
STUDY NOTES ON TRANSFORMERS, SEMICONDUCTORS AND AC MACHINES
Typology: Lecture notes
2018/2019
1 / 2
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download ELECTRICAL FUNDAMENTALS NOTES and more Lecture notes Electrical Engineering in PDF only on Docsity!
UNIVERSITY OF BOTSWANA
EEB241 Assignment I - Feb/ March
AC Circuits
Department of Electrical Engineering
Faculty of Engineering and Technology
18 February - 1 March, 2019 Hand-in date: Friday 8 March 2019
Assignment I : Single- and three-phase circuit analysis
- A load across a 230-V, 50-Hz single-phase AC voltage system consists of a motor with a nameplate rating of 25 KVA at a power factor 0.8 lagging; a capacitor rated 11KVAr; a 15-kW resistive load and a coil rated 18kW at 0.9 lagging. (i) Draw a sketch circuit and phasor diagram illustrating the above load connections ...............................................................................................................(06 marks) (ii) Calculate the total active, reactive and apparent power ........................(16 marks) (iii) Calculate the circuit phase angle and power factor ..............................(03 marks)
- (a) Using complete labelled phasor diagrams, distinguish between a: (i) Resistive-inductive and a resistive capacitive load impedance ............(04 marks) (ii) Resistive-inductive and a resistive-capacitive voltage ........................(04 marks) (iii) Resistive-inductive and a resistive-capacitive current .......................(04 marks) (iv Resistive-inductive and a resistive-capacitive single-phase power ......(04 marks) (v) Lagging and a leading current ...........................................................(02 marks) (vi) Lagging and a leading phase angle ...................................................(02 marks)
- (b) Using clearly labelled circuit diagrams, distinguish between the following methods of measuring single-phase power: (i) Single-wattmeter method .....................................................................(01 marks) (ii) Two-wattmeter method .......................................................................(02 marks) (iii) Three-wattmeter method ...................................................................(02 marks)
- Each branch of a three-phase star-connected load consists of a coil of resistance 4.2 and reactance 5.6 . The load is supplied at a line voltage of 415V, 50Hz. The total active power supplied to the load is measured by the two-wattmeter method. (i) Draw a circuit diagram of the wattmeter connections ........................(05 marks) (ii) Calculate their separate readings. ......................................................(20 marks)
