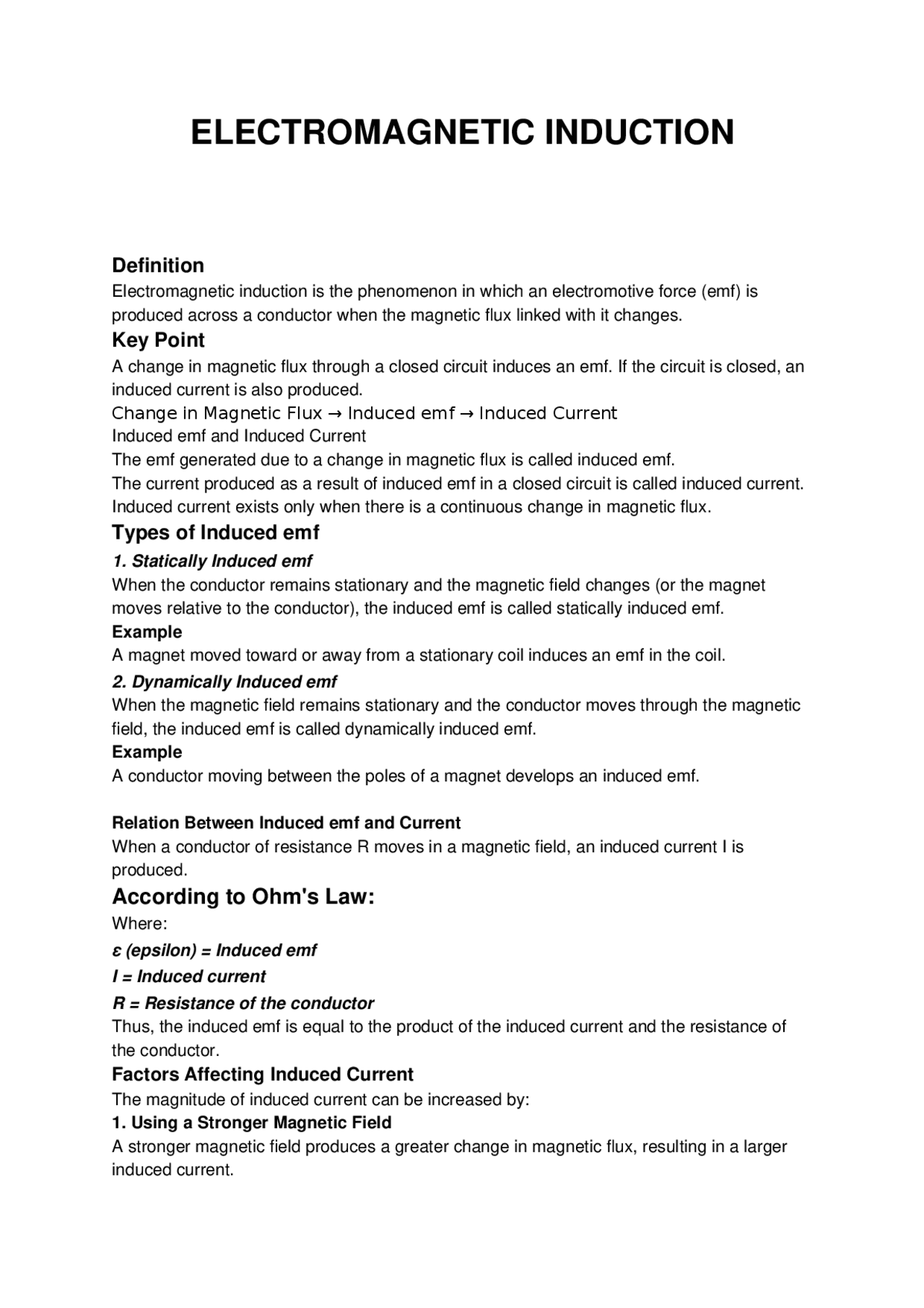

ELECTROMAGNETIC INDUCTION
Definition
Electromagnetic induction is the phenomenon in which an electromotive force (emf) is produced across a conductor when the magnetic flux linked with it changes.
Key Point
A change in magnetic flux through a closed circuit induces an emf. If the circuit is closed, an induced current is also produced. Change in Magnetic Flux → Induced emf → Induced Current Induced emf and Induced Current The emf generated due to a change in magnetic flux is called induced emf. The current produced as a result of induced emf in a closed circuit is called induced current. Induced current exists only when there is a continuous change in magnetic flux.
Types of Induced emf
1. Statically Induced emf When the conductor remains stationary and the magnetic field changes (or the magnet moves relative to the conductor), the induced emf is called statically induced emf. Example A magnet moved toward or away from a stationary coil induces an emf in the coil. 2. Dynamically Induced emf When the magnetic field remains stationary and the conductor moves through the magnetic field, the induced emf is called dynamically induced emf. Example A conductor moving between the poles of a magnet develops an induced emf. Relation Between Induced emf and Current When a conductor of resistance R moves in a magnetic field, an induced current I is produced.
According to Ohm's Law:
Where: ε (epsilon) = Induced emf I = Induced current R = Resistance of the conductor Thus, the induced emf is equal to the product of the induced current and the resistance of the conductor.
Factors Affecting Induced Current
The magnitude of induced current can be increased by:
1. Using a Stronger Magnetic Field A stronger magnetic field produces a greater change in magnetic flux, resulting in a larger induced current.
2. Moving the Loop Faster Increasing the speed of motion increases the rate of change of magnetic flux, thereby increasing the induced current. 3. Increasing the Number of Turns Replacing a single loop with a coil containing many turns increases the total magnetic flux linkage and hence increases the induced current. FLUX LINKAGE Flux linkage is the total magnetic flux linked with all turns of a coil. If a coil has N turns and magnetic flux through each turn is Φ, then: Flux Linkage = NΦ
Unit
The unit of flux linkage is weber-turn (Wb-turn). MOTIONAL EMF
Definition
The emf produced when a conductor moves through a magnetic field is called motional emf. A conductor cuts magnetic field lines during its motion, resulting in the induction of an emf across its ends.
Since: \sin 0^\circ = 0 No magnetic field lines are cut; therefore, no emf is induced.
Numerical Example Problem
A magnetic flux density of 0.5 Wb m ² (0.5 T) is directed vertically downward. Find the⁻ induced emf in a straight conductor 50 cm long moving perpendicular to the magnetic field with a speed of 100 cm s ¹.⁻ Given
- B = 0.5 T
- l = 50 cm = 0.5 m
- v = 100 cm s ¹ = 1 m s ¹⁻ ⁻
- θ = 90° Solution Using: E = Blv\sin\theta E = (0.5)(0.5)(1)\sin90^\circ E = 0.25,V Answer Induced emf = 0.25 V
FARADAY'S LAW OF ELECTROMAGNETIC INDUCTION
Statement The induced emf in a circuit is equal to the negative rate of change of magnetic flux linkage through the circuit. For a coil having N turns: E = -N\frac{\Delta \Phi}{\Delta t} or E = -N\frac{d\Phi}{dt}
When Magnetic Flux is Given by \Phi = BA\cos\theta ] then Faraday's law becomes: E = -N\frac{\Delta(BA\cos\theta)}{\Delta t} Where:
- B = Magnetic flux density
- A = Area of the coil
- θ = Angle between magnetic field and normal to the surface
- N = Number of turns
Significance of the Negative Sign The negative sign in Faraday's law indicates that: The induced emf always opposes the change in magnetic flux that produces it. This opposition is explained by Lenz's Law. Importance of Faraday's Law Faraday's law is one of the fundamental laws of electromagnetism and forms the basis of:
- Electric generators
- Transformers
- Induction motors
- Electromagnetic induction devices The law is a direct consequence of the Law of Conservation of Energy, ensuring that energy cannot be created or destroyed.
Conceptual MCQ
What is the Cause of an Induced emf? Question: What is the actual cause of an induced emf? Options:
When the north pole of a magnet moves toward a stationary conducting loop:
- Magnetic flux through the loop increases.
- The loop produces an induced magnetic field that opposes this increase.
- The face of the loop near the magnet behaves like a north pole.
- A repulsive force is produced between the magnet and the loop. Result The induced current opposes the approaching motion of the magnet.
Case 2: South Pole Moving Away from a Stationary Loop When the south pole of a magnet moves away from a conducting loop:
- Magnetic flux through the loop decreases.
- The loop produces an induced magnetic field that opposes this decrease.
- The face of the loop near the magnet behaves like a north pole, attracting the receding south pole. Result The induced current opposes the motion of the magnet away from the loop. Lenz's Law and the Law of Conservation of Energy Lenz's law is a direct consequence of the Law of Conservation of Energy. In every case, the induced current creates a magnetic force that opposes the motion causing the induction. Because of this opposition:
- An external force must perform mechanical work to keep the magnet moving.
- The mechanical energy supplied to the system is converted into electrical energy.
- This electrical energy is eventually transformed into heat energy in the circuit due to its resistance. Energy Conversion
Mechanical Energy → Electrical Energy → Heat Energy If the induced current assisted the motion instead of opposing it, energy would be produced without any external work, violating the Law of Conservation of Energy. Therefore, the induced current must always oppose the change that produces it.
Key Conclusion
Lenz's Law ensures that:
- The direction of induced current always opposes the change in magnetic flux.
- Energy is conserved during electromagnetic induction.
- Mechanical work done on the system is converted into electrical and subsequently heat energy. ALTERNATING CURRENT (AC) GENERATOR
Definition
An AC generator is a device that converts mechanical energy into electrical energy in the presence of a magnetic field. It produces an alternating emf and hence an alternating current, whose magnitude and direction change periodically with time.
- A soft iron core or cylinder. Function The armature rotates in the magnetic field, causing a change in magnetic flux and inducing an emf. 3. Slip Rings
- Two metallic rings connected to the ends of the rotating coil.
- Rotate along with the armature. Function Transfer the induced emf from the rotating coil to the external circuit. 4. Carbon Brushes
- Stationary carbon contacts resting against the slip rings. Function Provide electrical connection between the rotating slip rings and the external circuit. Working of an AC Generator As the armature rotates with angular velocity ω in a magnetic field:
- The angle between the magnetic field and the normal to the coil changes continuously.
- Magnetic flux linked with the coil changes continuously.
- According to Faraday's law, an alternating emf is induced. The direction of induced current reverses after every half rotation, producing alternating current (AC). Mathematical Expression for Induced emf The induced emf in a rotating coil is given by: E = NBA\omega \sin\theta Where:
- N = Number of turns of the coil
- B = Magnetic flux density
- A = Area of the coil
- ω = Angular velocity of rotation
- θ = Angular displacement
Maximum emf When: \theta = 90^\circ E_{\text{max}} = NBA\omega
This maximum value is represented by: E_0 = NBA\omega Therefore, E = E_0\sin\theta
Alternating Potential Difference The instantaneous potential difference produced by an AC generator is: V = V_0\sin\theta Where:
- V = Instantaneous voltage
- V ₀= Peak (maximum) voltage
Alternating Current Equation The instantaneous current in an AC circuit is: I = I_0\sin\theta Where:
- I = Instantaneous current
- I ₀= Peak (maximum) current
Angular Position in AC Equations The angle θ is related to time by: \theta = \omega t Since: \omega = 2\pi f Therefore: \theta = \omega t = 2\pi ft Also,
Peak Value of Alternating Current and Voltage
Definition The peak value (or maximum value) is the highest value attained by an alternating voltage or current during a cycle. It is represented by:
- V ₀for peak voltage
- I ₀for peak current Mathematical Representation V = V_0 \sin\theta I = I_0 \sin\theta Where V_0 and I_0 are the maximum values of voltage and current respectively.
Peak-to-Peak Value Definition The peak-to-peak value is the total difference between the maximum positive peak and the maximum negative peak of an alternating quantity. It is equal to the sum of the magnitudes of the positive and negative peaks.
Peak-to-Peak Voltage V_{pp} = 2V_ Where:
- V_{pp} = Peak-to-peak voltage
- V_0 = Peak voltage
Peak-to-Peak Current I_{pp} = 2I_ Where:
- I_{pp} = Peak-to-peak current
- I_0 = Peak current
Root Mean Square (RMS) Value
Definition The Root Mean Square (RMS) value of an alternating current or voltage is the value of direct current (DC) that would produce the same heating effect in a resistor. The RMS value is also known as:
- Effective value
- Virtual value
- Apparent value
RMS Voltage V_{rms} = \frac{V_0}{\sqrt{2}} V_{rms} = 0.707V_ RMS Current I_{rms} = \frac{I_0}{\sqrt{2}} I_{rms} = 0.707I_o Significance of RMS Value The RMS value represents the effective value of AC and is the value commonly specified for household electrical supplies. For example, a 220 V AC supply means: V_{rms} = 220,V not the peak voltage. TRANSFORMER Definition A transformer is an electrical device used to increase or decrease the voltage of an alternating current without changing its frequency. Principle of Transformer A transformer works on the principle of Mutual Induction. When alternating current flows through the primary coil, it produces a changing magnetic field. This changing magnetic field induces an emf in the secondary coil.
Direct current (DC) cannot produce continuous induction.
4. Frequency Remains Constant A transformer changes:
- Voltage
- Current but it does not change the frequency of the alternating supply.
5. Efficiency The efficiency of a practical transformer is very high, typically around
Construction of a Transformer
A transformer mainly consists of the following parts:
1. Primary Coil
- Connected to the AC input source.
- Produces a changing magnetic field in the iron core.
2. Secondary Coil
- Receives induced emf from the changing magnetic field.
- Supplies electrical energy to the external circuit.
3. Soft Iron Core
- Provides a closed magnetic path between the two coils.
- Increases magnetic flux linkage.
- Improves the efficiency of the transformer.
The primary and secondary coils are wound around the same laminated soft iron core. Transformer Equations Transformation Ratio The ratio of the number of turns in the secondary coil to the number of turns in the primary coil is called the transformation ratio. [ k=\frac{N_s}{N_p} ] For an ideal transformer: [ \frac{V_s}{V_p}=\frac{N_s}{N_p}=k ] Where:
- N_s = Number of turns in the secondary coil
- N_p = Number of turns in the primary coil
- V_s = Secondary voltage
- V_p = Primary voltage
- k = Transformation ratio
Types of Transformers
1. Step-Up Transformer A transformer that increases the voltage from the primary coil to the secondary coil is called a step-up transformer. Characteristics [ V_s > V_p ] [ N_s > N_p ]
- Increases current
- Used in household appliances and electronic devices
Ideal Transformer
Definition An ideal transformer is a transformer in which no energy is lost during the transfer of electrical power from the primary coil to the secondary coil. Characteristics
- No power loss
- 100% efficiency
- Input power equals output power Power Relation in an Ideal Transformer P_{input}=P_{output} Therefore, [ V_pI_p=V_sI_s ] Where:
- V_p = Primary voltage
- I_p = Primary current
- V_s = Secondary voltage
- I_s = Secondary current Voltage–Current Relationship From: V_pI_p=V_sI_swe obtain: \frac{V_p}{V_s}=\frac{I_s}{I_p} Thus, voltage and current are inversely proportional in an ideal transformer. Important Conclusion If voltage increases:
V \uparrow \quad \Rightarrow \quad I \downarrow If voltage decreases: V \downarrow \quad \Rightarrow \quad I \uparrow This happens because power remains constant.
Transmission Losses
During the transmission of electrical energy through power lines, some energy is lost in the form of heat due to the resistance of the wires. This loss is called heating loss or transmission loss.
Heating Loss Formula [ H = I^2Rt ] Where:
- H = Heat energy produced
- I = Current through the conductor
- R = Resistance of the transmission line
- t = Time Important Point Heating loss is directly proportional to: [ I^ ] Therefore, even a small increase in current causes a large increase in power loss.
Minimizing Transmission Losses
Transmission losses can be reduced by:
