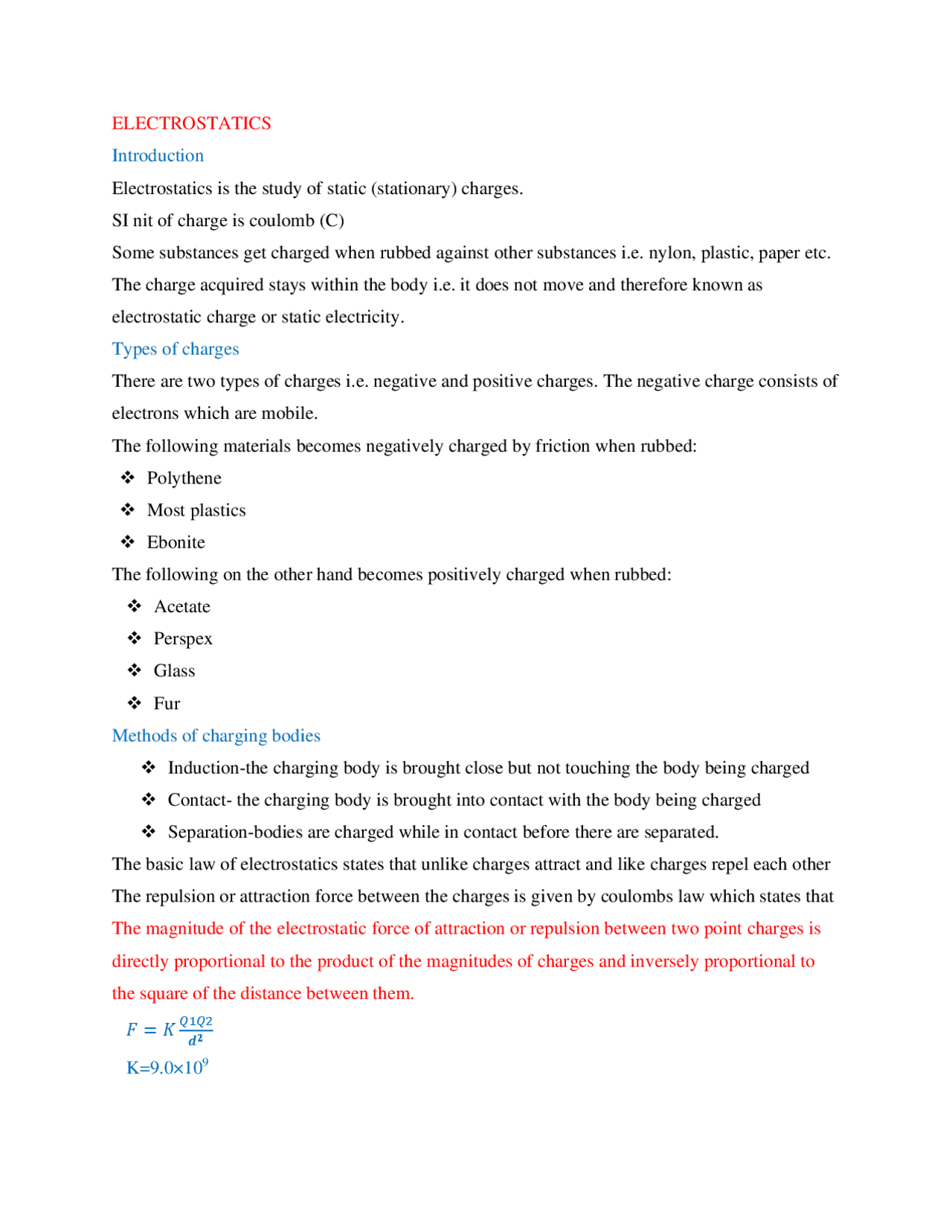

ELECTROSTATICS
Introduction
Electrostatics is the study of static (stationary) charges.
SI nit of charge is coulomb (C)
Some substances get charged when rubbed against other substances i.e. nylon, plastic, paper etc.
The charge acquired stays within the body i.e. it does not move and therefore known as
electrostatic charge or static electricity.
Types of charges
There are two types of charges i.e. negative and positive charges. The negative charge consists of
electrons which are mobile.
The following materials becomes negatively charged by friction when rubbed:
❖ Polythene
❖ Most plastics
❖ Ebonite
The following on the other hand becomes positively charged when rubbed:
❖ Acetate
❖ Perspex
❖ Glass
❖ Fur
Methods of charging bodies
❖ Induction-the charging body is brought close but not touching the body being charged
❖ Contact- the charging body is brought into contact with the body being charged
❖ Separation-bodies are charged while in contact before there are separated.
The basic law of electrostatics states that unlike charges attract and like charges repel each other
The repulsion or attraction force between the charges is given by coulombs law which states that
The magnitude of the electrostatic force of attraction or repulsion between two point charges is
directly proportional to the product of the magnitudes of charges and inversely proportional to
the square of the distance between them.
𝐹 = 𝐾 𝑄1𝑄2
𝒅𝟐
K=9.0×109
