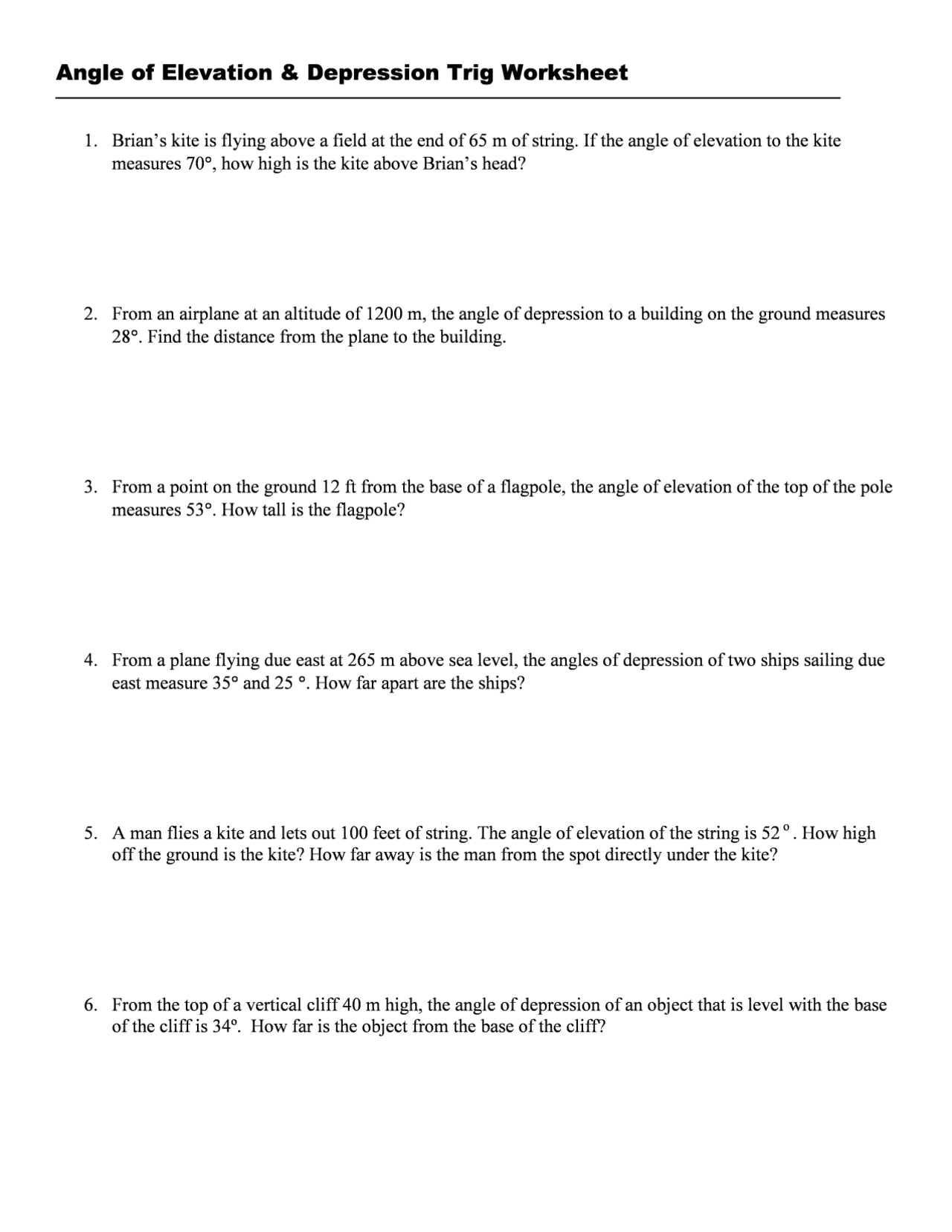

Angle of Elevation & Depression Trig Worksheet 1. Brian’s kite is flying above a field at the end of 65 m of string. If the angle of elevation to the kite measures 70°, how high is the kite above Brian’s head? 2. From an airplane at an altitude of 1200 m, the angle of depression to a building on the ground measures 28°. Find the distance from the plane to the building. 3. From a point on the ground 12 ft from the base of a flagpole, the angle of elevation of the top of the pole measures 53°. How tall is the flagpole? 4. Froma plane flying due east at 265 m above sea level, the angles of depression of two ships sailing due east measure 35° and 25 °. How far apart are the ships? 5. Aman flies a kite and lets out 100 feet of string. The angle of elevation of the string is 52°. How high off the ground is the kite? How far away is the man from the spot directly under the kite? 6. From the top of a vertical cliff 40 m high, the angle of depression of an object that is level with the base of the cliff is 34°. How far is the object from the base of the cliff? 10. 11. 12. An airplane takes off 200 yards in front of a 60 foot building. At what angle of elevation must the plane take off in order to avoid crashing into the building? Assume that the airplane flies in a straight line and the angle of elevation remains constant until the airplane flies over the building. A 14 foot ladder is used to scale a 13 foot wall. At what angle of elevation must the ladder be situated in order to reach the top of the wall? The diagonal of a rectangle is 15 cm, and the perimeter is 38 cm. What is the area? One of the legs of a right triangle is twice as long as the other, and the perimeter of the triangle is 28. Find the lengths of all three sides, to three decimal places. Standing on a cliff 380 meters above the sea, Pat sees an approaching ship and measures its angle of depression, obtaining 9 degrees. How far from shore is the ship? Now Pat sights a second ship beyond the first. The angle of depression of the second ship is 5 degrees. How far apart are the ships? In a right triangle, the 58-cm hypotenuse makes a 51-degree angle with one of the legs. To the nearest tenth of a cm, how long is that leg?
