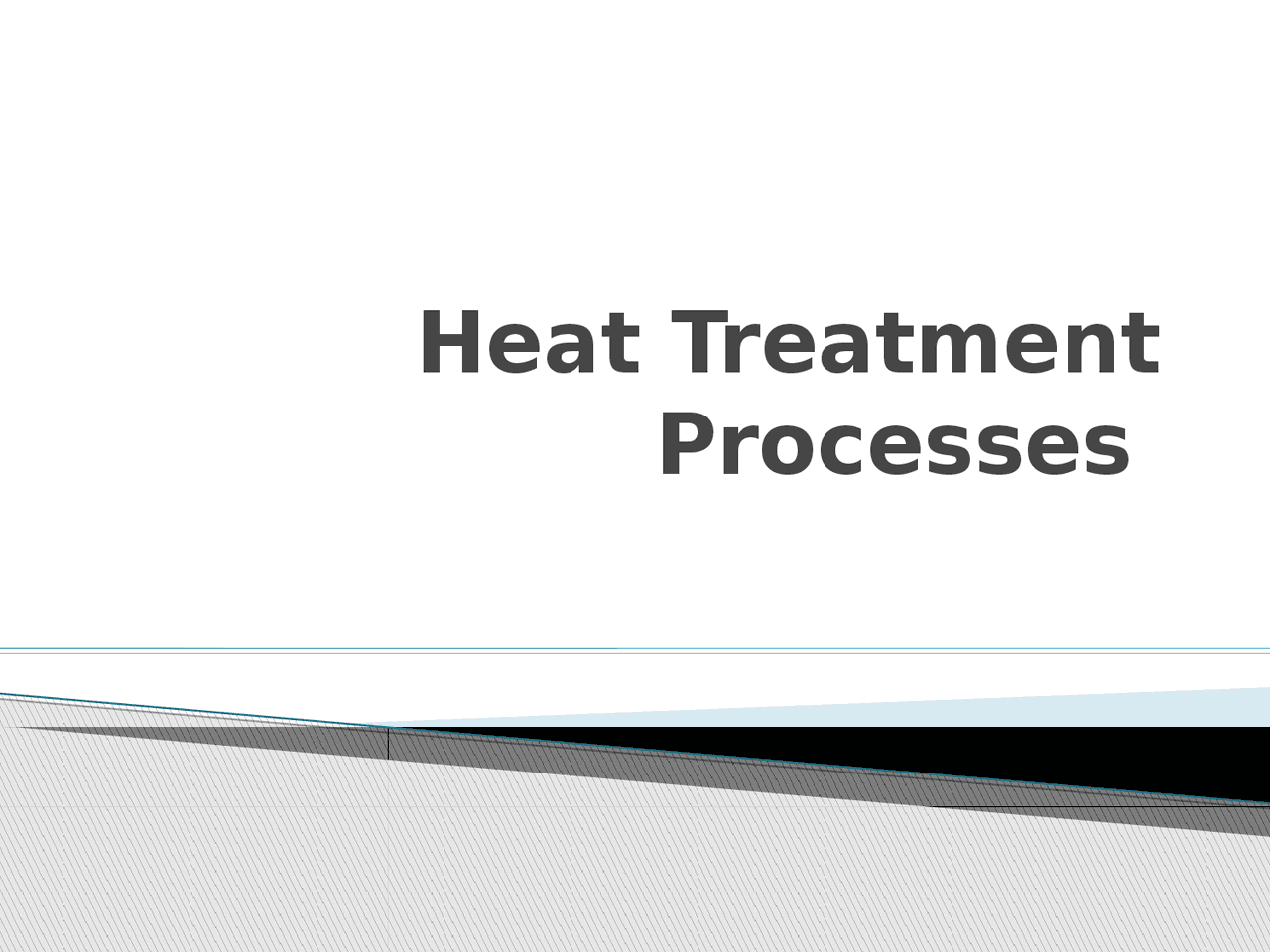

Heat Treatment
Processes
The Process of heat treatment is carried out first by heating the metal and then cooling it in the caustic soda solution, brine, water, oil or air.
Purpose of Heat Treatment
To soften the metal To change the grain size To modify the structure of material To relieve the stresses set up in material after hot or cold working. Heat Treatment
Purpose of Annealing (^) To soften the metal To change the grain size (^) To relieve the stresses set up in material after hot or cold working. Process Steps:
- Heat material into the austenite region (i.e. above 1600F) ,hold steel for one hour for each one inch of thickness.
- Slowly furnace cool the steel – DO NOT QUENCH
- Slow cooling allows the C to precipitate out so resulting structure is coarse pearlite with excess ferrite.
- After annealing steel is quite soft and ductile. Annealing
1.Full Annealing
Purpose
To remove trapped gases in metal To soften the metal To change the grain size To relieve the stresses set up in material after hot or cold working. Types of Annealing
Process Steps
Steel is heated to a temperature below or close to lower
critical temperature(550C -650C)
It held at this temperature for sometime.
Then cooled slowly in the furnace
3.Spheroidise Annealing
Purpose
To improve machinability of steel
It is applied to high carbon steels which are difficult to
machine.
Types of Annealing
(^) Disadvantage Spheroidise annealing lowers the hardness and tensile strength.
4. Diffusion Annealing Purpose This process is mainly used for ingots and large castings. Process Steps Heating the steel to a high temperature(1100C-1200C) It is held at this temperature for 8 to 20 hours. Then cooled to 800-850C inside the furnace for 6 t0 8 hours. It is further cooled in air to room temperature. Types of Annealing
Purpose
To increase hardness of metal so that it can resist wear. To enable it to cut other metals.
Process Steps
Heating the steel 30-50C above its upper critical temperature for hypo-eutectoid steels. It is held at this temperature for suitable minutes. Then quenched in a suitable cooling medium. Hardening
Purpose
Steel is usually harder than necessary and too brittle for practical use after being hardened. Severe internal stresses are set up during the rapid cooling of the metal. Steel is tempered after being hardened to relieve the internal stresses and reduce its brittleness.
Process Steps
Heating the metal to a specified temperature and then permitting the metal to cool. The metal is usually permitted to cool in still air Tempering
It is also known as isothermal quenching.
Process Steps
Heating the steel above its upper critical temperature for hypo-eutectoid steels. Suddenly cooled by quenching it in a salt bath or lead bath maintained at a temperature of about 250-525C. Austempering
