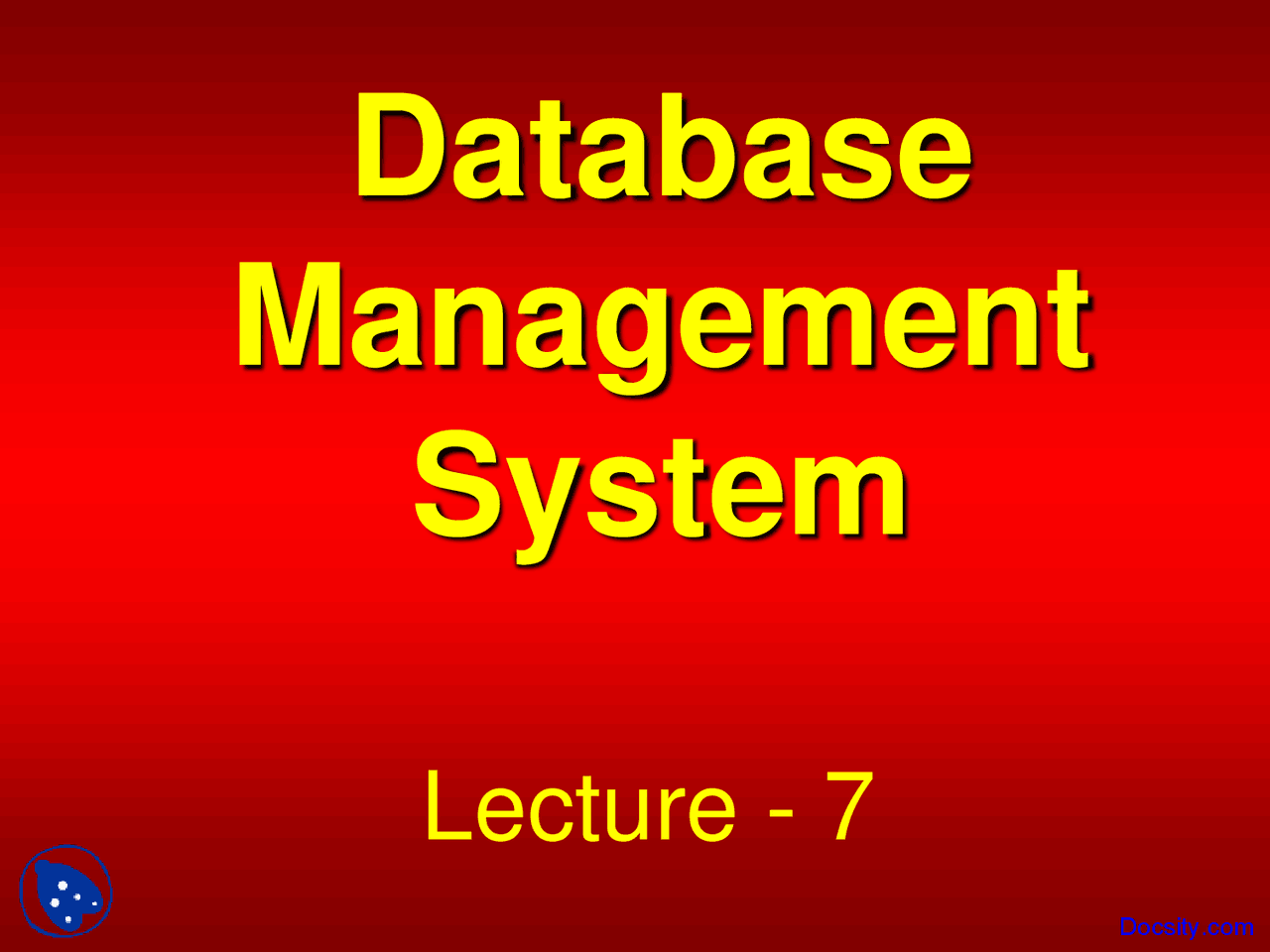

Database

Management

System

Lecture - 7

Entity-Relationship

Data Model

Major Components

Entities

Attributes

Relationships

Entity

Term used to mean three different meanings  Entity type  Entity instance  Entity set

Entity Type

Distinguishable from other entity types on the basis of properties

Identified through abstraction process

Different from External EntityDocsity.com

Entity Instance & Set

A particular object belonging to a particular entity type

Entity Type: Employee

Entity Instance: M. Sharif

Entity Set: All employees

Weak Entity Types

An entity type whose instances cannot exist without being linked with instances of some other entity type, i.e., they cannot exist independently

Strong Entity Type

A strong/regular entity type is the one whose instances can exist independently, i.e., without being linked to other instances

Strong ETs have their own identity

Symbols

Regular Entity Type

Weak Entity Type

NAME

NAME

EMPPLOYEE (^) DEPENDENTS

BOOK (^) BOOKCOPY

Attribute

An attribute of an entity type is a defining property or quality of the instances of that entity type. Entity instances of same entity type have the same attributes. (e.g. Student Identification, Student Name) Docsity.com

Types of Attributes

Single vs composite

Single valued vs multi-valued

Stored vs derived

Symbols for Attributes

Each represented as an oval, linked with an ET symbol

Example

EMPLOYEE

Experience empId (^) empName

dateHired emp_Qual street houseNo

address
