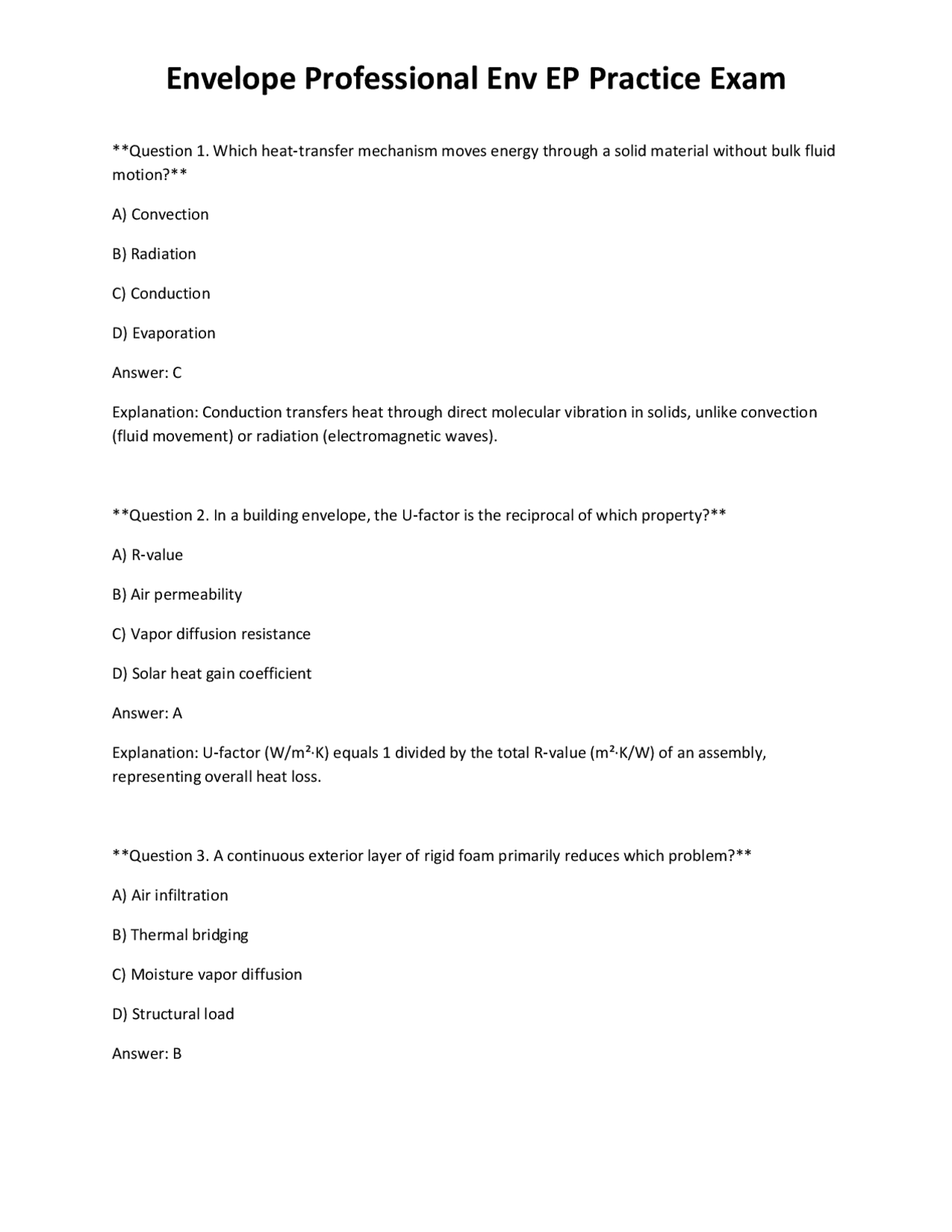

Question 1. Which heat‑transfer mechanism moves energy through a solid material without bulk fluid motion? A) Convection B) Radiation C) Conduction D) Evaporation Answer: C Explanation: Conduction transfers heat through direct molecular vibration in solids, unlike convection (fluid movement) or radiation (electromagnetic waves). Question 2. In a building envelope, the U‑factor is the reciprocal of which property? A) R‑value B) Air permeability C) Vapor diffusion resistance D) Solar heat gain coefficient Answer: A Explanation: U‑factor (W/m²·K) equals 1 divided by the total R‑value (m²·K/W) of an assembly, representing overall heat loss. Question 3. A continuous exterior layer of rigid foam primarily reduces which problem? A) Air infiltration B) Thermal bridging C) Moisture vapor diffusion D) Structural load Answer: B
Explanation: Continuous insulation bridges gaps in framing members, lowering heat loss through studs and joists. Question 4. The stack effect in a multistory building is driven mainly by differences in which variable? A) Wind speed B) Indoor–outdoor temperature C) Solar radiation D) Air pressure from HVAC fans Answer: B Explanation: Warm indoor air rises, creating pressure differentials between lower and upper levels, causing vertical airflow. Question 5. Which test measures building airtightness by pressurizing the structure to 50 Pa? A) Infrared thermography B) Blower‑door ACH50 test C) Moisture meter reading D) Smoke pencil test Answer: B Explanation: The ACH50 test uses a blower door to pressurize the building to 50 Pa and measures air changes per hour. Question 6. A vapor retarder with a perm rating of 0.1 perm is classified as which class? A) Class I (impermeable) B) Class II (semi‑impermeable) C) Class III (permeable)
B) Cellulose loose‑fill C) Extruded polystyrene (XPS) board D) Open‑cell spray foam Answer: C Explanation: XPS rigid board provides about R‑5 to R‑6 per inch, higher than fiberglass (~R‑3.2) or cellulose (~R‑3.5). Question 10. In a wood‑frame wall, the most common location for thermal bridging is: A) Between studs B) Within the insulation cavity C) Through the studs themselves D) At the exterior sheathing Answer: C Explanation: Studs are continuous solid wood members that conduct heat, creating bridges across the insulated cavity. Question 11. A rainscreen system primarily protects the wall assembly from: A) Air infiltration B) Thermal bridging C) Bulk water that bypasses cladding D) Vapor diffusion Answer: C Explanation: Rainscreens create an air gap that allows water that gets behind cladding to drain and evaporate.
Question 12. Which roof membrane type is installed fully adhered to the substrate and relies on adhesive for waterproofing? A) Standing‑seam metal roof B) Built‑up roofing (BUR) C) Fully‑adhered single‑ply membrane D) Asphalt shingle roof Answer: C Explanation: Fully‑adhered membranes are glued directly to the roof deck, unlike mechanically‑fastened or loose‑lay systems. Question 13. The Solar Heat Gain Coefficient (SHGC) of a window indicates: A. Total solar energy transmitted, reflected, and absorbed B. Only the solar energy transmitted through the glazing C. The fraction of solar heat rejected by the window D. The visible light transmittance of the window Answer: B Explanation: SHGC measures the proportion of incident solar radiation that passes directly through the glazing; lower values reduce cooling loads. Question 14. Which sealant is most suitable for exterior joint applications that require UV resistance and long‑term flexibility? A) Acrylic caulk B) Polyurethane sealant C) Silicone‑based sealant D) Latex joint compound Answer: C
D. Consistent interior temperature Answer: B Explanation: Moisture can cause paint to lose adhesion, leading to peeling, bubbling, or discoloration. Question 18. Mold growth inside an envelope assembly typically requires a relative humidity above: A) 30 % B) 50 % C) 70 % D) 90 % Answer: B Explanation: Mold spores become active when RH exceeds roughly 60 %; prolonged exposure above 50 % can also support growth. Question 19. In a high‑rise building, the most effective strategy to reduce stack‑effect‑driven infiltration is to: A) Increase roof insulation thickness B) Install a continuous air barrier at the roof deck C) Use low‑emissivity glazing D) Add interior vapor barriers on each floor Answer: B Explanation: A continuous air barrier at the roof limits vertical air movement, mitigating stack‑effect infiltration. Question 20. Which type of insulation is self‑sealing around nails and fasteners, reducing air leakage? A) Fiberglass batts
B) Closed‑cell spray foam C) Loose‑fill cellulose D) Rigid polyisocyanurate board Answer: B Explanation: Closed‑cell spray foam expands and adheres to surrounding materials, filling gaps around penetrations. Question 21. The primary purpose of a flashing detail at a roof‑wall intersection is to: A) Increase the R‑value of the wall B) Provide a water‑tight transition between assemblies C) Reduce thermal bridging at the junction D) Allow vapor diffusion across the joint Answer: B Explanation: Flashing directs water away from vulnerable joints, preventing leakage at roof‑wall connections. Question 22. When selecting a vapor‑permeable material for a cold‑climate wall, it should be placed on which side of the assembly? A) Interior side, next to heated space B) Exterior side, facing outdoor air C) Between insulation and sheathing D) Directly over the interior vapor retarder Answer: B Explanation: In cold climates, vapor‑permeable layers on the exterior allow drying to the outside, preventing interior condensation.
Explanation: Studs conduct heat, appearing cooler on an IR image when interior heating is on, creating linear cold patterns. Question 26. In a roof assembly, a “condensation control layer” is typically positioned: A) Directly under the roofing membrane B) Above the insulation but below the interior finish C) Between the insulation and structural deck D) On the exterior sheathing side Answer: C Explanation: Placing a vapor‑retarding/control layer between insulation and deck prevents warm moist air from reaching cold deck surfaces. Question 27. Which of the following is a common failure mode for wood‑frame wall sheathing? A. Delamination of OSB due to moisture exposure B. Cracking of rigid foam board from thermal expansion C. Corrosion of steel studs from condensation D. Melting of fiberglass batts from solar gain Answer: A Explanation: Oriented strand board (OSB) can delaminate when exposed to prolonged moisture, compromising structural integrity. Question 28. The term “air barrier” is most accurately defined as: A) A material that stops vapor diffusion only B) A continuous system that limits uncontrolled air movement C) Any insulation product with an R‑value greater than 5 D) A decorative cladding system
Answer: B Explanation: An air barrier restricts air leakage through the envelope, independent of vapor or moisture control. Question 29. Which diagnostic instrument is best suited for measuring the moisture content of wood framing members? A) Infrared camera B) Hygrometer C) Pin‑type moisture meter D) Anemometer Answer: C Explanation: Pin‑type moisture meters measure electrical resistance within wood, providing localized moisture content. Question 30. A building with a high indoor CO₂ concentration due to poor ventilation is most likely experiencing which envelope issue? A) Excessive thermal bridging B) Insufficient air infiltration control C) Over‑insulation causing moisture trapping D) Inadequate vapor barrier placement Answer: B Explanation: Tight envelopes that lack intentional ventilation can lead to elevated CO₂ and poor indoor air quality. Question 31. Which of the following roof types typically requires a drip edge to protect the eave? A. Flat membrane roof with ballasted gravel B. Low‑slope built‑up roof with torch‑applied membrane
A) Impermeable (≤ 0.1 perm) B) Semi‑impermeable (0.1– 1 perm) C) Permeable (> 1 perm) D) Not a vapor retarder at all Answer: C Explanation: Class III retarders have high permeability, allowing vapor to pass freely; they are essentially vapor‑permeable. Question 35. A window installed with a “rain‑screen” gap between the glass and exterior cladding primarily helps to: A) Increase the window’s U‑factor B) Prevent condensation on the interior glass surface C) Allow drainage of water that penetrates the cladding D) Reduce wind‑induced pressure on the window frame Answer: C Explanation: The rain‑screen gap provides a path for water that gets behind the cladding to drain away from the window assembly. Question 36. Which of the following is a key consideration when selecting sealants for joints that will experience cyclic movement? A) High compressive strength only B) Low initial tack and high elasticity C) Rigid cure and low elongation D) Fast drying time without regard to flexibility Answer: B Explanation: Sealants for moving joints need low initial tack for easy application and high elasticity to accommodate movement without cracking.
Question 37. When performing a visual envelope inspection, a “wet spot” on interior drywall that appears after a rainstorm most likely indicates: A) Interior condensation from high indoor humidity B) Penetrating water through the roof or wall envelope C) Excessive indoor heating causing drywall drying D) Vapor diffusion through a missing vapor barrier Answer: B Explanation: Wet spots appearing after rain suggest water has breached the exterior envelope and reached interior finishes. Question 38. In a cold‑climate building, which side of the insulation should a Class I vapor retarder be placed? A) Exterior side, directly against sheathing B) Interior side, adjacent to conditioned space C) In the middle of the insulation cavity D) On the exterior cladding surface Answer: B Explanation: In cold climates, a Class I (impermeable) vapor retarder is placed on the warm side (interior) to stop interior moisture from reaching cold exterior layers. Question 39. The term “air‑tightness” in building science is most directly measured by: A) R‑value of the wall assembly B) Number of windows per façade area C) ACH50 (air changes per hour at 50 Pa) D) Solar Heat Gain Coefficient of glazing
B) Using spray foam to seal around framing members C) Installing insulation only in the cavity center D) Over‑compressing fiberglass batts to fill cavities Answer: B Explanation: Spray foam expands to fill irregular spaces and adheres to framing, creating an air‑tight seal. Question 43. In a high‑rise office tower, the most common cause of interstitial moisture in the wall cavity is: A) Exterior rain penetration through flashing failures B) Interior vapor diffusion through a missing vapor retarder C) Condensation on the exterior sheathing due to solar gain D) Air leakage from HVAC ducts into the cavity Answer: B Explanation: Interior moisture diffusing through the wall assembly without a proper vapor retarder can condense within the cavity. Question 44. Which of the following best describes the function of a “thermal break” in a metal‑framed window? A) Increase the U‑factor of the frame B) Reduce conductive heat flow through the frame C) Provide a vapor barrier across the glazing edge D) Enhance the structural load capacity of the window Answer: B Explanation: A thermal break (usually a non‑conductive material) interrupts heat flow through the metal, improving window thermal performance.
Question 45. When conducting infrared thermography on a building envelope, a “cold bridge” is identified. Which corrective action is most appropriate? A. Replace interior finish with higher‑R material B. Add continuous exterior insulation over the bridge C. Increase interior heating setpoint D. Install a de‑humidifier in the occupied space Answer: B Explanation: Adding continuous insulation over the thermal bridge reduces heat loss and eliminates the cold spot. Question 46. Which of the following is a primary health risk associated with poor envelope moisture control? A. Increased carbon monoxide generation B. Elevated indoor ozone levels C. Mold growth leading to respiratory issues D. Excessive indoor lighting glare Answer: C Explanation: Moisture accumulation fosters mold, which can cause allergic reactions and respiratory problems. Question 47. In a building with a mechanical ventilation system, the most effective way to ensure the envelope does not compromise system performance is to: A) Increase HVAC fan speed B) Seal all penetrations and ensure a continuous air barrier C) Install larger ductwork D) Add more windows for natural ventilation Answer: B
D) Adding extra insulation behind the window frame Answer: B Explanation: Proper flashing that laps over the sill and sill pan directs water away, preventing bulk water ingress. Question 51. In a high‑performance building, the term “air‑sealing” most closely refers to: A) Adding more insulation to increase R‑value B) Installing vapor barriers on interior walls C) Closing uncontrolled pathways for air movement through the envelope D) Painting exterior walls with low‑VOC paint Answer: C Explanation: Air‑sealing targets gaps, cracks, and penetrations that allow uncontrolled air flow, improving energy efficiency. Question 52. Which of the following is an advantage of using cellulose loose‑fill insulation in attic spaces? A. Highest R‑value per inch of any insulation type B. Excellent air‑sealing properties when densely packed C. Completely vapor‑impermeable D. No need for a separate vapor barrier Answer: B Explanation: When properly installed, dense‑packed cellulose reduces air movement within the cavity, improving overall envelope performance. Question 53. A building with a high exterior wall U‑value but a low interior surface temperature is likely suffering from: A. Excessive solar gain
B. Thermal bridging through studs C. Over‑ventilation D. Inadequate interior heating Answer: B Explanation: Thermal bridges conduct heat through studs, raising overall U‑value while interior surfaces remain cool. Question 54. Which testing method is most appropriate for locating hidden water leaks behind exterior cladding? A. Blower‑door testing B. Infrared thermography during a rain event C. Moisture meter probing from interior side D. Visual inspection of interior finishes only Answer: B Explanation: Infrared cameras can detect temperature anomalies caused by moisture behind cladding, especially when the building is wet. Question 55. In a cold‑climate wall, the optimal order of layers from interior to exterior is: A) Vapor retarder → insulation → sheathing → housewrap → siding B) Sheathing → insulation → vapor retarder → housewrap → siding C) Interior finish → vapor retarder → sheathing → insulation → housewrap → siding D) Interior finish → insulation → vapor retarder → sheathing → housewrap → siding Answer: C Explanation: Interior finish, then vapor retarder on the warm side, followed by structural sheathing, insulation, a water‑resistive housewrap, and exterior cladding.
