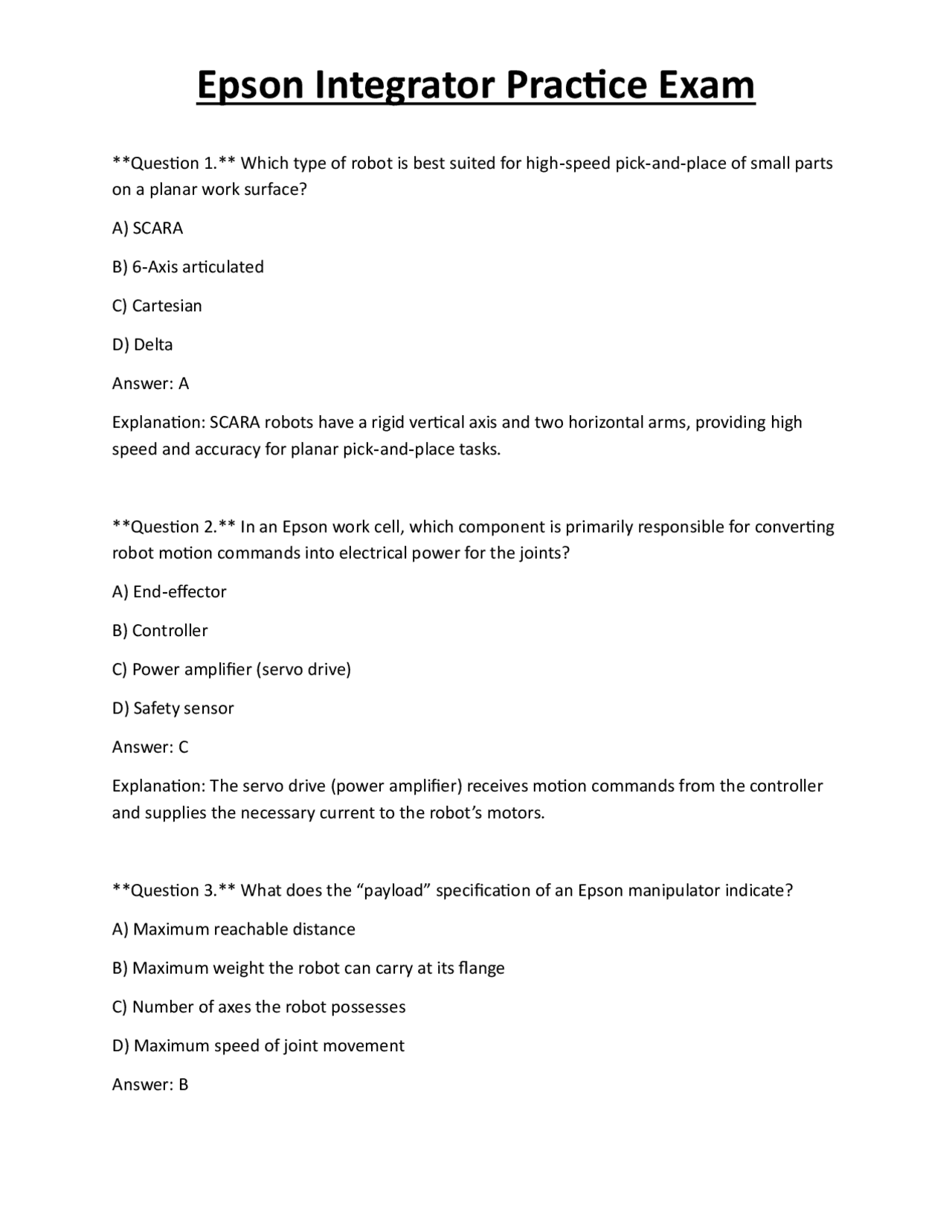

Question 1. Which type of robot is best suited for high‑speed pick‑and‑place of small parts on a planar work surface? A) SCARA B) 6‑Axis articulated C) Cartesian D) Delta Answer: A Explanation: SCARA robots have a rigid vertical axis and two horizontal arms, providing high speed and accuracy for planar pick‑and‑place tasks. Question 2. In an Epson work cell, which component is primarily responsible for converting robot motion commands into electrical power for the joints? A) End‑effector B) Controller C) Power amplifier (servo drive) D) Safety sensor Answer: C Explanation: The servo drive (power amplifier) receives motion commands from the controller and supplies the necessary current to the robot’s motors. Question 3. What does the “payload” specification of an Epson manipulator indicate? A) Maximum reachable distance B) Maximum weight the robot can carry at its flange C) Number of axes the robot possesses D) Maximum speed of joint movement Answer: B
Explanation: Payload defines the maximum mass the robot can safely handle at its tool center point without exceeding motor torque limits. Question 4. Which Epson controller model is typically used for compact 4‑axis robots? A) RC B) RC C) RC D) RC Answer: B Explanation: The RC180 is a compact controller designed for smaller robots such as 4‑axis models. Question 5. The E‑Stop circuit in an Epson robot system must be wired so that when the button is pressed, the controller receives a: A) High voltage signal B) Low voltage signal C) Open‑circuit (disconnected) condition D) Short‑circuit to ground Answer: C Explanation: An emergency stop normally opens the circuit, removing power or signal to halt robot operation safely. Question 6. Which network protocol is NOT natively supported by Epson RC+ for fieldbus communication? A) EtherNet/IP B) PROFINET C) Modbus TCP
B) Two or more axes become collinear, causing loss of a degree of freedom C) The payload exceeds the rated limit D) The controller firmware is outdated Answer: B Explanation: Singularity arises when joint axes align, reducing controllable motion and potentially causing erratic behavior. Question 10. Which of the following is a required system specification for installing the RC+ development PC? A) Minimum 2 GHz dual‑core CPU B) 8 GB RAM or more C) Dedicated graphics card with 2 GB VRAM D) SSD storage of at least 256 GB Answer: B Explanation: RC+ recommends at least 8 GB RAM to handle simulation and programming tasks efficiently. Question 11. During RC+ installation, which Windows component must be installed to enable Ethernet communication with the robot? A) .NET Framework 4. B) DirectX 12 C) PowerShell 7 D) Visual C++ Redistributable 2015‑ 2022 Answer: D Explanation: The Visual C++ Redistributable provides required libraries for the RC+ communication drivers.
Question 12. In the RC+ Project Explorer, the folder “Robot” typically contains: A) Simulation textures B) Motion program files (*.sp) C) Controller firmware binaries D) User‑defined macros Answer: B Explanation: The “Robot” folder stores SPEL+ program files that define robot motion and logic. Question 13. When backing up a controller’s status, which file extension is generated by RC+? A) .bak B) .rcs C) .zip D) .rcp Answer: A Explanation: RC+ creates a *.bak file that contains the controller’s configuration and program data. Question 14. Importing a CAD model into the RC+ 3‑D Simulator requires the file to be in which format? A) .STEP B) .STL C) .IGES D) .DWG Answer: B Explanation: The simulator accepts STL files for solid geometry representation.
Explanation: An array of REAL numbers can hold six joint values representing a point in joint space. Question 18. The SPEL+ statement “FOR I=1 TO 10 STEP 2” will iterate how many times? A) 4 B) 5 C) 6 D) 10 Answer: B Explanation: The loop runs with I = 1,3,5,7,9 – five iterations. Question 19. Which SPEL+ command initiates a point‑to‑point motion to a previously taught position “P10” using the current speed settings? A) GO P B) MOVE P C) JUMP P D) TGO P Answer: A Explanation: “GO” commands a PTP move to the specified point. Question 20. To execute a linear interpolation between two points while maintaining a constant tool orientation, which command should be used? A) JUMP B) BGo C) TGo D) MoveL (not native) Answer: C
Explanation: “TGo” performs a linear (Cartesian) move, preserving tool orientation along the path. Question 21. Fine‑tuning robot speed in SPEL+ is achieved by adjusting which parameter? A) ACCEL B) VMAX C) JERK D) TOOLSPD Answer: B Explanation: VMAX defines the maximum speed for subsequent motions. Question 22. When calibrating the home position of an Epson robot, the robot must be moved to a pose where: A) All joint encoders read zero B) The wrist is aligned with the base Z‑axis C) The flange is at the declared “HOME” point in the controller’s coordinate system D) The tool center point is at the origin of the world frame Answer: C Explanation: The home pose is defined by the user and stored as a reference point for subsequent operations. Question 23. Which of the following statements correctly describes the purpose of the “Tool Weight” setting in the controller? A) It compensates for gravitational torque on each joint B) It determines the maximum payload the robot can lift C) It is used only for collision detection algorithms D) It adjusts the speed of the robot automatically
D) Bluetooth dongles Answer: A Explanation: Ethernet/IP I/O modules provide additional I/O channels over the network. Question 27. Real‑Time I/O in Epson systems is primarily used for: A) Logging data after the robot stops B) Synchronizing motion with high‑speed sensors for on‑the‑fly adjustments C) Updating firmware remotely D) Displaying status on the operator panel Answer: B Explanation: Real‑Time I/O enables immediate response to sensor inputs during motion, essential for high‑speed applications. Question 28. Which programming language can directly call the Epson RC+ API for external control? A) Python (via COM) B) Java (via JNI) C) C# (via .NET) D) All of the above Answer: D Explanation: The RC+ API provides COM interfaces accessible from Python, Java, C#, and other languages. Question 29. In Epson Vision Guide, the “Blob Analysis” function is primarily used to: A) Detect edges of a part B) Identify regions of uniform color/intensity for part localization C) Perform 3‑D reconstruction
D) Calibrate camera intrinsic parameters Answer: B Explanation: Blob analysis extracts connected regions (blobs) based on color or intensity, useful for locating parts. Question 30. When using vision‑guided pick‑and‑place, the robot typically receives the target pose from the vision system in which coordinate frame? A) World (Base) frame B) Tool frame C) Camera (Vision) frame that must be transformed to the robot base frame D) Joint space frame Answer: C Explanation: The vision system provides coordinates in its own frame; these must be transformed to the robot base for motion execution. Question 31. Force sensing in Epson robots is most useful for which type of task? A) High‑speed sorting B) Precise insertion where contact force must be monitored C) Long‑distance palletizing D) Vision‑only inspection Answer: B Explanation: Force sensors allow the robot to detect and control contact forces during delicate insertion or assembly. Question 32. The “Conveyor Tracking” feature in RC+ is designed to: A) Adjust robot speed to match conveyor belt velocity for synchronized hand‑off B) Detect conveyor belt wear
B) ON ERROR GOTO
C) IF ERR THEN
D) EXCEPTION
Answer: B Explanation: “ON ERROR GOTO” directs program flow to a predefined error handling routine when an error occurs. Question 36. Routine maintenance of an Epson robot includes checking the condition of which component most frequently? A) Servo motor brushes B) Hydraulic fluid level C) Battery backup for the controller’s RTC D) Pneumatic air filter Answer: C Explanation: The controller’s battery maintains the real‑time clock and must be inspected and replaced periodically. Question 37. The recommended method for backing up the robot’s program data before a firmware upgrade is: A) Copying the *.sp files to a USB drive B) Using the “Backup Controller” function to create a .bak file C) Printing the program listing D) Exporting the project as a .zip archive Answer: B Explanation: The controller backup creates a comprehensive .bak file that includes all settings and programs.
Question 38. Predictive maintenance for an Epson robot most commonly relies on: A) Visual inspection of cables B) Monitoring motor temperature and vibration trends via built‑in sensors C) Counting the number of executed programs D) Periodic manual torque checks on joints Answer: B Explanation: Built‑in temperature and vibration sensors provide data that can predict component wear before failure. Question 39. To reduce overall cycle time, which of the following strategies is generally most effective? A) Decreasing acceleration values B) Merging multiple sequential motions into a single blended motion (e.g., using “BGo”) C) Adding extra safety pauses between steps D) Reducing payload to the minimum allowable Answer: B Explanation: Blended motions allow continuous trajectory execution, eliminating stop‑and‑go delays. Question 40. In the IntelliFlex feeding system, the “singulation” function refers to: A) Aligning parts in a single row for pick‑up B) Cutting parts from a sheet C) Rotating parts to a standard orientation D) Counting parts for inventory Answer: A Explanation: Singulation separates individual parts from a bulk feed, presenting them one‑by‑one to the robot.
Explanation: Pneumatic solenoids are switched on/off using a 24 V DC digital output. Question 44. In the RC+ I/O Monitor window, a blinking indicator for a digital input usually means: A) The input is in fault mode B) The input signal is toggling (e.g., sensor activation) C) The controller is resetting D) The I/O module is not powered Answer: B Explanation: Blinking shows a changing signal state, indicating activity on that input. Question 45. What is the primary advantage of using EtherCAT for I/O expansion in Epson robots? A) Simpler wiring than Ethernet/IP B) Deterministic, ultra‑low latency communication suitable for high‑speed motion feedback C) Compatibility with wireless networks D) Built‑in safety monitoring without additional modules Answer: B Explanation: EtherCAT provides deterministic, sub‑millisecond cycle times, ideal for real‑time I/O. Question 46. Which of the following is NOT a typical step in calibrating an Epson vision camera? A) Defining the workpiece coordinate system using a calibration plate B) Setting the camera’s exposure time manually for each part C) Performing intrinsic parameter calibration (focal length, distortion) D) Aligning the camera’s optical axis with the robot base Z‑axis using a laser
Answer: D Explanation: Aligning with a laser is not part of standard camera calibration; the process relies on software tools and calibration plates. Question 47. In force‑guided insertion, the robot stops moving when: A) The commanded position is reached B) The measured force exceeds a predefined threshold C) The vision system loses the target D) The cycle timer expires Answer: B Explanation: Force thresholds are used to detect contact and prevent damage during insertion. Question 48. Which SPEL+ statement is used to create a reusable block of code that can be called from multiple locations? A) FUNCTION B) SUBROUTINE C) MACRO D) PROCEDURE Answer: B Explanation: “SUBROUTINE” defines a callable block of SPEL+ code. Question 49. When a robot program needs to wait for a sensor signal before proceeding, which command is appropriate? A) WAIT DI B) PAUSE 5 C) HOLD UNTIL D) SLEEP 1000
D) A diagnostic tool for monitoring joint temperatures Answer: A Explanation: Safety light curtains create a protected zone; interruption triggers an emergency stop. Question 53. Which of the following is a recommended practice to avoid robot collisions when using the 3‑D Simulator? A) Disable collision detection to speed up simulation B) Run the simulation at maximum speed to test worst‑case scenarios C) Enable “Collision Check” and review highlighted interference zones before deployment D) Use only joint‑space visualization, not Cartesian view Answer: C Explanation: Enabling collision checking highlights potential interferences, allowing designers to correct them. Question 54. The “Joint Limit” error in Epson robots occurs when: A) The robot exceeds its maximum payload B) A commanded joint angle goes beyond its calibrated range C) The tool center point collides with an obstacle D) The controller loses network connectivity Answer: B Explanation: Joint limits protect the robot from mechanical over‑travel; exceeding them triggers an error. Question 55. In the RC+ environment, the “Project Settings” dialog allows you to: A) Change the robot’s firmware version B) Define the default motion speed for all new programs
C) Set the project’s file path, robot model, and communication parameters D) Calibrate the vision camera Answer: C Explanation: Project Settings store essential information such as robot model and network configuration. Question 56. Which command in SPEL+ can be used to temporarily disable all digital outputs? A) OFF ALLDO B) SET DO 0 C) DISABLE DO D) CLEAR DO Answer: A Explanation: “OFF ALLDO” turns off every digital output channel. Question 57. When integrating a PLC via EtherNet/IP, the robot’s I/O is accessed using: A) Modbus registers B) CIP (Common Industrial Protocol) objects C) OPC-UA tags D) MQTT topics Answer: B Explanation: EtherNet/IP uses the CIP protocol for I/O exchange. Question 58. The “Vision Guide” module can output target positions directly to the robot via: A) Serial RS‑232 connection B) Ethernet TCP/IP socket
