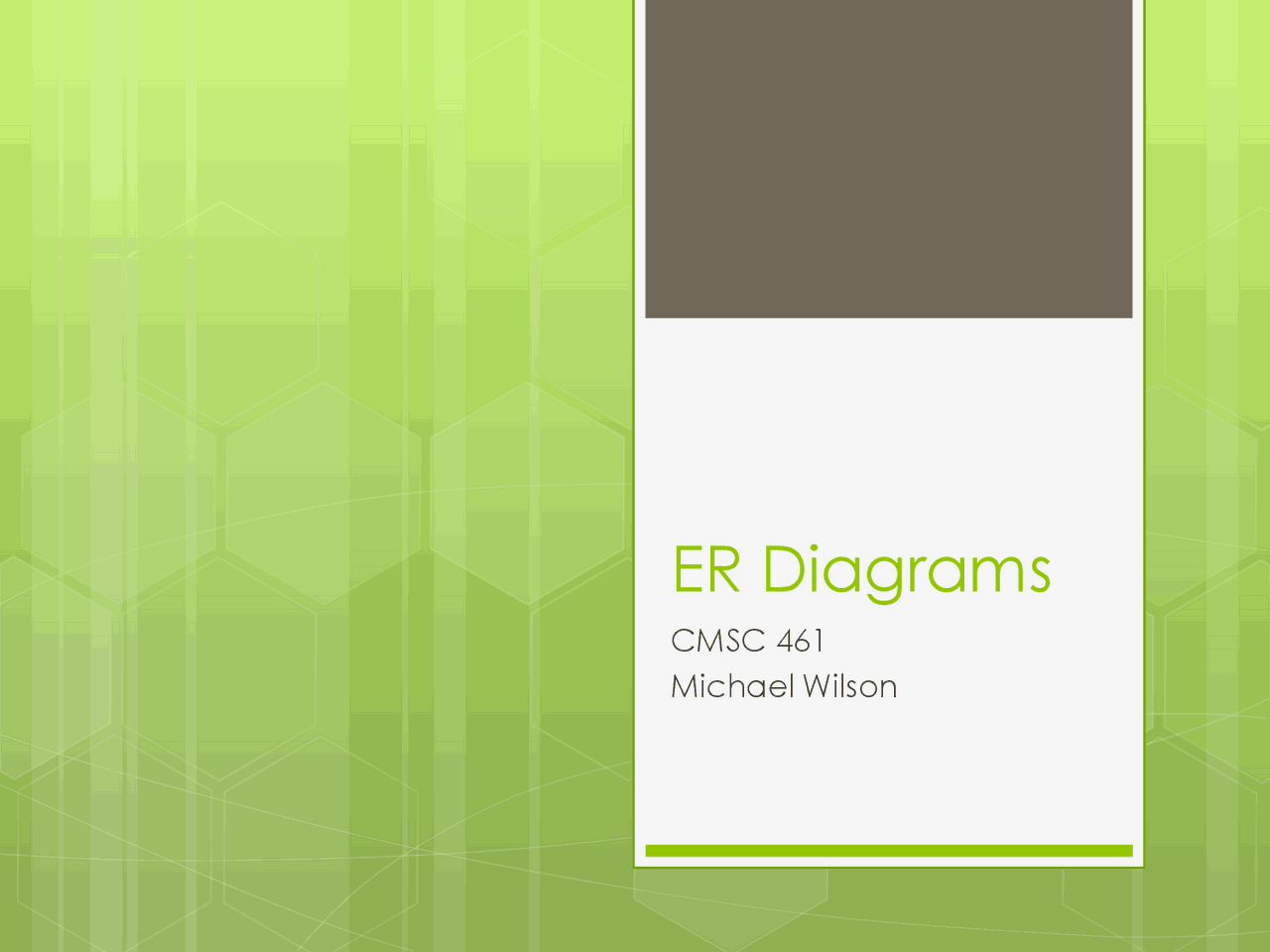

ER Diagrams

CMSC 461 Michael Wilson

Entity-relationship

diagramming (ER Diagrams)

 ER Diagrams are diagrams that can

describe relations/databases

 Meant to be high level  Pure concept, no implementation  Can help you figure out how to design your relations, choose keys, etc.

 We’re going to be using Chen diagrams

 Keep this in mind when looking up info on the internet

Example

Record ID PatientName Date of Visit Diagnosis

14233 Mario Mario 04/28/1991 Leg injury

174342 Snow Villiers 12/05/2012 Brain damage

189232 Lara Croft 12/05/2012 Powder burns

ER Diagram

Primary keys

Primary keys

 Primary keys can be shown by underlining

a particular attribute

Multivalued attributes

 Attributes with multiple values are shown

using concentric ovals

 A multivalued attribute is an attribute that consists of multiple other attributes or values  For example patient name:  First name  Last name

Relationships between entities

 These relationships are high level as well  They simply describe, at a conceptual level, how the two entities relate to one another  Relationships are generally plaintext words or sentences  Customer places orders  Bands have members  Programmers develop video games  Relationships are not necessarily between two entities – can be between more

Cardinality

 Different “sides” of the relationship can

have differing cardinalities

 Four different types of cardinalities here:

 1 to 1  1 to many  Many to 1  Many to many

Cardinality

 Describing cardinality

 One patient can have many patient diagnoses  We represent this by putting a “1” on the side of the relationship attached to Patient and an “N” on the side of the relationship attached to patient records

Weak entities

 A weak entity is an entity that depends on another entity to exist  In this case, a patient’s insurance info must be attached to a patient  Therefore, it must reference a patient, and is a weak entity, represented by a double rectangle  This relationship is described as an identifying relationship , represented by a double diamond  Tuples cannot be uniquely identified by attributes alone  Has to have a foreign key

Funky relationships?!

Ternary relationships

Ternary relationships

 Here, an employee can sell multiple

games to a customer

 These are also valid

 Can sometimes reduce ternary

relationships into binary relationships as

well

 These are probably closer to how they would be laid out in your DBMS
