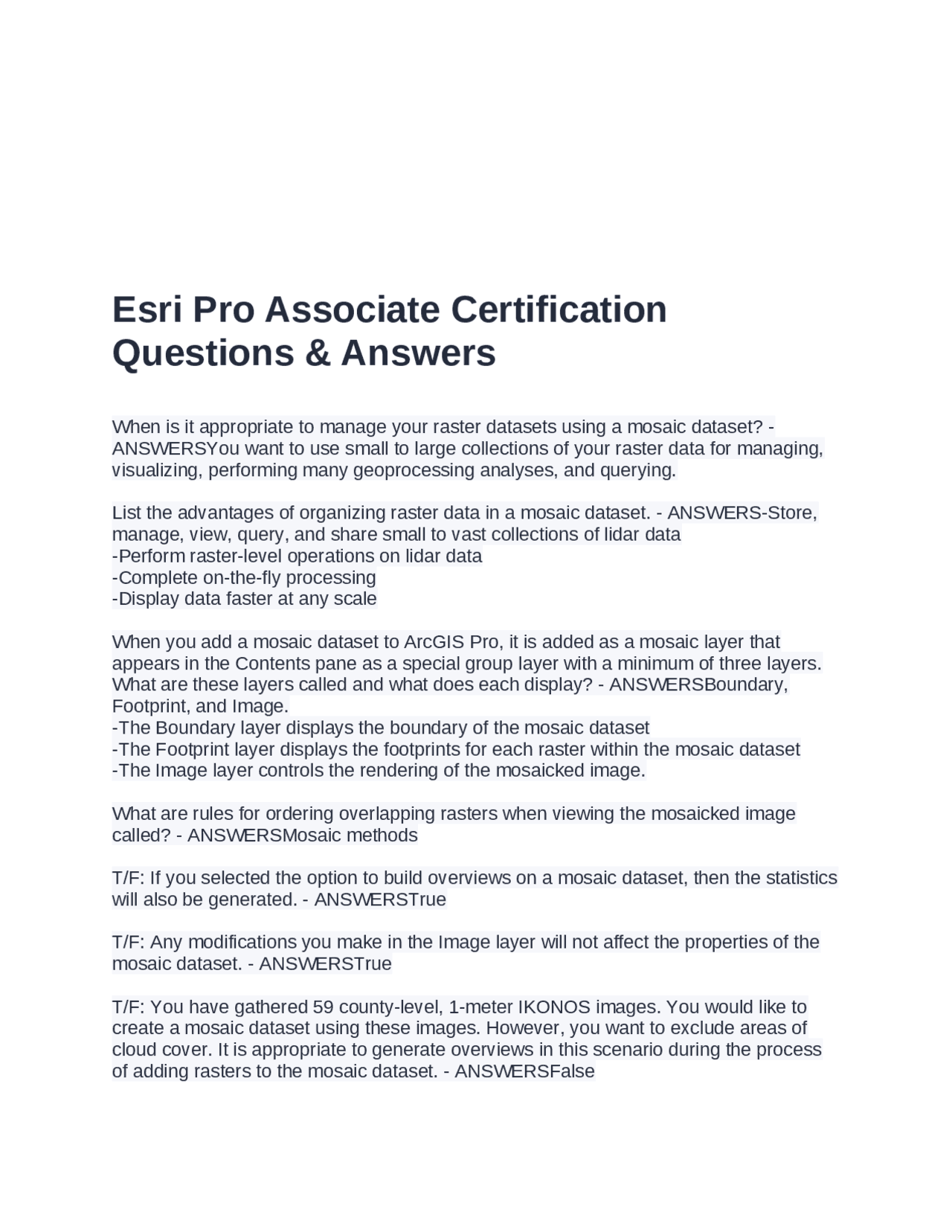

Esri Pro Associate Certification
Questions & Answers
When is it appropriate to manage your raster datasets using a mosaic dataset? - ANSWERSYou want to use small to large collections of your raster data for managing, visualizing, performing many geoprocessing analyses, and querying. List the advantages of organizing raster data in a mosaic dataset. - ANSWERS-Store, manage, view, query, and share small to vast collections of lidar data -Perform raster-level operations on lidar data -Complete on-the-fly processing -Display data faster at any scale When you add a mosaic dataset to ArcGIS Pro, it is added as a mosaic layer that appears in the Contents pane as a special group layer with a minimum of three layers. What are these layers called and what does each display? - ANSWERSBoundary, Footprint, and Image. -The Boundary layer displays the boundary of the mosaic dataset -The Footprint layer displays the footprints for each raster within the mosaic dataset -The Image layer controls the rendering of the mosaicked image. What are rules for ordering overlapping rasters when viewing the mosaicked image called? - ANSWERSMosaic methods T/F: If you selected the option to build overviews on a mosaic dataset, then the statistics will also be generated. - ANSWERSTrue T/F: Any modifications you make in the Image layer will not affect the properties of the mosaic dataset. - ANSWERSTrue T/F: You have gathered 59 county-level, 1-meter IKONOS images. You would like to create a mosaic dataset using these images. However, you want to exclude areas of cloud cover. It is appropriate to generate overviews in this scenario during the process of adding rasters to the mosaic dataset. - ANSWERSFalse
You have built a mosaic dataset using a set of raster data. You want to select specific tiles within the mosaic dataset and download them to your local computer. How can you accomplish this task? - ANSWERSAdd the mosaic dataset to ArcGIS Pro, select the specific tiles, lock to selected rasters, and download the selected rasters. You modify the extent of the footprint of a mosaic dataset. Which of the following statements is true? Pixels are modified. There is no loss of image data. You cannot crop the polygons. You are editing the source raster dataset. - ANSWERSThere is no loss of image data. T/F: You have created a mosaic dataset using a set of LAS files, and you modify the Image layer in ArcGIS Pro to better visualize the mosaicked image. By doing so, you are changing the source data. - ANSWERSFalse You have received a mosaic dataset with several layers. How do you display a specific layer of interest and extract information about the layer? - ANSWERSQuery the layer. You have acquired GeoEye-1 imagery with and without cloud cover. You want to view it with no cloud cover at the top. Which mosaic method will you use? - ANSWERSBy Attribute What is required to create a mosaic dataset? - ANSWERSYou should have write access to the geodatabase and an ArcGIS Desktop Standard and ArcGIS Desktop Advanced license. You receive a mosaic dataset with several layers. How do you display a specific layer of interest and extract information about that layer? - ANSWERSQuery the mosaic What is the first step in managing your raster data using a mosaic dataset? - ANSWERSCreate a geodatabase if you do not have one. Which mosaic method do you use to order rasters based on a user-defined location and nadir location? - ANSWERSClosest to Viewpoint T/F When you add raster data to a mosaic dataset, the raster data is not stored within the mosaic dataset. - ANSWERSTrue You have obtained three large raster datasets with three different resolutions. What is the best method to manage these raster datasets? - ANSWERSCreate a single mosaic dataset and add the three raster datasets to the mosaic dataset. Mosaic method that... -Sorts rasters with their center closest to the view center placed on top
Why are overviews not automatically built? - ANSWERSThey take additional space and time, and you may want to build them at your convenience. How would you get contextual tabs to display on the ribbon? - ANSWERSBy selecting a feature in the Contents pane What is the window called for working with maps, scenes, tables, layouts, charts, and reports? - ANSWERSA view In which type of dockable window do the Symbology and Geoprocessing functionalities occur? - ANSWERSA pane Pro Project Structure - ANSWERS-a main project file with an APRX file name extension -a toolbox -a file geodatabase -folders for working in the project Shows the various parts of the project that have been created for you, including connections to default toolboxes, databases, styles, folders, and locators - ANSWERSProject Tab in Catalog Pane On the Insert tab, where would you find Import Map, add a database connection, and add a folder connection? - ANSWERSIn the Project group Contextual tabs for vector feature classes - ANSWERS-Feature Layer -Labeling -Data Which ArcGIS Pro component contains licensing information, the ArcGIS Pro version, and management options for portal connections? - ANSWERSThe settings page A GIS analyst has created an ArcGIS Pro project to analyze data. When the analyst opens the blank project, which action should they perform to access their data? - ANSWERSConnect to an existing geodatabase. Which two statements describe options for visualizing data using views in ArcGIS Pro? Choose two. -You can view the data in either a 2D map or a 3D scene but not both. -You can view the data in a 2D map and a 3D scene, but the views cannot be linked. -You can view the data in both a 2D map or a 3D scene in the same project. -You can view the data in a 2D map and a 3D scene and link the views to one another. - ANSWERS-You can view the data in both a 2D map or a 3D scene in the same project. -You can view the data in a 2D map and a 3D scene and link the views to one another. A GIS analyst is looking at a map of endangered species. The analyst wants to be able to change the view of the map to view all layers. Which action in ArcGIS Pro should the
analyst use to change the view? - ANSWERSClick the Full Extent button to view all the data. Which statement best describes the structure of an ArcGIS Pro project? -A map document containing the specifications for the map layers, the page layout, and all other map properties -A file containing the projection description and coordinate system -A collection of files in a folder on disk that can store, query, and manage spatial and nonspatial data -A file containing maps, layouts, styles, and connections to toolboxes, databases, and folders - ANSWERSA file containing maps, layouts, styles, and connections to toolboxes, databases, and folders Steps for creating a new feature - ANSWERS-Open the list of feature templates -Choose a template -Choose a construction tool -Create features Contains tools for copying and pasting features, managing edits, selecting features, enabling elevation, and setting up the editing task - ANSWERSEdit Tab Allows you to create features that share many of the same attributes by filling out those attributes before creating the features. These attributes are applied automatically when you add a feature. - ANSWERSActive Template Workflow to modify a feature - ANSWERS-Open the list of modification tools -Select the tool that you need -Select the feature on the map to modify Allows you to replace larger portions of a geometry, requires you to draw a new geometry that crosses or touches the geometry being modified - ANSWERSReshape Tool A GIS analyst has created a map of city parcels in ArcGIS Pro. Which two ways can the analyst edit the parcel data to keep it as accurate as possible? Choose two. -Import the parcel boundary features to your data as features are added. -Export the parcel boundary data as features change for others to use. -Modify the features of parcel boundaries as features change. -Create new features of parcel boundaries as features are added. - ANSWERS-Modify the features of parcel boundaries as features change. -Create new features of parcel boundaries as features are added. A GIS analyst is editing the features of a parcel boundary and needs to update the feature's vertices. Which action should the analyst perform? - ANSWERSUse the Modify Features pane to access editing tools.
-A geographic coordinate system's coordinates are measured in linear units, such as feet or meters. -A geographic coordinate system uses a three-dimensional spherical model to identify specific locations on the earth. -A geographic coordinate system's coordinates are based on latitude and longitude values. - ANSWERS-A geographic coordinate system is represented by a graticule of intersecting parallels (latitude) and meridians (longitude). -A geographic coordinate system uses a three-dimensional spherical model to identify specific locations on the earth. -A geographic coordinate system's coordinates are based on latitude and longitude values. T/F If you cannot find the original projection for geographic data, you can use any geographic coordinate system that is appropriate for the region of the world that you are mapping. - ANSWERSFalse T/F Coordinate information can be stored as values in a table. - ANSWERSTrue To create a map to compare global data, which type of spatial reference should be used? Earth-centered datum Projected transformation Local datum Geographic transformation - ANSWERSEarth Centered Datum Created by wrapping a cylinder around a globe and projecting light through the globe onto the cylinder. Represent meridians as straight, evenly spaced, vertical lines; they represent parallels as straight, horizontal lines. Meridians and parallels intersect at right angles, as they do on the globe. For map areas that extend north-south Used to map tropical regions - ANSWERSCylindrical Projections Created by setting a cone over a globe and projecting light from the center of the globe onto the cone. Contacts the globe along a single latitude line called the standard parallel. In general, distortion increases north and south of the standard parallel. For map areas that extend east-west Used to map middle latitudes - ANSWERSConic Projections Projects map data onto a flat surface. When that point is either the north or south poles, longitude lines radiate outward from the pole at their true angle. Latitude lines appear as a series of concentric circles. For map areas that have equal extent in all directions Used to map a polar region - ANSWERSAzimuthal/Planar Projections
Map distortion types - ANSWERSShape, Area, Distance, Direction Preserve shape but not area - ANSWERSConformal Preserve area but not shape - ANSWERSEqual Area Preserves distance from one or two points to every other point, does not preserve shape or area - ANSWERSEquidistant Preserves direction from one or two points to all other points, does not preserve shape or area - ANSWERSAzimuthal Preserves shortest route (distance and direction), does not preserve area - ANSWERSGnomonic No one distortion is preserved, all are innacurate - ANSWERSCompromise This tool actually allows you to change the coordinate system for a dataset, whether that coordinate system is geographic or projected. - ANSWERSProject To create a map that has minimal distortion but does not perfectly preserve any of the four spatial properties, which type of projection should be used? - ANSWERSCompromise Which three surfaces are developable surfaces for creating map projections? Choose three. Cone Cylinder Plane Sphere Ellipse - ANSWERSCone Cylinder Plane To create a map for measuring how much total land is part of a national park, which spatial property should be preserved? - ANSWERSArea Which two statements about projected coordinate systems are true? Choose two. -A projected coordinate system gives linear measurements on a planar surface from a predefined starting point. -A projected coordinate system's coordinates are based on latitude and longitude values. -A projected coordinate system's coordinates are measured in linear units, such as feet or meters.
Which Raster Function is appropriate when you work for a water planning and management department and have acquired a set of temporal multispectral images. You would like to monitor drought to mitigate impacts on agriculture in your region. - ANSWERSNDVI Which Raster Function is appropriate when you would like to map a mountainous terrain where you separate areas that are flat or have few features from the areas with steep slopes. - ANSWERSShaded Relief Which Raster Function is appropriate when you have obtained GeoEye-1 imagery with clouds in some areas. You want to exclude the areas with clouds. - ANSWERSClip Which Raster Function is appropriate when you have acquired a set of Landsat 8 images. You would like to adjust their brightness to a common illumination condition so that there is less variation between scenes. - ANSWERSApparent Reflectance A chain of raster functions with variables and with no datasets defined. Can be applied to rasters, mosaic datasets, and image services - ANSWERSRaster Function Template The process of identifying differences in the state of an object or a phenomenon by observing it at different times. - ANSWERSChange Detection T/F A function chain works in such a way that the output of one raster function becomes the input to the raster function applied on top of it in the chain. - ANSWERSTrue T/F The advantage of using functions is that they are calculated only on the portion of image shown on the screen at the resolution displayed. - ANSWERSTrue Which characteristics apply to raster functions? (Choose four.) -Can be chained together and applied on huge rasters and mosaics on the fly -Process only the pixels visible on screen -Can be accessed by multiple applications and users -Lightweight -Permanently apply processing to raster data -Do not create intermediate files - ANSWERS-Can be chained together and applied on huge rasters and mosaics on the fly -Process only the pixels visible on screen -Lightweight -Do not create intermediate files How can you access out-of-the-box raster functions in ArcGIS Pro? - ANSWERSOn the Imagery tab, open the Raster Functions pane. Which pane can be used to perform on-the-fly processing of raster datasets in ArcGIS Pro? - ANSWERSRaster Functions pane
Which questions would you need to consider before applying a specific raster data processing technique using functions? (Choose four.) -Do you need to build a generalized template that can be applied to any dataset or should it be data-specific? -Does the dataset adequately cover the study area? Are all the rasters at least 32 bit and multispectral in nature? -Do you need to extract a subset of the dataset available? -Should the output be written to a new dataset? -Which geoprocessing model would you use? - ANSWERS-Do you need to build a generalized template that can be applied to any dataset or should it be data-specific? -Does the dataset adequately cover the study area? -Do you need to extract a subset of the dataset available? -Should the output be written to a new dataset? You have created a change/no change image using functions in ArcGIS Pro. You need to share this image with a peer for future analysis. Which option would you use to manage the output of the image before sharing? - ANSWERSExport the raster dataset. You would like to apply the NDVI function on a Landsat 8 image to measure the amount of vegetation present in a given pixel. Which of the following should you do to calculate the index? - ANSWERSYou should change the Visible Band ID to 4 and the Infrared Band ID to 5. You have obtained GeoEye-1 imagery with clouds in some areas. You want to exclude the areas with clouds. Which function is appropriate to perform this exclusion? - ANSWERSClip T/F Raster function templates can be used to store and share function chains. - ANSWERSTrue T/F All outputs from the dynamic image processing are permanent rasters written to the default geodatabase. - ANSWERSFalse Which capability is an advantage of raster function chains? -Alter the original data -Integrate feature data -Do multiple or sequential on-the-fly processing -Create derivative or intermediate products - ANSWERS-Do multiple or sequential on- the-fly processing What is the result of an NDVI function? - ANSWERSA single-band dataset, mostly representing vegetation in grayscale You have acquired multispectral Landsat 8 images from two time periods for identifying land use and land cover change. You have reclassified the pixel values of the image
What are model parameters, and why is it important to set them? - ANSWERS-A type of parameter exposed in a geoprocessing model that appears in a model's dialog box and allows for input -Important if you are sharing your model with other users, allow others to run the model from a tool dialog box and add their own data or values as input If a colleague or another user sends you a model, what should you do first with the model? - ANSWERSYou should first validate the model because validation will verify the data inputs and other parameters. Suppose that you want to send your parcel owner notification model to a GIS analyst in another city. The analyst will run the model as is, but they want to add the city's own parcel data and buffer distances. How might you set up this capability in the model before you send it? - ANSWERS-Set the input data element as a model parameter. With the buffer distance, you would first need to create a variable from the distance parameter and then set it as a model parameter. If you set an application-level environment setting, and then you set a model-level setting for the same environment, which environment setting would override the other? - ANSWERSThe model-level setting would override the application-level setting in the hierarchy. What does the shadow under a model element mean? - ANSWERSThe element has already been run. T/F Assume that you have a model-level environment setting applied to your model. If you then set a model-process environment on one of the processes, the model-level environment would override the model-process environment setting. - ANSWERSFalse T/F Model parameters can only be set before you share a model with someone and cannot be set by the person with whom you are sharing the model. - ANSWERSFalse What is the first step in the model planning process and what is the reason for that step? - ANSWERSDetermine your scenario and goal because they will drive the data to be used in the model. What is the difference between tool and model parameters? - ANSWERSTool parameters determine inputs, outputs, and other values for a tool, whereas model parameters make models dynamic when run from the tool dialog box and also allow for user input. Suppose that you set the application-level environment setting for the current workspace to store all your data in the same geodatabase. However, you want the outputs for one of the models to be stored in another geodatabase. What is the most efficient way to do it? - ANSWERSSet a model-level environment setting for the workspace because it will override the application-level environment setting.
If an application-level environment setting is applied to a model, how might you store the output of a Dissolve tool into another geodatabase? - ANSWERSWithin the Dissolve tool, set a model-process-level environment setting to the new geodatabase. You have received a model from another user and try to run it from its tool dialog box, but it displays a message that the tool has no parameters. How would you provide your own input data from the tool dialog box? - ANSWERSRight-click each data element that you want as a parameter and set it as a model parameter. A set of preconfigured steps that can be used to complete a workflow - ANSWERSTask Three reasons to use tasks - ANSWERS-Interactive Tutorial -Implement a best practice workflow -Improve the efficiency of a workflow Three ways to access a task in ArcGIS Pro - ANSWERS-Open a task item via the Catalog Pane -> Tasks -Import a task file (.esriTasks) -Create a task item Four categories the properties of tasks fall into - ANSWERS-General -Actions -Views -Contents Interface that is used to create tasks - ANSWERSTask Designer Pane Two ways to create a task in the Task Designer - ANSWERS-Record Actions -Manual Creation -Can contain task groups or individual tasks and is used as a container for a workflow -Shown at the top of the Tasks Pane -Opened through the Catalog Pane - ANSWERSTask Item -Can control what layers and views a user will see
- It can control how a user interacts with different layers by setting their visibility, selectability, and labeling -It can also contain embedded interfaces and tools so that users spend less time trying to find specific commands in the interface - ANSWERSTask Steps Used to organize tasks within a workflow - ANSWERSTask Group -In the task group and task versions this is where the task author creates a name and a description for the component. -Where the task author can set up the step behavior - ANSWERSGeneral Tab
Where can you find a list of errors after you import a task file into a project? - ANSWERSThe messages pane Which of the following options are ways that you can share a task? (Choose two.) Export as an .esriTasks file. Export as a .task file. Create a task package. Create a project package. Create a map package. - ANSWERSExport as an .esriTasks file. Create a project package. T/F Using the Record functionality is a recommended best practice for setting the tool or command for a task step. - ANSWERSTrue T/F A task file contains all the tasks and task groups in a task item. - ANSWERSTrue When is creating a palette step an appropriate choice? - ANSWERSWhen there is a process that uses more than one tool that will be performed several times During a task step, the user must provide some input to run a geoprocessing tool. After the tool runs, the user does not need to do anything else before continuing to the next step of the task. What step behavior is most appropriate for this task step? - ANSWERSAuto Proceed There is a task step where a command is run at the beginning of the step, and then the user must complete an action before continuing to the next step. Which step behavior would be the most appropriate choice? - ANSWERSAuto Run How can you make sure that the features that are selected at the end of one step are still selected at the beginning of the next step? - ANSWERSSave the selected features to a variable at the end of the first step, and then select the variable at the beginning of the second step. Who can create an ArcGIS Pro task? - ANSWERSAny ArcGIS Pro user -Database or file structure used primarily to store, query, and manipulate spatial data -The native data storage format for ArcGIS - ANSWERSGeodatabase Advantages of using a Geodatabase - ANSWERS-Centralized Repository -Scalable Data Model -Increased Data Integrity -Supports Imagery Two types of Geodatabses - ANSWERS-File GDB -Enterprise GDB
-A collection of GIS datasets and is stored in a file system folder -Support multiple people editing different feature classes or tables at the same time - ANSWERSFile Geodatabase -Support versioning and replication -Require a database management system (DBMS), such as DB2, Informix, Microsoft SQL Server, Oracle, or PostgreSQL -Support unlimited users viewing and editing the GIS database at the same time - ANSWERSEnterprise Geodatabse Main purpose is to store spatially related feature classes in a common dataset for building a topology, a network dataset, a terrain dataset, or a geometric network - ANSWERSFeature Dataset T/F you can store non spatial datasets within a file geodatabase - ANSWERSTrue Collection of geographic features with the same geometry type, attributes, and spatial reference - ANSWERSFeature Class T/F The feature classes must have the same spatial reference as the feature dataset they are grouped in - ANSWERSTrue Which types of feature classes have both a Shape field and Shape_Length field? - ANSWERSPolygon and line feature classes Geodatabase Comprehensive Workflow - ANSWERS-Evaluate Data -Create Geodatabase -Organize Data -Add Data Which definition best describes a feature class? - ANSWERSA collection of features that have the same attribute fields, geometry type, and spatial reference T/F A small GIS company with five users is best served by a file geodatabase because of database size differences and editing capabilities. - ANSWERSTrue T/F The coordinate system is a property of the geodatabase, so all feature classes and feature datasets within the geodatabase must share the same coordinate system. - ANSWERSFalse Which statement is true regarding feature classes stored within a feature dataset? -They can have differing coordinate systems. -They can only be used within the file geodatabase. -They are not editable in ArcGIS Pro. -They must have the same coordinate system. - ANSWERS-They must have the same coordinate system.
-Categorize features in a feature class or table -Can set different default values for new features - ANSWERSSubtypes Enforce a defined set of acceptable attribute values as either a list of specific values or a range of numeric values - ANSWERSAttribute Domains T/F Updating a field property does not affect the source data in the geodatabase, this is a layer property and only affects what and how the layer displays in the map - ANSWERSTrue Useful way to provide descriptive field name, without compromising database rules with regard to length and the use of spaces and special characters in a field name - ANSWERSAlias T/F A subtype may only be defined for one field in a feature class or table, and the field must be a short or long integer field. - ANSWERSTrue Enforce data integrity by providing a list of valid values to choose from while populating attribute fields - ANSWERSDomain Used to automatically populate attribute configurations on a feature. They can be created as immediate or batch, depending on when the rule needs to be evaluated - ANSWERSCalculation Attribute Rules Calculation rules that are evaluated during edit operations based on certain triggering events - ANSWERSImmediate Calculation Rules Calculation rules that are evaluated at a user-specified time - ANSWERSBatch Calculation Rules Provides access to a wide breadth of Python libraries and tools for performing GIS tasks. Numerous libraries are available for analyzing patterns, enriching data, finding locations, summarizing data, discovering proximity, and analyzing elevation. - ANSWERSNotebooks 5 Steps of analysis workflow - ANSWERS-Data Wrangling -Cleaning -Engineering -Exploration -Visualization The process of transforming data from one format into another format so that it can be used to discover patterns. - ANSWERSData Wrangling
Work done on the data before it can be used such as correcting spelling errors, populating empty fields, identifying duplicate records, removing errors, and standardizing datasets - ANSWERSData Cleaning Focuses on data collection and building mechanisms for performing analysis of the cleaned data, such as building a model through model builder - ANSWERSData Engineering When the engineering mechanisms are used to perform analysis to identify the distribution of data values, the presence of outliers, and relationships between different data variables - ANSWERSData Exploration Includes exploring the analysis results and communicating the results, and allows you to discover other patterns or analyses to be performed. Could include charts, plots, graphs, maps, or even page layouts. - ANSWERSData Visualization T/F An ArcGIS notebook using the ArcPy API can only reference data located on the computer where the notebook is being run. - ANSWERSFalse Which two ArcGIS notebook output types can be used to share analysis results as a story? Choose two. -Tables -Maps -Video -Images - ANSWERS Which analysis workflow step is specific to performing GIS tasks? - ANSWERSExploration Which process is responsible for processing an ArcGIS notebook? - ANSWERSJupyter kernel T/F Before you can load data into your ArcGIS notebook using an ArcGIS Python API, you must first connect to the GIS where the data is located - ANSWERSTrue T/F When using an ArcGIS notebook to verify that the correct layer is being referenced from a list of layers, print the name of the layer to the cell's output. - ANSWERSTrue T/F The ArcGIS Notebooks interface tools in ArcGIS Pro include a tool for sharing the notebook. - ANSWERSFalse When using Run All to run all cells in an ArcGIS notebook, several Markdown cells output invalid string syntax errors. Which statement describes the reason for the unexpected errors? - ANSWERSCells that contain Markdown code do not have a code cell type.
