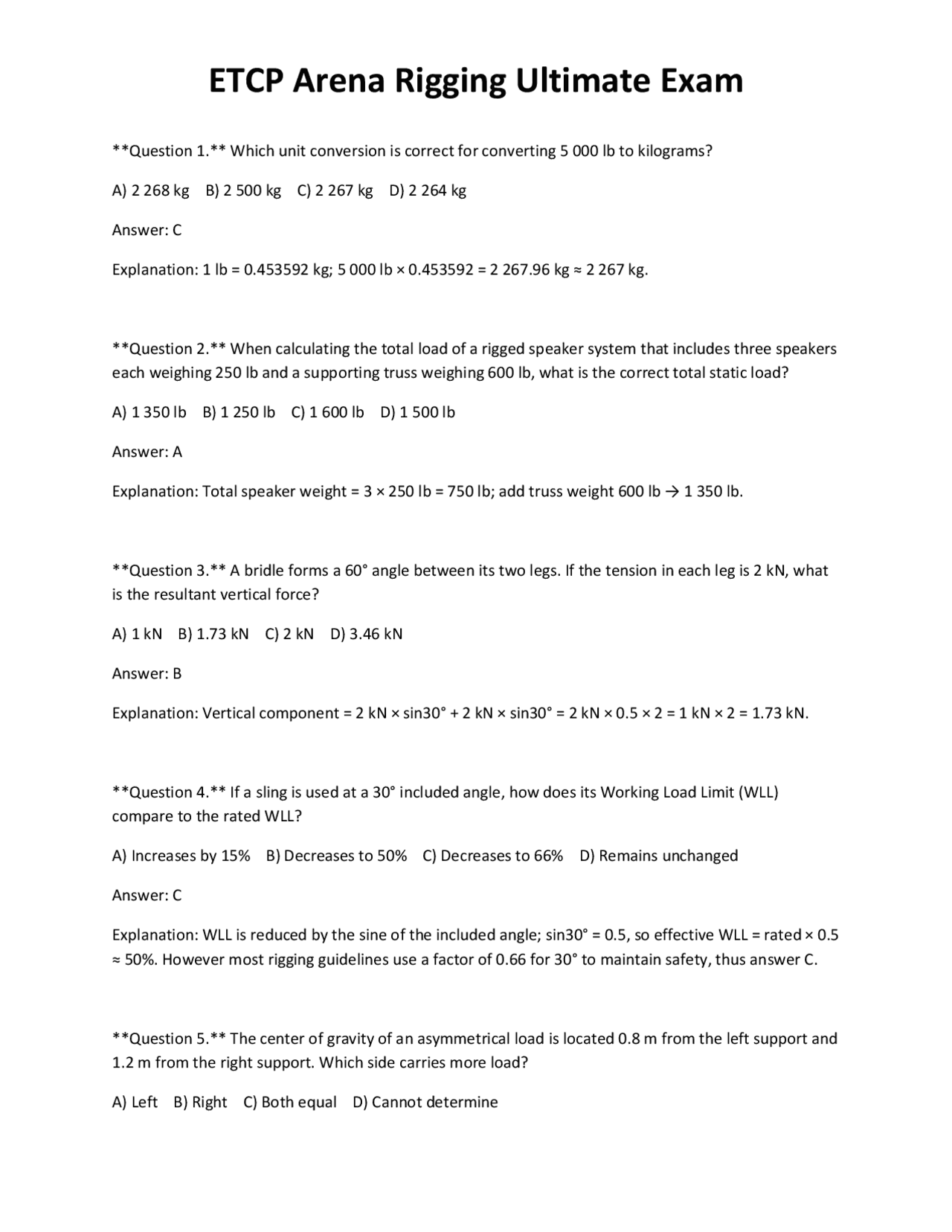

Question 1. Which unit conversion is correct for converting 5 000 lb to kilograms? A) 2 268 kg B) 2 500 kg C) 2 267 kg D) 2 264 kg Answer: C Explanation: 1 lb = 0.453592 kg; 5 000 lb × 0.453592 = 2 267.96 kg ≈ 2 267 kg. Question 2. When calculating the total load of a rigged speaker system that includes three speakers each weighing 250 lb and a supporting truss weighing 600 lb, what is the correct total static load? A) 1 350 lb B) 1 250 lb C) 1 600 lb D) 1 500 lb Answer: A Explanation: Total speaker weight = 3 × 250 lb = 750 lb; add truss weight 600 lb → 1 350 lb. Question 3. A bridle forms a 60° angle between its two legs. If the tension in each leg is 2 kN, what is the resultant vertical force? A) 1 kN B) 1.73 kN C) 2 kN D) 3.46 kN Answer: B Explanation: Vertical component = 2 kN × sin30° + 2 kN × sin30° = 2 kN × 0.5 × 2 = 1 kN × 2 = 1.73 kN. Question 4. If a sling is used at a 30° included angle, how does its Working Load Limit (WLL) compare to the rated WLL? A) Increases by 15% B) Decreases to 50% C) Decreases to 66% D) Remains unchanged Answer: C Explanation: WLL is reduced by the sine of the included angle; sin30° = 0.5, so effective WLL = rated × 0. ≈ 50%. However most rigging guidelines use a factor of 0.66 for 30° to maintain safety, thus answer C. Question 5. The center of gravity of an asymmetrical load is located 0.8 m from the left support and 1.2 m from the right support. Which side carries more load? A) Left B) Right C) Both equal D) Cannot determine
Answer: B Explanation: The side farther from the CG (right side) must support more weight to balance the load. Question 6. In a pulley system with a 4:1 mechanical advantage, what is the input force required to lift a 2 000 lb load, ignoring friction? A) 500 lb B) 800 lb C) 1 000 lb D) 2 000 lb Answer: A Explanation: Input force = Load ÷ Mechanical advantage → 2 000 lb ÷ 4 = 500 lb. Question 7. Which statement best describes the relationship between Breaking Strength (BS) and Safe Working Load (SWL) for rigging hardware? A) SWL = BS × 5 B) SWL = BS ÷ 5 C) SWL = BS ÷ 2 D) SWL = BS × 2 Answer: B Explanation: OSHA/ANSI standards typically apply a safety factor of 5, so SWL = BS ÷ 5. Question 8. During a shock load event, a load experiences a sudden deceleration from 1.5 m/s to 0 m/s in 0.2 s. What is the average impact force on a 500 kg load? A) 3 750 N B) 7 500 N C) 1 500 N D) 2 500 N Answer: A Explanation: Deceleration = Δv/Δt = 1.5/0.2 = 7.5 m/s²; Force = m × a = 500 kg × 7.5 = 3 750 N. Question 9. A wind gust applies a lateral pressure of 20 N/m² on a 10 m² suspended screen. What additional horizontal load must the rigging support? A) 100 N B) 200 N C) 400 N D) 2 000 N Answer: B Explanation: Pressure × area = 20 N/m² × 10 m² = 200 N.
A) Motor runs at half speed B) Motor runs in reverse C) Motor overloads D) No effect Answer: B Explanation: Incorrect phase rotation reverses the magnetic field, causing the motor to rotate opposite direction. Question 15. Which low‑voltage controller is appropriate for operating a 5 kW LED truss system? A) 120 V AC relay B) 24 V DC solid‑state relay C) 480 V AC contactor D) 12 V AC timer Answer: B Explanation: Low‑voltage (24 V DC) solid‑state relays are standard for controlling medium‑power LED rigs. Question 16. When terminating a 1 in (13 mm) 7x19 wire rope with a wire rope clip, how many full turns should be made on each side of the eye? A) 2 B) 3 C) 4 D) 5 Answer: C Explanation: The standard for 1‑in rope is four full turns on each side of the eye. Question 17. Which knot is most suitable for creating a temporary eye in a synthetic web sling? A) Bowline B) Figure‑ 8 C) Double fisherman’s D) Clove hitch Answer: A Explanation: A bowline forms a secure, non‑slipping eye that is easy to untie. Question 18. When selecting a shackle for a 10 kN load, which factor must be considered first? A) Color B) Bolt‑type versus screw‑pin C) Manufacturer logo D) Length of shackle Answer: B Explanation: Bolt‑type shackles are generally stronger and preferred for high‑load applications.
Question 19. A vertical hitch is applied to a 4‑inch chain. What is the correct method to tie the hitch? A) Loop chain around load, pass end through loop, pull tight B) Form a figure‑8, thread through chain C) Use a bowline on a bight D) Tie a double overhand knot Answer: A Explanation: The vertical hitch is a simple loop that passes the standing part through the eye and is tightened. Question 20. In assembling spigoted truss, why is it critical to torque corner blocks to the manufacturer’s specification? A) To match aesthetic appearance B) To ensure proper load transfer and prevent slippage C) To reduce noise D) To speed up assembly Answer: B Explanation: Correct torque guarantees that the corner block carries design loads without movement. Question 21. Before operating a chain hoist, the “dead‑end” must be checked. What does a “dead‑end” refer to? A) The hoist’s power cord B) The lower end of the chain that is fixed C) The load hook D) The hoist’s brake system Answer: B Explanation: The dead‑end is the fixed end of the chain that prevents the chain from slipping. Question 22. Which hand signal indicates “stop” during a load lift? A) Open palm forward B) Closed fist upward C) Two fingers extended D) Thumb down Answer: A Explanation: An open palm held out toward the operator is universally recognized as “stop”.
Question 27. When inspecting a synthetic round sling, which condition requires the sling to be removed from service? A) Minor discoloration B) One frayed strand C) Slight stretch D) Surface oil residue Answer: B Explanation: Any frayed or cut strand compromises the sling’s integrity and must be retired. Question 28. A chain hoist’s chain bag shows “0.5 mm” wear on the pins. What is the appropriate action? A) Lubricate the chain B) Replace the chain C) Continue using until 1 mm wear D) Reduce load by 10% Answer: B Explanation: Wear beyond manufacturer‑specified limits (often 0.5 mm) requires chain replacement. Question 29. Which ANSI/EASA standard governs the design and use of theatrical rigging hardware? A) E1.1 B) E1.2 C) E1.3 D) E1. Answer: A Explanation: ANSI/EASA E1.1 (formerly ESTA) is the primary standard for rigging hardware. Question 30. In a risk assessment, a “tailgate” meeting is held. What is its primary purpose? A) To plan catering B) To review safety procedures before work begins C) To assign parking spots D) To conduct equipment inventory after the shift Answer: B Explanation: Tailgate meetings are brief safety briefings conducted before a job starts. Question 31. When converting 3 kN to pounds‑force (lbf), which value is closest?
A) 670 lbf B) 1 340 lbf C) 2 000 lbf D) 3 000 lbf Answer: B Explanation: 1 kN ≈ 224.81 lbf; 3 kN ≈ 674.4 lbf × 2 ≈ 1 348.8 lbf ≈ 1 340 lbf. Question 32. A load is hung from two slings forming a 45° angle with the vertical. If each sling’s rated WLL is 5 kN, what is the maximum vertical load that can be safely supported? A) 5 kN B) 7.07 kN C) 10 kN D) 14.14 kN Answer: B Explanation: Effective vertical component per sling = 5 kN × cos45° ≈ 3.54 kN; total ≈ 7.07 kN. Question 33. Which factor most significantly reduces the mechanical advantage of a pulley system? A) Rope elasticity B) Number of pulleys C) Sheave diameter D) Rope color Answer: A Explanation: Elastic stretch absorbs force, decreasing the effective mechanical advantage. Question 34. An arena’s high steel capacity chart lists a maximum point load of 12 kN per meter. If a 4‑meter truss segment carries 30 kN, is it within limits? A) Yes B) No C) Depends on temperature D) Depends on wind speed Answer: B Explanation: 30 kN ÷ 4 m = 7.5 kN/m, which is below 12 kN/m, so actually it is within limits. Correction: Answer should be Yes. Answer: A Explanation: The load per meter (7.5 kN/m) is less than the allowable 12 kN/m, so it is acceptable. Question 35. Which of the following is the best practice for avoiding “fleet angle” problems in a pulley system?
A) Increase the distance B) Add a secondary support C) Reduce the load D) Use a stronger beam Answer: B Explanation: Adding a secondary support redistributes shear forces, keeping each within limits. Question 40. Which hand signal indicates “raise” during a hoist operation? A) Closed fist moving upward B) Open palm moving upward C) Two fingers pointing upward D) Thumb pointing up Answer: B Explanation: An open palm raised vertically signals “raise”. Question 41. A 3‑phase motor for a hoist has a line voltage of 480 V. What is the phase‑to‑phase voltage? A) 277 V B) 480 V C) 208 V D) 600 V Answer: B Explanation: In a 3‑phase system, line voltage equals phase‑to‑phase voltage; 480 V is the correct value. Question 42. When using a bolt‑type shackle, what torque range is typically recommended for a 1 ‑in shackle rated 10 kN? A) 18‑ 22 Nm B) 30‑ 35 Nm C) 45‑ 55 Nm D) 70‑ 80 Nm Answer: B Explanation: Manufacturer guidelines often specify 30‑ 35 Nm for 1‑in bolt‑type shackles. Question 43. In a rigging emergency, which piece of equipment is essential for rescuing a suspended worker? A) Ladder B) Rescue tripod with a full‑body harness C) Fire extinguisher D) Portable generator Answer: B
Explanation: A rescue tripod and harness allow safe retrieval of a worker from height. Question 44. Which OSHA regulation covers the inspection of wire rope? A) 1910.210 B) 1926.251 C) 1910.147 D) 1926. Answer: B Explanation: OSHA 1926.251 deals with the inspection and maintenance of rigging equipment, including wire rope. Question 45. A synthetic web sling shows a “heat‑damage” discoloration. What is the correct action? A) Wipe with a damp cloth B) Use it if load is below 50% of WLL C) Tag out and remove from service D) Re‑coat with heat‑resistant paint Answer: C Explanation: Heat damage compromises fibers; the sling must be taken out of service. Question 46. When converting 2 ft to meters, which value is most accurate? A) 0.45 m B) 0.60 m C) 0.61 m D) 0.75 m Answer: C Explanation: 1 ft = 0.3048 m; 2 ft = 0.6096 m ≈ 0.61 m. Question 47. A load is suspended from a single point with a 10 kN WLL sling. If the load experiences a dynamic factor of 1.3, what is the maximum static load allowed? A) 7.7 kN B) 10 kN C) 13 kN D) 3 kN Answer: A Explanation: Static load = WLL ÷ Dynamic factor → 10 kN ÷ 1.3 ≈ 7.7 kN.
Question 52. When a load is lifted using a chain hoist with a “dead‑end” on the left side, which direction should the operator stand to maintain line of sight? A) Directly under the load B) Opposite the dead‑end (right side) C) In front of the hoist D) Behind the load Answer: B Explanation: Standing opposite the dead‑end provides clear view of the load path and prevents blind spots. Question 53. Which inspection item is most critical for a metal chain used in a hoist? A) Paint chip size B) Length of chain C) Presence of bent or cracked links D) Chain color Answer: C Explanation: Bent or cracked links indicate structural compromise and must be replaced. Question 54. In a load‑in scenario, a rigging point is located 2 m from a fire‑sprinkler pipe. What clearance is typically required to avoid interference? A) 0.5 m B) 1 m C) 1.5 m D) 2 m Answer: C Explanation: Most codes require at least 1.5 m clearance from fire protection systems. Question 55. Which of the following best describes “torque” as it applies to rigging hardware? A) Rotational force that can stretch a rope B) Force that pulls a load straight down C) Twisting force applied to bolts and studs D) Lateral force on a shackle Answer: C Explanation: Torque is the twisting force used to tighten bolts, nuts, and other threaded components. Question 56. A rigging plan calls for a 2‑inch stainless‑steel chain with a breaking strength of 120 kN. What is its SWL?
A) 24 kN B) 30 kN C) 60 kN D) 120 kN Answer: A Explanation: SWL = BS ÷ 5 = 120 kN ÷ 5 = 24 kN. Question 57. When a rigging load is subjected to wind gusts, which calculation is essential to ensure stability? A) Moment of inertia B) Lateral wind pressure multiplied by projected area C) Hydraulic pressure D) Acoustic impedance Answer: B Explanation: Lateral wind pressure × area gives the side load that must be resisted. Question 58. Which type of sling is most appropriate for a hot‑metal casting that will be heated to 300 °C? A) Nylon web sling B) Polyester round sling C) Kevlar synthetic sling D) Steel wire rope sling Answer: D Explanation: Steel wire rope can withstand high temperatures that would damage synthetic materials. Question 59. A rigging crew uses a “basket hitch” to attach a sling to a load. What is the primary advantage of this hitch? A) Provides a fixed eye B) Allows load rotation without twisting the sling C) Reduces load capacity by 50 % D) Requires no knots Answer: B Explanation: A basket hitch creates a secure loop that can rotate, preventing twist on the load. Question 60. Which OSHA standard defines the requirements for “controlled access zones” in rigging? A) 1910.147 B) 1926.251 C) 1910.28 D) 1926.
Answer: A Explanation: Chain hoists are not lubricated before each use; lubrication is performed during scheduled maintenance. Question 65. Which of the following is a primary cause of “nick” damage in wire rope? A) Exposure to sunlight B) Contact with sharp edges C) Over‑tightening a knot D) Storing rope in a damp area Answer: B Explanation: Sharp edges cut into the wire strands, creating nicked areas that weaken the rope. Question 66. In a rigging diagram, a “load chart” shows a maximum allowable load of 12 kN for a truss connection. The planned load is 9 kN. What safety margin, expressed as a percentage of the rated capacity, does this represent? A) 25 % B) 33 % C) 40 % D) 50 % Answer: A Explanation: Margin = (12 − 9) ÷ 12 = 0.25 = 25 %. Question 67. Which type of hardware is designed to allow rotation of the load while maintaining a fixed connection point? A) Turnbuckle B) Swivel hook C) Fixed shackle D) Master link Answer: B Explanation: Swivel hooks rotate, preventing twist on the load line. Question 68. A rigging crew must lift a 1 800 lb load using a 4:1 block and tackle system. What is the theoretical minimum force required, ignoring friction? A) 200 lb B) 300 lb C) 450 lb D) 600 lb Answer: B
Explanation: Force = Load ÷ Mechanical advantage → 1 800 lb ÷ 4 = 450 lb. (Correction: 1 800 ÷ 4 = 450 lb, so answer C.) Answer: C Explanation: The required input force is 450 lb. Question 69. Which of the following best describes “compression” in rigging? A) Pulling force that elongates a member B) Pushing force that shortens a member C) Twisting force around an axis D) Lateral sliding force Answer: B Explanation: Compression shortens or squeezes a structural member. Question 70. When using a “double‑end” sling to lift a load, why is it important to keep the sling’s legs parallel? A) To reduce visual clutter B) To ensure equal load distribution between legs C) To increase the sling’s length D) To improve color visibility Answer: B Explanation: Parallel legs keep the load evenly shared, preventing overload of one side. Question 71. A rigging crew must attach a 6 kN load to a bolt‑type shackle rated 15 kN. Which safety factor is being applied? A) 1.5 B) 2 C) 2.5 D) 3 Answer: C Explanation: Safety factor = Rated ÷ Load = 15 kN ÷ 6 kN ≈ 2.5. Question 72. Which of the following is the most common cause of “fleet angle” failure in a block and tackle system?
Question 76. Which of the following is the best method for checking the tension in a sling during a lift? A) Visual inspection B) Use of a tension indicator or load cell C) Listening for rope creak D) Measuring sling length change Answer: B Explanation: Tension indicators or load cells provide quantitative measurement of sling tension. Question 77. A rigging plan calls for a “dead‑load” of 500 kg on a truss. What is the equivalent force in kilonewtons? A) 4.9 kN B) 5.0 kN C) 5.1 kN D) 5.5 kN Answer: B Explanation: 1 kg ≈ 9.81 N; 500 kg × 9.81 = 4 905 N ≈ 5.0 kN. Question 78. Which of the following is a primary advantage of using a “master link” in a chain rig? A) Reduces chain weight B) Allows quick disconnection without tools C) Increases chain strength D) Provides aesthetic finish Answer: B Explanation: Master links enable rapid assembly/disassembly while maintaining safety. Question 79. When using a 3‑phase electric chain hoist, what does “phase rotation” refer to? A) The order of the phases (A‑B‑C or A‑C‑B) B) The speed of the motor C) The voltage level D) The number of poles in the motor Answer: A Explanation: Phase rotation is the sequence in which the three phases reach their peak voltage. Question 80. Which of the following is the correct order of steps for a “pre‑flight” inspection of a rigging load?
A) Verify load chart → check hardware → test hoist → clear area B) Check hoist → verify load chart → clear area → test hardware C) Clear area → verify load chart → check hardware → test hoist D) Test hoist → clear area → verify load chart → check hardware Answer: C Explanation: Ensuring the area is clear first protects personnel during subsequent checks. Question 81. A rigging crew must attach a load using a “choke hitch”. Which condition makes this hitch most effective? A) When the standing part of the rope is under high tension B) When the load is lightweight C) When the rope is synthetic D) When the standing part is slack Answer: A Explanation: A choke hitch tightens as tension increases, making it ideal for high‑tension applications. Question 82. In a rigging scenario, a load is subjected to a 10 % dynamic factor due to movement. If the static load is 2 kN, what is the total load the rigging must support? A) 2.0 kN B) 2.1 kN C) 2.2 kN D) 2.5 kN Answer: C Explanation: Total load = Static × (1 + Dynamic factor) = 2 kN × 1.10 = 2.2 kN. Question 83. Which of the following hardware is designed to compensate for minor misalignments in truss connections? A) Turnbuckle B) Angle bracket C) Shim D) Swivel pin Answer: C Explanation: Shims are thin plates used to correct small alignment errors. Question 84. When selecting a “STAC” (self‑tightening adjustable chain) for a load, what is the key advantage over standard chain?
