Dept. of Systems & Computer Science, Howard Univ. Jiang Li

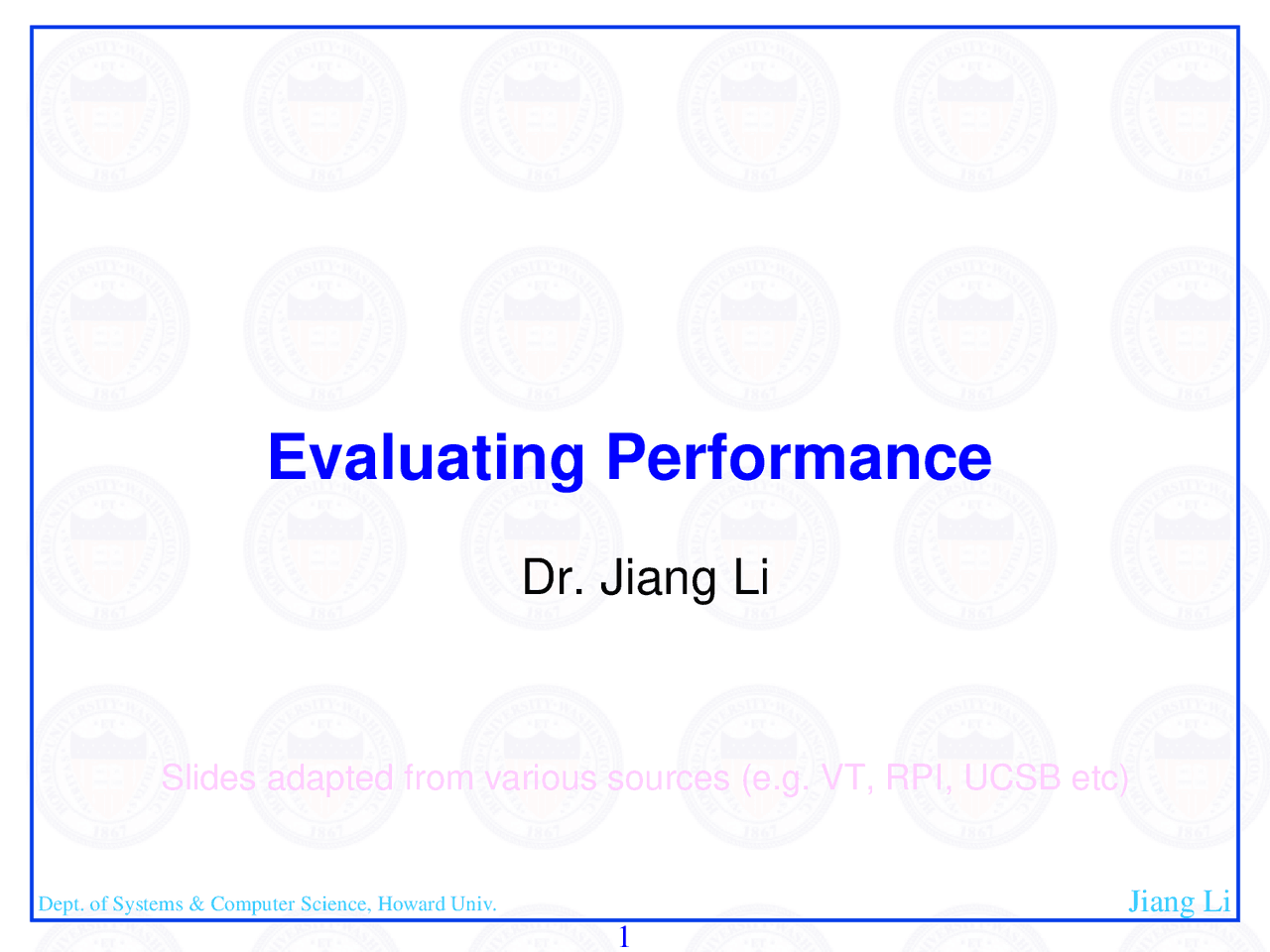

Evaluating Performance

Dr. Jiang Li

Slides adapted from various sources (e.g. VT, RPI, UCSB etc)

Dept. of Systems & Computer Science, Howard Univ. Jiang Li

Evaluating Performance

 Why do we study performance?  Evaluate during design  Evaluate before purchasing  Key to understanding underlying organizational motivation  How can we (meaningfully) compare two machines?  Performance, Cost, Value, etc  Main issue:  Need to understand what factors in the architecture contribute to overall system performance and the relative importance of these factors  Effects of ISA on performance  How will hardware change affect performance

Dept. of Systems & Computer Science, Howard Univ. Jiang Li

Throughput vs. Response Time

 Response Time:  a.k.a. execution time (e.g. seconds or clock ticks)  How long does the program take to execute?  How long do I have to wait for a result?  Throughput:  Rate of completion (e.g. results per second/tick)  What is the average execution time of the program?  Measure of total work done

 Upgrading to a newer processor will improve: Response time, and therefore throughput.  Adding processors to the system will improve Throughput, and maybe response time.

Dept. of Systems & Computer Science, Howard Univ. Jiang Li

Throughput vs. Response Time

 Decreasing response time almost always improves

throughput.

 In reality, changing either affects the other.

 We will be primarily concerned with response time.

Dept. of Systems & Computer Science, Howard Univ. Jiang Li

Example: Performance Calculation

 A particular multiprocessor server machine’s performance is 4 times better than a given uniprocessor desktop system. If the desktop system runs an application in 28 seconds, how long will it take on the server?

time (^) server = 28 / 4 = 7 seconds

time

28 seconds

Performance

Performance

desktop server

server = =

Dept. of Systems & Computer Science, Howard Univ. Jiang Li

Example: Relative Performance

 If a particular desktop runs a program in 60

seconds and a laptop runs the same program in 75

seconds, how much faster is the desktop than the

laptop?

Performance (^) desktop = 1/execution_time (^) desktop = 1/ Performance (^) laptop = 1/execution_time (^) laptop = 1/ Performance (^) desktop / Performance (^) laptop = (1/60)/(1/75) = 1. Or simply: execution_time (^) laptop / execution_time (^) desktop = 1.

So, the desktop is 1.25 times faster than the laptop

Dept. of Systems & Computer Science, Howard Univ. Jiang Li

Clock Cycles

 Clock Cycles are a direct measure of time  Measures how fast the computer can perform basic functions  Discrete time interval in the CPU

 Clock period is the time for one clock cycle (seconds)  Clock rate is the inverse of clock period (cycles/second) 5 nsec clock cycle => 200 MHz clock rate 500 psec clock cycle => 2 GHz clock rate 200 psec clock cycle => 5 GHz clock rate

Dept. of Systems & Computer Science, Howard Univ. Jiang Li

Execution Time Formula

 Relating cycles to seconds:

CPU_time = CPU_cycles * cycle_time or CPU_time = CPU_cycles / clock_rate

 So to improve performance we have two options

 Decrease number of cycles to execute a program  Increase the clock rate (decrease cycle time)  However, these are often at odds with each other

Dept. of Systems & Computer Science, Howard Univ. Jiang Li

Determining Clock Cycles

 So what determines the number of cycles required to execute an application?  One possibility: #Cycles = #Instructions (i.e. one instruction is executed at each cycle)

 However, this is NOT true because different instructions take different amounts of time

Program Inst 1 Inst 2 Inst 3 Inst 4 … Time Cycle 1 Cycle 2 Cycle 3 Cycle 4 …

Dept. of Systems & Computer Science, Howard Univ. Jiang Li

Determining Clock Cycles (cont’d)

 A more realistic picture of what’s happening…

 Floating point operations can take longer than integer  Multiplication takes longer than addition  Memory accesses can take many cycles to complete

Clock cycles = Instructions × Avg Cycles Per Instr

Program Inst 1 Inst 2 Inst 3 … Time Cycle 1 Cycle 2 Cycle 3 Cycle 4 …

Dept. of Systems & Computer Science, Howard Univ. Jiang Li

Effective CPI

 Calculating clock cycles

 IC (^) i is the number of total instructions of class i  CPI (^) i is the average CPI for instruction class i  n is the number of instruction classes  Accounts for the weight and CPI of each instruction type

 Effective CPI

 CPI = Clock cycles / Number of instructions

 Minimum CPI

 CPI with instruction mix of exclusively the shortest instruction

=

= ×

n

i 1

CPU Clock Cycles (CPIi ICi)

Dept. of Systems & Computer Science, Howard Univ. Jiang Li

Example: Calculating CPI

 Given the following CPIs for each instruction class and instruction mixes, which code sequence executes fewer instructions? Which is faster? Which has the lower CPI?

 Instructions: Seq 1: 2+1+2 = 5 ins Seq 2: 4+1+1 = 6 ins  Cycles: Seq 1: (21)+(12)+(23) = 10 cycles Seq 2: (41)+(12)+(13) = 9 cycles  CPI: Seq 1: 10/5 = 2. Seq 2: 9/6 = 1.

Class A B C CPI 1 2 3

Sequence A B C 1 2 1 2 2 4 1 1 Sequence 1 has fewer instructions

Sequence 2 is faster Sequence 2 has the lower CPI

Dept. of Systems & Computer Science, Howard Univ. Jiang Li

“THE” Performance Equation

 Separates the three key performance factors

 Instructions, CPI, Clock rate

 Can help evaluate design decisions

 Known effects on these terms can be translated into the overall effect on performance

 How can the values of these terms be found?

 Time: by running the program  Clock rate: published by computer manufacturer  Instructions and CPI:  Hardware performance counters – CPU logic to record events  Simulation of the system

Dept. of Systems & Computer Science, Howard Univ. Jiang Li

Performance Equation Example 1

 Suppose we have two implementations of the same ISA. Computer A has a cycle time of 250 ps and a CPI (cycles per instruction) of 2.0 for some program, and computer B has a cycle time of 500 ps and a CPI of 1.2 for the same program. Which computer is faster for this program?  Note: A constant number of instructions will be executed: I

clock_cycles (^) A = I × 2.0, timeA = I × 2.0 × 250 ps = 500 × I ps clock_cycles (^) B = I × 1.2, timeB = I × 1.2 × 500 ps = 600 × I ps

Computer A is 1.2 times faster

1. 2 500 Ips

600 Ips Time

Time Performance

Performance A

B B

A (^) = ×

× = =
