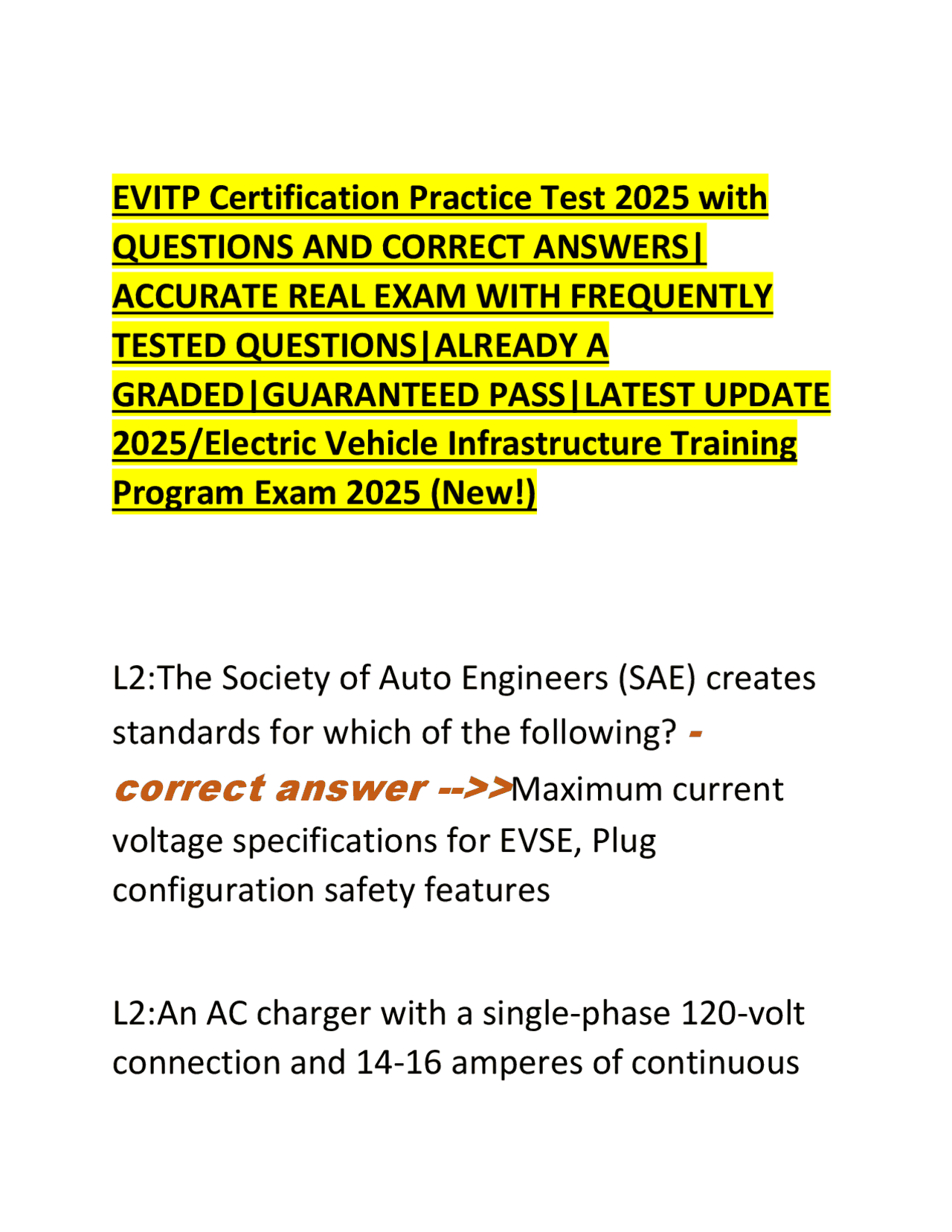

EVITP Certification Practice Test 2025 with QUESTIONS AND CORRECT ANSWERS| ACCURATE REAL EXAM WITH FREQUENTLY TESTED QUESTIONS|ALREADY A GRADED|GUARANTEED PASS|LATEST UPDATE 2025/Electric Vehicle Infrastructure Training Program Exam 2025 (New!)
L2:The Society of Auto Engineers (SAE) creates
standards for which of the following? -
correct answer -->>Maximum current
voltage specifications for EVSE, Plug configuration safety features
L2:An AC charger with a single-phase 120-volt connection and 14-16 amperes of continuous
current output is classified as a ..?... charger. -
correct answer -->>Level 1
L2:An AC charger with a single-phase 208-volt or 240-volt connection and a continuous current output of up to 80 amperes is classified
as a ....?.. charger. -correct answer --
>>Level 2
L2: The purpose of the J1772 connector pins is
to provide ...?... -correct answer -->>a
charging interface that is safe for consumers to use, a means to signal the EVSE to stop charging based on the pin contact state, signals to the EVSE that the connector is properly seated on the vehicle
L2:The State of Charge of the EV battery is ...?...
-correct answer -->>a determining factor
in calculating the time necessary to fully charge an EV
L2:Which of the following is the Japanese Dx
quick charging standard? -correct answer
-->>ChAdeMO
L2: The ChAdeMO V1.0 Standard has charging
power up to ...?... at ..?...., up to ...?.. -
correct answer -->>62.5kW /500 VDC/
125 A
L2: Wireless EV charging utilizes the principles
of ...?... -correct answer -->>Induction
L2: Which of the following is connected to the change of a wireless EV charger via hardwiring?
-correct answer -->>Power source coil
L2: What are the advantages of wireless
charging? -correct answer -->>It has no
exposed electrical contact points and wireless charging has better aesthetic quality
L2: Wireless charging is more expensive than
coupled EVSE. -correct answer -->>True
L2: What is the SAE standard for wireless
charging? -correct answer -->>J
recommended practice
L2: EV networks generate revenue with which
of the following? -correct answer -->>call
to pay, membership fees, station usage fees
L3: The national Electrical Code (NEC)? -
correct answer -->>Provides minimum
installation requirements
L3: Installations covered by the NEC include
which of the following? -correct answer --
>>industrial substations, installations on public
and private premises, recreational vehicles, floating buildings and mobile homes
L3: NEC chapters 1-4 apply to ...?.. -correct
answer -->>All installations except as
modified by CH's 5, 6, and 7
L3: NEC chapter 8 covers ...?... systems and ..?.. subject to chapters 1-7 unless specifically
referenced. -correct answer --
>>communications/ is not
Chapter 9 of the NEC contains which of the
following? -correct answer -->>Tables
that are applicable and enforceable when referenced elsewhere in the code
Definitions that are specific to a particular article are located in which of the following
sections? -correct answer -->>xxx.
The state of charge is the available capacity of
the battery, expressed as a percentage. -
correct answer -->>True
Which of the following is not an alternative to
fossil fuels? -correct answer -->>Gasoline
The EV industry is comprised of..? -correct
answer -->>Auto manufacturers, consumer
advocacy groups, EV charging equipment manufacturers, research and standards organizations
The first electric vehicle can be traced back
to...? -correct answer -->> 1832
Which of the following illustrates why electric vehicles were so popular in the early days of
automobiles? -correct answer -->>They
were mechanically complicated, they were quiet
What factors limited the popularity of EV's as internal combustion engine vehicles came to
the market in the early 1900s? -correct
answer -->>Charing times, range, speed
What was the first mass- produced hybrid
electric vehicle? -correct answer --
>>Toyota Prius
What improvements in technology have
increased interest in EV's? -correct
generator to extend the battery range? -
correct answer -->>PHEV
A battery electric vehicle requires external charging but does not rely on an internal
combustion generator for extended range -
correct answer -->>True
EVs can be equipped with a(n)? motor. -
correct answer -->>induction and
permanent magnet
Regenerative braking is best described by which
of the following? -correct answer -->>An
energy recovery system
Which of the following describes an EV drivetrain architecture in which power can be transmitted to the drive from two sources at
the same time? -correct answer --
>>Parallel hybrid drive
What types of commercial/industrial vehicles are currently available in an electrified version?
-correct answer -->>cargo and material
handling equipment, delivery vans and buses, semi trailers trucks
Forklifts, yard tractors and drayage trucks are
all examples of? -correct answer --
>>Cargo handling equipment
Charging methods for battery electric buses
include which of the following? -correct
L2:EVSE provides DC power to the electric
vehicle charging port. -correct answer --
>>False
L2:DC charging equipment provides DC directly
to ...?... in an EV. -correct answer --
>>Battery management System
