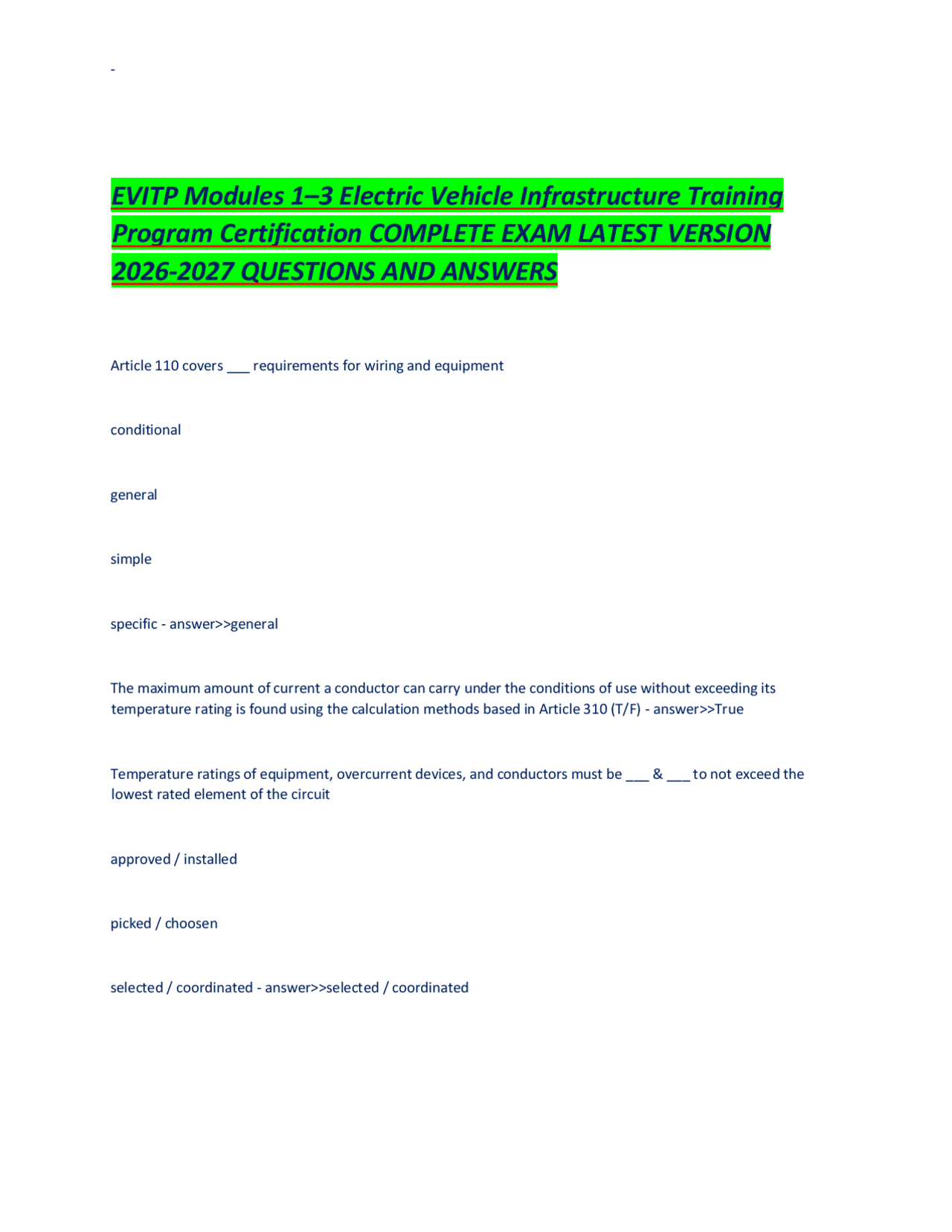

EVITP Modules 1–3 Electric Vehicle Infrastructure Training
Program Certification COMPLETE EXAM LATEST VERSION
2026-2027 QUESTIONS AND ANSWERS
Article 110 covers ___ requirements for wiring and equipment conditional general simple specific - answer>>general The maximum amount of current a conductor can carry under the conditions of use without exceeding itstemperature rating is found using the calculation methods based in Article 310 (T/F) - answer>>True
Temperature ratings of equipment, overcurrent devices, and conductors must be ___ & ___ to not exceed thelowest rated element of the circuit
approved / installed picked / choosen selected / coordinated - answer>>selected / coordinated
Requirements for branch circuits and AFCI/GFCI protection of branch circuits are found in ___? A 200 A 210 A 230 A 240 - answer>>Article 210 The ___ load listed for occupancies is based on table 220. lighting receptacle service transformer - answer>>lighting What calculations are covered in article 220? residential, commercial, industrial service, & feeder taps, motors, transformer OCPD utility distribution network - answer>>- residential
- commercial
- industrial service
- feeder
Overcurrent protection for EVSE is covered in? Section 625. Section 625. Section 625. Section 625.41 - answer>>625. EVSE output cable is permitted to be made from Type ___ cable and is generally permitted to have a maximumlength of? EVJT / 25' MI / 25' SJO / 20' SO / 20' - answer>>EVJT / 25' EVSE must be equipped with an ___ that prevents the charging connector from being accidentally energizedbefore it is connected to the vehicle
cap cover guard interlock - answer>>interlock
EVSE equipment shall have means to ___ the charging cable if strain is placed upon it that could rupture the cableor connector, leading to exposure of live parts
de - couple de - energize release retract - answer>>de-energize EVSE shall have an ___ system for shock protection for personnel approved labeled listed marked - answer>>listed When an EV and EVSE is used to facilitate power supply as an interactive power production source, which articlemust be applied?
A 700 A 702 A 704 A 705 - answer>>Article 705
30 A40 A
50 A - answer>>30 amps
Which of the following drive the market for EV'S cheaper gasoline prices decreased cost of EV's increased interest in alternatives to gas powered vehicles B & C - answer>>Decreased cost of electric vehicles increased interest in alternatives for gas vehicles A partial zero emissions vehicle (PZEV) is defined as? A gas engine vehicle that has zero evaporative emissions from its fuel system a plug in electric vehicle a vehicle with a hybrid gas electric drive train an electric vehicle that only has provisions for wireless charging - answer>>A gas engine vehicle that has zeroevaporative emissions from its fuel system What is the state of charge (SOC)? - answer>>The available capacity of the battery, expressed as a percentage a determining factor in calculation the time necessary to fully charge an EV
What describes an advantage that hybrid EV's have over traditional gas powered vehicles? Hybrid vehicles are more expensive than gas-powered vehicles Hybrid vehicles have superior efficiency compared to gas powered vehicles - answer>>Hybrid vehicles havesuperior efficiency compared to gas powered vehicles
What is not an alternative to fossil fuels? - answer>>Gasoline The EV industry is comprised of? Auto manufacturers Consumer advocacy groups EV charging equipment manufacturers Research and standards organizations all of the above - answer>>- Auto manufacturers
- Consumer advocacy groups
- EV charging equipment manufacturersResearch and standards organizations
The first EV can be traced back to? - answer>> Which of the following illustrates why electric vehicles were so popular in the early days of automobiles? they were clean to operate
- Lighter batteries What best describes early EV's? loud & difficult to steer oily, noisy, & hard to start quiet, easy to start, & mechanically simple very unreliable - answer>>- Quiet
- Easy to start
- Mechanically simple What is NOT an EV? BEV HEV ICE PHEV - answer>>ICE - internal combustion engine What category of EV has been available to consumers the longest? BEV HEV
PHEV - answer>>HEV Which of the following describes a plug-in electric vehicle that runs on batteries until nearly depleted, thenswitches over to an ICE generator to extend the battery range?
BEV PHEV All electric vehicles have this capability No electric vehicle on the market has this capability - answer>>PHEV BEV - answer>>A battery electric vehicle requires external charging but does not rely on an internal combustiongenerator for extended range
fully electric & has no other source of power other then the battery packs lower operating & maintenance costs than ICE EVs can be equipped with an ___ motor induction internal combustion permanent magnet either A or C - answer>>- Induction
Cargo & material handling equipment Delivery vans & buses Semi trailer trucks all of the above - answer>>- Cargo & material handling equipment
- Delivery vans & buses
- Semi trailer trucks Forklifts, yard tractors, and drayage trucks are all examples of? - answer>>Cargo handling equipment What are the charging methods for battery electric buses? Above / below bus wireless charging Plug in charging Wireless power transfer all of the above - answer>>- Above / below bus wireless charging
- Plug in charging
- Wireless power transfer Fleet vehicle battery capacity has reached upward of ___ for heavy duty vehicles 500 wh 10 kWh
550 kWh - answer>>550 kWh Inverter - answer>>Converts DC from the battery to AC 3 phase for the induction motorRectifier - answer>>Converts AC from external source (grid) to DC for the battery
DC to DC converter - answer>>increases or decreases battery voltage depending on requirements Energy Management System (EMS) - answer>>Controls the flow of energy from multiple sources Series / parallel drive - answer>>Can act as either a series or a parallel drive EV charging is defined as refilling brake fluid in an EV removing the batteries from an EV & placing them inside charging equipment replacing batteries in an EV supplying power (kW) to an EV battery - answer>>Supplying power (kW) to an EV battery The first EV chargers were external and supplied DC current directly to the vehicle's batteries (T/F) -answer>>True
Name of an early EV charger - answer>>General Electric arc rectifier EV networks utilize memberships that are? - answer>>fee based OR pas as you go Which of the following is not true of EV charging networks?
Electric vehicle supply equipment (EVSE) provides what safety features? a continuously energized output GFCI protection hardware fault detection B & C - answer>>- GFCI Protection
- Hardware fault protection DC charging equipment provides DC directly to ___ in an EV battery management system battery monitoring devices charge multiplier systems current management systems - answer>>battery management system The Society of Auto Engineers (SAE) creates standards for which of the following? maximum current & voltage specifications for EVSE plug configuration safety features all of the above - answer>>- Maximum current & voltage specifications- Plug configuration
- Safety features An AC charger with a single-phase 120-volt connection and 14-16 amperes of continuous current output isclassified as a ___ charger - answer>>AC Level 1
An AC charger with a single-phase 208-volt or 240-volt connection and a continuous current output of up to 80amperes is classified as a ___ charger? - answer>>AC Level 2
The purpose of the J1772 connector pins is to provide ___? a charging interface that is safe for consumers to use a means to signal the EVSE to stop charging based on the pin contact state signals to EVSE that the connector is properly seated on the vehicle all of the above - answer>>- A charging interface that is safe for consumers to use- A means to signal the EVSE to stop charging based on the pin contact state
- Signals to the EVSE that the connector is properly seated on the vehicle Which of the following is true about the J1772 standard control pilot terminal pin's function? it changes the state of the EVSE according to the voltage present it defines the state of the EVSE it uses a +12V to -12V square wave signal all of the above - answer>>- It changes the state of the EVSE according to the voltage present
- It defines the state of the EVSEIts uses a +12V to -12V square wave signal
1 MW / 2,200 VDC / 800 A - answer>>62.5 kW / 500 VDC / 125 A Wireless EV charging utilizes the principals of? induction parallel resonant circuits series resonant circuits all of the above - answer>>Induction Which of the following is connected to the charge controller of a wireless EV charger via hardwiring? power capture resonator power control unit power multiplier coil power source coil - answer>>Power source coil What are the advantages of wireless changing? compatibility standards are still under development it has no exposed electrical contact points wireless charging has better aesthetic quality
B & C - answer>>- It has no exposed electrical contact points- Wireless charging has better aesthetic quality
Wireless charging is more expensive than coupled EVSE (T/F) - answer>>True What is the SAE standard for wireless charging? CHAdeMO J2954 recommended practice SAE J1772 - answer>>J2954 recommended practice The SAE standard for wireless charging has specifications that include which of the following Magnetic triangulation for vehicle alignment over the power source coil Means to allow for payment without physical interaction up to 11 kW charging capacity all of the above - answer>>- Magnetic triangulation for vehicle alignment over the power source coil
- Means to allow payment without physical interaction
- Up to 11 kW charging capacity EV networks utilize memberships that are? fee based, pay as you go rare & exclusive
