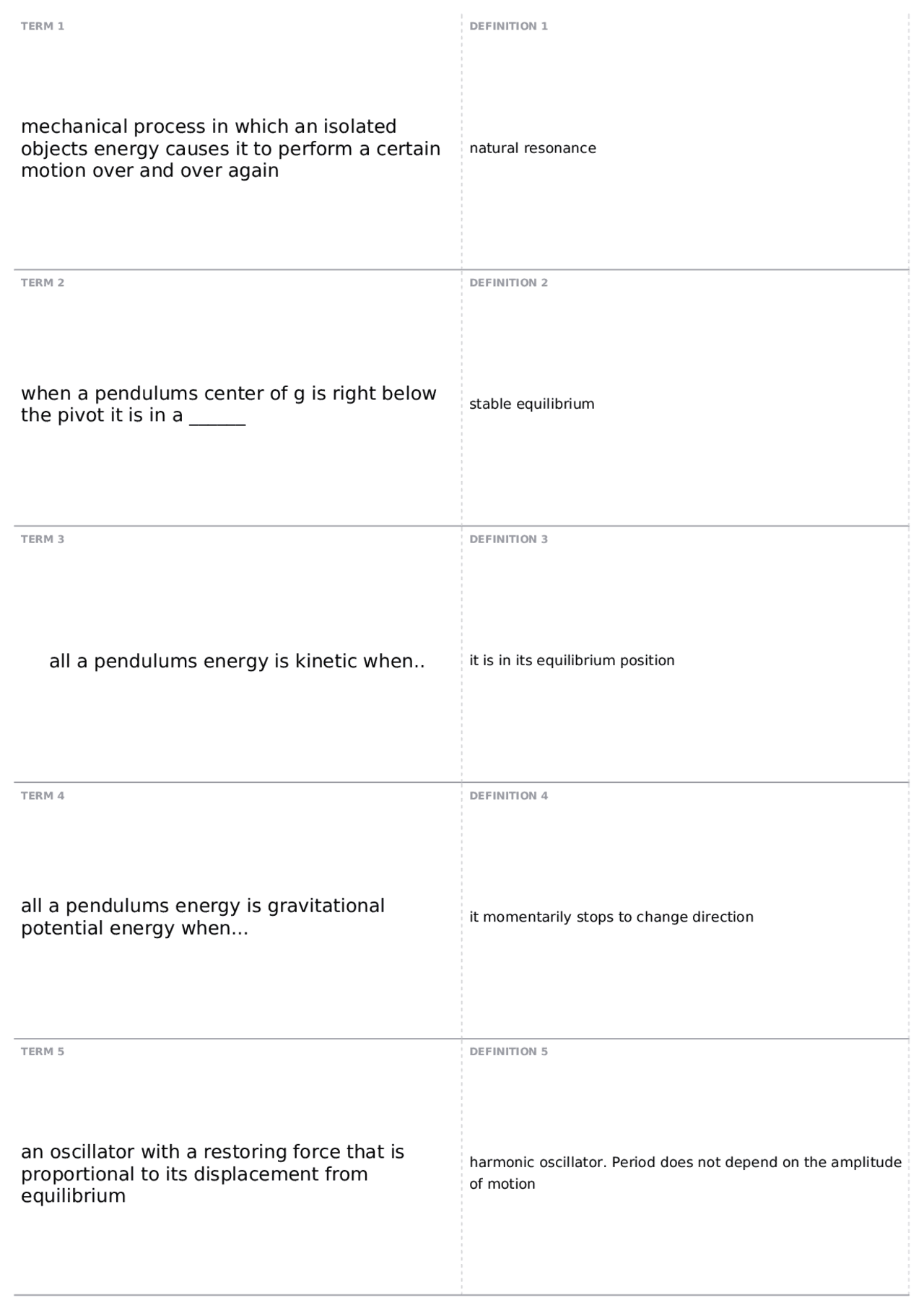

mechanical process in which an isolated objects energy causes it to perform a certain motion over and over again natural resonance TERM 2 when a pendulums center of g is right below the pivot it is in a ______ DEFINITION 2 stable equilibrium TERM 3 all a pendulums energy is kinetic when.. DEFINITION 3 it is in its equilibrium position TERM 4 all a pendulums energy is gravitational potential energy when... DEFINITION 4 it momentarily stops to change direction TERM 5 an oscillator with a restoring force that is proportional to its displacement from equilibrium DEFINITION 5 harmonic oscillator. Period does not depend on the amplitude of motion
The period of a harmonic oscillator is independent of... amplitude (for a small amplitude) TERM 7 a pendulums furthest displacement from equilibrium DEFINITION 7 amplitude TERM 8 A pendulums period depends on.. DEFINITION 8 the length of the pendulum (making it shorter you stiffen its restoring force and shorten the period), and on gravity (increasing gravity, increases its weight and stiffens the restoring force, reducing the period) not on mass because increasing a pendulums mass also stiffens the restoring force TERM 9 if you displace a pendulum too far it becomes a(n)... DEFINITION 9 anharmonic oscillator = an oscillator with a restoring force NOT proportional to its displacement, and its period begins to depend on amplitude TERM 10 _______ exerts a torque on the balance ring of a balance ring clock DEFINITION 10 coil spring (provides restoring force for balance ring)
pitch is the _____ of sound frequency TERM 17 the frequency ratio between two different tones DEFINITION 17 intervols TERM 18 notes separated by one octane.. DEFINITION 18 are separated by a factor of 2 frequency's TERM 19 The slowest and often broadest vibration that an extended object can support DEFINITION 19 fundamental vibrational mode (first harmonic) TERM 20 node and antinode of a violin string DEFINITION 20 node = end of string, don't vibrate antinode = middle of sting, displaced the most
The more massive a violin string the _______ it vibrates slower TERM 22 Stiffening the restoring force of a harmonic oscillator _______ its frequency (pitch) DEFINITION 22 increases TERM 23 shortening the string of a violin... DEFINITION 23 stiffens the restoring force, reduces its mass, and increases its pitch (frequency) TERM 24 the frequency of a strings fundamental vibrational mode ______ with increasing tension DEFINITION 24 increases TERM 25 the string vibrates as a chain of shorter stings acting in alternate directions. ex.? DEFINITION 25 high-order vibrational modes ex: a string can vibrate as 2 half strings acting in opposite directions, the pitch is also exactly twice the whole strings (fundamental vibrational mode)
when swinging a jumprope, to make it swing as two 1/2 half ropes how must it be swung? at its second harmonic, so its twice as fast TERM 32 The gradual transfer of energy to or from a natural resonance caused by a small force timed to coincide with a particular part o DEFINITION 32 resonant energy transfer TERM 33 bowing a string near its middle ______ the strings curvature, and ______ its harmonic vibrations DEFINITION 33 reduces, weakening TERM 34 the stiffening of air in a column of an organ pipe or reducing the airs mass will both.. DEFINITION 34 quicken its vibration, increase its pitch TERM 35 in an organ, air in a shorter pipe vibrates _____ than air in a longer pipe DEFINITION 35 faster (higher pitch)
in general an organs vibrational frequency is ______ related to its length inversely TERM 37 A wave in which the underlying oscillation is along the pipe and therefore along the wave itself DEFINITION 37 longitudinal wave (ex: sound wave) TERM 38 Why does adding water to a bottle and blowing across its top raise the pitch of the tone than before you added more water? DEFINITION 38 adding water shortens the column of moving air inside the bottle, thus increasing its frequency (pitch) TERM 39 how is a drums pitch related to its fundamental pitch? DEFINITION 39 its not! TERM 40 The amplitude of each mode on a drum depends on.. DEFINITION 40 how hard you hit the drum and where
an objects natural vibration or resonant frequency is determined by its mass size and shape stiffness (elastic nature) and composition TERM 47 the frequency of vibration (pitch) is proportional to _____ and inversely proportional to... DEFINITION 47 tension length and density TERM 48 a closed pipe vibrates as _____ an open pipe DEFINITION 48 half (frequency is half that of an open pipe) TERM 49 electric charge is a ______ physical quantity and its SI unit is DEFINITION 49 conserved, coulomb TERM 50 the force experienced by a charged particle in the presence of other charged particles DEFINITION 50 electromagnetic force
something that is statically neutral has a net charge of zero TERM 52 a drier gives a sock an electric charge by.. DEFINITION 52 adding or removing electrons/protons TERM 53 if you unwrap a gift that is statically neutral and you find that the wrapper how has a - charge, what kind of charge does the g DEFINITION 53 a + charge that is = to the - charge of the wrapper TERM 54 forces between charges _____ with distance DEFINITION 54 weaken TERM 55 electronic polarization = DEFINITION 55 the object remains neutral overall, but has a + charged region nearest to a - charged region of the object that its attracting and a - charged region furthest from it. There is an overall net electrostatic attraction
paper in a printing press can accumulate static charge, how does this happen? contact between dissimilar surfaces produces a charge on the paper, which carries that charge with it to isolated parts of the press TERM 62 basic solution to static charge is ____ DEFINITION 62 mobility TERM 63 since charge movement eliminates static electricity, ______ cause static electricity DEFINITION 63 insulators TERM 64 moist air _____ static electricity b/c.. DEFINITION 64 decreases, water is a slight conductor TERM 65 a normally insulating material that becomes a conductor while exposed to light DEFINITION 65 photoconductor
exposing a photoconductor to light leaves the regions where light when though with a ______ charge neutral TERM 67 a gentle sustained spark that forms in the air near a needle or fine wire thats maintained a high voltage DEFINITION 67 corona discharge TERM 68 an attribute of space that exerts an electrostatic force on a charge DEFINITION 68 electric field created by all surrounding electric charges TERM 69 a particle carrying a - charge will experience a force _____ of the electric field DEFINITION 69 opposite TERM 70 when the electric field between objects is nonuniform, the electric field is.. DEFINITION 70 extremely strong becomes nonuniform when objects differ significantly in size
charges flow through the smallest ______ possible resistance TERM 77 where do the charges from a short circuit go? DEFINITION 77 dangerously into the battery and metal paths making them hot TERM 78 the amount of charge passing a particular point in the circuit per unit of time DEFINITION 78 current SI unit = Ampere TERM 79 since current is defined as the flow of positive charges, it points in the direction... DEFINITION 79 opposite the flow of - charges TERM 80 a battery increases a charges ________ by pushing it up a voltage gradient DEFINITION 80 electrostatic potential energy
batteries use chemical forces to transfer charges from its ____ terminal to its ___ terminal
- to its + TERM 82 a bulb of a flashlight releases electrostatic potential energy by letting charges.. DEFINITION 82 slide down another voltage gradient TERM 83 charges in the bulb of a flashlight are only in equilibrium when the flashlight is.. DEFINITION 83 off TERM 84 a flashlights filament has a large ________ and impedes the flow of electric current DEFINITION 84 electrical resistance TERM 85 voltage rises as it flows through the ______ in a flashlight and decreases as it flows through the _____ DEFINITION 85 battery, filament
The force experienced by a magnetic pole in the presence of other magnetic poles magnetostatic force TERM 92 what is the net magnetic pole on a magnetic dipole? DEFINITION 92 zero (always) TERM 93 distribution of magnetic poles that is nonuniform so that an object has a region of N pole and a region of S pole DEFINITION 93 magnetic polarization TERM 94 a material composed of magnetic atoms that all have the same magnetic orientation within a magnetic domain DEFINITION 94 ferromagnetic TERM 95 regions of uniform alignment within a magnetic material DEFINITION 95 magnetic domain
magnetic Domains that attract a button magnet _____ while those that repel it ____ grow, shrink TERM 97 in order for a domain to change size what has to move? DEFINITION 97 domain wall TERM 98 demagnetizes itself easily when all nearby poles are removed DEFINITION 98 soft magnetic material TERM 99 an attribute of space that exerts magnetostatic force on a pole, and its direction and magnitude are proportional to the force i DEFINITION 99 magnetic field TERM 100 if a compass needle could move vertically as well as horizontally it would dip in the _____ and tip upward in the _____ DEFINITION 100 northern hemisphere, Southern hemisphere
