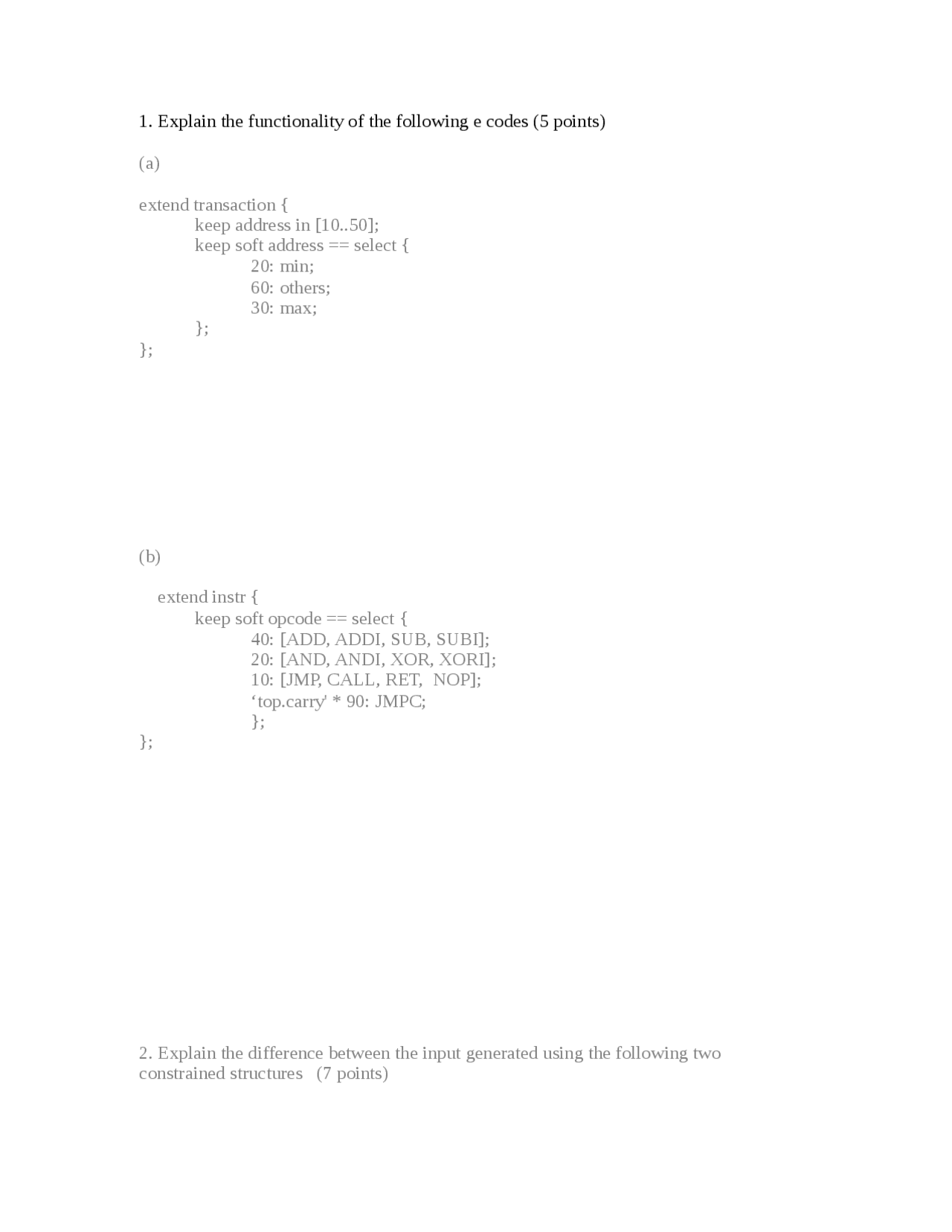

  1. Explain the functionality of the following e codes (5 points)

(a)

extend transaction { keep address in [10..50]; keep soft address == select { 20: min; 60: others; 30: max; }; };

(b)

extend instr { keep soft opcode == select { 40: [ADD, ADDI, SUB, SUBI]; 20: [AND, ANDI, XOR, XORI]; 10: [JMP, CALL, RET, NOP]; ‘top.carry' * 90: JMPC; }; };

  1. Explain the difference between the input generated using the following two constrained structures (7 points)

struct packet {

kind: [tx, rx]; size: byte; keep size > 15 => kind == rx; };

struct packet {

size: byte; kind: [tx, rx]; keep size > 15 => kind == rx; };

  1. What is the output of Num1 and Num4 produced by following e code fragment ( points)? Num2 = 0x1234; Num3 = 0x7777;

Num1 = %{Num2,Num3};

Num4 = pack(packing.high,num2,num3);

  1. Explain in your own words the temporal relationship expressed by the expect command in the following code (8 points)
