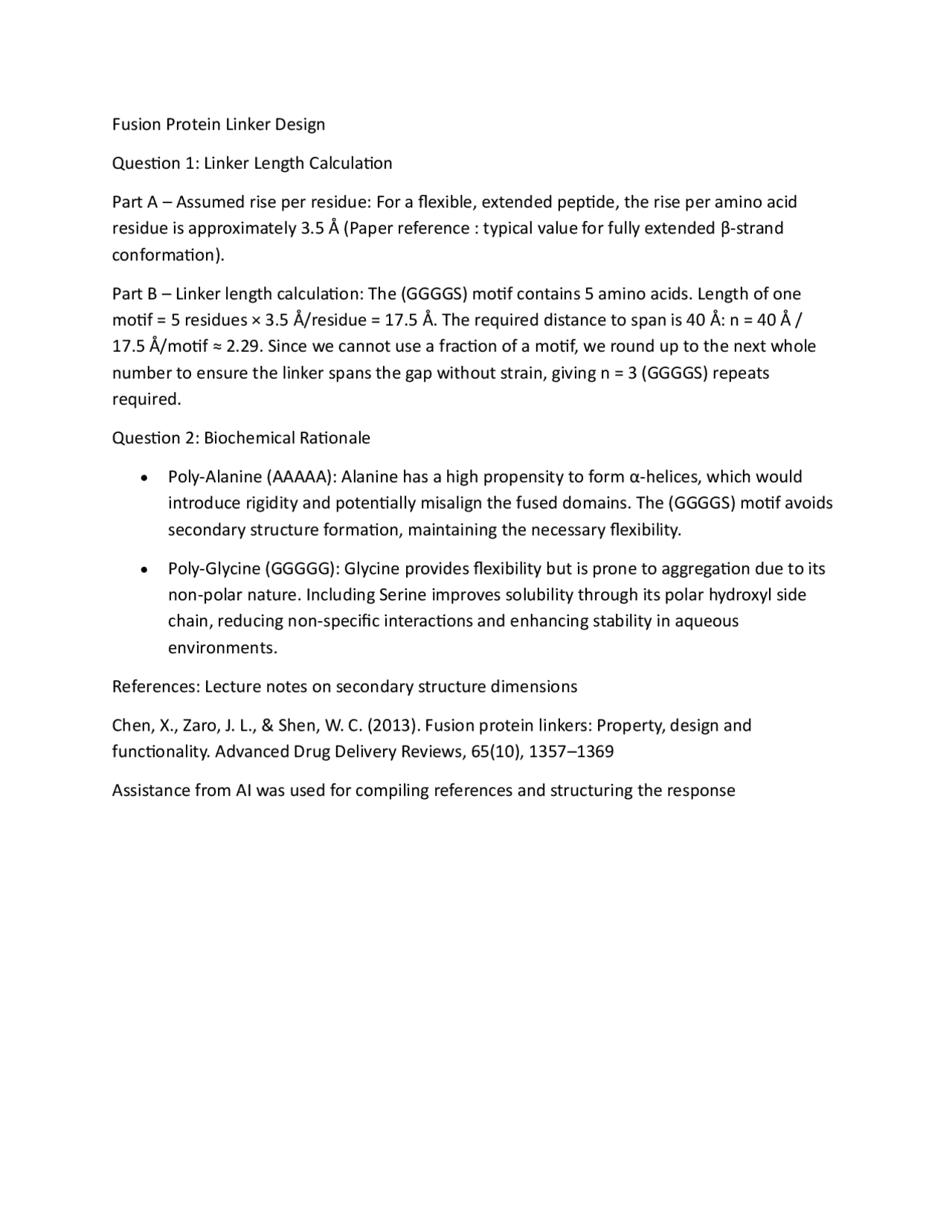

Fusion Protein Linker Design
Question 1: Linker Length Calculation
Part A – Assumed rise per residue: For a flexible, extended peptide, the rise per amino acid
residue is approximately 3.5 Å (Paper reference : typical value for fully extended β-strand
conformation).
Part B – Linker length calculation: The (GGGGS) motif contains 5 amino acids. Length of one
motif = 5 residues × 3.5 Å/residue = 17.5 Å. The required distance to span is 40 Å: n = 40 Å /
17.5 Å/motif ≈ 2.29. Since we cannot use a fraction of a motif, we round up to the next whole
number to ensure the linker spans the gap without strain, giving n = 3 (GGGGS) repeats
required.
Question 2: Biochemical Rationale
• Poly-Alanine (AAAAA): Alanine has a high propensity to form α-helices, which would
introduce rigidity and potentially misalign the fused domains. The (GGGGS) motif avoids
secondary structure formation, maintaining the necessary flexibility.
• Poly-Glycine (GGGGG): Glycine provides flexibility but is prone to aggregation due to its
non-polar nature. Including Serine improves solubility through its polar hydroxyl side
chain, reducing non-specific interactions and enhancing stability in aqueous
environments.
References: Lecture notes on secondary structure dimensions
Chen, X., Zaro, J. L., & Shen, W. C. (2013). Fusion protein linkers: Property, design and
functionality. Advanced Drug Delivery Reviews, 65(10), 1357–1369
Assistance from AI was used for compiling references and structuring the response
