bg1
1

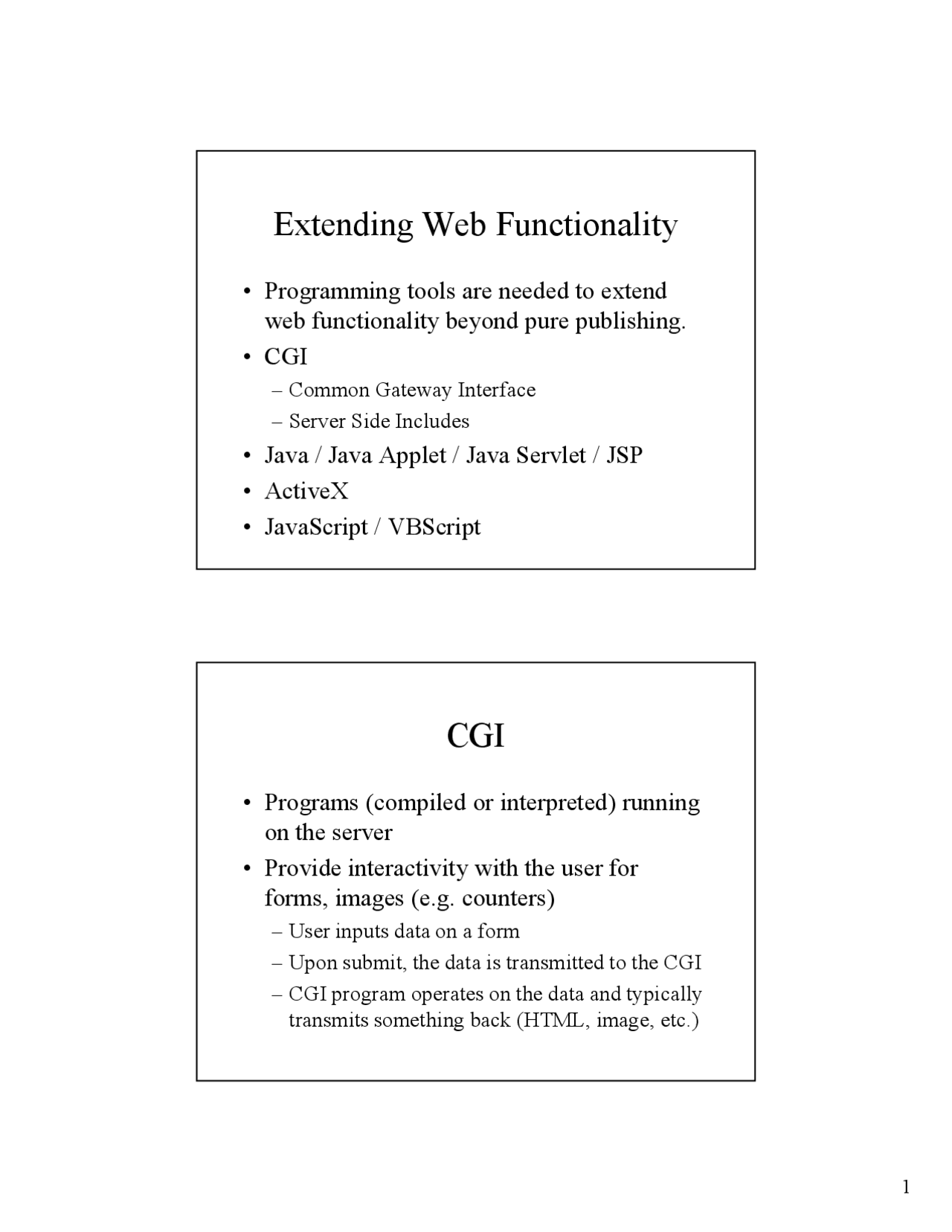

Extending Web Functionality
Programming tools are needed to extend
web functionality beyond pure publishing.
CGI
Common Gateway Interface
Server Side Includes
Java / Java Applet / Java Servlet / JSP
ActiveX
JavaScript / VBScript
CGI
Programs (compiled or interpreted) running
on the server
Provide interactivity with the user for
forms, images (e.g. counters)
User inputs data on a form
Upon submit, the data is transmitted to the CGI
CGI program operates on the data and typically
transmits something back (HTML, image, etc.)
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download Extending Web Functionality - Lecture Slides | CS A331 and more Study notes Programming Languages in PDF only on Docsity!

Extending Web Functionality

• Programming tools are needed to extend

web functionality beyond pure publishing.

• CGI

  • Common Gateway Interface
  • Server Side Includes

• Java / Java Applet / Java Servlet / JSP

• ActiveX

• JavaScript / VBScript

CGI

• Programs (compiled or interpreted) running

on the server

• Provide interactivity with the user for

forms, images (e.g. counters)

  • User inputs data on a form
  • Upon submit, the data is transmitted to the CGI
  • CGI program operates on the data and typically

transmits something back (HTML, image, etc.)

Global Environment Variables

CGI

Browser HTTP Server

Html page

Form Data

Results - CGI Program HTML or Image or Sound or ...

Web Server

CGI Problems

• Load on the server

• Security issues

  • if a leak, user could get access to the web server

• Inefficiencies

  • Program is loaded for each request
  • Possible to have in-memory modules for better

efficiency

CGI Programming

• Often in Perl, ASP (Active Server Pages)

• Can use C, C++, .NET Languages

• We will use PHP

• Either an interpreted or compiled language

• NOT a language implemented in your

browser, like Javascript or VBScript

Server Side Includes

• Hidden directives in your HTML to execute

a program and insert its output into the web

page

• Format varies on different browsers

HTML Here blah blah...

More html here…

Java Applet

Applets downloaded to local PC, execute there

Java Applet Usage

• The applet is embedded like a HTML tag:

Example JavaScript Code

Java vs. JavaScript?

• Both run on the client

• Interpreted Java/VBScript runs slower

• Somewhat limited programming language

constructs available in JavaScript

• Easier to do simple tasks, formatting tasks,

interface with Fields in Forms in JavaScript

Java Servlet

Java Server Pages (JSP)

ActiveX

Browser HTTP Server

Html page + ActiveX Program

ActiveX Program - A regular Windows Program!

Web Server

Possible Communications with anywhere. Lax security restrictions.

Basic CGI Example

• Receiving, Printing GET/POST Data

HTML:

Here is a form:

Form

CGI Code, in PHP

CGI Test"); print(""); print("Submission Received"); print(""); if ($_SERVER['REQUEST_METHOD'] == 'GET') { print(" GET Query:

"); print_r($_GET); print("

foo = ". $_GET['foo']. "bah = ". $_GET['bah']. "

"); } else { print(" POST Query:

"); print_r($_POST); print("

foo = ". $_POST['foo']. "bah = ". $_POST['bah']. "

"); }

?>
