West Virginia University Copyright © K.Goseva 2008 CS 757 Distributed Systems

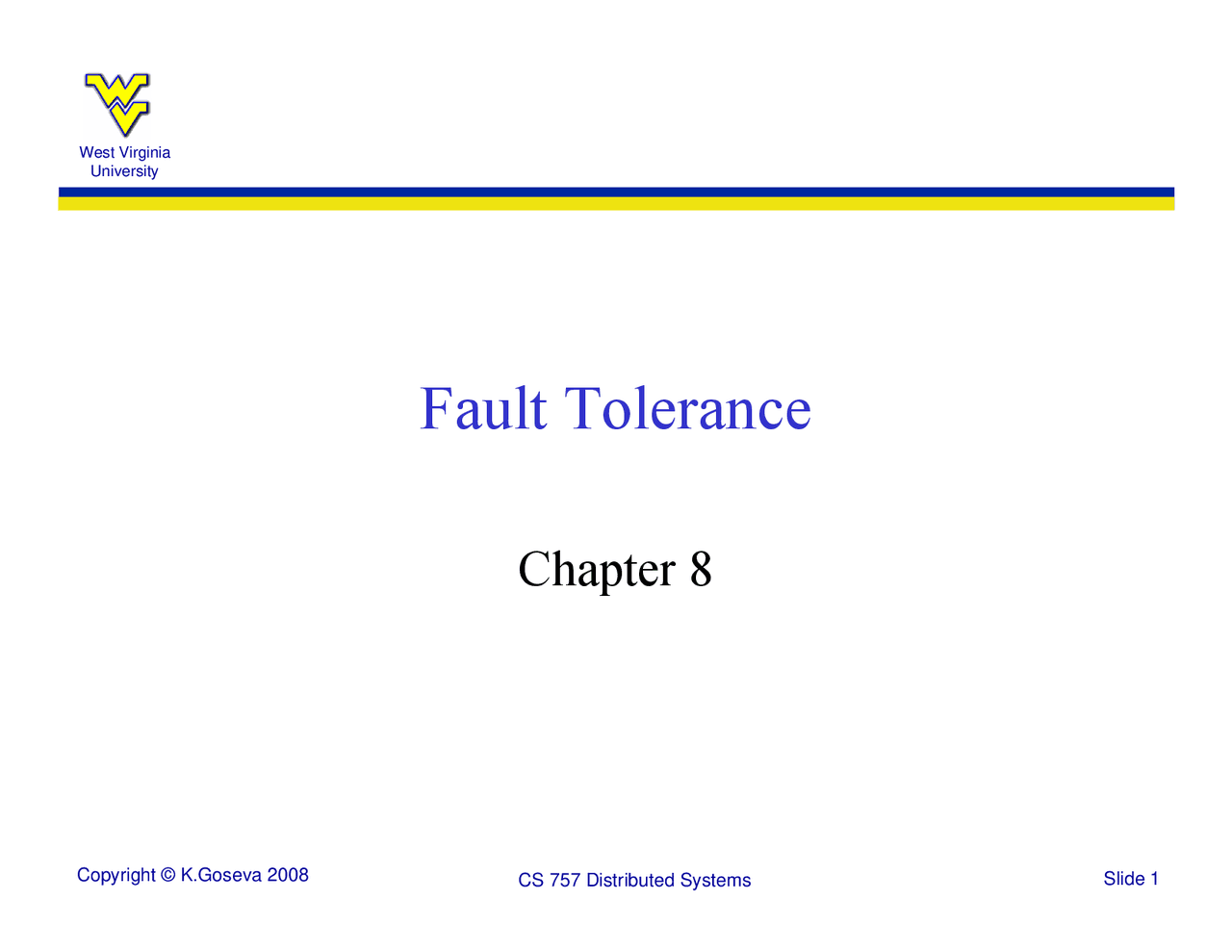

Fault Tolerance

Chapter 8

West Virginia University Copyright © K.Goseva 2008 CS 757 Distributed Systems

Outline

• Introduction to fault tolerance • Process resilience • Reliable client-server communication •

Reliable group communication: Not covered (Slides 33-54)

Distributed commit: Not covered (Slides 55-67)

Recovery: Only partially covered, high level

West Virginia University Copyright © K.Goseva 2008 CS 757 Distributed Systems

Basic concepts

• Failure – the system does not meet its requirements • Error – part of the system’s state that may lead to

failure

• Fault – cause of an error • High dependability can be achieved by

– Preventing faults – Removing faults – Fault tolerance – system provides its services even in the

presence of faults

West Virginia University Copyright © K.Goseva 2008 CS 757 Distributed Systems

Basic concepts

• Types of faults

– Transient

• Occur once and then disappear • If the operation is repeated, the fault goes away

– Intermittent

• Appears, vanishes, then reappears

– Permanent

• Continues to exist until the faulty component is repaired

West Virginia University Copyright © K.Goseva 2008 CS 757 Distributed Systems

Failure masking by redundancy

• Failure masking is achieved by redundancy

– Information redundancy

• Extra bits are added to allow recovery (e.g., Hamming code)

– Time redundancy

• Action is performed, and if needed performed again (e.g., if

transaction aborts, it can be redone)

• Especially helpful for transient or intermittent faults

– Physical redundancy

• Extra equipment or software are added (e.g., 747 has four

engines, but can fly on three)

West Virginia University Copyright © K.Goseva 2008 CS 757 Distributed Systems

Failure masking by redundancy

Triple modular redundancy

West Virginia University Copyright © K.Goseva 2008 CS 757 Distributed Systems

Process resilience

• The key approach to tolerating a faulty process is to

organize several identical processes into a group

– A process can send a message to a group of servers

without having to know how many servers there are orwhere they are

– All members of the group receive the messages – Process groups may be dynamic

• Old groups are destroyed, new groups are created • A process can join or leave a group • A process can be a member of several groups

West Virginia University Copyright © K.Goseva 2008 CS 757 Distributed Systems

Flat groups vs. hierarchical groups

Advantage: no single point of failureDisadvantage: more complex decision

making

Advantage: coordinator makes the decisionsDisadvantage: coordinator is a single point

of failure

West Virginia University Copyright © K.Goseva 2008 CS 757 Distributed Systems

Failure masking and replication

• Replace a single process with a group of replicated

processes

– Primary-based protocols

• Hierarchical group in which the primary coordinates all write

operations

• The primary is fixed • When primary crashes, the backups execute election algorithms

to choose a new primary

– Replicated-write protocols

• Active replication or quorum-based protocols • Flat group

West Virginia University Copyright © K.Goseva 2008 CS 757 Distributed Systems

Failure masking and replication

• How much replication is needed?

– A system is k fault tolerant if it can survive faults in k

components and still meet its specification

• If processes exhibit fail-stop failures, k+1 components is

enough to provide k fault tolerance

• If processes exhibit Byzantine failures, 2k+1 components are

needed to provide k fault tolerance

– All requests arrive at all servers in the same order, also

called the atomic multicast problem

West Virginia University Copyright © K.Goseva 2008 CS 757 Distributed Systems

Agreement in faulty systems

• The case of perfect processes and unreliable

communication

– Two army problem: red army with 5000 troops in the

valley and two blue armies, each 3000 troops, onsurrounding hills

• If the two blue armies can coordinate their attacks on the red

army they will be victorious

• The blue armies need to reach an agreement about attacking • They can communicate using unreliable channel – sending a

messenger who can be captured by the red army

• Even with non-faulty processes (generals), agreement is not

possible in the face of unreliable communication

West Virginia University Copyright © K.Goseva 2008 CS 757 Distributed Systems Slide 17

Agreement in faulty systems

• The case of perfect communication, but faulty

processors

– Byzantine generals problem: red army is still in the

valley, but

n

blue armies are on the nearby hills

• Communication is done pairwise and it is instantaneous and

perfect

m

(out of

n

) generals are traitors (faulty) and are actively trying

to prevent the loyal generals from reaching agreement byproviding incorrect and contradictory information

• Assumption: Generals exchange the troop strengths. If general

i

is loyal, the element

i

is the troop strength; otherwise, it is

undefined

• The question is whether the loyal generals can reach the

agreement

West Virginia University Copyright © K.Goseva 2008 CS 757 Distributed Systems

Agreement in faulty systems

The algorithm fails to produce an agreement

In general, in a system with

m

faulty processors, agreement can be achieved only if

2m+

correctly functioning processors are present for total of

3m+

processors, that is,

2/3 of the processors are working properly

West Virginia University Copyright © K.Goseva 2008 CS 757 Distributed Systems

Reliable client-sever communication
