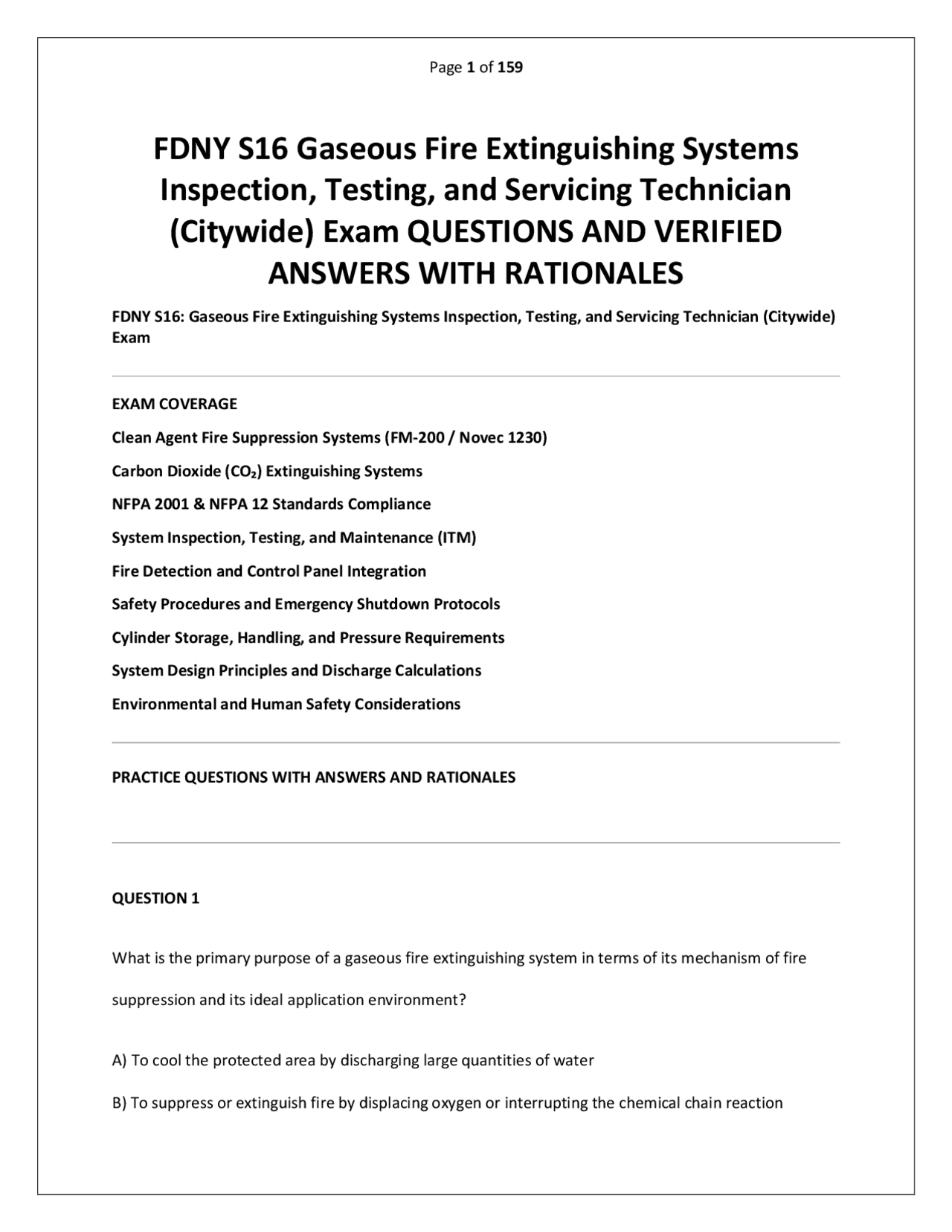

FDNY S16 Gaseous Fire Extinguishing Systems
Inspection, Testing, and Servicing Technician
(Citywide) Exam QUESTIONS AND VERIFIED
ANSWERS WITH RATIONALES
FDNY S16: Gaseous Fire Extinguishing Systems Inspection, Testing, and Servicing Technician (Citywide) Exam EXAM COVERAGE Clean Agent Fire Suppression Systems (FM-200 / Novec 1230) Carbon Dioxide (CO₂) Extinguishing Systems NFPA 2001 & NFPA 12 Standards Compliance System Inspection, Testing, and Maintenance (ITM) Fire Detection and Control Panel Integration Safety Procedures and Emergency Shutdown Protocols Cylinder Storage, Handling, and Pressure Requirements System Design Principles and Discharge Calculations Environmental and Human Safety Considerations PRACTICE QUESTIONS WITH ANSWERS AND RATIONALES QUESTION 1 What is the primary purpose of a gaseous fire extinguishing system in terms of its mechanism of fire suppression and its ideal application environment? A) To cool the protected area by discharging large quantities of water B) To suppress or extinguish fire by displacing oxygen or interrupting the chemical chain reaction
without causing water damage to sensitive equipment C) To absorb heat from combustion gases through a chemical reaction that produces a cooling effect D) To maintain a pressure balance within the enclosure to prevent the spread of smoke and toxic fumes Answer: B Rationale: Gaseous fire suppression systems are designed to extinguish fires without using water, making them ideal for sensitive environments such as data centers, electrical rooms, and control rooms where water damage would be catastrophic. They achieve suppression through oxygen displacement or chemical inhibition. QUESTION 2 Which NFPA standard primarily governs the design, installation, and maintenance of clean agent fire extinguishing systems such as FM-200 and Novec 1230? A) NFPA 10, which covers portable fire extinguishers B) NFPA 2001, which covers clean agent fire extinguishing systems C) NFPA 12, which covers carbon dioxide extinguishing systems D) NFPA 72, which covers fire alarm and signaling systems Answer: B Rationale: NFPA 2001 specifically regulates clean agent fire extinguishing systems, detailing the requirements for design, installation, maintenance, and testing of systems using agents such as FM- 200 (HFC-227ea) and Novec 1230. NFPA 12 governs CO₂ systems, NFPA 10 covers portable extinguishers, and NFPA 72 addresses fire alarm systems.
the hazard to personnel in occupied spaces D) Forming a foam blanket that separates the fuel from oxygen; the primary concern is environmental contamination Answer: C Rationale: CO₂ extinguishes fires by displacing oxygen and lowering the oxygen concentration below the threshold needed to sustain combustion. Because CO₂ is an asphyxiant, its use in occupied spaces is strictly prohibited; it is suitable only for unoccupied or normally unoccupied hazard areas. QUESTION 5 What is the primary function of the discharge nozzle in a clean agent fire extinguishing system? A) To store the extinguishing agent under pressure B) To detect fire conditions and send signals to the control panel C) To distribute the extinguishing agent evenly throughout the protected space D) To vent excess pressure from the agent storage cylinders Answer: C Rationale: Nozzles are engineered to direct and disperse the extinguishing agent during system activation, ensuring that the entire protected space receives the required concentration for effective fire suppression. Proper nozzle orientation and freedom from obstructions are critical. QUESTION 6
What is a "total flooding system," and where is it typically used? A) A system that floods the protected area with water; used in warehouses B) A system that discharges agent into an enclosed space to achieve a design concentration; used in data centers, electrical rooms, and other sensitive areas C) A system that uses portable extinguishers to flood an area; used in office environments D) A system installed outdoors to flood exterior hazards; used for flammable storage Answer: B Rationale: Total flooding systems are designed to discharge extinguishing agent into an enclosed space to reach and maintain the design concentration needed to suppress a fire. They are ideal for protecting sensitive equipment, data centers, and electrical rooms where water damage must be avoided. QUESTION 7 Which safety device prevents cylinder overpressure and potential rupture in a gaseous fire extinguishing system? A) Pressure gauge B) Safety relief device C) Check valve D) Discharge nozzle Answer: B Rationale: The safety relief device protects the cylinder from overpressure by venting excess pressure
C) Nitrogen, argon, and carbon dioxide; CO₂ is included to stimulate respiration D) Nitrogen and helium; CO₂ is used to increase pressure Answer: C Rationale: Inergen is a mixture of nitrogen (52%), argon (40%), and carbon dioxide (8%). The CO₂ is added to stimulate breathing in the event of discharge, helping protect occupants while the inert gases displace oxygen for fire suppression. The total oxygen reduction is maintained at a safe level for humans. QUESTION 10 According to NFPA standards, what is the maximum acceptable agent discharge time for total flooding systems? A) 10 seconds B) 30 seconds C) 60 seconds D) 90 seconds Answer: C Rationale: NFPA standards require total flooding systems to discharge extinguishing agent within a maximum of 60 seconds to ensure rapid fire suppression. The precise discharge time varies based on the system design and agent used, but 60 seconds is the standard maximum.
QUESTION 11
Which component in a gaseous fire extinguishing system is responsible for detecting fire conditions and initiating the automatic release sequence? A) Cylinder valve B) Control panel C) Pressure relief device D) Fusible link Answer: B Rationale: The control panel receives signals from fire detection devices (such as smoke or heat detectors) and initiates the sequence that results in agent discharge. It processes detector inputs, activates alarms, and triggers the release of extinguishing agent. QUESTION 12 What is the minimum oxygen concentration typically maintained for human safety in occupied spaces when inert gas systems are designed for fire suppression? A) 5% B) 10% C) 12% D) 15%
A) Every 3 years B) Every 5 years C) Every 10 years D) Every 12 years Answer: B Rationale: CO₂ cylinders must be hydrostatically tested every 5 years to verify their structural integrity and safe pressure retention. Hydrostatic testing confirms that the cylinder can safely hold its rated pressure without leaks or rupture. QUESTION 15 What happens to the temperature of CO₂ gas during discharge, and what phenomenon can result? A) It increases significantly, causing thermal burns B) It remains at room temperature due to the cylinder's insulation C) It rapidly cools, often forming dry ice particles as it expands D) It fluctuates unpredictably depending on the ambient temperature Answer: C Rationale: When CO₂ is released from high-pressure storage, it rapidly expands and cools significantly, often forming dry ice particles (solid CO₂) that appear as a white cloud during discharge. This rapid cooling is part of the extinguishing effect.
QUESTION 16
Before testing or servicing any gaseous fire extinguishing system, what is the mandatory first step for safety? A) Notify the FDNY of the scheduled service B) Isolate and depressurize the system to prevent accidental discharge or injury C) Disconnect the discharge nozzles from the piping network D) Tag the cylinders for identification purposes only Answer: B Rationale: The system must be safely isolated and depressurized to eliminate the risk of accidental agent discharge, which could cause injury or damage. This is a critical safety procedure that must be performed before any servicing or testing work. QUESTION 17 For clean agent systems, what is the typical maximum acceptable annual agent loss before system servicing is required, according to NFPA 2001? A) 10% B) 5% C) 1% D) 0% (no loss is tolerated)
C) An alarm that sounds during maintenance to indicate a system test D) An alarm that sounds for low pressure conditions in the agent cylinders Answer: B Rationale: The pre-discharge alarm warns occupants to evacuate the protected area before the extinguishing agent is released. This is a critical life-safety feature that allows for personnel evacuation and prevents accidental exposure. QUESTION 20 Where should manual actuation controls (manual pull stations) for gaseous fire extinguishing systems be located? A) Near the center of the hazard area for easy access during a fire B) At the control panel only, to prevent unauthorized activation C) Near exits, so they can be accessed during evacuation D) Above the cylinders to prevent tampering Answer: C Rationale: Manual pull stations must be located near exits, ideally along the evacuation path, to ensure they can be accessed by personnel during evacuation. This placement facilitates activation while occupants are leaving the hazard area. QUESTION 21
When a system is impaired or out of service, what is the owner's obligation to the FDNY? A) Notify the FDNY and implement a fire watch B) Remove the cylinders immediately C) Post signs only D) No action is required Answer: A Rationale: FDNY requires impairment notification and implementation of a fire watch for life safety compliance. Impairments that affect system functionality must be documented, and appropriate compensatory measures must be taken. QUESTION 22 According to the FDNY S-16 exam study materials, what is the color code for CO₂ cylinders? A) Red B) Green C) Grey or black D) Blue Answer: C Rationale: CO₂ cylinders are typically painted grey or black per standard color codes. This color coding helps fire protection personnel quickly identify the type of extinguishing system and its associated hazards during inspections and emergencies.
Answer: B Rationale: A check valve ensures that the extinguishing agent flows in only one direction through the piping system. This prevents agent from flowing backward or redistributing incorrectly, ensuring proper delivery to all nozzles. QUESTION 25 During a functional test, what should the technician verify to ensure system operational readiness? A) The system is painted and aesthetically pleasing B) The system activates according to NFPA guidelines without hazard C) The system is disconnected from all power sources for safety D) The system is pressurized above operating levels to verify strength Answer: B Rationale: Functional testing confirms that the system operates as designed without causing hazards, ensuring all components work together properly. This includes verifying detection, control panel response, and release mechanisms. QUESTION 26 Under FDNY regulations, who may act as the Qualifying Person for the S-61 certificate that is required to supervise technicians who hold an S-16?
A) Any person with a valid FDNY Certificate of Fitness B) An individual who holds a valid S-61 Certificate of Fitness and is employed by the company providing the recommendation letter for S-16 applicants C) Any building manager with fire safety training D) A licensed professional engineer with fire protection experience Answer: B Rationale: An S-61 COF holder must provide a recommendation letter to the technician before they can take the S-16 exam. This ensures that the technician is working under the supervision of a qualified, responsible individual. QUESTION 27 Which FDNY rule or regulation specifically governs the inspection, testing, and maintenance of fire extinguishing systems in New York City? A) 3 RCNY §15- 08 B) 3 RCNY §10- 03 C) 3 RCNY §09- 01 D) 3 RCNY §18- 02 Answer: A Rationale: 3 RCNY §15-08 covers inspection, testing, and maintenance requirements for fire extinguishing systems. This regulation provides the specific requirements for the ITM program and compliance with FDNY standards.
Because CO₂ can reduce oxygen levels below those safe for human occupancy, these systems are not recommended for occupied areas. QUESTION 30 Which clean agent has the lowest global warming potential (GWP) and is considered environmentally preferred among common clean agents? A) FM-200 (HFC-227ea) B) Novec 1230 C) Halon 1301 D) CO₂ Answer: B Rationale: Novec 1230 has a very low global warming potential (GWP) and is environmentally preferred. While CO₂ is a greenhouse gas, Novec 1230 is considered the most environmentally friendly clean agent. QUESTION 31 What is a "cross-zoning" detection requirement, and why is it used? A) A single detector activates system discharge B) Two detectors in the same zone must activate before system discharge is initiated C) A manual pull station must be activated before automatic discharge D) A pressure switch and smoke detector must both activate before discharge
Answer: B Rationale: Cross-zoning requires activation of two detectors in the same zone before discharge. This reduces the risk of false discharges by ensuring that a fire condition is confirmed before agent release. QUESTION 32 When performing an inspection, if a cylinder pressure gauge reads below the normal range, what is the technician's proper action? A) Remove and replace or recharge the cylinder B) Ignore if the reading is within 10% of normal range C) Record the reading only D) Tighten the valve to increase the pressure reading Answer: A Rationale: Low pressure indicates a possible leak or undercharge. The technician should remove and replace or recharge the cylinder to maintain system readiness. QUESTION 33 What is a "supervisory signal" in a gaseous fire extinguishing system? A) A fire alarm signal indicating system activation B) A trouble signal indicating system component issues requiring attention
