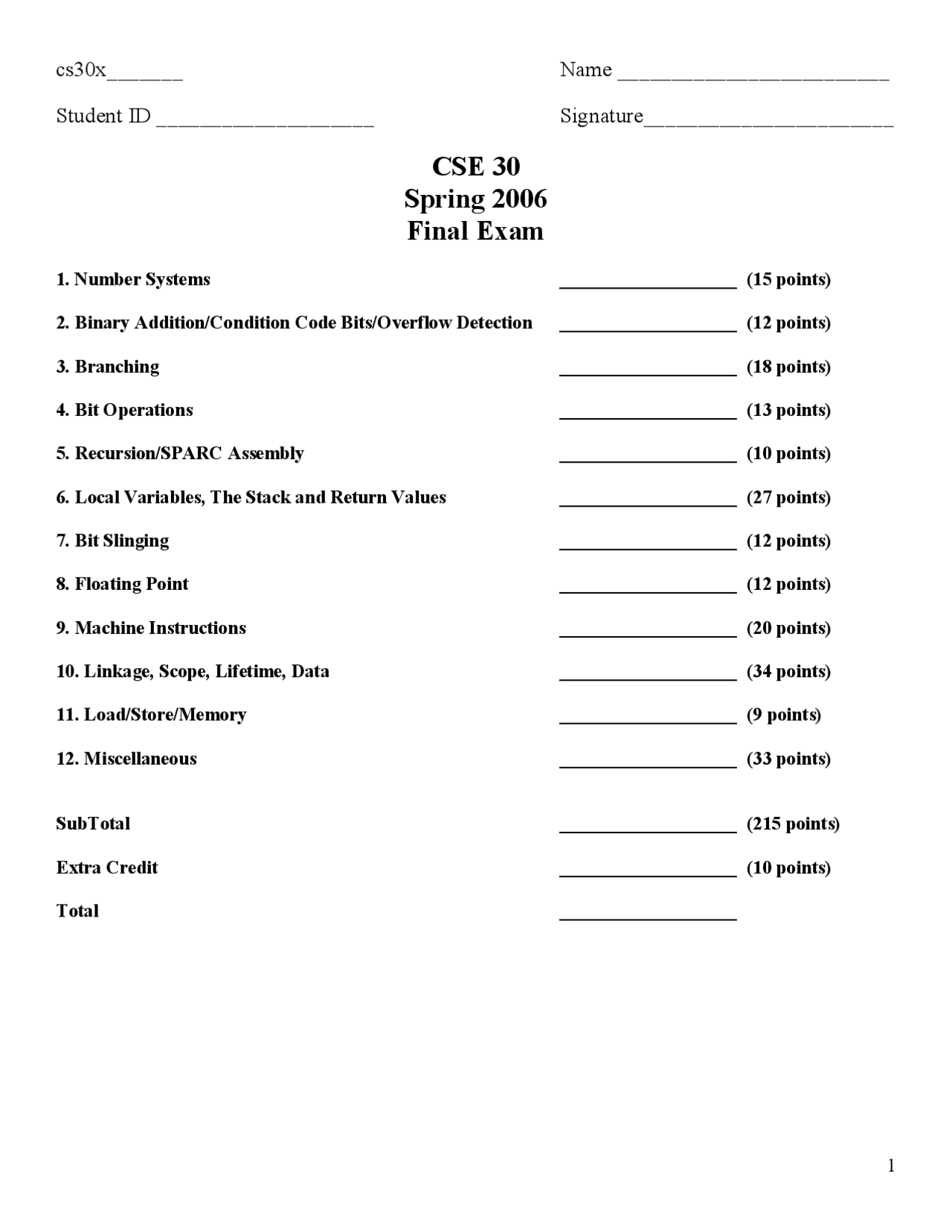

cs30x_______ Name _________________________
Student ID ____________________ Signature_______________________
CSE 30
Spring 2006
Final Exam
1. Number Systems ___________________ (15 points)
2. Binary Addition/Condition Code Bits/Overflow Detection ___________________ (12 points)
3. Branching ___________________ (18 points)
4. Bit Operations ___________________ (13 points)
5. Recursion/SPARC Assembly ___________________ (10 points)
6. Local Variables, The Stack and Return Values ___________________ (27 points)
7. Bit Slinging ___________________ (12 points)
8. Floating Point ___________________ (12 points)
9. Machine Instructions ___________________ (20 points)
10. Linkage, Scope, Lifetime, Data ___________________ (34 points)
11. Load/Store/Memory ___________________ (9 points)
12. Miscellaneous ___________________ (33 points)
SubTotal ___________________ (215 points)
Extra Credit ___________________ (10 points)
Total ___________________
1. Number Systems
Convert 0xFA5A (2โs complement, 16-bit word) to the following. (6 points)
binary______________________________________ (straight bit pattern translation)
octal________________________________________(straight bit pattern translation)
decimal____________________________________ (pos/neg decimal value from 2's complement encoding)
Convert 37710 to the following (assume 16-bit word). Express answers in hexadecimal. (3 points)
sign-magnitude __________________________________
1โs complement __________________________________
2โs complement __________________________________
Convert -652 10 to the following (assume 16-bit word). Express answers in hexadecimal. (6 points)
sign-magnitude___________________________________
1โs complement __________________________________
2โs complement __________________________________
2. Binary Addition/Condition Code Bits/Overflow Detection
Indicate what the condition code bits are when adding the following 8-bit 2โs complement numbers. (12 points)
N Z V C N Z V C N Z V C
4. Bit Operations
What is the value of %l0 after each statement is executed? Express your answers in hexadecimal.
set 0x2006ACED, %l
set 0x98675309, %l
or %l0, %l1, %l
Value in %l0 is _______________________________________ (2 points)
set 0x2006ACED, %l
sll %l0, 13, %l
Value in %l0 is _______________________________________ (2 points)
set 0x2006ACED, %l
srl %l0, 5, %l
Value in %l0 is _______________________________________ (2 points)
set 0x2006ACED, %l
set 0x????????, %l
xor %l0, %l1, %l0! Value in %l0 is now OxDEADBEEF
Value set in %l1 must be this bit pattern _______________________________________ (3 points)
set 0x2006ACED, %l
set 0x98675309, %l
and %l0, %l1, %l
Value in %l0 is _______________________________________ (2 points)
set 0x2006ACED, %l
sra %l0, 13, %l
Value in %l0 is _______________________________________ (2 points)
5. Recursion/SPARC Assembly
Given main.s and recurse.s, what gets printed when executed? (10 points)
.global main /* main.s */ .section ".rodata" .align 4 .word 0x code: .word 0x33736447, 0x72657074, 0x6B735061, 0x663D4E37, 0x2B20422B, 0x .word 0x662F7522, 0x43537300, 0x .section ".text" main: save %sp, -92 & -8, %sp set code, %o mov 27, %o call fubar nop ret restore
.global fubar /* fubar.s */ .section ".rodata" fmt: .asciz "%c"
.section ".text" fubar: save %sp, -(92 + 1) & -8, %sp cmp %i0, %g be end nop ldub [%i0 + %i1], %l cmp %l0, %g be end nop dec %l stb %l0, [%fp - 1] sub %i1, 3, %o mov %i0, %o call fubar nop set fmt, %o ldub [%fp - 1], %o call printf nop
end: ret restore
Output ____________________________
7. Bit Slinging
Write a C function named evenOrOddNumOfBits() that takes a word (unsigned int) and returns 0 if there are an
even number of 1's in the word and returns 1 if there are an odd number of 1's in the word. (12 pts)
For example, evenOrOddNumOfBits( 0x7FFFFFFF ) will return the value 1
evenOrOddNumOfBits( 0x00201000 ) will return the value 0
C
unsigned int evenOrOddNumOfBits( unsigned int word )
8. Floating Point
Convert -124.625 10 (decimal fixed-point) to binary fixed-point (binary) and single-precision IEEE floating-
point (hexadecimal) representations.
binary fixed-point __________________________________ (2 points)
IEEE floating-point __________________________________ (4 points)
Convert 0x43446000 (single-precision IEEE floating-point representation) to fixed-point decimal.
fixed-point decimal __________________________________ (6 points)
9. Machine Instructions
Translate the following instructions into SPARC machine code. Use hexadecimal values for your answers. If
an instruction is a branch, specify the number of instructions away for the target (vs. a Label).
std %o2, [%i4 + %l3] ___________________________________ (5 points)
xor %l5, -15, %i3 ___________________________________ (5 points)
Translate the following SPARC machine code instructions into SPARC assembly instructions.
0x92848006 ___________________________________ (5 points)
0xE857BFF6 ___________________________________ (5 points)
11. Load/Store/Memory
What gets printed in the following program? (9 points)
.global main
.section ".data" fmt: .asciz "0x%8x\n"! prints value as hex 0xXXXXXXXX
c: .byte 0x
.align 2 s: .half 0xABCD
.align 4 i1: .word 0x i2: .word 0x i3: .word 0x x: .word 0x
.section ".text" main: save %sp, -96, %sp
set i1, %l set s, %l
ldsh [%l1], %l st %l1, [%l0] stb %l1, [%l0+1]
set fmt, %o ld [%l0], %o call printf __________________________ nop
set i2, %l set c, %l
ldsb [%l1], %l sth %l1, [%l0+2] stb %l1, [%l0+1]
set fmt, %o ld [%l0], %o call printf __________________________ nop
set x, %l set i3, %l
ldsb [%l1], %l sth %l2, [%l0] stb %l2, [%l0+2]
set fmt, %o ld [%l0], %o call printf __________________________ nop
ret
restore
12. Miscellaneous
Put the following in the correct order/sequence using the numbers to the left of each word. (9 pts)
1. C preprocessor 4. assembler 7. C source code
2. program execution 5. compiler 8. executable (.exe/a.out)
3. Core Dump (Segmentation Fault) 6. linker/linkage editor 9. loader
_____ โ> _____ โ> _____ โ> _____ โ> _____ โ> _____ โ> _____ โ> _____ โ> _____
Draw the logic circuit to perform the following Boolean logic. Label each gate. Do not optimize. (3 pts)
!(a & b) ^ (!a | b)
Is this a sequential or combinational logic circuit? (Circle correct answer in the question to the left.) (1 pt)
When the following program is run on a Sun SPARC Unix system and sorted by the address printed with the
%p format specifier, specify the order of the lines printed from smallest value to largest value. (2 points each)
void foo( int, int ); /* Function Prototype */
int a = 43;
int main( int argc, char *argv[] ) {
int b = 7;
int c = 11;
foo( argc, b );
/* 1 */ (void) printf( "1: b --> %p\n", &b );
/* 2 */ (void) printf( "2: malloc --> %p\n", malloc(50) );
/* 3 */ (void) printf( "3: c --> %p\n", &c );
/* 4 */ (void) printf( "4: argc --> %p\n", &argc );
/* 5 */ (void) printf( "5: foo --> %p\n", foo );
void foo( int d, int e ) {
int f;
static int g;
/* 6 */ (void) printf( "6: f --> %p\n", &f );
/* 7 */ (void) printf( "7: a --> %p\n", &a );
/* 8 */ (void) printf( "8: e --> %p\n", &e );
/* 9 */ (void) printf( "9: d --> %p\n", &d );
______
______
______
______
______
______
______
______
______
______
Smallest value
