Wellesley College ◊ CS111 Computer Programming and Problem Solving ◊ Fall 2006
FINAL EXAM REVIEW SOLUTIONS
This draft contains solutions to all problems except Problems 12 -- 14
____________________________________________________________________________

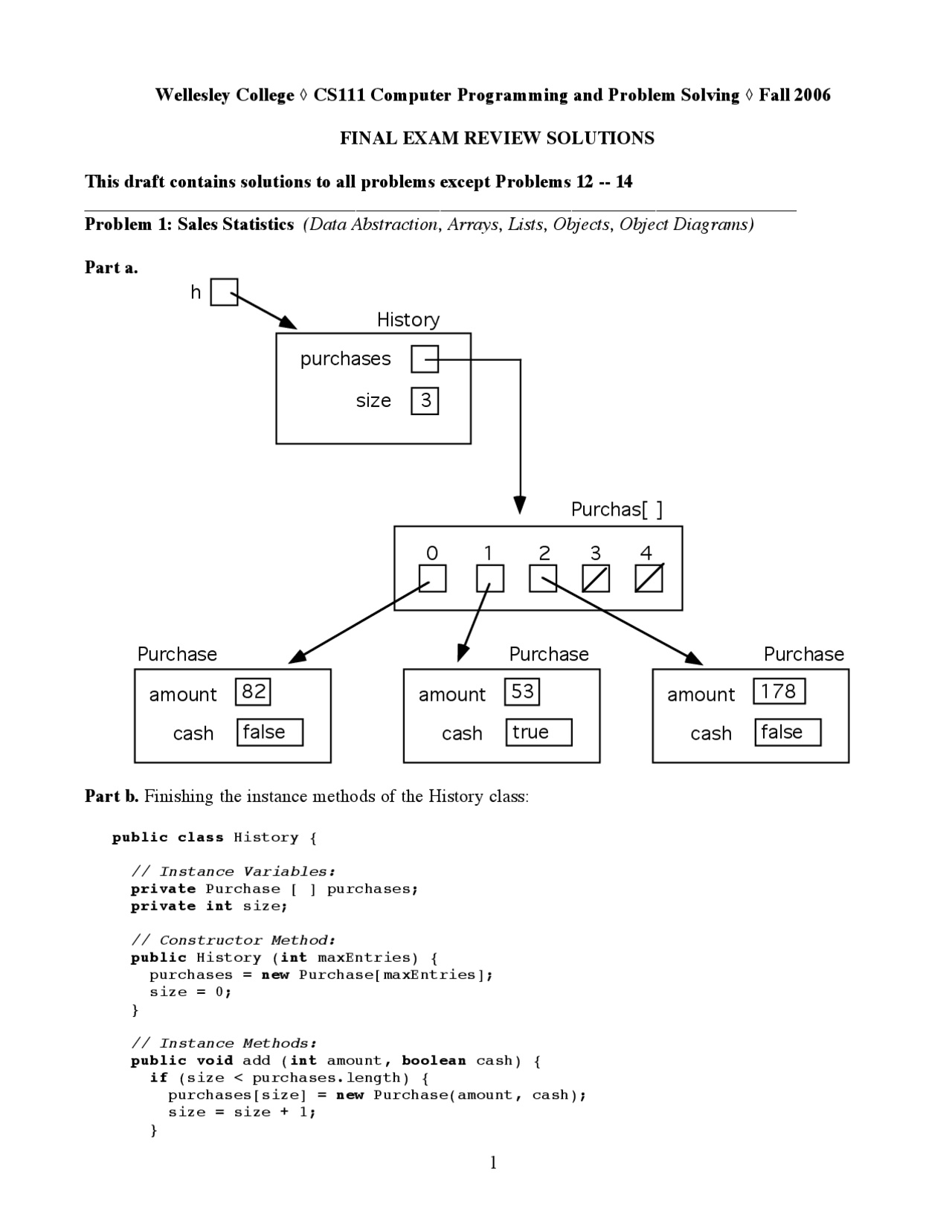

Problem 1: Sales Statistics (Data Abstraction, Arrays, Lists, Objects, Object Diagrams)
Part a.
purchases
size
h
History
Purchas[ ]
amount
cash false
82 amount
cash true
53 amount
cash false
Purchase Purchase Purchase
Part b. Finishing the instance methods of the History class:
public class History { // Instance Variables: private Purchase [ ] purchases; private int size; // Constructor Method: public History ( int maxEntries) { purchases = new Purchase[maxEntries]; size = 0; } // Instance Methods: public void add ( int amount, boolean cash) { if (size < purchases.length) { purchases[size] = new Purchase(amount, cash); size = size + 1; }
public int size(){ return size; } // min() and max() are instances of the general array accumulation idiom public int min(boolean cash){ int minVal = Integer.MAX_VALUE; // Positive infinity is identity of min for (int i = 0; i < size; i ++){ if (purchases[i].getCash() == cash){ minVal = Math.min(minVal, purchases[i].getAmount()); } } return minVal; } public int max(boolean cash){ int maxVal = Integer.MIN_VALUE; // Negative infinity is identity of max for ( int i = 0; i < size; i ++){ if (purchases[i].getCash() == cash){ maxVal = Math.max(maxVal, purchases[i].getAmount()); } } return maxVal; } public int average( boolean cash){ int sum = 0; int count = 0; for ( int i = 0; i < size; i++){ if (purchases[i].getCash() == cash){ sum = sum + purchases[i].getAmount(); count = count + 1; } } if (count == 0 ){ return 0; } else { return sum/count; } } public int number ( boolean cash){ int count = 0; for (int i = 0; i < size; i ++) { if (purchases[i].getCash() == cash){ count = count + 1; } } return count; } public int percentage ( boolean cash){ if (size > 0){ return (number(cash) * 100)/size; } else { return 0; } } }
2) Implement Purchase class with an integer list:
public class Purchase { // Instance Variable private IntList sale; // Constructor Method public Purchase ( int i, boolean b) { sale = prepend(i, prepend(intToBool(b), empty())); } // Instance Methods public int getAmount () { return head(sale); } public void setAmount ( int newAmount) { sale = prepend(newAmount, tail(sale)); } public boolean getCash () { return (head(tail(sale)) == 1); } public void setCash ( boolean newCash) { sale = prepend(head(sale), prepend(intToBool(newCash), empty())); } // Useful helper method private bool boolToInt (boolean b) { if (b){ return 1; } else { return 0; } } }
3) Implement Purchase class as a single positive or negative integer:
public class Purchase { // Instance Variable private int sale; // Constructor Method public Purchase ( int i, boolean b) { sale = (sign(b)) * i } // Instance Methods public int getAmount () { return Math.abs(sale); } public void setAmount ( int newAmount) { sale = sign(sale) * Math.abs(newAmount); } public boolean getCash () { return (sale > 0); } public void setCash ( boolean newCash) { sale = sign(newCash) * Math.Abs(sale); } // Useful helper method public int sign (boolean b) { if (b) { return 1; } else { return – 1; } } }
Part f. Implement history with 3 instance variables: maxEntries, and two IntLists:
i.
ii. Implementation
public class History { // Instance Variables: private int maxEntries; private IntList cashes; private IntList credits; // Constructor Method: public History ( int maxEntries) { this .maxEntries = maxEntries; cashes = empty(); credits = empty(); } // Instance Methods: public void add ( int amount, boolean cash) { if (length(cashes) + length(credits) < maxEntries) { if (cash){ cashes = prepend(amount, cashes); } else { credits = prepend(amount, credits); } } } public int min (boolean cash){ if (cash) { return minOfList(cashes); } else { return minOfList(credits); } } public int minOfList (IntList L){ if(isEmpty(L)){ return Integer.MAX_VALUE; } else { return Math.min(head(L), minOfList(tail(L))); } } public int size () {return length(cashes) + length(credits);} public int max (boolean cash) { //similar to min--left as exercise.}
public int average ( boolean cash){ if (cash) { if (isEmpty(cashes) { return 0; } else { return sum(cashes)/length(cashes); } } else { if (isEmpty(credits) { return 0; } else { return sum(credits)/length(cashes); } } } private int sum (IntList L) { if (isEmpty(L)) { return 0; } else { return head(L) + sum(tail(L)); } } private int length (IntList L) { if (isempty(L)) { return 0; } else { return 1 + length(tail(L)); } } public int number ( boolean cash){ if (cash) { return length(cashes); } else { return length(credits); } } public int percentage ( boolean cash){ if (size() != 0){ if (cashes){ return length(cashes) * 100/size(); } else { return length(credits) * 100/size(); } } else { return 0; } } }
Part g. Left as exercise for the student.
Part c. Picture World
public Picture squares( int n, Color c1, Color c2) { if (n <= 0) { return empty(); }else { return fourPics(empty(), empty(), patch(c1), squares(n-1, c2, c1); } }
Part d. Java Graphics
public void squares (Graphics g, int n, int len, Color c1, Color c2) { int x = 0; int y = 0; while (n > 0) { g.setColor(c1); g.drawRect(x,y,len,len); // Update state variables of iteration n = n – 1; x = x + len; y = y + len/2; len = len/2; // swap colors Color temp = c1; c1 = c2; c2 = temp; } }
________________________________________________________________________________
Problem 3: Greatest Common Divisor (Iteration)
Part a. Here is the iteration table for the iterative calculation of GCDTail(95,60).
A B
Part b.
public static int GCDWhile ( int A, int B) { while (B != 0) { // Need a temporary variable to perform updates! // Could make a temp for either A or B; here we choose A. int oldA = A; A = B; B = oldA % B; } return A; }
Part c. It is always possible to express a while loop as a for loop, but the result may not be
particularly natural. Indeed, in this case it would not be natural to re-express Wyla's GCDTail
program as a for loop. For loops best “fit” cases where there is a state variable controlling the
number of times through the loop that is independent of other state variables. In the case of
GCD, the state variable B controls the number of times through the loop, suggesting the
following skeleton:
public static int GCDFor ( int A, int B) { for (; B != 0; update) { // No initialization of B necessary statements } return A; }
But what should replace update and statements? One approach is to leave update blank:
public static int GCDFor ( int A, int B) { for (; B != 0;) { // No initialization of B necessary // Need a temporary variable to perform updates! int oldA = A; A = B; B = oldA % B; } return A; }
Indeed, for (; test;) { statements} is always equivalent to while (test) {statements}.
But a for loop that is missing both its initialization and update statements is not very
compelling!
If we put B = A % B in the update position, then the A in A % B (which is executed after
updates) is the value of A after the assignment, when we want the value of A before the
assignment. We need a temporary variable to circumvent this problem, as shown below:
public static int GCDFor ( int A, int B) { int oldA; for (; B != 0; B = oldA % B) { // No initialization of B necessary oldA = A; A = B; } return A; }
This method is less straightforward than the while loop, which is clearer and therefore preferred.
________________________________________________________________________________
Problem 6: Inheritance (Inheritance)
Statement Printout on Java Console System.out.println(( new A()).m1()); 1 System.out.println(( new B()).m1()); 3 System.out.println(( new C()).m1()); 4 System.out.println(( new D()).m1()); 5 System.out.println(( new E()).m1()); 5
________________________________________________________________________________
Problem 7: Converting Betweeen Different Forms of Iteration (Lists, Arrays, Iteration)
Part a.
// Tail Recursion public static int weightedSum (IntList L) { return weightedSumTail (L, 1, 0); } public static int weightedSumTail (IntList L, int index, int total) { if (isEmpty(L)) { return total; } else { return weightedSumTail(tail(L), index + 1, (indexhead(L)) + total); } } // While loop public static int weightedSumWhile (IntList L) { int index = 1; int total = 0; while (!isEmpty(L)) { total = total + (indexhead(L)); index = index + 1; L = tail(L); } return total; } // For loop public static int weightedSumFor (IntList L) { int index = 1; int total = 0; for (; !isEmpty(L); L = tail(L);) { total = total + (index*head(L)); index = index + 1; } return total; }
Part b.
// While loop public static boolean isMember ( int n, int [] a) { int i = a.length - 1; while ((i >= 0) && (a[i] != n)) { i = i - 1; } return (i >= 0); // Will only be true if n is in a. }
// For loop public static boolean isMemberFor ( int n, int [] a) { for (int i = a.length – 1; i>=0; i--) { if a[i] == n { return true; } } return false; } // Tail recursion public static boolean isMemberIter ( int n, int [] a) { return isMemberTail(n, a, a.length - 1); } public static boolean isMemberTail ( int n, int [] a, int i) { if (i < 0) { return false; } else if (a[i] == n) { return true; } else { return isMemberTail (n, a, i-1); } }
Part c.
// For loop public static void partialSum ( int [] a) { int sum = 0; for (int i = 0; i < a.length; i++) { sum = sum + a[i]; a[i] = sum; } } // While loop public static void partialSumWhile ( int [] a) { int i = 0; int sum = 0; while (i < a.length) { sum = sum + a[i]; a[i] = sum; i++; } } // Tail recursion public static void partialSumIter ( int [] a) { return partialSumTail(a,0, 0); } public static void partialSumTail (int [] a, int i, int sum) { if (i < a.length) { int newsum = sum + a[i]; a[i] = newsum; partialSumTail(a, i+1, newsum); } }
________________________________________________________________________________
Problem 9: Iterative List Reversal (Invocation Trees, Recursion, Iteration, Lists,)
Part a.
Part b.
Tail recursive solution:
public static IntList reverseIter (IntList L) { return reverseTail(L, IL.empty()); } public static IntList reverseTail (IntList list, IntList result) { if (IL.isEmpty(list)) { return result; } else { return reverseTail(IL.tail(list), IL.prepend(IL.head(list), result)); } }
While loop solution:
public static IntList reverseWhile (IntList L) { IntList result = IL.empty(); while (! IL.isEmpty(L)) { result = IL.prepend(IL.head(L), result); L = IL.tail(L); } return result; }
For loop solution:
public static IntList reverseFor (IntList L) { IntList result = IL.empty(); for (;! IL.isEmpty(L); L = IL.tail(L)) // Note empty initializer result = IL.prepend(IL.head(L), result); } return result; }
________________________________________________________________________________
Problem 11: Bank Accounts (Data Abstraction, Lists)
Part a.
class Account { private int savings; private int total; public account () { this .savings = 0; this .total = 0; } public int getSavings() { return this .savings;} public int getChecking() { return this .total – this.savings;} public int getTotal() { return this .total;} public void depositToSavings( int amountToAdd) { this .savings = this .savings + amountToAdd; this .total = this .total + amountToAdd; } public void transferFromSavingsToChecking( int transferAmount) { this .savings = this .savings - transferAmount; } public void withdrawFromChecking( int withdrawalAmount) { this .total = this .total - withdrawalAmount; } }
Part b.
class Account { private IntList accountInfo; // List of savings, checking, total public account () {set(0,0,0);} // Very useful helper method private set (int s, int c, int t) { accountInfo = IL.prepend(s, IL.prepend(c, IL.prepend(t IL.empty()))); } public int getSavings() { return IL.head(accountInfo);} public int getChecking() { return IL.head(IL.tail(accountInfo));} public int getTotal() { return IL.head(IL.tail(IL.tail(accountInfo)));} public void depositToSavings( int amount) { set(getSavings() + amount, getChecking(),getTotal() + amount); } public void transferFromSavingsToChecking( int amount) { set(getSavings() – amount, getChecking() + ammount, getTotal()); } public void withdrawFromChecking( int amount) { set(getSavings(), getChecking() – amount, getTotal() – amount); } }
