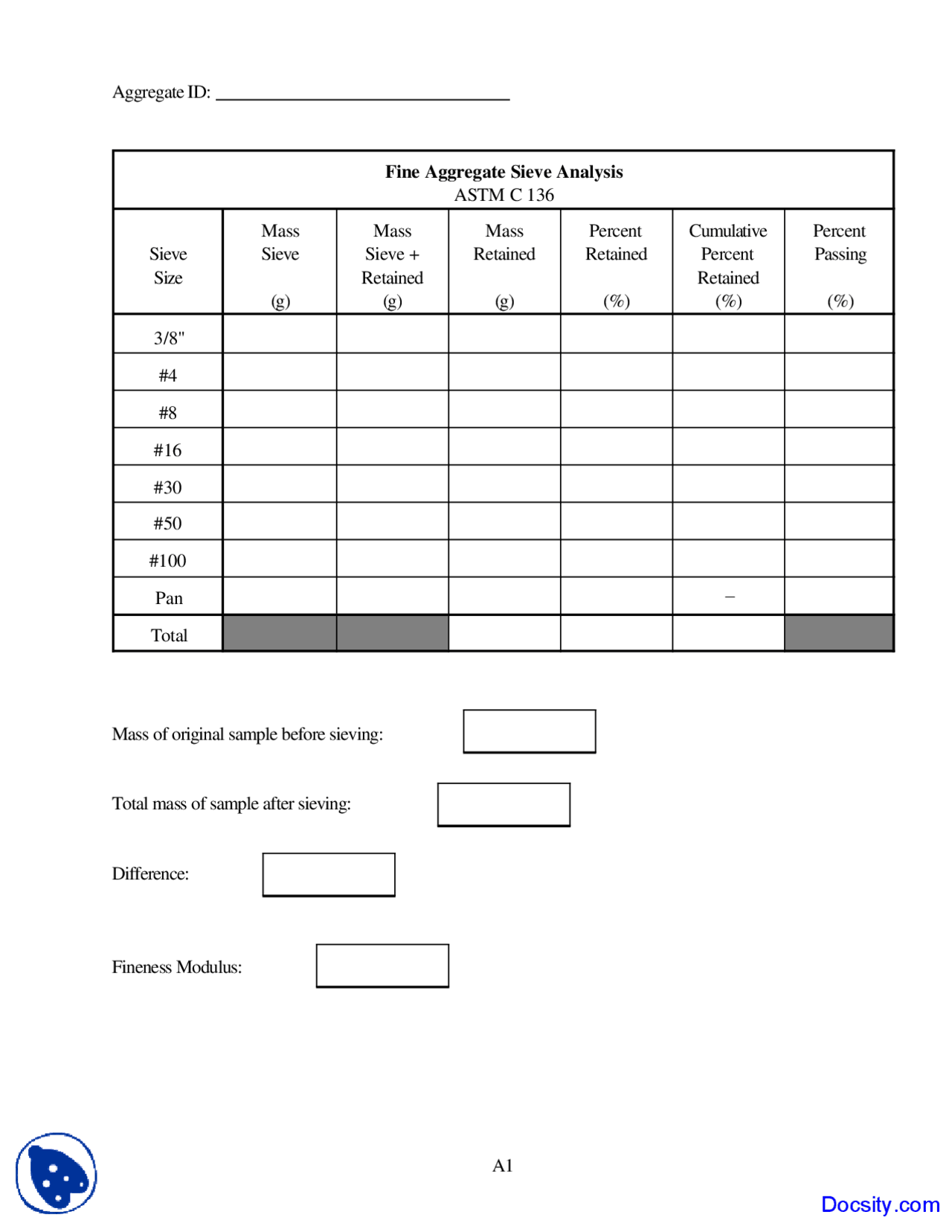

Fine Aggregate Sieve Analysis ASTM C 136 Sieve Size
Mass Sieve (g)
Mass Sieve + Retained (g)
Mass Retained (g)
Percent Retained (%)
Cumulative Percent Retained (%)
Percent Passing (%) 3/8"
Total
Mass of original sample before sieving:
Total mass of sample after sieving:
Difference:
Fineness Modulus:
Moisture Content of Fine Aggregate ASTM C 566
Determine mass of sample in original condition: Mass of pan and sample Y g Mass of pan Y - g Mass of original sample [W] Y g
Determine mass of oven-dry sample: Mass of pan and sample Y g Mass of pan Y - g Mass of oven-dry sample [D] Y g
Calculate moisture Content:
MC = W^ D −^ D × 100%=
Aggregate ID:
Coarse Aggregate Sieve Analysis ASTM C 136 Sieve Size
Mass Sieve (g)
Mass Sieve + Retained (g)
Mass Retained (g)
Percent Retained (%)
Cumulative Percent Retained (%)
Percent Passing (%) 2" 1 1/2" 1" 3/4" 1/2" 3/8"
Pan Total
Mass of original sample before sieving:
Total mass of sample after sieving:
Difference:
( )
Bulk SG Dry (^) B AC
Bulk SG SSD (^) B BC
Apparent SG (^) A AC
Absorption B^ AA
Specific Gravity and Absorption of Coarse Aggregate ASTM C 127 Determine mass of saturated sample in water: Mass of basket and sample Y g Mass of basket Y - g Mass of saturated sample in water [C] Y g Determine mass of saturated surface dry sample: Mass of pan and sample Y g Mass of pan Y - g Mass of SSD sample [B] Y g Determine mass of oven-dry sample: Mass of pan and sample Y g Mass of pan Y - g Mass of oven-dry sample [A] Y g
Calculate final results:
Moisture Content of Coarse Aggregate ASTM C 566 Determine mass of sample in original condition: Mass of pan and sample Y g Mass of pan Y - g Mass of original sample [W] Y g
Determine mass of oven-dry sample: Mass of pan and sample Y g Mass of pan Y - g Mass of oven-dry sample [D] Y g
Calculate Moisture Content:
MC = W^ D −^ D × 100%=
