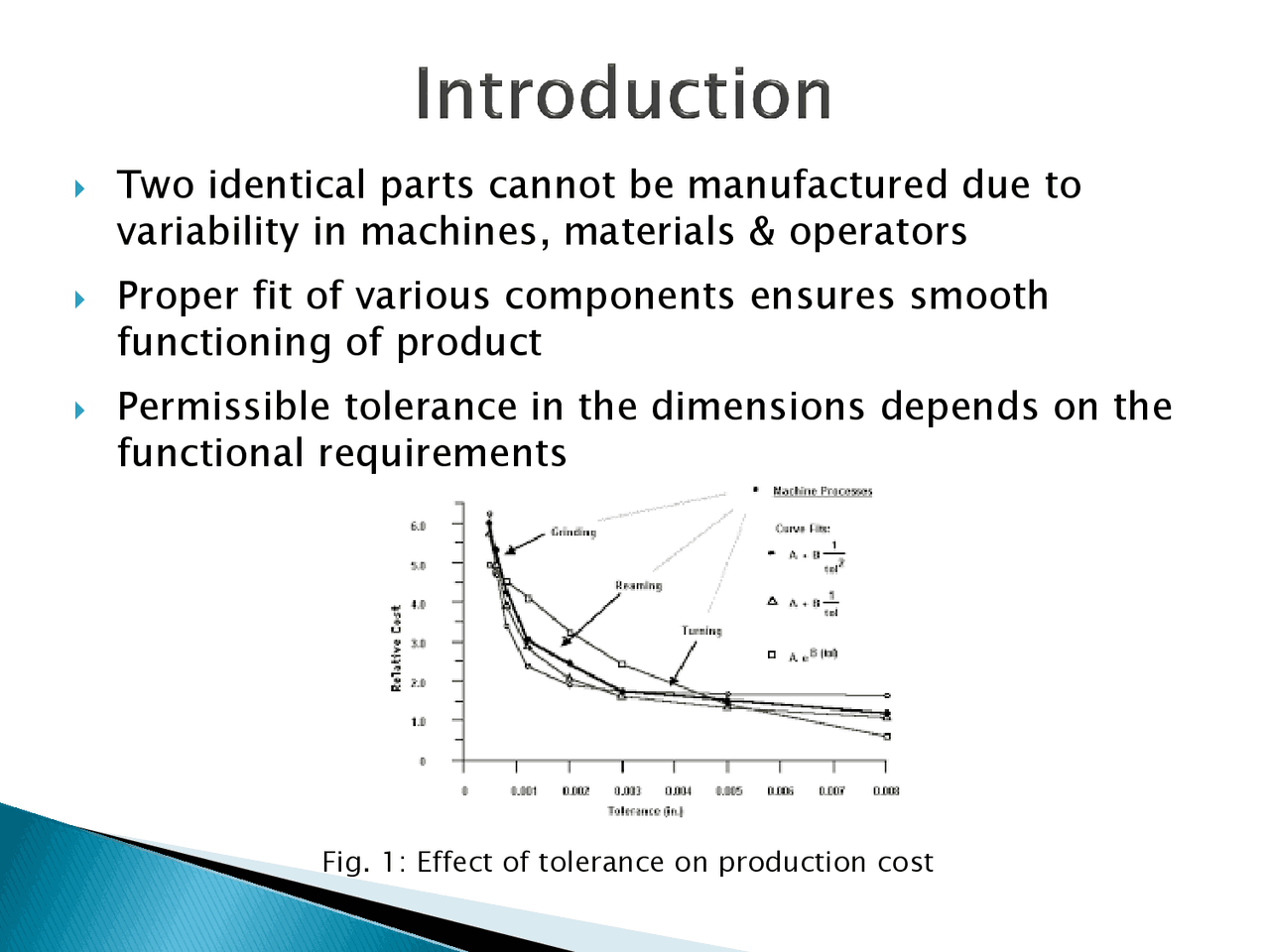

Two identical parts cannot be manufactured due to variability in machines, materials & operators Proper fit of various components ensures smooth functioning of product Permissible tolerance in the dimensions depends on the functional requirements Fig. 1: Effect of tolerance on production cost
Factors affecting the interchangeability of a component are specified by a drawing Manufactured parts are independent of skill, tooling or knowledge within a particular work-shop
Standard guidelines for choosing exact product dimensions within a given set of constraints Advantage of using preferred numbers:
Used when allowable difference is smaller than the normal permissible manufacturing conditions Parts are manufactured to a wider tolerance Components are classified into groups Matched groups of mating parts are assembled E.g. Assembly of ball and bearing units
Tolerance is:
Fig 2: Basic size, deviations, limits & tolerances
The high limit is placed above the low limit. In single-line note form, the low limit precedes the high limit separated by a dash
Unilateral Tolerance: Tolerance distribution is on only one side of the basic size Fig 3: Unilateral tolerance designation Bilateral Tolerance: Tolerance distribution lies on either side of the basic size Fig 4: Bilateral tolerance designation
Least Material Condition denotes: ◦ Lower limit of the Shaft ◦ Upper limit of the Hole Maximum Material Condition denotes: ◦ Lower limit of the Hole ◦ Upper limit of the Shaft
Signifies the range of tightness or looseness that may result from the application of a specific combination of allowances and tolerances in mating parts. Types of fits :
