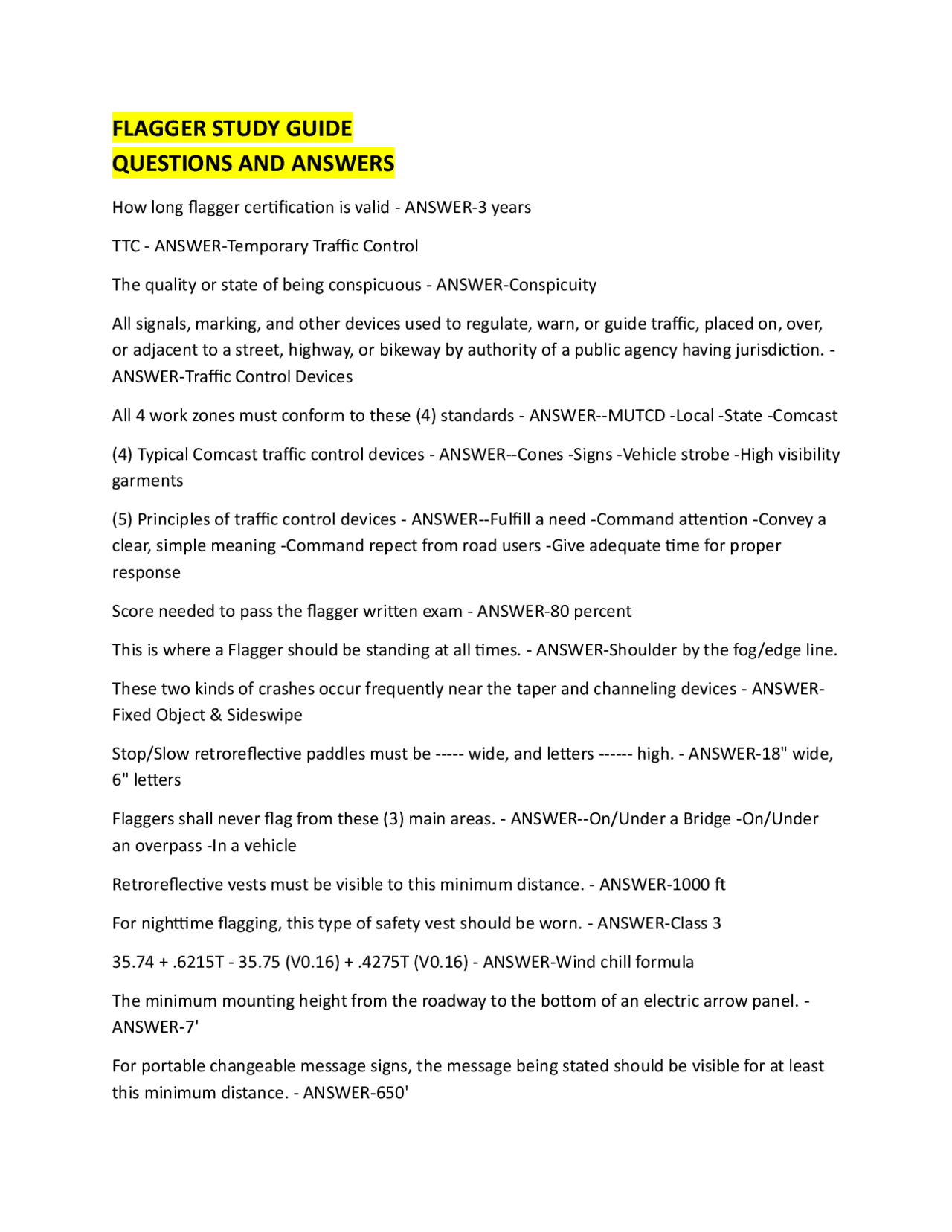

FLAGGER STUDY GUIDE
QUESTIONS AND ANSWERS
How long flagger certification is valid - ANSWER-3 years
TTC - ANSWER-Temporary Traffic Control
The quality or state of being conspicuous - ANSWER-Conspicuity
All signals, marking, and other devices used to regulate, warn, or guide traffic, placed on, over,
or adjacent to a street, highway, or bikeway by authority of a public agency having jurisdiction. -
ANSWER-Traffic Control Devices
All 4 work zones must conform to these (4) standards - ANSWER--MUTCD -Local -State -Comcast
(4) Typical Comcast traffic control devices - ANSWER--Cones -Signs -Vehicle strobe -High visibility
garments
(5) Principles of traffic control devices - ANSWER--Fulfill a need -Command attention -Convey a
clear, simple meaning -Command repect from road users -Give adequate time for proper
response
Score needed to pass the flagger written exam - ANSWER-80 percent
This is where a Flagger should be standing at all times. - ANSWER-Shoulder by the fog/edge line.
These two kinds of crashes occur frequently near the taper and channeling devices - ANSWER-
Fixed Object & Sideswipe
Stop/Slow retroreflective paddles must be ----- wide, and letters ------ high. - ANSWER-18" wide,
6" letters
Flaggers shall never flag from these (3) main areas. - ANSWER--On/Under a Bridge -On/Under
an overpass -In a vehicle
Retroreflective vests must be visible to this minimum distance. - ANSWER-1000 ft
For nighttime flagging, this type of safety vest should be worn. - ANSWER-Class 3
35.74 + .6215T - 35.75 (V0.16) + .4275T (V0.16) - ANSWER-Wind chill formula
The minimum mounting height from the roadway to the bottom of an electric arrow panel. -
ANSWER-7'
For portable changeable message signs, the message being stated should be visible for at least
this minimum distance. - ANSWER-650'
pf3
pf4
pf5
pf8

Partial preview of the text

Download Flagger Certification Study Guide: Questions and Answers and more Exams Advanced Education in PDF only on Docsity!

FLAGGER STUDY GUIDE

QUESTIONS AND ANSWERS

How long flagger certification is valid - ANSWER-3 years TTC - ANSWER-Temporary Traffic Control The quality or state of being conspicuous - ANSWER-Conspicuity All signals, marking, and other devices used to regulate, warn, or guide traffic, placed on, over, or adjacent to a street, highway, or bikeway by authority of a public agency having jurisdiction. - ANSWER-Traffic Control Devices All 4 work zones must conform to these (4) standards - ANSWER--MUTCD - Local - State - Comcast (4) Typical Comcast traffic control devices - ANSWER--Cones - Signs - Vehicle strobe - High visibility garments (5) Principles of traffic control devices - ANSWER--Fulfill a need - Command attention - Convey a clear, simple meaning - Command repect from road users - Give adequate time for proper response Score needed to pass the flagger written exam - ANSWER-80 percent This is where a Flagger should be standing at all times. - ANSWER-Shoulder by the fog/edge line. These two kinds of crashes occur frequently near the taper and channeling devices - ANSWER- Fixed Object & Sideswipe Stop/Slow retroreflective paddles must be ----- wide, and letters ------ high. - ANSWER-18" wide, 6" letters Flaggers shall never flag from these (3) main areas. - ANSWER--On/Under a Bridge - On/Under an overpass - In a vehicle Retroreflective vests must be visible to this minimum distance. - ANSWER-1000 ft For nighttime flagging, this type of safety vest should be worn. - ANSWER-Class 3 35.74 + .6215T - 35.75 (V0.16) + .4275T (V0.16) - ANSWER-Wind chill formula The minimum mounting height from the roadway to the bottom of an electric arrow panel. - ANSWER-7' For portable changeable message signs, the message being stated should be visible for at least this minimum distance. - ANSWER-650'

SPF - ANSWER-Sun Protection Factor Sun block SPF 20 will offer this amount of time of sun block. - ANSWER-400 minutes (20 X SPF #) The distance between the flagging station and the work space should never be less than ____ away. - ANSWER-50 ft Warning signs and channelizing devices may be omited where the work space is behind a barrier, more than 2ft behind the curb, or 15ft from the edge of any roadway - ANSWER-2ft - 15ft rule Duration of work for flagging, this is the type that occupies a location more than 3 days. - ANSWER-Long-Term Stationary Duration of work for flagging, this is the type that occupies a location more than one daylight period up to 3 days, or nighttime work lasting more than 1 hour. - ANSWER-Intermediate-Term Stationary Duration of work for flagging, this is the type that occupies a location for more than 1 hour within a single daylight period. - ANSWER-Short-Term Stationary Duration of work for flagging, this is the type that occupies a location up to 1 hour. - ANSWER- Short Duration Duration of work for flagging, this is the type that moves intermittently or continuously - ANSWER-Mobile If a driver is going 60mph and needs to make a stop, this is the distance needed to come to a complete stop - ANSWER-366 ft. What height should a staff flagging stop/slow paddle be? - ANSWER-Above eye level For night flagging, the stop/slow paddle should have ----- width and ------ letters. - ANSWER-24", 8" Three MUTCD official hand movements for flagging - ANSWER-Stop, Proceed, Alert/Slow (2) Document that must be kept on file at each system in reference to traffic control - ANSWER-- MUTCD part 6 - Local/state publications Orange Warning sign - ANSWER-Temporary Traffic Control Red Regulatory Sign - ANSWER-Stop or prohibition White or Black signs - ANSWER-Regulation Yellow Warning Sign - ANSWER-General Warning

An area that seperates road users from the work area or an unsafe area - ANSWER-Buffer spaces Guidline used for determining following distance in good conditions - ANSWER-The Three to Four Second Rule (5) Conditions under which extra time should be added to the 3 to 4 second rule - ANSWER--At night - When raining - When towing - When conditions are icy or snowing - When being tailgated The (4) areas of a traffic control zone - ANSWER--Advanced Warning Area - Transition Area - Activity Area - Termination Area Gives first indication to a road user that there is a potential hazard ahead - ANSWER-Advanced Warning Area Where road users are redirected out of thier normal path - ANSWER-Transitition Area Location where the work takes place in traffic control zone - ANSWER-Activity Area Used to return road users to thier normal path - ANSWER-Termination Area The (3) categories of road signs - ANSWER--Regulatory - Warning - Guide

  • Gives notice to road and traffic laws or regulations. These signs impose legal obligations and/or restrictions on all traffic - Generally rectangular (long verticall) - Black lettering, white background
  • ANSWER-Regulatory Sign
  • Gives notice to road users of a situation that might not be readily apparent - Genrally diamond shape (48" X 48") - Temporary signs are orange with black lettering - Permanent signs are yellow with black lettering - ANSWER-Warning Signs
  • Show route destinations, destinations, directions, distances, services, points of interest, or other geographical information - Rectangular shape (long horizontal) - Temporary signs are orange with black lettering - Permanent signs are green with white lettering - ANSWER-Guide Signs (4) Road Types - ANSWER--Urban Low Speed (25-30 mph) - Urban High Speed (35-40 mph) - Rural (45-55 mph) - Expressway/Freeway (55+ mph) The straight away area between the work area and lane of traffic that runs from taper to taper - ANSWER-Tangent Taper length formula for posted speed 45 MPH or faster - ANSWER-L = WS (L is taper length in feet) (W is width of lane to be closed or offset) (S is posted speed limit)

Taper length formula for posted speed 40 MPH or less - ANSWER-L = WS(squared)/60 (L is taper length in feet) (W is width of lane to be closed or offset) (S is posted speed limit) Suggested advanced warning sign spacing for Urban(low speed) - ANSWER-A 100ft B 100ft C 100ft Suggested advanced warning sign spacing for Urban (high speed) - ANSWER-A 350ft B 350ft C 350ft Suggested advanced warning sign spacing for Rural - ANSWER-A 500ft B 500ft C 500ft Suggested advanced warning sign spacing for Freeway/Expressway - ANSWER-A 1000ft B 1500ft C 2640ft Equiptment used in a traffic control zone to divert traffic from its normal path - ANSWER- Channelization Devices The distance required to safely route traffic from its normal path - ANSWER-Taper Length How high temporary signs must be mounted above the traveled way - ANSWER-1 ft Nighttime or high speed roads, traffic cones shall be this minimum height. - ANSWER-28" When 3 flaggers are required, this most experienced flagger should be designated the lead flagger. - ANSWER-Middle Flagger Least desirable method used to control traffic - ANSWER-Baton System While setting up a night traffic control zone, the controls shall be setup/taken down at these times. - ANSWER-1/2 hour before sunset, 1/2 hour after sunrise (3) Types of pavement markings - ANSWER--Paint - Pressure sensitive tape - Raised pavement markers (3) Types of electric lights used to alert and guide motorists and pedestrians safely around a work site. - ANSWER--Floodlights - Steady-Burning - Warning These are low intensity flashing lights mounted on barricades, drums, panels or other advanced warning signs. - ANSWER-Type A These are high intensity flashing lights mounted on advance warning sings to mark extremely hazardous conditions. - ANSWER-Type B These are steady burn lights used to mark the roadway edge during nighttime hours. - ANSWER- Type C

Under OSHA standards, bonds between the suspension strand and the existing ground shall be at least this - ANSWER-No. 6 AWG copper PCB - ANSWER-polychlorinated biphenyls Cancer-causing agent older transformers may contain - ANSWER-PCB (polychlorinated biphenyls) The (2) times durring ladder handling when accidents are most likely to occur - ANSWER--On the way down - Within 10 feet of the ground Instance when fall protection is necessary - ANSWER-Anytime working near an edge that is 6 feet or more above a lower surface (4) situations when OSHA requires the use of a 5-point safety harness - ANSWER--Bucket trucks

  • Climbing towers - Rooftops - Confined Space Definiton of low slope roof - ANSWER-A roof having a slope less than or equal to 4: Definition of steep roof - ANSWER-A roof having a slope greater than 4: (3) Types of fall protection for unprotected side or edge - ANSWER--Guardrail system (toe boards for steep roof) - Safety net system - Personal fall arrest system Required fall protection for low slope roof less than 50 ft width - ANSWER-Safety monitoring system (4) Required fall protection devices for low slope roof greater than 50 ft width - ANSWER-- Guardrail - Safety net - Personal fall arrest system - Warning line Minimum height of guardrail - ANSWER-Between 39'' and 45'' Minimum height of safety nets below the working enviornment - ANSWER-30 ft Distance of safety line from roof edge - ANSWER-6 ft Person who accompanies workers on roof to warn workers who get to close to the edge - ANSWER-Safety Monitoring System (4) Components of personal fall arrest system - ANSWER--Rigged for 6ft free fall max, no contact with lower surface - Anchor point must support up to 5000 lbs per employee - D-ring attatchment will be at back, shoulder level - Must be inspected prior to each use Fall rate for person without arrest system - ANSWER-4 ft in 1/2 second Technician action when roof damage is found - ANSWER-Leave the roof immediately

OSHA standard concerning rooftop safety - ANSWER-1926. Minimum passing score for pole climbing written test - ANSWER-92 % Passing score for practical test climb (pole & ladder) - ANSWER-Pass / fail (4) Mandatory parts to passing a pole climbing practical exam - ANSWER--10' Hitchhike - 18' climb - Maneuver around the pole 180 degrees - Trust it and Prove it If attempting to climb higher than 4 ft, one of these 3 fall protection methods are mandatory - ANSWER--Double lanyard system - Fixed Cable System - Retractable System OSHA regulation for pole climbing - ANSWER-OSHA 1910-268 Title 29 (5) Charectoristics of work shirts used when pole climbing - ANSWER--Long sleeves - 100% cotton - Sleeves buttoned and extended - Use kevlar gloves in lieu of sleeves - Avoid synthetic materials ANSI rating for safety glasses - ANSWER-Z87.1- 2003 OSHA rating for body belts - ANSWER-OSHA 1910.268(G)(2)(i)-(ii), and 1929. OSHA specification for Safety strap - ANSWER-OSHA 1910.268(G)(2)(i)-(ii), and 1929. Condition suggested by excessivly slack or taught lines attatched to pole - ANSWER-Excessive lean (4) Recommended "extra" safety equiptment in truck for adverse weather or rural conditions - ANSWER--Food - Water - Blanket - Change of clothes Most common pole preservative - ANSWER-Pentachlorophenol Least desirable preservative used on poles - ANSWER-Creasote What to do if lighting is present in your work enviornemnt (2) - ANSWER--Do not work outside - Do not work on pole Question one should ask before pole climbing - ANSWER-"Am I willing to bet my life on it?" MUTCD - ANSWER-Manual on Uniform Traffic Control Devices NHTSA - ANSWER-National Highway Traffic Safety Administration TMA - ANSWER-Truck Mounted Attenuator HAR - ANSWER-Highway Advisory Radio
