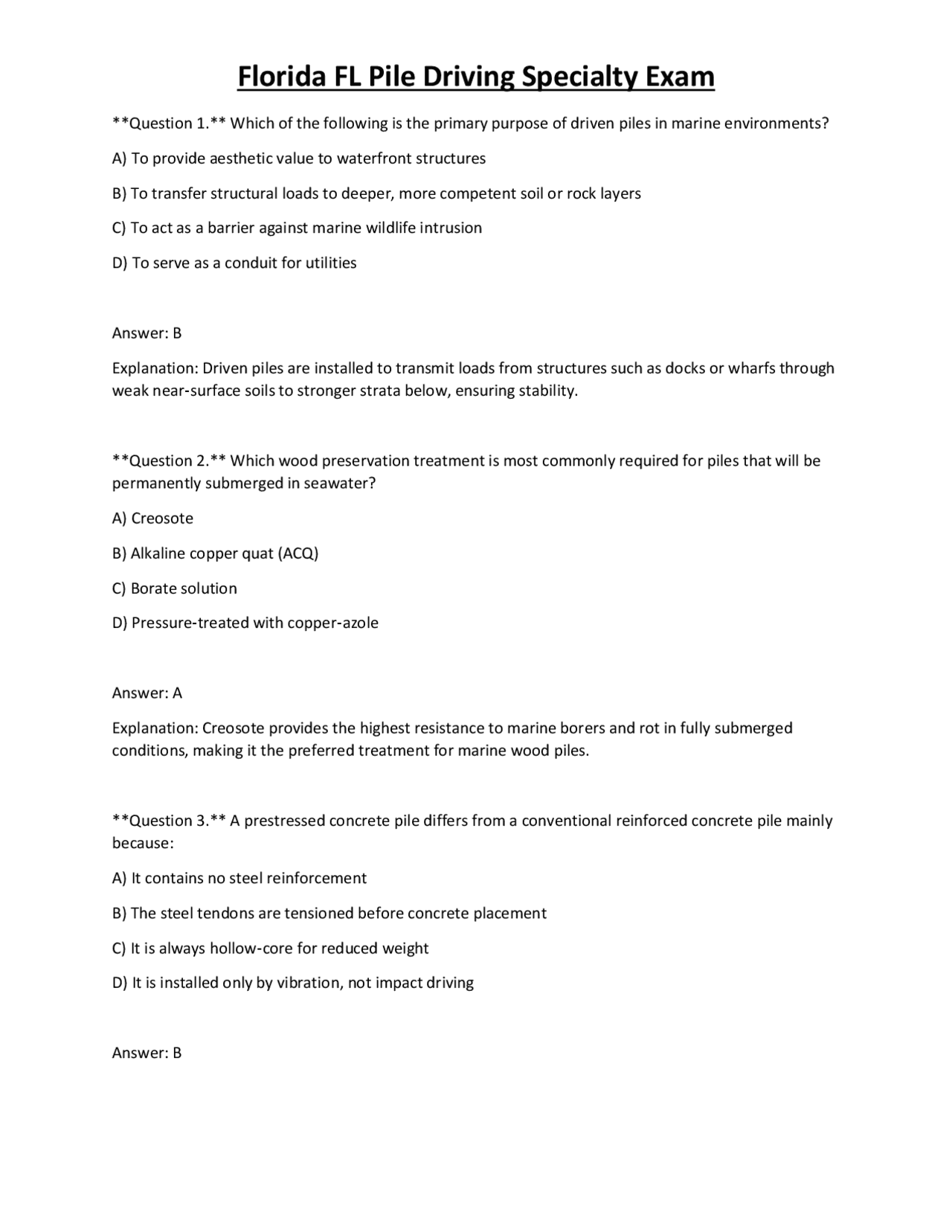

Question 1. Which of the following is the primary purpose of driven piles in marine environments? A) To provide aesthetic value to waterfront structures B) To transfer structural loads to deeper, more competent soil or rock layers C) To act as a barrier against marine wildlife intrusion D) To serve as a conduit for utilities Answer: B Explanation: Driven piles are installed to transmit loads from structures such as docks or wharfs through weak near‑surface soils to stronger strata below, ensuring stability. Question 2. Which wood preservation treatment is most commonly required for piles that will be permanently submerged in seawater? A) Creosote B) Alkaline copper quat (ACQ) C) Borate solution D) Pressure‑treated with copper‑azole Answer: A Explanation: Creosote provides the highest resistance to marine borers and rot in fully submerged conditions, making it the preferred treatment for marine wood piles. Question 3. A prestressed concrete pile differs from a conventional reinforced concrete pile mainly because: A) It contains no steel reinforcement B) The steel tendons are tensioned before concrete placement C) It is always hollow‑core for reduced weight D) It is installed only by vibration, not impact driving Answer: B
Explanation: In prestressed concrete piles, steel tendons are tensioned (prestressed) before concrete is poured, giving the pile higher load capacity and reduced cracking under service loads. Question 4. Which steel pile type is most suitable for high‑load, deep‑foundation applications where lateral resistance is critical? A) Sheet pile B) H‑pile C) Pipe pile D) T‑pile Answer: B Explanation: H‑piles have a wide flange shape that provides excellent axial and lateral capacity, making them ideal for deep foundations requiring high load resistance. Question 5. End‑bearing piles primarily develop capacity through: A) Skin friction along the shaft B) Direct contact with a firm bearing stratum at the pile tip C) Interlocking with adjacent piles D) Chemical bonding with the surrounding soil Answer: B Explanation: End‑bearing piles transfer loads to a hard layer (rock or dense sand) at the tip, whereas friction piles rely on shaft skin friction. Question 6. The main function of a pile cushion (cap block) during impact driving is to: A) Increase the hammer’s striking energy B) Reduce stress concentrations at the pile head C) Provide a smooth, uniform striking surface for the hammer ram D) Act as a permanent structural component of the pile
D) The load at which settlement reaches 2 in. Answer: B Explanation: The allowable bearing capacity is usually set at 75 % of the ultimate load (the load at which the pile shows a marked increase in settlement) to provide a safety margin. Question 10. Which corrosion protection method is most effective for steel pipe piles installed in a marine environment? A) Galvanizing only B) Painting with epoxy coating only C) Cathodic protection combined with a high‑performance coating D) Applying a sacrificial zinc anode only Answer: C Explanation: Combining cathodic protection (to control electrochemical corrosion) with a durable coating offers the highest level of protection for steel piles in seawater. Question 11. OSHA regulation 29 CFR 1926.1410 pertains to: A) Fall protection for workers on elevated platforms B) Requirements for crane and derrick operation C) Personal protective equipment for hand tools D) Confined space entry Answer: B Explanation: 29 CFR 1926.1410 outlines safety standards for the use of cranes and derricks, including stability, inspection, and operator qualifications. Question 12. Which of the following is a required component of a “Call Before You Dig” (CBYD) program in Florida? A) Submission of a detailed pile driving schedule to the USACE
B) Notification to the Florida Department of Transportation at least 48 hours prior to excavation C) Filing a notice with the local utility companies and the state’s One‑Call Center (811) D) Obtaining a marine construction permit from the EPA Answer: C Explanation: The CBYD program requires notifying the statewide 811 service (One‑Call Center) to locate underground utilities before any excavation, including pile driving. Question 13. When splicing two steel H‑piles, the most common method to achieve a full‑strength connection is: A) Over‑lapping the ends by 12 in. and welding the flanges together B) Using a mechanical splice sleeve that bolts to the web plates of each pile C) Butt‑welding the ends directly without a splice plate D) Installing a concrete collar around the splice area Answer: B Explanation: Mechanical splice sleeves are designed to transfer axial loads efficiently and are approved for full‑strength connections in pile splicing. Question 14. Which soil condition most likely requires the use of a friction‑type pile rather than an end‑bearing pile? A) Dense sand at 10 ft depth B) Massive limestone at 30 ft depth C) Soft clay extending to 40 ft depth with no competent layer D) Gravelly sand with a thin stiff layer at 5 ft Answer: C Explanation: In soft clay with no hard bearing stratum, friction piles develop capacity through skin friction along the shaft, as end‑bearing is not feasible.
Question 18. Which document must be submitted to the U.S. Army Corps of Engineers (USACE) for a new pier construction in navigable waters? A) Section 404 Clean Water Act permit application B) Section 106 historic preservation review C) Section 7(a) Nationwide Permit (NWP) request D) Section 402 NPDES discharge permit Answer: C Explanation: For most pier projects in navigable waters, a Section 7(a) NWP is required to authorize the work under the Clean Water Act. Question 19. When conducting a dynamic pile analysis (PDA), the “wave‑time” recorded by the accelerometer is used to estimate: A) Pile tip resistance B) Soil damping characteristics C) The number of blows required for refusal D) The pile’s lateral deflection Answer: A Explanation: Wave‑time, the duration of the stress wave traveling down the pile, is correlated with tip resistance in dynamic analysis. Question 20. A “deadman” used in a bulkhead tie‑back system primarily provides: A) Lateral load resistance against water pressure B) A point of uplift resistance for the bulkhead wall C) An anchorage for the sheet‑pile cutoff D) A decorative element for the shoreline Answer: B
Explanation: A deadman is an embedded mass (often concrete) that resists uplift forces transmitted by tie‑backs, stabilizing the bulkhead. Question 21. Which of the following PPE items is mandatory for workers operating a hydraulic pile driver on a barge? A) Heat‑resistant gloves B) Fall arrest harness with a 6 ft lanyard C) Hearing protection (earplugs or earmuffs) D) Respiratory mask with P100 filter Answer: C Explanation: Hydraulic pile drivers generate high noise levels; hearing protection is required to prevent hearing loss. Question 22. The term “batter” in pile installation refers to: A) The angle of the pile relative to vertical B) The amount of hammer energy applied per blow C) The type of steel used in the pile’s shaft D) The depth of the pile’s embedment Answer: A Explanation: Batter describes the intentional inclination (often expressed in degrees or percent) of a pile from the vertical to meet design requirements. Question 23. In a concrete pile, a “voided” (or hollow) design is primarily used to: A) Reduce the pile’s weight for easier handling B) Increase the pile’s compressive strength C) Provide a conduit for utilities within the pile D) Improve resistance to marine borers
D) Composite fiberglass piles Answer: C Explanation: Sulfate ions in seawater can react with calcium aluminate phases in ordinary Portland cement, leading to deterioration; sulfate‑resisting cement is required to mitigate this. Question 27. When performing a pre‑excavation augering for a pile, the primary purpose is to: A) Install a temporary casing to prevent soil collapse B) Remove all groundwater before pile driving C) Reduce the impact energy needed to drive the pile by removing weak soil D) Place reinforcement bars before concrete placement Answer: C Explanation: Pre‑excavation removes loose or weak soil, decreasing driving resistance and minimizing the number of blows required. Question 28. The “maximum allowable vibration velocity” for marine pile driving near sensitive marine fauna, as recommended by NOAA, is: A) 0.5 in/s B. 2.0 in/s C. 5.0 in/s D. 10.0 in/s Answer: A Explanation: NOAA guidelines often set a low threshold (≈0.5 in/s) to protect marine organisms from harmful vibration exposure. Question 29. Which of the following is a typical acceptance criterion for pile driving based on “blow count” in the Florida Building Code? A) No more than 10 blows per foot of penetration after the first 10 ft
B. A maximum of 30 blows per 12 in. for the final 6 ft of driving C. Refusal defined as < 1 in. of penetration after 30 blows at full energy D. Unlimited blows allowed as long as the pile reaches design depth Answer: C Explanation: The code often defines refusal as an inability to advance the pile at least 1 in. after a specified number of blows (commonly 30) at full hammer energy. Question 30. In the context of marine construction, “BMP” stands for: A) Base Material Profile B) Best Management Practice C) Bulkhead Maintenance Procedure D) Bridge Monitoring Program Answer: B Explanation: BMP refers to Best Management Practices, which are recommended methods to minimize environmental impact during construction. Question 31. Which of the following is the most common method for protecting a wood pile from marine borer attack after installation? A) Applying a polyurethane coating B) Wrapping the pile with high‑density polyethylene (HDPE) sheathing C) Installing a steel sleeve over the pile shaft D) Using a sacrificial anode system Answer: B Explanation: HDPE sheathing creates a physical barrier that prevents marine borers from accessing the wood surface. Question 32. The term “spudding” in pile installation refers to:
Question 35. When a pile driver’s hydraulic system is operating at a pressure of 3,000 psi, the primary safety concern is: A) Over‑heating of the hydraulic fluid B) Accidental release of high‑pressure fluid causing injury C) Excessive vibration transmitted to the barge D. Electrical shock from the control panel Answer: B Explanation: High‑pressure hydraulic fluid can cause severe injuries if a hose ruptures or a fitting fails; proper safeguards are essential. Question 36. Which of the following statements best describes “littoral rights” in Florida? A) The right of a landowner to extract groundwater beneath the property B. The right to reasonable use of the shoreline and water adjacent to the property C) The exclusive right to fish in the adjacent water body D) The obligation to maintain public access to the beach Answer: B Explanation: Littoral rights grant property owners reasonable use of the adjoining shoreline and water, subject to state regulations. Question 37. In a static load test, a pile shows a settlement of 0.25 in. at 150 kips and 0.50 in. at 300 kips. The estimated ultimate load (using the 0.5 in. settlement criterion) is approximately: A) 300 kips B) 400 kips C) 600 kips D) 800 kips Answer: C
Explanation: Assuming linear behavior, doubling the load from 150 kips (0.25 in.) to 300 kips (0.50 in.) suggests 0.5 in. settlement at 300 kips; however, the 0.5 in. criterion is met at 300 kips, so the ultimate load is often taken as 2 × 300 kips = 600 kips for safety. Question 38. Which of the following is a primary factor influencing the selection of a pile driving hammer type for a given project? A) Color of the pile material B) Desired driving speed and soil resistance C) Availability of a nearby power plant D) The contractor’s preference for brand Answer: B Explanation: Soil resistance, required driving energy, and project schedule dictate whether a hydraulic, diesel, or vibratory hammer is most appropriate. Question 39. The “one‑call” number for underground utility location in Florida is: A) 911 B) 811 C) 800‑ 555 ‑ 1234 D. 305‑ 555 ‑ 6789 Answer: B Explanation: 811 is the national “Call Before You Dig” number used to locate underground utilities before excavation. Question 40. In a sheet‑pile bulkhead, the term “deadman” refers to: A) The concrete cap placed on top of the sheet pile wall B) The buried anchor mass that resists overturning forces C) The temporary wooden form used during construction D. The corrosion‑resistant coating applied to the sheet pile
C. The pile reaches the design embedment depth D. The pile driver’s hydraulic pressure drops below 500 psi Answer: B Explanation: Refusal is defined by the inability to advance the pile a specified distance after a predetermined number of blows, indicating insufficient bearing capacity. Question 44. Which of the following is NOT a typical component of a “pile driving record” required for project documentation? A) Hammer energy per blow B. Soil type encountered at each depth C. Number of blows and penetration per blow D. Weather forecast for the next 24 hours Answer: D Explanation: While weather may affect operations, it is not a mandatory element of the pile driving log. Question 45. In a marine environment, the most common cause of “blow‑by” (loss of driving efficiency) is: A) Over‑lubrication of the hammer cylinder B) Excessive pile head rotation during driving C) Inadequate cushion thickness causing premature hammer rebound D. Use of a diesel hammer in low‑temperature conditions Answer: C Explanation: Insufficient cushion thickness can cause the hammer to rebound before full energy transfer, reducing driving efficiency. Question 46. Which of the following best describes the purpose of a “lead line” in a pile‑driving operation?
A) To transmit hydraulic fluid to the hammer B) To guide the pile vertically and laterally during installation C) To measure the depth of the pile tip D. To provide a safety barrier for workers Answer: B Explanation: Lead lines (or frames) keep the pile plumb and aligned while being driven. Question 47. The term “spoil” in pile driving refers to: A) The pile’s head cap block B) The material excavated or displaced during driving C) The hydraulic fluid used in the hammer D. The protective coating applied to steel piles Answer: B Explanation: Spoil is the soil or sediment removed or displaced as the pile penetrates the ground. Question 48. Which of the following is a primary advantage of using a “vibratory driver” over an impact hammer for installing sheet piles? A) Higher driving energy per blow B) Ability to install piles in rock without pre‑drilling C) Reduced noise and vibration levels D. Faster installation in dense clay Answer: C Explanation: Vibratory drivers generate lower noise and vibration, making them suitable for environmentally sensitive projects. Question 49. For a steel H‑pile installed in a marine environment, the most common splicing method to achieve a full‑strength connection is:
Question 52. In the context of marine pile driving, “bore‑hole friction” is most relevant to which type of pile? A) End‑bearing concrete pile B) Friction‑type steel pipe pile C. Pre‑cast wood pile D. Sheet pile wall Answer: B Explanation: Friction piles develop capacity primarily through skin friction along the shaft, making bore‑hole friction a critical design factor. Question 53. Which of the following best describes the purpose of a “pile cushion” made of rubber or neoprene? A) To increase the pile’s load‑bearing capacity B) To absorb impact energy and protect the hammer and pile head C) To act as a permanent seal against water ingress D. To provide a decorative finish to the pile head Answer: B Explanation: Rubber or neoprene cushions absorb and distribute the hammer’s impact, reducing damage to both equipment and pile. Question 54. When a pile is driven into a layer of dense sand, the most likely cause of “excessive blow count” is: A) Under‑driven pile head B) Presence of a buried boulder or rock fragment C. Inadequate hammer energy setting D. Excessive water pressure in the surrounding soil Answer: B
Explanation: A hard inclusion such as a boulder can significantly increase resistance, leading to a high blow count. Question 55. Which of the following is the primary regulatory body for issuing permits for work in Florida’s intracoastal waterways? A) Florida Department of Transportation (FDOT) B) U.S. Army Corps of Engineers (USACE) C) Florida Department of Environmental Protection (FDEP) D. Florida Fish and Wildlife Conservation Commission (FWC) Answer: B Explanation: The USACE issues Section 404 permits for activities affecting intracoastal waterways. Question 56. In a pile‑driving operation, the term “over‑driving” refers to: A) Driving a pile beyond the design embedment depth, potentially causing damage to the pile or surrounding soil B) Using a hammer with more energy than specified in the contract C) Installing a pile with a larger diameter than required D. Driving a pile at an excessive speed Answer: A Explanation: Over‑driving can lead to unnecessary stress on the pile and may compromise the design intent or cause environmental issues. Question 57. Which of the following best describes the “static load test” procedure for a driven pile? A) Applying a series of dynamic blows and measuring acceleration B) Incrementally loading the pile with a hydraulic jack while monitoring settlement C. Measuring the pile’s resistance with a penetrometer during driving D. Using a load cell to record the impact force of each hammer blow
