Exam

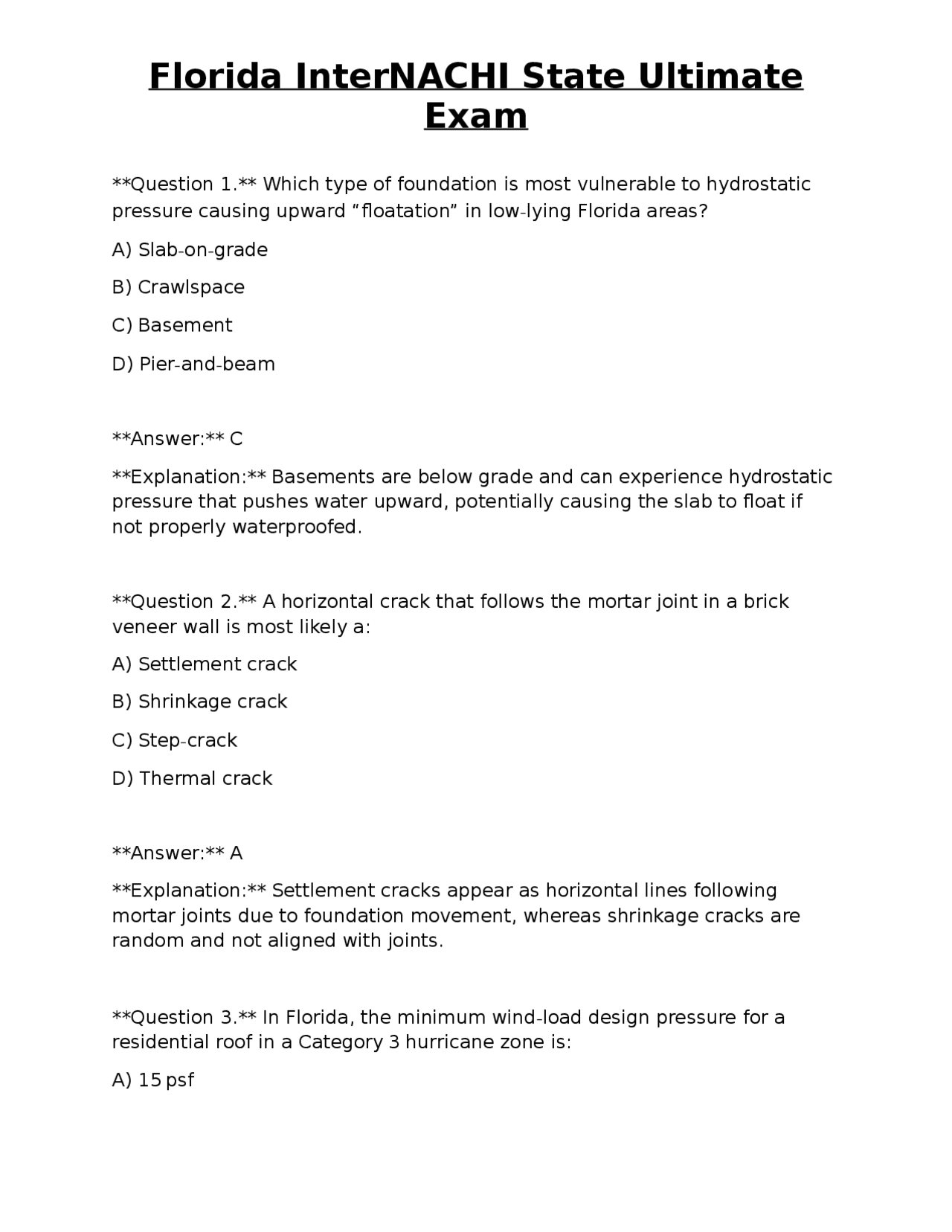

Question 1. Which type of foundation is most vulnerable to hydrostatic pressure causing upward “floatation” in low-lying Florida areas? A) Slab-on-grade B) Crawlspace C) Basement D) Pier-and-beam Answer: C Explanation: Basements are below grade and can experience hydrostatic pressure that pushes water upward, potentially causing the slab to float if not properly waterproofed. Question 2. A horizontal crack that follows the mortar joint in a brick veneer wall is most likely a: A) Settlement crack B) Shrinkage crack C) Step-crack D) Thermal crack Answer: A Explanation: Settlement cracks appear as horizontal lines following mortar joints due to foundation movement, whereas shrinkage cracks are random and not aligned with joints. Question 3. In Florida, the minimum wind-load design pressure for a residential roof in a Category 3 hurricane zone is: A) 15 psf
Exam
B) 30 psf C) 45 psf D) 60 psf Answer: B Explanation: The Florida Building Code requires a minimum of 30 psf for residential roofs in Category 3 zones to resist wind pressures. Question 4. Which of the following roofing materials is most resistant to mold growth in humid Florida climates? A) Asphalt shingles B) Wood shake C) Metal roofing D) Built-up roofing (BUR) Answer: C Explanation: Metal roofing does not absorb moisture and therefore resists mold and mildew growth better than organic or porous materials. Question 5. The primary purpose of a kick-out flashing at a roof-to-wall intersection is to: A) Prevent ponding water on the roof deck B) Direct water away from the wall-side wall flashing C) Seal the roof penetrations D) Support the ridge vent Answer: B
Exam
C) 10 sq ft D) 12 sq ft Answer: B Explanation: Florida building code mandates a minimum of 8 sq ft of unobstructed opening for egress windows. Question 9. The recommended site grading slope away from a foundation in Florida is: A) 2 in in 10 ft B) 4 in in 10 ft C) 6 in in 10 ft D) 8 in in 10 ft Answer: C Explanation: A 6-inch drop over 10 feet directs water away from the foundation, reducing moisture intrusion risks. Question 10. Which of the following deck attachment methods is required by Florida code to resist uplift forces from hurricanes? A) Simple toe-nails B) Lag bolts without washers C) Hurricane-rated deck screws with metal joist hangers D) Glue-down decking Answer: C Explanation: Hurricane-rated deck screws and metal joist hangers provide the necessary pull-out strength to resist uplift.
Exam
Question 11. A service entrance panel that contains a “dual-pole” breaker protecting a 240 V circuit must have: A) Two separate neutral bars B) A bonded neutral to the panel ground C) A common trip mechanism for both poles D) A separate ground fault interrupter Answer: C Explanation: Dual-pole breakers are mechanically linked so both poles open simultaneously, providing proper protection for 240 V circuits. Question 12. Which brand of circuit breaker is specifically listed in the InterNACHI SOP as a “dangerous” brand that should be noted but not repaired? A) Square D B) Federal Pacific C) Siemens D) Eaton Answer: B Explanation: Federal Pacific breakers are known for unreliable tripping and are flagged in the SOP as a safety concern. Question 13. The most common cause of double-tapping in residential panels is: A) Improper grounding B) Overloaded circuits
Exam
Question 16. An AFCI device is primarily designed to protect against: A) Overcurrent B) Ground faults C) Arc-fault fires D) Short circuits Answer: C Explanation: AFCI (Arc Fault Circuit Interrupter) detects dangerous arcing conditions that can cause electrical fires. Question 17. Which type of HVAC condensate disposal is prohibited in Florida due to potential mold growth? A) Direct drain to a floor drain B) Horizontal PVC pipe vented to the exterior C) A standing tray inside the attic D) A properly sloped PVC pipe to a floor drain Answer: C Explanation: A standing tray can retain water, fostering mold and mildew; proper sloped piping is required. Question 18. A “Delta T” of 20 °F in a residential HVAC system indicates: A) The system is oversized B) Poor airflow or duct leakage C) Proper temperature differential D) Low refrigerant charge
Exam
Answer: C Explanation: A 20 °F temperature drop across the cooling coil is typical for a properly functioning system. Question 19. The most common location for duct leakage in a typical Florida home is: A) At the furnace plenum connections B) At the thermostat wiring C) Inside the attic insulation D) At the outdoor condenser coil Answer: A Explanation: Leaks often occur where flexible ducts attach to the furnace plenum, especially if not sealed with mastic or foil tape. Question 20. Which of the following HVAC refrigerants has been phased out due to high ODP and GWP? A) R- 22 B) R-410A C) R- 32 D) R-410B Answer: A Explanation: R-22 (HCFC-22) is being phased out because of its ozone depletion potential and high global warming potential.
Exam
Answer: B Explanation: The TPR valve releases water when temperature or pressure exceeds safe limits, protecting the tank from rupture. question 24. In Florida, a DWV vent pipe must be located at least how many inches above the roof surface to prevent blockage? A) 6 in B) 12 in C) 18 in D) 24 in Answer: B Explanation: The code requires vent terminations to be at least 12 in above the roof surface to avoid rain or debris blockage. question 25. Which of the following is a sign of a failing P-trap in a bathroom sink? A) Continuous gurgling sound B) Warm water temperature C) Increased water pressure D) Stiff faucet handles Answer: A Explanation: A gurgling sound indicates air entering the drain due to a compromised trap seal.
Exam
question 26. The most common material used for modern residential shower pan waterproofing in Florida is: A) Asphalt felt B) Polyethylene sheet (PE) C) Cementitious waterproofing membrane D) Vinyl liner Answer: C Explanation: Cementitious membranes are widely used for their durability and resistance to water penetration in shower pans. question 27. A “seismic strap” on a water heater is required in Florida when: A) The heater is over 50 gal B) The heater is installed on a slab foundation C) The heater is located on a wall-mounted bracket in a high-wind zone D) The heater is above the second floor Answer: C Explanation: In high-wind or seismic zones, straps secure the heater to prevent tipping during movement. question 28. Which of the following flooring defects is most indicative of subfloor rot? A) Minor surface scratches B) Soft, spongy feel when stepping C) Slight discoloration of finish D) Loose tongue-and-groove joints
Exam
question 31. In attic ventilation, the recommended ratio of net free vent area to attic floor area in Florida is: A) 1: B) 1: C) 1: D) 1: Answer: B Explanation: A 1:200 ratio ensures adequate airflow to prevent moisture buildup and heat accumulation. question 32. Which of the following vapor barrier placements is correct for a Florida climate where cooling dominates? A) On the warm side of the insulation (interior) B) On the cold side of the insulation (exterior) C) Directly against the roof deck D) No vapor barrier is required Answer: A Explanation: In hot, humid climates, the vapor barrier is placed on the interior (warm side) to stop indoor moisture from entering the insulation. question 33. FS 468 Part XV primarily governs: A) Building construction standards B) Home inspection licensing and practice in Florida C) Electrical code enforcement D) HVAC efficiency ratings
Exam
Answer: B Explanation: FS 468 Part XV outlines the statutes that regulate home inspectors, including licensing and professional conduct. question 34. According to InterNACHI Standards of Practice, which of the following is excluded from a standard home inspection? A) Roof covering condition B) Visible interior wall condition C) Presence of mold behind walls D) Function of installed HVAC system Answer: C Explanation: InterNACHI SOP excludes hidden mold detection; inspectors only report visible evidence. question 35. A conflict of interest for a home inspector is created when the inspector: A) Provides a written report to the client B) Offers to repair defects found during inspection for a fee C) Uses a digital camera for documentation D) Attends a continuing education course Answer: B Explanation: Offering repair services to the client creates a conflict of interest, violating ethical standards. question 36. The most common wood-destroying organism (WDO) found in Florida homes is:
Exam
Explanation: Load-bearing walls are identified by structural plans or by confirming they support joists or beams above. question 39. Which roofing flashings are most prone to failure due to thermal movement in Florida’s climate? A) Valley flashings B) Counter-flashing around chimneys C) Drip-edge flashings D) Roof-to-wall transition flashings Answer: D Explanation: Transition flashings experience repeated expansion and contraction, leading to cracks and leakage. question 40. The purpose of a “storm shutter” on a Florida residential window is to: A) Reduce solar heat gain B) Protect against wind-borne debris during hurricanes C) Improve sound insulation D) Provide privacy Answer: B Explanation: Storm shutters are installed to shield windows from impact of debris in high-wind events. question 41. When inspecting a residential electrical panel, the presence of a “knob-and-tube” style conduit inside the panel is: A) Acceptable if the wires are insulated
Exam
B) A code violation and safety hazard C) Allowed only in new construction D) Required for grounding Answer: B Explanation: Knob-and-tube wiring is outdated and not permitted inside panels due to fire risk. question 42. Which of the following is the most reliable indicator of inadequate roof ventilation in a Florida home? A) Presence of moss on shingles B) Darkened underside of the roof deck C) Ice dams in winter D) Excessive attic temperature relative to outdoor Answer: D Explanation: High attic temperatures indicate poor ventilation, leading to heat buildup and potential premature roof aging. question 43. The minimum R-value required for attic insulation in a Florida climate zone is: A) R- 13 B) R- 19 C) R- 30 D) R- 38 Answer: B
Exam
B) Silent operation with no vibration C) Warm air from the supply registers D) Low static pressure Answer: A Explanation: Continuous water flow indicates the pump is not shutting off, suggesting a malfunction. question 47. In a Florida home with a slab-on-grade foundation, the most common cause of interior wall cracks is: A) Tree root intrusion B) Soil expansion from moisture changes C) Wind uplift on the roof D) Termite activity Answer: B Explanation: Moisture fluctuations cause expansive soils to shift, leading to cracks in interior walls. question 48. A “hard-wired” smoke detector must be interconnected with the home’s: A) HVAC system B) Electrical panel via a dedicated circuit C) Other smoke detectors on the same circuit D) Security alarm system Answer: C
Exam
Explanation: Interconnected detectors ensure that activation of one alarm triggers all detectors on the circuit. question 49. Which of the following is the most common cause of a “hot water recirculation loop” failure in Florida homes? A) Incorrect pipe sizing B) Air lock in the loop C) Use of copper piping D) Oversized water heater Answer: B Explanation: Air trapped in the recirculation loop prevents water flow, causing the system to malfunction. question 50. The presence of “efflorescence” on a concrete basement wall indicates: A) High humidity inside the foundation B) Leaking water carrying soluble salts to the surface C) Improper curing of concrete D) Presence of mold Answer: B Explanation: Efflorescence is a white deposit of salts left when water evaporates, signaling moisture intrusion. question 51. When inspecting a metal roof, a “crown” or raised area at a seam is most likely caused by: A) Thermal expansion of the metal panels
